- Page 1 AUTODOME IP starlight 5000i NDP‑5512‑Z30C│NDP‑55A2‑Z30C│NDP‑55A2‑Z30CY Installation Manual...
-
Page 3: Table Of Contents
AUTODOME IP starlight 5000i Table of contents | en Table of contents Safety About this manual Legal information Safety precautions Important safety instructions Connection in applications Important notices Customer support and service Introduction Establishing the connection Configuration with Project Assistant app... -
Page 4: Safety
Legal information Copyright This manual is the intellectual property of Bosch Security Systems, Inc. and is protected by copyright. All rights reserved. Trademarks All hardware and software product names used in this document are likely to be registered trademarks and must be treated accordingly. -
Page 5: Important Safety Instructions
® Electrical Code (NEC)), Canadian Electrical Code, Part I (also called CE Code or CSA C22.1), and all applicable local codes. Bosch Security Systems accepts no liability for any damages or losses caused by incorrect or improper installation. Warning! Bosch’s version of High PoE: If supplying power to the camera by HPoE or a midspan device, you must install additional surge protection. -
Page 6: Connection In Applications
Video loss - Video loss is inherent to digital video recording; therefore, Bosch Security Systems cannot be held liable for any damage that results from missing video information. -
Page 7: Important Notices
AUTODOME IP starlight 5000i Safety | en Important notices Indoor use only (NDP-5512-Z30C) - The product shall only be used indoors. Ethernet network should be connected to a network environment, which must comply with the following conditions: 1.1 The function of the ITE being investigated to IEC 60950-1 is considered not likely to require connection to an Ethernet network with outside plant routing, including a campus environment. - Page 8 | Safety AUTODOME IP starlight 5000i For use in China: CHINA ROHS DISCLOSURE TABLE Moving cameras Hazardous substance table according to SJ/T 11364-2014 Cr 6+ PBDE (Pb) (Hg) (Cd) (Cr 6+) (PBB) (PBDE) Housing & enclosures PCBA with connectors...
-
Page 9: Customer Support And Service
AUTODOME IP starlight 5000i Safety | en Customer support and service If this unit needs service, contact the nearest Bosch Security Systems Service Center for authorization to return and shipping instructions. USA and Canada Telephone: 800-289-0096, option 5 Fax: 800-366-1329 Email: repair@us.bosch.com... -
Page 10: Introduction
You can also use the Project Assistant app to complete the initial configuration of the camera. In order to use this device with the Project Assistant app by Bosch, you must download the app from the Bosch Download Store, from Google Play, or from the Apple Store. -

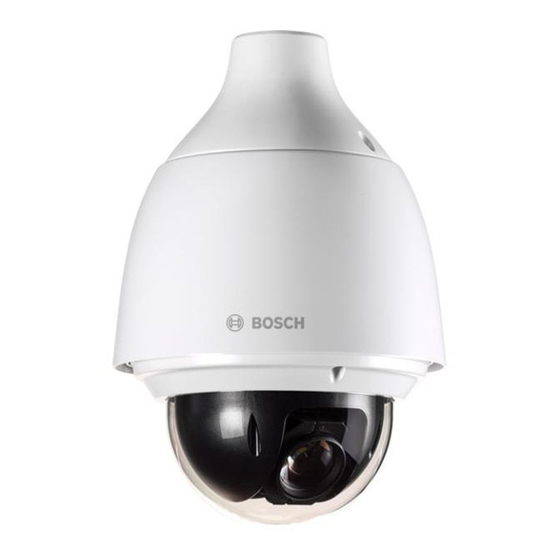

Page 11: Product Description
Specially designed and tuned for applications requiring surveillance in scenes with varying light levels, the AUTODOME IP starlight 5000i camera has an integrated 30X optical zoom to identify people at a maximum distance of 183 m (600 ft) with minimal loss of detail. -
Page 12: Preparing Wiring
| Preparing Wiring AUTODOME IP starlight 5000i Preparing Wiring Prepare and install all wiring for 24 VAC, PoE+ (Cat5e/Cat6), alarms, and audio as necessary. For 24 VAC, follow the recommendations for maximum cable distance and wire gage. Maximum cable distance in meters (feet) per minimum cable diameter The following table identifies the recommended transmission distance (maximum) in meters (feet), based on the specified wattage, per the minimum cable diameter (in mm²), when the... -
Page 13: Preparing The Camera
AUTODOME IP starlight 5000i Preparing the Camera | en Preparing the Camera Note: For pendant models, use T15. For in-ceiling models, use T10. Loosen the three (3) Hex screws in the trim ring / bubble enclosure with the appropriate Torx screwdriver. -
Page 14: Installing A Microsd Card (Optional)
| Installing a microSD card (optional) AUTODOME IP starlight 5000i Installing a microSD card (optional) Push the camera block until you see the card slot (item 1 in the following figure). Insert the card into the slot (item 2 in the following figure). -
Page 15: Installing A Golden Bubble
AUTODOME IP starlight 5000i Installing a golden bubble | en Installing a golden bubble Make sure that you have all parts and tools to install the golden bubble. Loosen the three Hex screws in the trim ring/ bubble enclosure with the appropriate Torx screwdriver. - Page 16 | Installing a golden bubble AUTODOME IP starlight 5000i Using both hands, apply a counterclockwise rotational force on bracket to release the golden trim/bubble latch. Release the bracket from the golden trim/bubble carefully. Make sure not to scratch the bubble during installation.
- Page 17 AUTODOME IP starlight 5000i Installing a golden bubble | en Turn each fastening screw to put the bracket on the camera. Match the indicator and put on the top cover (bubble) of the camera. Firmly rotate the golden trim/bubble until it locks with a click sound.
- Page 18 | Installing a golden bubble AUTODOME IP starlight 5000i 10. The assembled gold bubble appears as follows. 2020-07 | 1.3 | Bosch Security Systems Installation Manual...
-
Page 19: Installing An In-Ceiling Camera In A Suspended Ceiling
AUTODOME IP starlight 5000i Installing an In-ceiling Camera in a Suspended Ceiling | en Installing an In-ceiling Camera in a Suspended Ceiling Tools Required – Appropriate screwdriver (Phillips head) – Appropriate tool for cutting a hole in drywall or ceiling tile (if applicable) Installation Requirements –... -
Page 20: Securing The Camera To The Ceiling
| Installing an In-ceiling Camera in a Suspended Ceiling AUTODOME IP starlight 5000i Securing the Camera to the Ceiling Connect the cables from the ceiling to the cables on the camera. Refer to the chapter Connection for more information. - Page 21 AUTODOME IP starlight 5000i Installing an In-ceiling Camera in a Suspended Ceiling | en 3× Bosch Security Systems 2020-07 | 1.3 | Installation Manual...
-
Page 22: Installing An In-Ceiling Camera In A Drywall Ceiling
| Installing an In-Ceiling Camera in a Drywall Ceiling AUTODOME IP starlight 5000i Installing an In-Ceiling Camera in a Drywall Ceiling Tools Required – Appropriate screwdriver (Phillips head) – Appropriate tool for cutting a hole in drywall or ceiling tile (if applicable) Installation Requirements –... -
Page 23: Securing The Camera To The Ceiling
AUTODOME IP starlight 5000i Installing an In-Ceiling Camera in a Drywall Ceiling | en Securing the Camera to the Ceiling Connect the cables from the ceiling to the cables on the camera. Refer to the chapter Connection for more information. - Page 24 | Installing an In-Ceiling Camera in a Drywall Ceiling AUTODOME IP starlight 5000i 3× Tighten the clamps using the Phillips screwdriver to secure the housing to the ceiling. Warning! Over torquing the ceiling clamps can damage the clamp or ceiling. Only tighten the clamp until it contacts the ceiling and you start to feel some resistance.
- Page 25 AUTODOME IP starlight 5000i Installing an In-Ceiling Camera in a Drywall Ceiling | en 3× Bosch Security Systems 2020-07 | 1.3 | Installation Manual...
-
Page 26: Connection
| Connection AUTODOME IP starlight 5000i Connection Caution! Compliance with EN50130-4 Alarm Standard – CCTV for Security Applications To meet the requirements of the EN50130-4 Alarm Standard, an ancillary uninterruptable power (UPS) supply is necessary. The UPS must have a Transfer Time between 2–6 ms and a Backup Runtime of greater than 5 seconds for the power level as specified on the product datasheet. - Page 27 AUTODOME IP starlight 5000i Connection | en Label ID Description Cable Wire Color ALARM_IN1 Alarm In 1 White ALARM_IN2 Alarm In 2 Blue AUDIO OUT Audio Out Grey Ground Black AUDIO GND Audio Ground Green AUDIO IN Audio In Purple Bosch Security Systems 2020-07 | 1.3 |...
-
Page 28: Troubleshooting
Transmission mode is set to UDP. Camera reboots frequently or Test your camera with another power supply. intermittently. Check the Bosch website for a software update that might address the issue. No OSD messages appear. Bosch’s Video SDK is required. Video management software from third parties does not use the SDK. - Page 29 AUTODOME IP starlight 5000i Troubleshooting | en Problem Questions to Ask/Actions to Resolve the Problem - Check the integrity of all wires and mating connectors to the camera. Picture is dark. - Check that the Gain Control is set to High.
-
Page 30: Technical Data
| Technical data AUTODOME IP starlight 5000i Technical data For product specifications, see the datasheet for your camera, available on the appropriate product pages of the Online Product Catalog at www.boschsecurity.com. 2020-07 | 1.3 | Bosch Security Systems Installation Manual... -
Page 31: Support
– Troubleshooting – Repair & Exchange – Product Security Bosch Building Technologies Academy Visit the Bosch Building Technologies Academy website and have access to training courses, video tutorials and documents: www.boschsecurity.com/xc/en/support/training/ Bosch Security Systems 2020-07 | 1.3 | Installation Manual... - Page 32 | Support AUTODOME IP starlight 5000i 2020-07 | 1.3 | Bosch Security Systems Installation Manual...
- Page 34 Bosch Security Systems B.V. Torenallee 49 5617 BA Eindhoven Netherlands www.boschsecurity.com © Bosch Security Systems B.V., 2020 202010122019...
