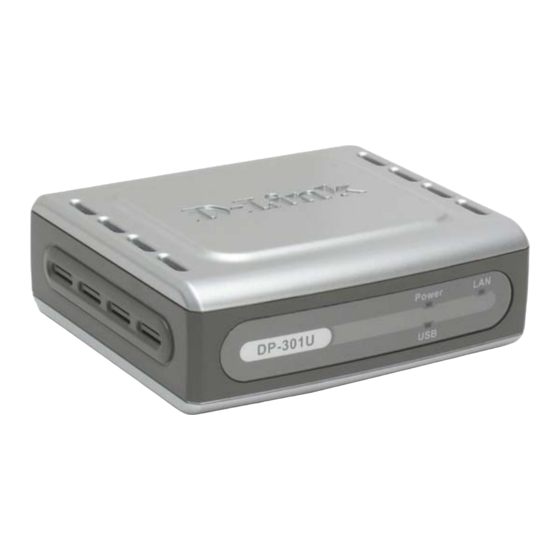

D-Link DP-301U
Fast Ethernet Print Server
Manual
Rev. 03 (November, 2007)
1

Advertisement

Table of Contents
loading

Related Manuals for D-Link DP-301U

Summary of Contents for D-Link DP-301U

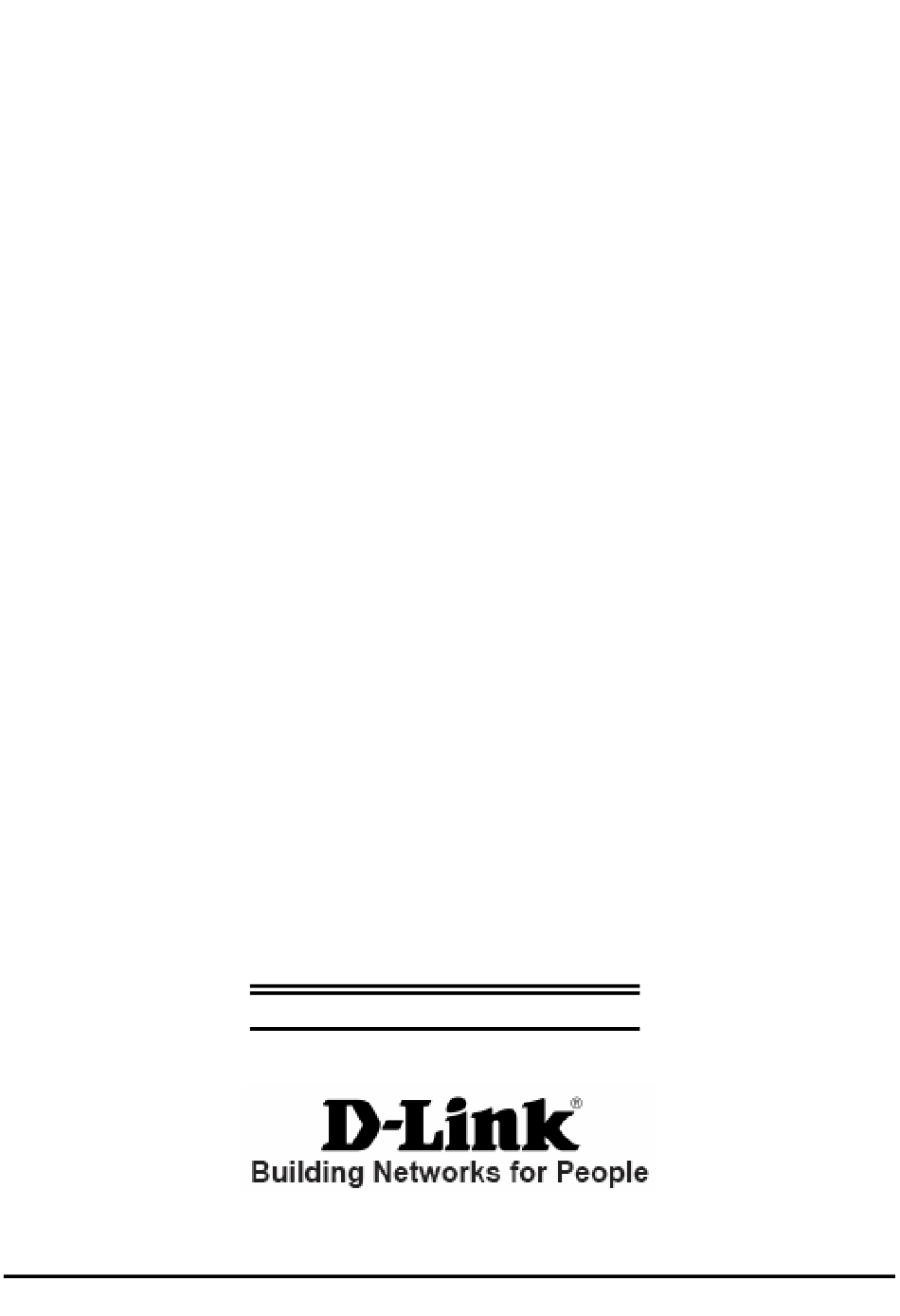

  • Page 1 D-Link DP-301U Fast Ethernet Print Server Manual Rev. 03 (November, 2007)

  • Page 2: Table Of Contents

    Port Connector....................3 Rear Panel Connectors ..................4 Network Cable Connector..................4 USB Port Connector ..................4 DC Power Connector..................4 Front Panel........................5 LED Indicators ....................5 Setting up the DP-301U....................6 Installing the Print Server...................6 Power ON Self-Test ...................7 Getting Started......................9 Using PS-Wizard.....................10 Auto-Run Installation ..................10 PS-Wizard......................11 Installing PS-Wizard ..................11...
  • Page 3 Adding a Printer .....................117 AppleTalk-enabled or Bonjour-enabled Printers ..........119 Setting up AppleTalk or LPR Printing in Mac OS X...........129 Setting up AppleTalk Printing in Mac OS 9 ............134 Technical Specifications..................139 Contacting Technical Support................140 Warranty and Registration...................141 Appendix: DP-301U Printer Compatibility List ..........145...

  • Page 4: Package Contents

    Package Contents Contents of Package:  D-Link DP-301U Pocket-Sized Print Server  Manual and Warranty on CD  Printed Quick Installation Guide If any of the above items are missing, please contact your reseller. System Requirements:  A computer with an installed Ethernet adapter ...

  • Page 5: Introduction

    Introduction The D-Link DP-301U Print Server is a packet size print server that connects to your Ethernet/Fast Ethernet network anywhere you wish to locate printer services. The DP-301U manages the flow of print files from workstations or file servers to connected printers, delivering print jobs to printers much faster than a file server or a PC acting as a print server can.
  • Page 6  Because the DP-301U is very portable and inexpensive compared to a PC-based print server, and Print Server connects to your file servers through the network, printers can be deployed to locations of maximum convenience to users. The DP-301U offers extraordinary flexibility, operating with all major network operating systems and protocols: ...

  • Page 7: External Features

    External Features Port Connector The DP-301U’s USB port is located on its rear panel. The port is configurable using the Web Configuration Interface or the print server’s Telnet interface. The Print Server’s Web configuration permits users to configure settings through the web browser.

  • Page 8: Rear Panel Connectors

    Rear Panel Connectors Network Cable Connector The Print Server’s rear panel features an RJ-45 connector for connection to 10Base-T Ethernet cabling or 100Base-TX Fast Ethernet cabling (which should be Category 5 twisted-pair cable). The port supports the NWay protocol, allowing the Print Server to automatically detect or negotiate the transmission speed of the network.

  • Page 9: Front Panel

    Front Panel LED Indicators The front panel of the print server features three LED indicators:  Power Steady green confirms that the Print Server is powered ON.  Lights up to indicate printing activity.  Steady green confirms that the Print Server has a good connection to the Ethernet or Fast Ethernet network.

  • Page 10: Setting Up The Dp-301U

    4. Connect the DP-301U RJ-45 Connector to the network, using an Ethernet CAT5 cable. 5. While the printer is powered OFF, install the DP-301U USB port connector into the USB port on the network printer. 6. Switch on the connected printer.

  • Page 11: Power On Self-Test

    Power ON Self-Test Every DP-301U has been factory-tested to operate properly. When the DP-301U is powered ON, it also automatically performs a Self-Test on each of its major components. The final result of the Self-Test is signaled by the state of the USB LED indicator following the Self-Test. Preliminary to the actual component tests, the three LED indicators are tested to confirm their steady and flashing operation.
  • Page 12 USB LED Faulty Component 1 long 18 short USB error 1 long 19 short PCI error...

  • Page 13: Getting Started

    Web-based management feature that allows users to easily configure and manage multiple print queues through TCP/IP. For a list of printers that are compatible with the DP-301U, please see the Appendix in this manual. The compatibility list is not comprehensive. Even if it is not included...

  • Page 14: Using Ps-Wizard

    Using PS-Wizard This chapter will introduce you the installation and operation of a useful software program – PS-Wizard. Auto-Run Installation Insert the Installation CD-ROM into your computer’s CD-ROM drive to initiate the Auto-Run program. The content of the Installation CD-ROM includes: ...

  • Page 15: Ps-Wizard

    PS-Wizard To avoid the conflict in your network, you can use PS-Wizard to change the related settings of your print server (such as the IP address) after finishing the installation of PS-Wizard on your PC. Installing PS-Wizard 1. Click the PSWizardSetup icon of the Installation CD-ROM, and then the system will prompt a window for you to select a desired setup language from its...
  • Page 16 2. Click Next> button in the welcome window of InstallShield Wizard. 3. Specify the destination location by pressing Browse… button. Otherwise, leave the default setting and click Next> button to continue.
  • Page 17 4. You may enter a new folder name in the Program Folder field if you want to change the default name. Otherwise, you may leave the default setting and click Next> button to go on the installation.
  • Page 18 5. The InstallShield Wizard starts to install the software, and the Progress bar indicates the installation is proceeding until the following window shows up. Click Finish button to complete the installation. After installing the program, the application program for the print server is automatically installed to your computer, and creates a folder in Start...

  • Page 19: Using Ps-Wizard

    Using PS-Wizard PS-Wizard, supports for Windows 2000/XP/2003/Vista, is a simple and useful tool for you easily adding a printer on your computer in order to quickly start your printing task without any complicated configuration. That is, the main goal and advantage of the PS-Wizard is to let you add a printer on your PC in the easiest way.
  • Page 20 Print Server: This field allows you to manually discover the connected print server and to do further configuration of the print server that is selected from the list.
  • Page 21 LAN: You may also to specify dynamic or static IP address for your print server. Then click Apply button to implement the new setting. Port Information: This is the main function of the PS-Wizard for you to easily add a printer on your computer. To add a printer, click , then the following window will display.
  • Page 22 The wizard provides three ways for you to select printer driver: 1. Show current installed drivers: You may select this option, “Show currently installed drivers”, to check if the same printer driver already existed for use. If not, you may try the next method. After done the selection of printer driver, click Next>...
  • Page 23 After done the selection of printer driver, the wizard will ask you to confirm your selection again in the following window. Beside, you are allowed to edit the name of the printer in the field “Network Printer Name” and enable this printer as the default printer by checking the box “Use this printer as the default printer for Windows-based programs”.
  • Page 24 When the following window shows up, you may do print test by clicking Print Test Page button to check if you can do printing normally. If yes, then click Finish button to exit the installation window and now you may start your printing tasks.

  • Page 25: Using The Web Configuration

    Explorer 6.0 used in this manual) you have installed on your computer and direct it to the URL address: dlink-xxxxxx, where xxxxxx are the last six digits of DP-301U’s MAC address. The MAC address can be found on the bottom side of the DP-301U device.
  • Page 26 Then the main screen of the print server’s configuration will appear (see below). In addition to the product information, you can access and control the print server’s configuration through five links on the top of this main screen: Setup, Advanced, Maintenance, Status, and Help.
  • Page 27 SETUP > Print Server Setup The Print Server Setup screen allows you to modify the Print Server Name and Port Name, as below shows. D-Link does not recommend changing these settings unless asked to do so by your network administrator.
  • Page 28 Port Settings In this field, you can assign the Port Name for the print server, and the description for the Printer port. It also allows you to select the PJL Printer setting (Yes or No). NOTE: PJL (Printer Job Language) has certain job requirements that must be met to work correctly.

  • Page 29: Setup > Lan Setup

    SETUP > LAN Setup The LAN Setup screen allows you configure the local network settings of print server. Please note that this section is optional and you should not need to change any of the settings here to get print server up and running. TCP/IP This field allows you to assign IP address in manual or automatic method.

  • Page 30: Setup > Printer Setup

    SETUP > Printer Setup The Printer Setup screen allows you install the printer drivers for the printer currently connected to your print server. Network Printer Wizard Clicking Next to download and run a windows wizard program which will install a network printer onto your computer.
  • Page 31 The above screen is the Network Printer Wizard so please click RUN, and if a second window appears as below click RUN again.
  • Page 32 Please select the printer required, then click NEXT to continue. The wizard provides three ways for you to select printer driver: 1. Show current installed drivers: You may select this option, “Show currently installed drivers”, to check if the same printer driver already existed for use. If not, you may try the next method. After done the selection of printer driver, click Next>...
  • Page 33 2. Select from manufacturer list: Check this option, “Select from manufacturer list”, to manually select your printer from drop-down menus by brand and model. Click Next> button to continue when you find a desired driver. If not, try the last way (Have Disk). After done the selection of printer driver, click Next>...
  • Page 34 3. Have Disk: Click Have Disk button to bring up the following window. Insert the manufacture’s installation CD-ROM to install the printer driver. After the correct driver is selected, click OK button to continue.
  • Page 35 After done the selection of printer driver, the wizard will ask you to confirm your selection again in the following window. Beside, you are allowed to edit the name of the printer in the field “Network Printer Name” and enable this printer as the default printer by checking the box “Use this printer as the default printer for Windows-based programs”.
  • Page 36 When the following window shows up, you may do print test by clicking Print Test Page button to check if you can do printing normally. If yes, click OK button to close the D-Link Add Printer Wizard dialogue screen.
  • Page 37 If yes, then click Finish button to exit the installation window and now you may start your printing tasks.

  • Page 38: Advanced > Advanced Lan

    ADVANCED > Advanced LAN The Advanced LAN screen allows you to further network setting of print server, while you are recommended better not to change the settings unless instructed to modify the setting by your network administrator. The Advanced LAN screen contains these fields: TCP/IP, Microsoft Network, and AppleTalk.
  • Page 39 TCP/IP This field contains four options that allow you to configure the TCP/IP setting: DNS Server Address, UPnP, Mac Bonjour/Rendezvous, and Second HTTP Port.  UPnP: This option allows you to enable or disable UPnP function.  Mac Bonjour/Rendezvous: This option allows you to enable or disable Mac Bonjour/Rendezvous function.

  • Page 40: Advanced > User Access

    ADVANCED > User Access The User Access screen allows you to create and maintain an authorized list of users that are allowed to access the print server. User Access By configuring the Enable Authorised User List option (Yes), the user in the User List is permitted to access the print server.
  • Page 41 Authorised Users You can add or delete any user to or from the User List. The User List at the bottom of the screen displays the current defined user and related information for the print server.

  • Page 42: Advanced > E-Mail Notification

    ADVANCED > E-Mail Notification The E-Mail Notification screen allows you to assign an E-mail address to the print server, so that your mail of the account can be printed out directly through the printer (ASCII text only). This screen also allow you choose where to send an email when the printer status changes.
  • Page 43 Enable E-mail Notification You can set the print server to send an alert message when the printer status changes through E-mail. To enable this function, set the Enable e-mail notification option to Yes. Then, input the administrator's E-mail address in the Destination e-mail Address field.

  • Page 44: Advanced > Snmp

    ADVANCED > SNMP The SNMP screen allows you to use SNMP (Simple Network Management Protocol) to manage complex networks. SNMP Management Community 1/2/3: Enter a name in the Name frame, and configure the Access Right by selecting Read Only or Read/ Write from the pull-down menu.

  • Page 45: Maintenance > Password

    MAINTENANCE > Password The Password screen allows you to change the password of the print server by entering the current password in Current Password field and new password in New Password and Confirm Password fields. After done the configuration, click Apply Settings to enable and restore the new password, or Cancel to abandon.

  • Page 46: Maintenance > Save/Restore Settings

    MAINTENANCE > Save/Restore Settings The Save/Restore Settings screen not only allows you to save the current configuration in a computer for backup by clicking Save, but also allows you to reload a configuration that you saved before by clicking Browse to direct to the backup file, and then clicking Update Settings for reloading.

  • Page 47: Maintenance > Firmware Upgrade

    MAINTENANCE > Firmware Upgrade The Firmware Upgrade screen displays you the current firmware’s information of the print server, and also allows you to upgrade the firmware of the print server when a new version of firmware is available. Click Browse to point to the firmware file, and then click Upgrade.

  • Page 48: Maintenance > Diagnostics

    MAINTENANCE > Diagnostics The Diagnostics screen allows you to test the printing for USB port of the print server. After done the port selection, click Print Test Page to print a test page.

  • Page 49: Status > Device Info

    STATUS > Device Info The Device Info screen displays the status of your print server, printer, and network for your reference.
  • Page 50 Print Server Status This field displays the information of the print server about the firmware version, MAC/IP address, and up time. Printer Status The items in this field display the information of the printer, such as the given name for the printer, speed, printer status, and status of your printing tasks, etc. LAN Status You can monitor the networking status in this field, including the network connection, speed, and the packets status.

  • Page 51: Status > Network

    STATUS > Network The Network screen displays the general Network status of your print server, including: Auto IP This field contains the current settings of TCP/IP, including DHCP/BOOTP, UPnP, and Mac Bonjour/Rendezvous. The items in this field are configured in Advanced ...

  • Page 53: Status >Print Log

    STATUS >Print Log The Print Log screen displays the printing record of the authorized users. Print Log The items in this field display the user(s) information, which include the user(s) MAC address, IP address, name, and status of printing tasks.

  • Page 54: Help

    HELP The Help screen provides you brief information about the print server for your reference.

  • Page 55: Reboot

    Reboot If you want to reset the print server, you may just click the Reboot for restarting.

  • Page 56: Refresh Printer Status

    Refresh Printer Status Click Printer to refresh printer status.

  • Page 57: Tcp/Ip Printing For Windows Vista

    TCP/IP Printing for Windows Vista Go to Start  Control Panel  Printers.
  • Page 58 Click Add a printer. Select the first option, Add a local printer, and then click Next.
  • Page 59 Select the second option, Create a new port, and highlight Standard TCP/IP Port from the pull-down menu. Click Next. Type the IP address of the print server (e.g. 10.62.31.15 used in this manual), which can be referred from the PRINTER SERVER STATUS of the print server’s Web configuration, and then the Port Name will automatically be filled in.
  • Page 61 Select Custom and click Settings. Then the follow screen will shows up, select LPR from the Protocol field. Then enter the Queue Name, which can be referred from PRINTER STATUS of the print server’s Web configuration, in the LPR Settings field. Click OK.
  • Page 64 Highlight the printer, as shown. If the desired printer is not on the list, click Have Disk and insert the printer driver disk that came with your printer to install the printer drivers. Click Next...
  • Page 65 Click Next.
  • Page 66 After clicked Print a test page, a small dialogue box will show up as below. Click Close.
  • Page 67 Click Finish. The printer is now ready for printing with Windows Vista on your network.

  • Page 68: Tcp/Ip Printing For Windows Xp

    TCP/IP Printing for Windows XP Go to Start  Printers and Faxes  Add a Printer. When the following screen shows up, click Next.
  • Page 69 Select the first option, Local printer attached to this computer, and click Next. Select the second option, Create a new port, and highlight Standard TCP/IP Port from the pull-down menu. Click Next.
  • Page 70 Type the IP address of the print server (e.g. 10.62.31.15 used in this manual), which can be referred from the PRINTER SERVER STATUS of the print server’s Web configuration, and then the Port Name will automatically be filled in. Click Next...
  • Page 71 Select Custom and click Settings.
  • Page 72 Then the follow screen will shows up, select LPR from the Protocol field. Then enter the Queue Name, which can be referred from PRINTER STATUS of the print server’s Web configuration, in the LPR Settings field. Click OK.
  • Page 74 Click Next.
  • Page 75 Click Finish.
  • Page 76 Highlight the printer, as shown. If the desired printer is not on the list, click Have Disk and insert the printer driver disk that came with your printer to install the printer drivers. Click Next...
  • Page 77 At this screen, you can input a name for the printer, and then click Next Select Yes to print a test page, click Next.
  • Page 78 Click Finish. The printer is now ready for printing with Windows XP on your network.

  • Page 79: Tcp/Ip Printing For Windows 2000

    TCP/IP Printing for Windows 2000 Go to Start  Settings  Printers and Faxes  Add a Printer. When the following screen shows up, click Next.
  • Page 80 Select the first option, Local printer attached to this computer, and click Next.
  • Page 81 Click Next. Select the second option, Create a new port, and highlight Standard TCP/IP Port from the pull-down menu. Click Next.
  • Page 82 Click Next.
  • Page 83 Type the IP address of the print server (e.g. 10.62.31.15 used in this manual), which can be checked from the PRINTER SERVER STATUS of the print server’s Web configuration, and then the Port Name will automatically be filled in. Click Next...
  • Page 84 Select Custom and click Settings.
  • Page 85 Then the follow screen will shows up, select LPR from the Protocol field. Then enter the Queue Name, which can be referred from PRINTER STATUS of the print server’s Web configuration, in the LPR Settings field. Click OK.
  • Page 87 Click Next. Click Finish.
  • Page 88 Highlight the printer, as shown. If the desired printer is not on the list, click Have Disk and insert the printer driver disk that came with your printer to install the printer drivers. Click Next.
  • Page 89 At this screen, you can input a name for the printer, and then click Next Select the first option, Do not share this printer, and click Next.
  • Page 90 Select Yes to print a test page, click Next.
  • Page 91 Click Finish. The printer is now ready for printing with Windows 2000 on your network.

  • Page 92: Tcp/Ip Printingfor Windows 98Se/Me

    TCP/IP Printing for Windows 98SE/ME Go to Start  Settings  Control Panel. Double click on Network, and then click Add.
  • Page 93 Highlight Client and click Add. At this window, click Have Disk.
  • Page 94 1. Insert the DP-301U CD-ROM into your CD-ROM drive. Select the letter representing the CD-ROM drive on your computer from the pull-down menu. 2. Double-click on the folder lpr. 3. Highlight lpr.inf 4. Click OK. Click OK to accept the location of the file.
  • Page 95 You should now be back to the Network Properties Page. Highlight LPR for TCP/IP Printing and click Properties.
  • Page 96 Click Add Port. Type in the IP address and Port Name of the print server, which can be referred from the PRINTER SERVER STATUS and PRINTER STATUS of the print server’s Web configuration, in the corresponding field, and then click OK. (The IP Address and Port Name here are just for example only.)
  • Page 98 The IP Address and Port Name will be displayed in the following screen. (The IP Address and Port Name here are just for example only.) Click OK.
  • Page 99 Click OK. Windows will ask for a restart. Click Yes.
  • Page 100 Once your computer has rebooted, click on Start  Settings  Printers  Add Printer. When the Add Printer Wizard screen appears, click Next. Select Network Printer and click Next.
  • Page 101 Type in the path if you know it; otherwise, click Browse. At the following screen, browse for the printer port and highlight the port (e.g. dlink-1D6FA3 in this manual). Click OK.
  • Page 102 If the network path is not specified, type in the IP Address and Port Name of the print server. Select Yes or No to enable or disable printing from MS-DOS based programs. Click Next.
  • Page 103 Highlight the printer, as shown. If the desired printer is not on the list, click Have Disk and insert the printer driver disk that came with your printer to install the printer drivers. Click Next. Click Next...
  • Page 104 Select Yes to print a test page. Click Finish. To check whether the printer is installed, go to Start  Settings  Printers.

  • Page 105: Unix/Linux Printing

    Unix/Linux Printing Printing Text Files form Unix Text files on Unix systems contain lines that end with “newline” characters, as opposed to MS-DOS and Windows-related operating systems that end with a carriage return followed by a linefeed. Most printers require a carriage return/linefeed pair at the end of each line, making it necessary for some translation to be done before Unix text files can be printed on most printers.

  • Page 106: Printing Form Bsd Unix Versions

    SunOS 4.x, Linux, BSD/OS, FreeBSD, or NetBSD, you can use the following procedure to enable users to print to a printer connected to your D-LINK network print server: 1. Log in as the superuser (root). 2. Add an entry for the print server in the host’s /etc/hosts file, giving a hostname for the print server’s IP address.
  • Page 107 chown bin.daemon /var/spool/hp5l chmod 775 /var/spool/hp5l 5. Add an entry for the printer to /etc/printcap, similar to the following: hp5l:\ :lp=:sd=/var/spool/hp5l :mx#0:\ :rm=ps-142634:rp=ps-142634-p1: The meaning of each of the entries is described below. The directory path in the spool directory entry should match the directory name you created above. If your entry requires more than one line you can escape the newline with a backslash.
  • Page 108 The host where the remote printer is located, in this case the D-Link print server. ◆ rp=printer The name of the printer on the remote host. For the D-Link print server, the port name should be used. Note: this entry is case-sensitive.

  • Page 109: Printing From Sco Unix System V/386

    Printing from SCO Unix System V/386 To allow printing to a printer attached to your D-LINK network print server from a SCO Unix System V/386 host. 1. Login as the superuser (root). 2. Add an entry for the print server in the host’s /etc/hosts file, giving a hostname for the print server’s IP address.
  • Page 110 Please enter the name of the remote host that printer is attached to: then enter the address of the D-Link print server. You can use the name you added to /etc/host in the step above. 9. Confirm that your entries are correct.

  • Page 111: Printing From Solaris

    Printing from Solaris To allow printing from a Sun Solaris workstation, 1. Log in as the superuser (root). 2. Add an entry for the print server in the host’s /etc/hosts file, giving a hostname for the print server’s IP address. A line in /etc/hosts contains an IP address and one or more aliases for the host .

  • Page 112: Printing From Red Hat Linux

    Printing from Red Hat Linux Adding a Printer 1. Click the printer icon at the bottom of the desktop. 2. Since no printer is set up so far, a prompt appears asking to run the printer configuration tool.
  • Page 113 3. Click the OK button in the pop-up dialogue box to open the man Printer configuration tool menu. Note that to use the Printer configuration tool you must have root privileges, and to start the application you may also type the command: “redhat-config-printer”.
  • Page 114 Printer Configuration Tool menu 5. The Add a new print queue menu appears, click Forward to continue.
  • Page 115 6. Enter a unique name for the printer in the Name text field. The printer name cannot contain spaces and must begin with a letter. The printer name may contain letters, numbers, dashes (-), and underscores (_). Optionally, enter a short description for the printer, which can contain spaces.
  • Page 116 8. Select the printer model.
  • Page 117 If a printer has not been detected automatically, select the model from the list. You can manually select the name of the printer manufacturer from the Generic (click to select manufacturer) pull-down menu, and the printer model from the sub-list. Click Forward to continue.
  • Page 118 10. Print a test page to make sure the printer is functioning properly. To print a test page, select the printer from the printer list, then select the appropriate test page from the Test drop-down menu.

  • Page 119: Setting Up Printing In Mac Os X Tiger (10.4)

    Setting up Printing in Mac OS X Tiger (10.4) NOTE: Mac OS printing is supported by Postscript printers only! With Mac OS X Tiger (10.4), you can use Apple Talk, Bonjour, Internet Printing Protocol (IPP), Line Printer Daemon (LPD), and HP Jet Direct-Socket printing through Print Server.
  • Page 120 Select the Apple Talk tab in the Network menu. Check to select the Make Apple Talk Active option. Click on the Apply Now button and close the menu. Apple Talk is now active on the system. Now a printer can be added.

  • Page 121: Adding A Printer

    Adding a Printer Use the Go menu at the top tool bar and select Applications option and find the Utilities folder or open the Utilities folder directly in Go menu. In the Utilities folder, find and select to open Printer List window.
  • Page 122 Mac OS X Tiger (10.4) supports five printing protocols: 1. AppleTalk 2. Bonjour 3. Internet Printing Protocol (IPP) 4. Line Printer Daemon (LPD) 5. HP Jet Direct – Socket To add an Internet Printing Protocol enabled, Line Printer Daemon enabled or HP Jet Direct –...

  • Page 123: Appletalk-Enabled Or Bonjour-Enabled Printers

    AppleTalk-enabled or Bonjour-enabled Printers To add an AppleTalk-enabled or Bonjour-enabled printer, click on the button in the Printer Browser menu. Select the printer model from Printer Name list and Connection type in the Printer Browser menu. The printer name selected should be the same as that appearing listed in the Printer Server’s web manager.
  • Page 124 also be manually selected in the Print Using drop-down menu by brand and model. Click the Add button to exit the Printer Browser window and implement the new setting.
  • Page 125 The printer that has just been added will show up in the Printer List menu, it might take a few seconds depending on network conditions. When the printer appears listed it is ready for use. Quite the Printer Setup Utility and start printing.
  • Page 126 Adding an IP Printer To add an Internet Printing Protocol enabled, Line Printer Daemon enabled or HP Jet Direct – Socket enabled printer, click on the IP Printer button in the Printer Browser window. Select the desired printing protocol from the Protocol drop-down menu.
  • Page 127 The printer utility is able to detect the printer and may automatically select the correct printer driver in the Print Using field. Or manually select the printer-maker from the Print Using drop-down menu, and then select the printer model from the scroll-down list, or select Generic PostScrip Printer option from the Print Using drop-down menu if the model is not listed.
  • Page 128 For set up LPD Printing: 1. Enter the IP address of the print server to which the printer is attached in Address field. 2. Type the port name in queue field. Click Add button after done the section of printer model in the Print Using drop-down menu.
  • Page 129 For set up IPP Printing: 1. Enter the IP address of the print server to which the printer is attached in “: 80” “: second port” Address field. After that, type if print server’s second port is enabled. 2. Type the port name in queue field. Click Add button after done the section of printer model in the Print Using drop-down menu.
  • Page 130 For set up Socket Printing: 1. Enter the IP address of the print server to which the printer is attached in Address field. After that, type “: 9100” for port 1, “: 9101” for port 2 or “: 9102” for port 3. Keep the blank in queue field.
  • Page 131 When the Installable Options pop-up window shows up as below, click Continue button.
  • Page 132 The printer that has just been added will show up in the Printer List menu, it might take a few seconds depending on network conditions. When the printer appears listed it is ready for use. Quite the Printer Setup Utility and start printing.

  • Page 133: Setting Up Appletalk Or Lpr Printing In Mac Os X

    Setting up AppleTalk or LPR Printing in Mac OS X NOTE: Mac OS printing is supported by Postscript printers only! With Mac OSX you can use AppleTalk or LPR printers using IP protocols for printing through Print Servers. Open your System Preferences window and Click Network. Select the AppleTalk tab in this window and check Make AppleTalk Active.
  • Page 134 To print, open a document and select File  Print from the menu. Select Edit Printer List from the Printer dialog box.
  • Page 135 Click Add Printer Select the printing protocol preferred, AppleTalk or LPR Printers using IP. In this example, AppleTalk has been selected.
  • Page 136 AppleTalk protocol: After selecting AppleTalk, the Port Names of the Print Server will be displayed. The Port Names shown here are examples only. Click on the Port to which the post-script printer is connected.
  • Page 137 Then select the printer model from the dialog box displayed here. Click Add Printer and the Printer Port configuration is completed. Select the Printer Port just configured in the Print window. Click Print to print your document. LPR Printers using IP protocol: When you select LPR Printers using IP Protocol, this window will appear.

  • Page 138: Setting Up Appletalk Printing In Mac Os 9

    Setting up AppleTalk Printing in Mac OS 9 NOTE: Mac OS printing is supported by Postscript printers only! The AppleTalk network protocol is used with computers using the MacOS operating system. It can be used for network communications over standard Ethernet or Fast Ethernet using the EtherTalk transport, or over a proprietary low-speed LocalTalk transport.
  • Page 139  If your AppleTalk network is divided into AppleTalk zones, you will have to specify which zone the Print Server should be in. You should locate the Print Server in the same zone as most of the users who will be using it. If your network is not divided into zones, the AppleTalk Zone field should contain a single asterisk (*).
  • Page 140 AppleTalk Enter the AppleTalk Zone name in the box. In the following options, enter the related configuration, such as the printer type. Chooser Name: Display the print server's port name. Printer Type: Enter the printer's type in this box. PostScript Level: Select from the pull-down menu (Level 1 or Level 2). Font Group: Select from the pull-down menu.
  • Page 141 The exact procedure for selecting a PostScript printer connected to print server may vary slightly, depending on what printer driver version you are using. The procedure described below assumes you are using the LaserWriter 8. To choose a printer connected to print server as your MacOS workstation‘s default printer, open the Chooser by selecting Chooser from the Apple menu.
  • Page 142 If you have not previously set this printer as the default, your computer will prompt you for a PostScript Printer Description file. Choose Select PPD. Select the appropriate printer description file for your printer. Click Open. (If your printer is not listed, click Generic to use a generic printer description.) If you wish to access this setting in the future, you can use the Setup button in the Chooser window.

  • Page 143: Technical Specifications

    Technical Specifications Printer Connection Printer Port: USB port Bi-directional Communication: Hewlett-Packard PJL (Printer Job Language) standard for bi-directional communication. Network Connection Network Standards: 100Base-TX Fast Ethernet Network Data Transfer Rate: 10/100 Mbps (megabits per second) Network Connector: RJ-45 Network Protocols Ethernet Frame Types: 802.2, 802.3, Ethernet II, SNAP (auto-switching) Transport Protocols: TCP/IP, NetBEUI, AppleTalk/EtherTalk, LPR,SMB TCP/IP Protocols Supported: BOOTP, SNMP, FTP, LPD, RARP, DHCP, IPP...

  • Page 144: Contacting Technical Support

    Contacting Technical Support...

  • Page 145: Warranty And Registration

    D-Link‘s sole obligation shall be to repair or replace the defective Hardware during the Warranty Period at no charge to the original owner or to refund at D-Link‘s sole discretion. Such repair or replacement will be rendered by D-Link at an Authorized D-Link Service Office. The replacement Hardware need not be new or have an identical make, model or part.
  • Page 146 D-Link may reject or return any product that is not packaged and shipped in strict compliance with the foregoing requirements, or for which an RMA number is not visible from the outside of the package. The product owner agrees to pay D-Link‘s reasonable handling and return shipping charges for any product...
  • Page 147 QUALITY, SELECTION AND PERFORMANCE OF THE PRODUCT IS WITH THE PURCHASER OFTHE PRODUCT. Limitation of Liability: TO THE MAXIMUM EXTENT PERMITTED BY LAW, D-LINK IS NOT LIABLE UNDERANY CONTRACT, NEGLIGENCE, STRICT LIABILITY OR OTHER LEGAL OR EQUITABLE THEORY FOR ANYLOSS OF USE OF THE PRODUCT, INCONVENIENCE OR DAMAGES OF ANY...
  • Page 148 FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user‘s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 149: Appendix: Dp-301U Printer Compatibility List

    DP-301U Print Server - Printer Compatibility List The following lists the printers that have been successfully tested for compatibility with the D-Link DP-301U Print Server. The tests for printer compatibility were performed by an independent laboratory. Each test environment consisted of the following components: ...
  • Page 150 DeskJet 90CXI InkJet DeskJet 995C InkJet DeskJet 125C InkJet DeskJet 3320 InkJet DeskJet 3420 InkJet DeskJet 3425 InkJet DeskJet 3535 InkJet DeskJet 3650 InkJet DeskJet 5625 InkJet DeskJet 3745 InkJet DeskJet 3845 InkJet DeskJet 940C InkJet DeskJet 5610 InkJet DeskJet 5650 InkJet DeskJet 5850 InkJet...
  • Page 151 LaserJet 1022 Laser LaserJet 1160 Laser Color LserJet 2600N Laser Color LserJet 3550 Laser EPSON LP-9100 Laser EPSON LP-9400 Laser EPSON LP-9500C Laser EPSON LP-9800C Laser EPSON LP-S5500 Laser EPSON LP-9200B Laser EPSON LP-9200C Laser EPSON LP-V500 Laser EPSON LP-4600PS Laser EPSON LP-V1000...
  • Page 152 CANON S330 InkJet CANON S400SP InkJet CANON S520 InkJet CANON S600 InkJet CANON S6300 InkJet CANON S750 InkJet CANON S450 InkJet CANON S4500 InkJet CANON S9000 InkJet CANON PIXUS 850i InkJet CANON BJC55 InkJet CANON BJC85 InkJet CANON I850 InkJet CANON IP1000 InkJet...
  • Page 153 Lexmark Optra Color 45 InkJet Lexmark Optra C710 InkJet Lexmark Optra E InkJet Lexmark Optra E+ InkJet Lexmark E310 InkJet Lexmark E230 InkJet Lexmark Optra K1220 InkJet Lexmark Optra M410 InkJet Lexmark Optra M412 InkJet Lexmark Optra N InkJet Lexmark Optra R+ InkJet Lexmark...

Table of Contents
