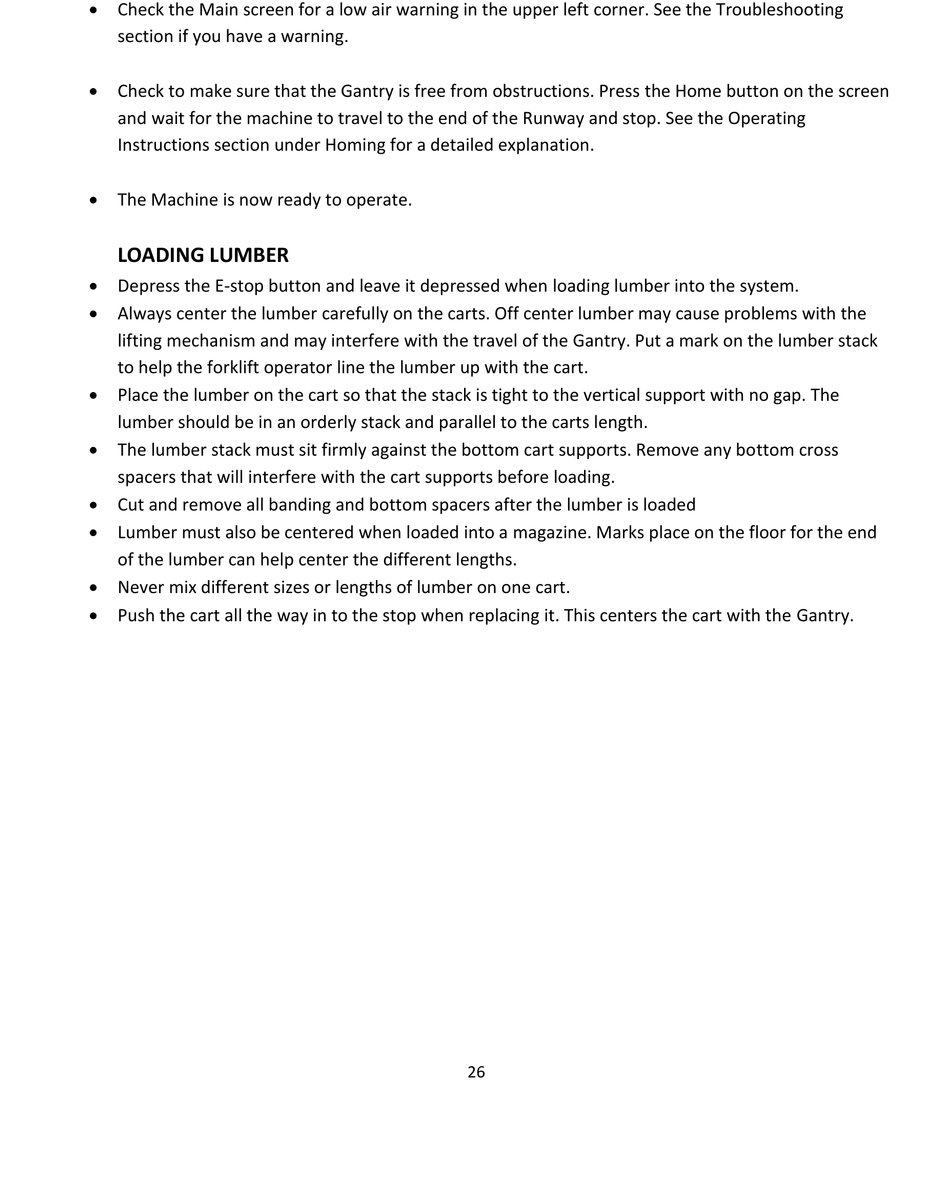

Acer Wood Runner Manual page 26

 Check the Main screen for a low air warning in the upper left corner. See the Troubleshooting
section if you have a warning.
 Check to make sure that the Gantry is free from obstructions. Press the Home button on the screen
and wait for the machine to travel to the end of the Runway and stop. See the Operating
Instructions section under Homing for a detailed explanation.
 The Machine is now ready to operate.
LOADING LUMBER
 Depress the E-stop button and leave it depressed when loading lumber into the system.
 Always center the lumber carefully on the carts. Off center lumber may cause problems with the
lifting mechanism and may interfere with the travel of the Gantry. Put a mark on the lumber stack
to help the forklift operator line the lumber up with the cart.
 Place the lumber on the cart so that the stack is tight to the vertical support with no gap. The
lumber should be in an orderly stack and parallel to the carts length.
 The lumber stack must sit firmly against the bottom cart supports. Remove any bottom cross
spacers that will interfere with the cart supports before loading.
 Cut and remove all banding and bottom spacers after the lumber is loaded
 Lumber must also be centered when loaded into a magazine. Marks place on the floor for the end
of the lumber can help center the different lengths.
 Never mix different sizes or lengths of lumber on one cart.
 Push the cart all the way in to the stop when replacing it. This centers the cart with the Gantry.
26
