7950 IP Phone V200R003C30 Product Overview Issue Date 2017-07-13 HUAWEI TECHNOLOGIES CO., LTD.
Page 2
Notice The purchased products, services and features are stipulated by the contract made between Huawei and the customer. All or part of the products, services and features described in this document may not be within the purchase scope or the usage scope. Unless otherwise specified in the contract, all statements, information, and recommendations in this document are provided "AS IS"...

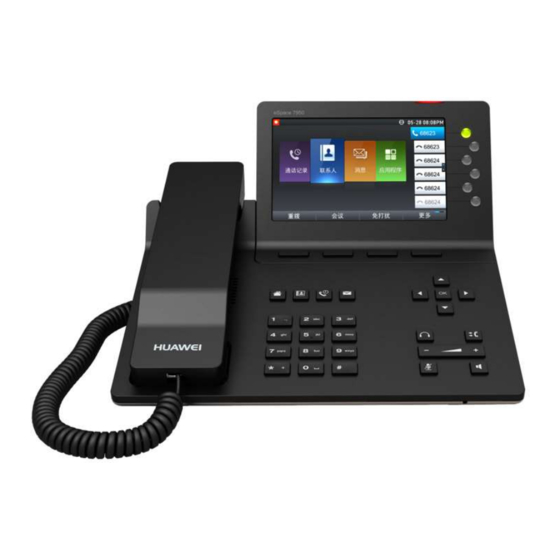

1 Product Positioning and Highlights Product Positioning and Highlights IP Phone 7950 is a full-featured 12-line IP phone with excellent user experience. It provides a user-friendly UI on a large, true color liquid crystal display (LCD) screen, supports a broad range of peripherals, and delivers high-quality call services, making it an icon of new-generation business IP phones.
IP Phone 7950 supports line switch with a line button. Mute IP Phone 7950 allows a user to mute an ongoing call. After muting the call, the user can still hear the peer party, but the peer party cannot hear the user. The mute icon is displayed on the status bar of the user's phone screen.
Page 8
Local Conference IP Phone 7950 allows a user to hold an ongoing call with another party and set up a call with a third party for a local conference after the two calls have local audio mixing. After the local...
Call Hold IP Phone 7950 supports call hold. If a user wants to place a new call during an ongoing call, the user can tap the hold button to hold the ongoing call or press the line button to switch to a new line and hold the ongoing call.
Page 10
The user can then press an appropriate softkey to answer the new call. Call Transfer IP Phone 7950 allows a user to transfer an ongoing call to a specified user. The other party of the call can then talk with the specified user. IP Phone 7950 supports two types of call transfer modes: blind, semi-consult (available only in EC6.X and UC2.X), and consult.
Page 11
Group Conference IP Phone 7950 allows a user to initiate a voice conference with all contacts in a contact group. A conference invitation will be sent to all these contacts. The conference moderator (initiator) can perform operations such as adding, removing, or muting participants.
Page 12
IP Phone 7950 displays the peer party's profile picture for incoming and outgoing calls. Call Recording(Available only in EC6.X and UC2.X) IP Phone 7950 allows a user to start or stop the recording of an ongoing call. The recorded call is saved on the server.
The malicious call identification (MCID) function allows users to identify an incoming call as a malicious one. 2.1.4 Customized Services Ringtone Setting IP Phone 7950 allows users to customize ringtones for each contact or contact group. Users can also import ringtones. IP Phone 7950 supports .wav ringtones using PCM coding. Wallpaper Setting IP Phone 7950 allows users to import and customize wallpapers.
2.4 Quick and Easy Operation 2.4.1 Easy Installation Users can use IP Phone 7950 by simply connecting it to the Internet and configuring it on the LCD screen or web management page. This shows the user-centered design. IP Phone 7950 also provides the automatic deployment function. Administrators prepare configuration files on the file server.
2 Features and Functions 2.5 Multiple Auxiliary Ports 2.5.1 Headset Port IP Phone 7950 provides a headset port (RJ-9/USB), allowing users to use a headset to free up their hands. 2.5.2 USB Port IP Phone 7950 provides a USB2.0 port for connecting to a standard USB device. The devices supported are: ...
2.7.1 Multi-Registration IP Phone 7950 supports sequential registration: IP Phone 7950 sends registration messages to a SIP server at intervals of half of the registration interval. If the active SIP server fails, the IP phone registers with the standby SIP server.
Product Overview 2 Features and Functions 2.7.5 NTP Server Redundancy IP Phone 7950 supports NTP server redundancy. During time update, if the active NTP server fails, IP Phone 7950 automatically switches to the standby NTP server for time synchronization. 2.8 Security...
Page 18
7950 IP Phone Product Overview 3 Technical Specifications Technical Specifications Hardware Specifications Table 3-1 lists the hardware specifications of IP Phone 7950. Table 3-1 Hardware specifications Feature/Mod Specification Screen 5-inch, 800 x 480 pixels LEDs Line button, Message Waiting Indicator (MWI), Mute, Speaker, Call...
Page 19
Power 6.49 W consumption Weight 0.9 kg (approx.) Certification CE/FCC/RoHS/WEEE/REACH/UL/SASO Technical Specifications Table 3-2 lists the technical specifications of IP Phone 7950. Table 3-2 Technical specifications Category Feature Specification Protocols Network TCP/IP, SIP, SDP, UDP, RTP, RTCP, DHCP, DNS, protocols PPPoE, HTTP, HTTPS, SNTP, and XCAP G.711a/G.711μ/G.729AB/G.722/ iLBC/...
