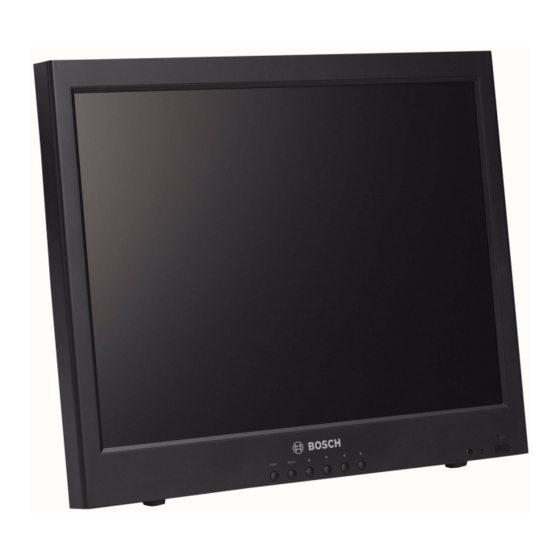

- Page 1 Bosch 20-inch High-resolution LCD Monitor UML-202-90 Instruction Manual...
-
Page 3: Table Of Contents
Unpacking Parts List Exploded View Remote Control Remote Control Battery Installation Description Features Power Installing the UML-202-90 Ventilation Mounting the UML-202-90 6.2.1 Desktop Installation 6.2.2 Wall Mount Installation Connecting the Composite Video Signal to the Monitor Connecting the Y/C (S-Video) Signal to the Monitor Connecting Audio to the Monitor 6.5.1... - Page 4 | Table of Contents LED Indicator TroubleShooting Guide Maintenance Technical Specifications F01U076723 | 1.0 | 2007.09 Instruction Manual UML -202-90 Bosch Security Systems, Inc.
- Page 5 UML -202-90 Table of Contents | en Bosch Security Systems, Inc. Instruction Manual F01U076723 | 1.0 | 2007.09...
-
Page 6: Safety
– For battery powered units, refer to the operating instructions. – For external power supplied units, use only the recommended or approved power supplies. F01U076723 | 1.0 | 2007.09 Instruction Manual UML -202-90 Bosch Security Systems, Inc. - Page 7 17. Attachments, changes or modifications - Only use attachments/accessories specified by the manufacturer. Any change or modification of the equipment, not expressly approved by Bosch, could void the warranty or, in the case of an authorization agreement, authority to operate the equipment.
-
Page 8: Safety Precautions
NOTICE! This symbol indicates information or a company policy that relates directly or indirectly to the safety of personnel or protection of property. F01U076723 | 1.0 | 2007.09 Instruction Manual UML -202-90 Bosch Security Systems, Inc. -
Page 9: Important Notices
U.S. federal law strictly prohibits surreptitious recording of oral communications. Disposal - Your Bosch product was developed and manufactured with high-quality material and components that can be recycled and reused. This symbol means that electronic and elec- trical appliances, which have reached the end of their working life, must be collected and dis- posed of separately from household waste material. - Page 10 Because the ISDN circuits are treated like telephone-network voltage, avoid connecting the SELV circuit to the Telephone Network Voltage (TNV) circuits. Video loss - Video loss is inherent to digital video recording; therefore, Bosch Security Systems cannot be held liable for any damage that results from missing video information. To minimize the risk of lost digital information, Bosch Security Systems recommends multiple, redundant recording systems, and a procedure to back up all analog and digital information.
- Page 11 AVERTISSEMENT: Ce produit est un appareil de Classe A. Son utilisation dans une zone résidentielle risque de provoquer des interférences. Le cas échéant, l’utilisateur devra prendre les mesures nécessaires pour y remédier. Bosch Security Systems, Inc. Instruction Manual Safety | en...
- Page 12 UL MAKES NO REPRESENTATIONS, WARRANTIES, OR CERTIFICATIONS WHATSOEVER REGARDING THE PERFORMANCE OR RELIABILITY OF ANY SECURITY OR SIGNALING-RELATED FUNCTIONS OF THIS PRODUCT. Copyright This user guide is the intellectual property of Bosch Security Systems, Inc. and is protected by copyright. All rights reserved. Trademarks All hardware and software product names used in this document are likely to be registered trademarks and must be treated accordingly.
-
Page 13: Customer Support And Service
UML -202-90 Customer Support and Service If this unit needs service, contact the nearest Bosch Security Systems Service Center for authorization to return and shipping instructions. Service Centers Telephone: 800-366-2283 or 585-340-4162 Fax: 800-366-1329 Email: cctv.repair@us.bosch.com Customer Service Telephone: 800-289-0096 Fax: 585-223-9180 Email: security.sales@us.bosch.com... -
Page 14: Unpacking
Verify that all the parts listed in the Parts List below are included. If any items are missing, notify your Bosch Security Systems Sales or Customer Service Representative. The original packing carton is the safest container in which to transport the unit and must be used if returning the unit for service. -
Page 15: Exploded View
Remote control sensor LED Indicator Power On (green) Power Off, Standby (red) Power Button Display power (On/Off) Instruction Manual UML -202-90 Scrolls down in the OSD Scrolls left in the OSD Scrolls right in the OSD Bosch Security Systems, Inc. - Page 16 UML -202-90 Fig. 3.2 Side and Bottom Panels UML -202-90 Reference # Bosch Security Systems, Inc. 15 16 Side Panel Connector Video 1 (AV1) IN Video 1 (AV1) OUT Video 2 (AV2) IN Video 2 (AV2) OUT S-Video (Y/C) IN...
-
Page 17: Remote Control
| Remote Control Remote Control This section details the functions and the usage of the Bosch remote control. Button Function POWER Turns the power ON and OFF. SOURCE Selects the PC or Video source. Numbers Numerals 0-9. AUTO Auto adjusts to the graphics adaptor. -
Page 18: Remote Control Battery Installation
Fig. 4.1 Battery Installation Slide the battery cover back into place. NOTICE! Replace batteries when required or at least once a year. Dispose of used batteries properly. Bosch Security Systems, Inc. Instruction Manual Remote Control | en F01U076723 | 1.0 | 2007.09... -
Page 19: Description
| Description Description The UML-202-90 20-inch (51-cm) Color Panel Display Monitor displays PAL or NTSC standard color pictures in CCTV systems. The UML-202-90 monitor includes two (2) looping Composite Video BNC connector inputs, two (2) looping Audio input RCA, and two (2) looping Y/C (S- Video) input using a 4-pin mini-DIN. -
Page 20: Installing The Uml-202-90
To prevent overheating, ensure that the ventilation openings on the rear of the monitor are not covered. Mounting the UML -202-90 The UML-202-90 is designed to be used on a desktop or mounted to a wall or rack. 6.2.1 Desktop Installation The viewing angle of the LCD can be adjusted to fit the most comfortable monitoring status. -
Page 21: Wall Mount Installation
19). NOTICE! To select between AV1 and AV2, press Input (see Figure 3.1 on page 10, Item 1) located on the front of the monitor. F01U076723 | 1.0 | 2007.09 Instruction Manual UML -202-90 Bosch Security Systems, Inc. -
Page 22: Connecting The Y/C (S-Video) Signal To The Monitor
6.6.1 HDMI The monitor can be connected to the HDMI (High Definition Multimedia Input) by connecting a HDMI cable (not supplied). Fig. 6.3 HDMI Input Bosch Security Systems, Inc. Input Y-signal IN or OUT C-signal IN or OUT Audio 1... -
Page 23: Dvi
F01U076723 | 1.0 | 2007.09 Description Red Video Green Video Blue Video Ground Ground Red Ground Green Ground Blue Ground Signal Cable Detect Ground SDA (for DDC) H-Sync or H+V Sync V-Sync SCL (for DDC) Instruction Manual UML -202-90 Bosch Security Systems, Inc. -
Page 24: Single / Multiple Monitor Configuration
UML -202-90 Single / Multiple Monitor Configuration Fig. 6.6 Single Monitor Configuration Reference # Fig. 6.7 Multiple Monitor Configuration Reference # Bosch Security Systems, Inc. Description Video Camera VIDEO 2 (AV2) IN VIDEO 2 (AV2) OUT Description Video Camera VIDEO 2 (AV2) IN... -
Page 25: Navigating The Monitor
| Navigating the Monitor Navigating the Monitor Navigating the Front Panel Use the front panel to make any necessary OSD adjustments to the UML-202-90. See the fig- ure below for an explanation of the front panel. Fig. 7.1 Front Panel Buttons Reference F01U076723 | 1.0 | 2007.09... -
Page 26: Navigating The Monitor On-Screen Display (Osd)
To access the OSD menus, press the Menu button on the front panel or on the remote control. Use the front panel of the UML-202-90 or remote control to make any necessary adjustments to the OSD. -
Page 27: Custom Menu
Adjusts the contrast level for video performance (range 0-100). Adjusts the overall intensity of the screen (range 0-100). Adjusts the tint of the picture (range 0-100). NTSC only. Adjusts the sharpness level for video performance (range 0-100). Instruction Manual UML -202-90 Bosch Security Systems, Inc. -
Page 28: Picture / Sound Menu
:Move Fig. 7.5 Picture / Sound Menu (PC Mode) Submenu Picture Mode (Video Mode) Picture Mode (PC Mode) Color Tone Mute Volume Bosch Security Systems, Inc. Custom Normal :Input :Menu Custom Normal :Input :Menu Definition Selects the automatic picture control mode. Choices are: –... -
Page 29: Pip Menu
(177 mm [3.03 in.] diagonal). Enables 4 positions: bottom right, top right, bottom left, top left. Alternates between the main and sub picture for the PIP mode. Continuously press to change selection. Instruction Manual UML -202-90 Bosch Security Systems, Inc. -
Page 30: Setup Menu
To disable the key lock feature using the front panel buttons, press and hold both the Input and the Menu buttons until the monitor displays the Key Unlocked message. Bosch Security Systems, Inc. English Blue... -
Page 31: Power Management
Normal operation Flashes Red Screen blanks after idle time and some electronic cir- cuits or all circuitry in the monitor shuts down. Normal operation but the screen displays an error message. Not operational. Instruction Manual UML -202-90 Bosch Security Systems, Inc. -
Page 32: Troubleshooting Guide
Recall to reset to the default settings. PC is operating with either a resolution or timing mode that is not supported by the UML-202-90. Change the PC timing mode to one of the valid combinations below: 640 x 480; 60/72/75 Hz 800 x 600;... -
Page 33: Maintenance
– Ethyl alcohol – Ethyl acid – Tolulene – Methyl chloride – Ammonia Use of these materials may permanently damage the polarizer due to a chemical reaction. F01U076723 | 1.0 | 2007.09 Instruction Manual UML -202-90 Bosch Security Systems, Inc. -
Page 34: Technical Specifications
Viewing Angle Sync Format Video Input Composite Video (CVBS) Y/C (S-video) Picture-in-Picture Bosch Security Systems, Inc. 110/230 VAC, 50/60 Hz 90 to 264 PAL/NTSC TFT LCD 408 x 306 mm (16 x 12 in.) 20.1 in. (53 cm) measured diagonally 0.255 x 0.255 mm (0.01 x 0.01 in.) - Page 35 Loop-through line level Speaker: two (2), 2 W Push-buttons Selects Video 1, Video 2, S-video, RGB, DVI, or HDMI input Selects on-screen display (OSD) Up arrow, Menu select Down arrow, Menu select Left arrow, decrease Right arrow, increase On/Off Instruction Manual UML -202-90 Bosch Security Systems, Inc.
- Page 36 Mount Environmental Operating Temp. Storage Temp. Humidity Bosch Security Systems, Inc. Composite video: two (2) BNC (1 in, 1 out) Composite video: two (2) BNC (1 in, 1 out) Two (2) mini-DIN, 4-pin (1 in, 1 out) Y, Pb, Pr PC: one (1) 1/8 in.
- Page 38 130 Perinton Parkway Fairport, New York, 14450 Phone +1 800 289 0096 +1 585 223 9180 www.boschsecurity.us © Bosch Security Systems, Inc., 2007; F01U076723 | 1.0 | 2007.09 Europe, Middle East, Asia: Bosch Security Systems B.V. Postbus 80002 5600 JB Eindhoven Phone:...
