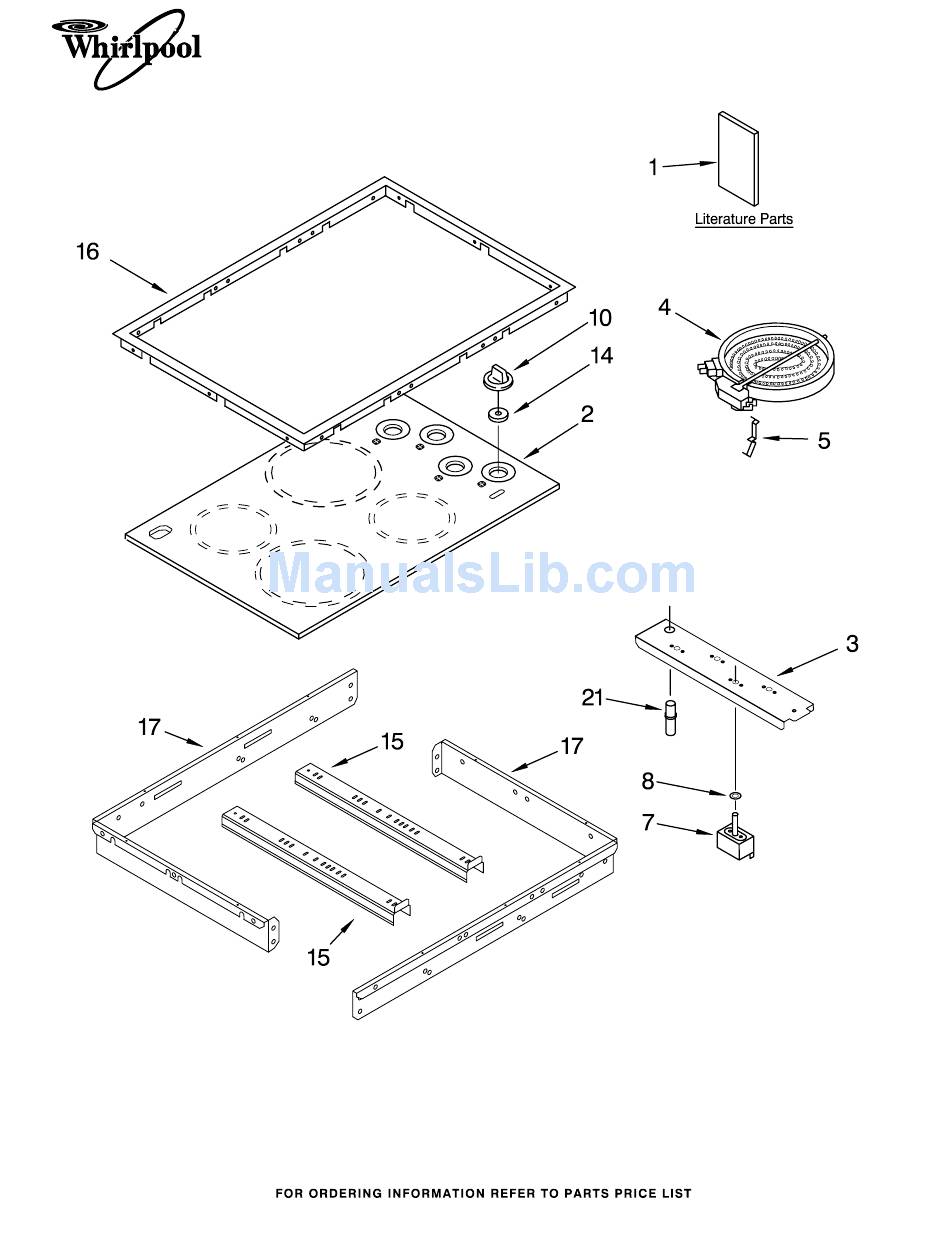

- Page 1 COOKTOP PARTS 30" ELECTRIC DROP−IN RANGE For Models:RS696PXGB5, RS696PXGQ5 SELF CLEANING (Black) (Designer White) OVEN Part No. 8185535 9−00 Litho in U.S.A. (RS)
- Page 2 COOKTOP PARTS For Models:RS696PXGB5, RS696PXGQ5 (Black) (Designer White) Illus. Part DESCRIPTION NOTE: The screws and nuts required to attach a part are listed immediately following that part. Literature Parts LIT3191800 Installation Instructions LIT3191537 Use & Care Guide LIT3192844 Tech Sheet...
-
Page 3: Oven Parts
OVEN PARTS For Models:RS696PXGB5, RS696PXGQ5 (Black) (Designer White) 8185535... - Page 4 4448520 Bumper, Door 4455509 Bracket, Support 4455286 Top Chassis 4449809 Screw 4452158 Tube, Vent 4449154 Screw 4452165 Lens, Light OVEN PARTS For Models:RS696PXGB5, RS696PXGQ5 (Black) (Designer White) Illus. Part DESCRIPTION 4452368 Oven Light Assy 4452166 Bulb, Light 4451740 Frame, Front...
-
Page 5: Control Panel Parts
8185535 CONTROL PANEL PARTS For Models:RS696PXGB5, RS696PXGQ5 (Black) (Designer White) Illus. Part DESCRIPTION NOTE: The screws and nuts required to attach a part are listed immediately following that part. Control Panel Assy. W/Membrane Switch 4452844 Black Model 4452825 White Model... -
Page 6: Oven Door Parts
4451719 Door Liner 4454948 Hinge, Door 4449743 Screw 4449259 Glass, Inner 4451722 Insulation, Door OVEN DOOR PARTS For Models:RS696PXGB5, RS696PXGQ5 (Black) (Designer White) Illus. Part DESCRIPTION 4449263 Glass, Inner 4451668 Retainer, Glass 4449809 Screw Door Handle... - Page 7 4451759 Vent, Exhaust 4449040 Screw 4455178 Elbow, Vent−Top 8185535 TOP VENTING PARTS For Models:RS696PXGB5, RS696PXGQ5 (Black) (Designer White) Illus. Part DESCRIPTION 4455334 Blower 4455352 Bracket, Blower 3400015 Screw 4451758 Block, Foam 4455177 Elbow, Vent−Bottom...
- Page 8 INTERNAL OVEN PARTS For Models:RS696PXGB5, RS696PXGQ5 (Black) (Designer White) Illus. Part DESCRIPTION 4452154 Element, Broil 4449154 Screw 3147563 Grill, Broiler 3147845 Pan, Broiler 4448717 Rack, Oven 4452153 Element, Bake 4449154 Screw 8185535...
-
Page 9: Optional Parts
261900 Citrine White 830864 Black ADHESIVE 591014 Adhesive Loctite (1/3 oz.) 482338 Sealer, Silastic (3 oz.) 8185535 OPTIONAL PARTS For Models:RS696PXGB5, RS696PXGQ5 (Black) (Designer White) Illus. Part DESCRIPTION SPLICING WIRES−−25FT. LENGTH 242828 Wire (12 Ga. 150 c Black) 242820 Wire (14 Ga.
