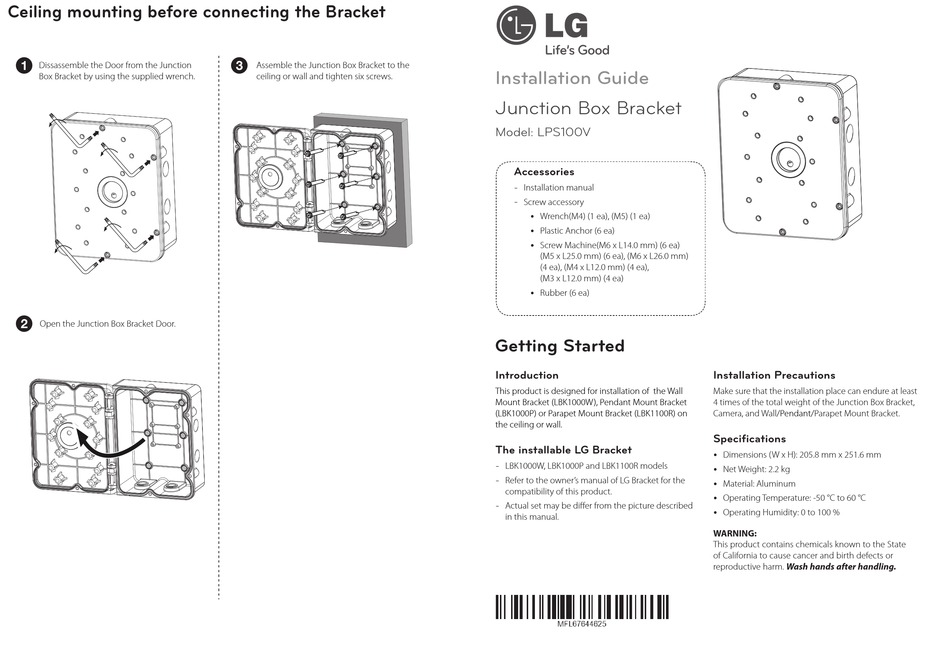

LG LPS100V Installation Manual

Ceiling mounting before connecting the Bracket
a
Dissassemble the Door from the Junction
Box Bracket by using the supplied wrench.
b
Open the Junction Box Bracket Door.
c
Assemble the Junction Box Bracket to the
ceiling or wall and tighten six screws.
Installation Guide
Junction Box Bracket
Model: LPS100V
Accessories
- Installation manual
- Screw accessory
y Wrench(M4) (1 ea), (M5) (1 ea)
y Plastic Anchor (6 ea)
y Screw Machine(M6 x L14.0 mm) (6 ea)
(M5 x L25.0 mm) (6 ea), (M6 x L26.0 mm)
(4 ea), (M4 x L12.0 mm) (4 ea),
(M3 x L12.0 mm) (4 ea)
y Rubber (6 ea)
Getting Started
Introduction
This product is designed for installation of the Wall
Mount Bracket (LBK1000W), Pendant Mount Bracket
(LBK1000P) or Parapet Mount Bracket (LBK1100R) on
the ceiling or wall.
The installable LG Bracket
- LBK1000W, LBK1000P and LBK1100R models
- Refer to the owner's manual of LG Bracket for the
compatibility of this product.
- Actual set may be differ from the picture described
in this manual.
Installation Precautions
Make sure that the installation place can endure at least
4 times of the total weight of the Junction Box Bracket,
Camera, and Wall/Pendant/Parapet Mount Bracket.
Specifications
y Dimensions (W x H): 205.8 mm x 251.6 mm
y Net Weight: 2.2 kg
y Material: Aluminum
y Operating Temperature: -50 °C to 60 °C
y Operating Humidity: 0 to 100 %
WARNING:
This product contains chemicals known to the State
of California to cause cancer and birth defects or
reproductive harm. Wash hands after handling.
