HUAWEI RP100&RP200 Room Presence
Commissioning Guide
Step 3 Keep the direction of the arrows on the support pointing towards the top of the HD display. Place
the support on the rear of the HD display.
Step 4 Align the HD display holes with the holes silk-screened with the number that matches the HD
display size on the L and R bars.
Step 5 Fasten the four M6 x 20 socket-head cap screws using an H5 Allen wrench to securely attach
the support to the rear of the HD display, as shown in

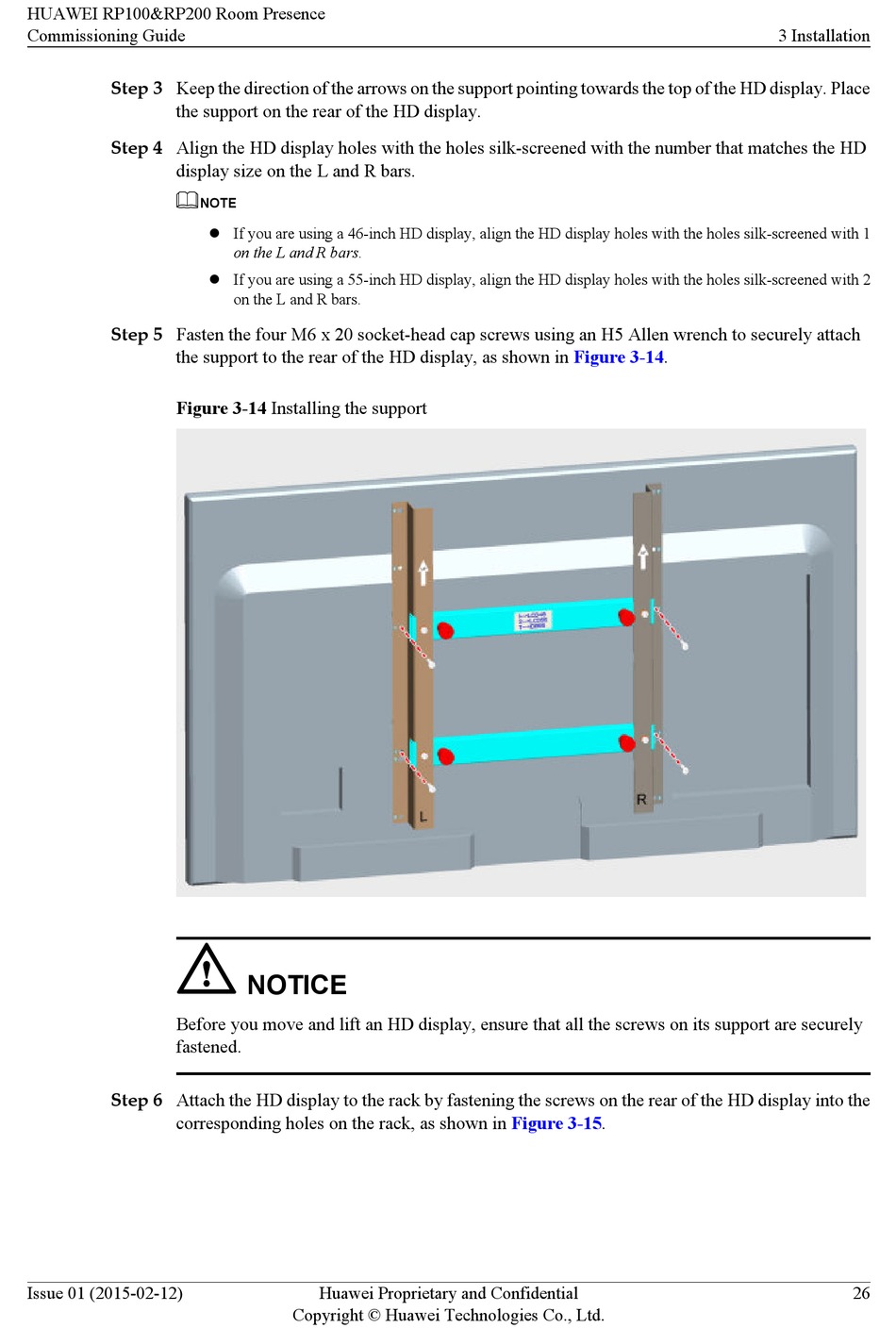

Figure 3-14 Installing the support
Before you move and lift an HD display, ensure that all the screws on its support are securely
fastened.
Step 6 Attach the HD display to the rack by fastening the screws on the rear of the HD display into the
corresponding holes on the rack, as shown in
Issue 01 (2015-02-12)
NOTE
l If you are using a 46-inch HD display, align the HD display holes with the holes silk-screened with 1
on the L and R bars.
l If you are using a 55-inch HD display, align the HD display holes with the holes silk-screened with 2
on the L and R bars.
NOTICE
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
Figure 3-14.
Figure 3-15.
3 Installation
26
