Operating Instructions (Included Installation Instruction)
FY-25DSF2NET
FY-40DSH2NET
FY-45DTT2BET
Thank you for purchasing the Panasonic Compact Axial Flow Fan.
Please read these instructions carefully, before using this product, and retain this instruction
for future use.
Make sure to read "Safety Precautions" (on page 2-4) prior to use.

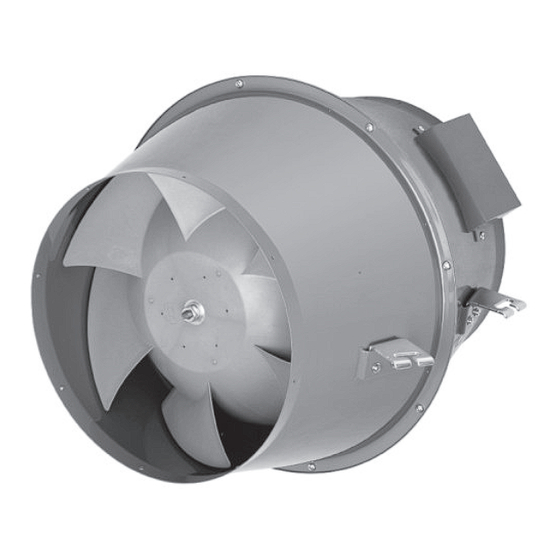

Compact Axial Flow Fan
FY-28DSM2NET
FY-45DST2NET
FY-45DTH2BET
FY-35DSM2NET
FY-40DTL2BET
Table of Contents
Safety Precautions .................................. 2-4
Maintenance and Inspection....................... 6
Periodic Check and Maintenance............... 7
Specifications ............................................. 8
Installation Instructions .................................
...................................... 9-Rear cover page
1. Before installation .............................. 9
2. Installation ....................................... 10
3. Power cord connection ........................
............................. 11-Rear cover page
FY-40DSL2NET
FY-40DTH2BET
Advertisement
Table of Contents
Related Manuals for Panasonic FY-25DSF2NET
Summary of Contents for Panasonic FY-25DSF2NET
-
Page 1: Table Of Contents
2. Installation ........10 3. Power cord connection ............. 11-Rear cover page Thank you for purchasing the Panasonic Compact Axial Flow Fan. Please read these instructions carefully, before using this product, and retain this instruction for future use. Make sure to read "Safety Precautions" (on page 2-4) prior to use. -
Page 2: Safety Precautions
Safety Precautions To avoid any injury or damage, please follow the rules as mentioned below : Any damage would happen due to NOT following the rules or miss-use, the levels of damage are categorized and explained as indicated below : DANGER Denotes a potential hazard that will result in serious injury or death. - Page 3 Safety Precautions WARNING Unauthorized operator or inspector is not allowed to access. May cause unexpected accident. Do not insert fingers or sticks into the inlet or outlet openings. May cause injury by the fan rotating at high speed inside. Don't use the product without connecting the ducts on both inlet and or outlet. In that case, attach net protection.
- Page 4 Safety Precautions CAUTION Do not use the product in conditions other than specified. (See page 8.) May cause unexpected accidents by impeller damage or motor burnout. Securely connect the cable of the power source. Poor cable connection may cause connectors to overheat and result in fire. Install and fix the cable of the power source certainly.
-
Page 5: Names And Dimensions Of Component
Names and Dimensions of Component (Position of Model No.) FY-25DSF2NET unit : mm (Hole pitch of hanger fittings) 2-Ø12 (For hanging application) Air flow Position of Model No. Power cord Effective length : about 900mm Parts name Q'ty Material Casing A... -
Page 6: Maintenance And Inspection
Terminal • No looseness. • Tighten with tool. for looseness. FY-25DSF2NET.) (with tool) Note: The table above gives general indications, and the contents may vary depending on the use situation or installation condition. The typical sample operation time is 10 hours per day, 300 days per year, and 3000 hours as a standard use. -
Page 7: Periodic Check And Maintenance
Periodic Check and Maintenance When requesting repair If you find any troubles, use the following table to check your product. If you still have troubles, make sure to turn off the product and contact your dealer for repair service. Before you contact your dealer, check the following items. 1. -
Page 8: Specifications
50Hz 60Hz 50Hz 60Hz 50Hz 60Hz 50Hz 60Hz 50Hz 60Hz 50Hz 60Hz 50Hz 60Hz 0.19 0.17 0.24 0.22 41.0 42.0 51.0 54.0 50.5 53.5 FY-25DSF2NET Single-phase 220-240V 0.14 0.12 0.17 0.18 39.5 41.5 49.0 52.0 48.5 51.5 1194 1224 0.25 0.28 0.32... -
Page 9: Installation Instructions
Installation Instructions CAUTION Wear protectors as gloves and helmets during installation and maintenance. May cause injury or burn. 1.Before installation Check the following. Is there any breakage or deformation? Is there product as per your order? Confirmations Start to perform attachment construction after checking the power supply of product. Use hanging bolts and foundation bolts that have sufficient intensity. -
Page 10: Installation
Install the exterior duct in over 1/100 Terminal cover declining slope (It is not supplied with Install what stops swaying. FY-25DSF2NET.) toward outer side. Make the access door opening to the Check the air side of power cord or direction referencing terminal cover. -
Page 11: Power Cord Connection
When connecting the power cord, fix the power cord to the hanging Connector (inside the terminal cover) bolt so that the power connector is not under tension. (The FY-25DSF2NET do not have terminal covers.) Terminal cover As water may enter the connector along the power cord, use a trap (It is not supplied with FY-25DSF2NET.) - Page 12 Installation Instructions Connecting wiring FY-25DSF2NET It is required to use terminal (Not included) (The illustration shows an example of connecting for high that complies IEC60998. power operation. For low power operation, connect cords according to the "Wiring Diagram" on page 11.)
