- Page 1 STAND ASSEMBLY: Step by Step Photo Instructions...
- Page 2 Step 1 Back frame • Lay back frame assembly on a flat level area. • 1st, Install smooth arm horizontal support (These will be supports for the stand top section). • 2 , Install a triangle bracket into the corner. Install Smooth arm Horizontal support (TOP) a washer and nut onto each of the four posts for the triangle bracket.
- Page 3 Step 2 • Repeat the process from step one with on the opposite side top horizontal support and triangle bracket. When putting in the triangles it helps to tilt the support arm back slightly to get the triangle seated. • For the bottom horizontal supports you will need to use them in the indicated way as on picture three.
- Page 4 Step 3 • Mount the entire front section on the stand by lining up the bolts with each of the support arms holes. • Remember to install the triangle brackets here as well for each side on the top. • With the frame together make sure that each post has a washer and nut.

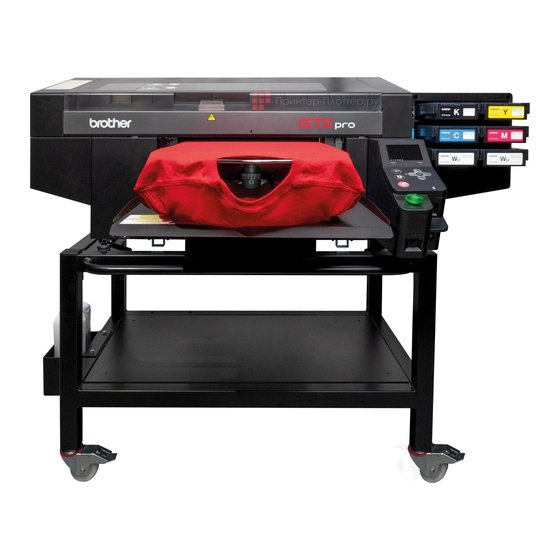

- Page 5 Step 4 • To use the stand for the printer you will need at least four people to pick up the printer and set it onto the stand as indicated both in the quick setup manual and here in the illustration to the right. •...
