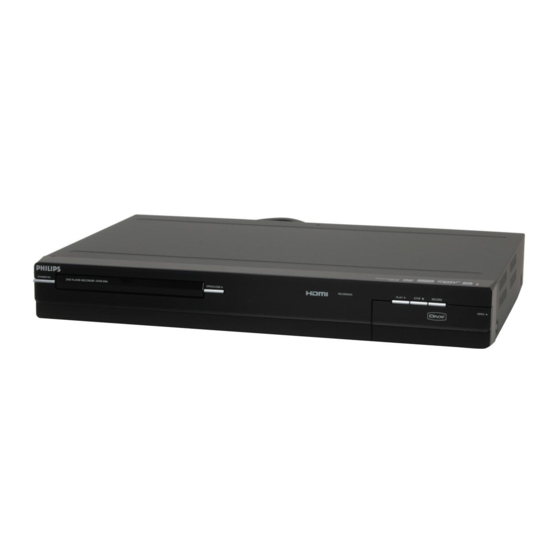

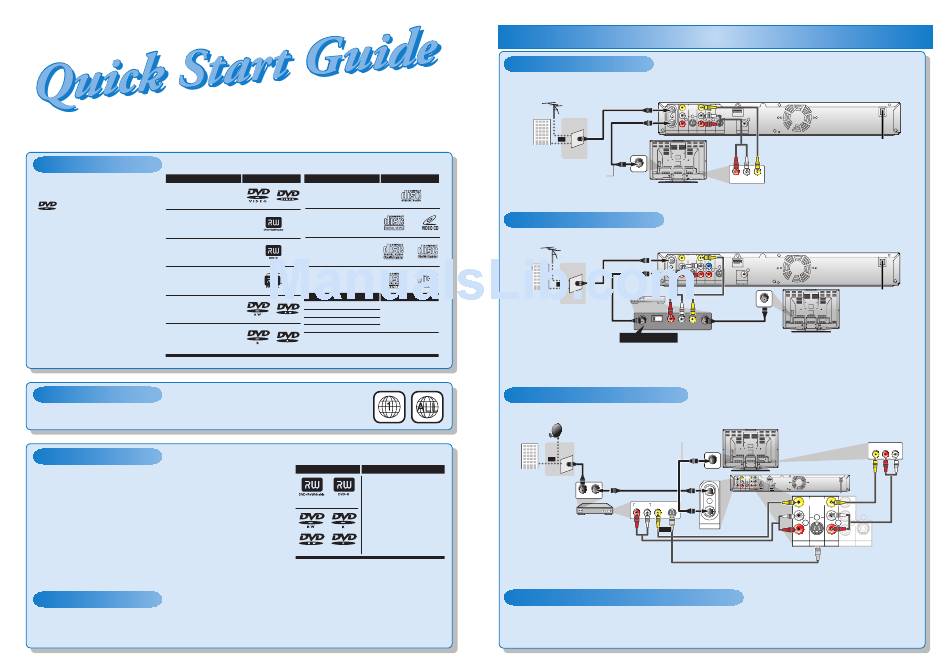

Philips DVDR3506/37B Quick Start Manual

DIGITAL VIDEO DISC RECORDER WITH DIGITAL TUNER
P l ayab le Di scs
Playable discs
This unit is compatible to play back
the following discs / files.
DVD-video
is a trademark of DVD
Format/Logo Licensing
Corporation.
DVD+RW
DVD+R
DVD+R Double Layer
DVD-RW
(Finalized video mode discs only)
DVD-R
(Finalized video mode discs only)
Region Cod es
The number inside the globe refers to region of the world.
This unit can play back DVDs that are labeled for ALL regions or for region 1.
R ecordab le Dis cs
This unit can record to DVD+RW, DVD+R, DVD-RW and DVD-R. DVD+R/DVD-R can only
be recorded to once. DVD+RW/DVD-RW can be recorded to and erased many times.
• Following discs are recommended for good recording quality and are proven to be
compatible with this unit. However, depending on the media condition the unit may
not read the disc properly.
Verbatim DVD+R 8x, DVD+RW 4x, DVD-R 8x, DVD-RW 2x,
JVC DVD-RW 4x,
Maxell DVD+R 4x/8x/16x, DVD-R 8x/16x,
SONY DVD+R 4x/8x/16x, DVD+RW 4x,
TDK DVD+R 4x/8x/16x
Performance of any other discs are not guaranteed.
• You can play back DVD+RW on most DVD players without finalizing. However, if
you have added or deleted chapters, or made chapters hidden, you must perform "Make Edits Compatible" before being able to
see those effects on other units (see page 83 in the user manual). To play back discs other than DVD+RW on other DVD players,
you will need to finalize.
Unrecordable Discs
• DVD-RW recorded in the mode other than +VR is not recordable on this unit unless you erase all contents in the disc (see page 82 in the
user manual).
• DVD-R recorded in the mode other than +VR is not recordable on this unit.
DVDR3506/37
Logos Playable discs Logos
CD-DA (audio CD)
video CD
CD-RW
CD-R
Playable files Media
CD-DA
MP3
CD-RW/-R
Windows Media™ Audio
JPEG
CD-RW/-R
DivX®
DVD+RW/+R
DVD-RW/-R
Logo Attributes
DVD+RW DVD+R
8cm/12cm, single-sided, single layer disc
Approx. max. recording time (SLP mode):
360 minutes (4.7GB) (for 12cm)
108 minutes (1.4GB) (for 8cm)
DVD-RW DVD-R
1
Ba sic Conn ecti on
1) Disconnect the power cord of your TV from the AC outlet.
2) Disconnect RF coaxial cable from antenna input jack of your TV.
3) Make the connection as illustrated below.
RF coaxial cable IN
VIDEO
VHF / UHF
antenna
OUT
ANTENNA AV IN
or RF coaxial
cable
cable TV
company
ANT. IN
This connection is
for TV loop
through only
rear of your TV
4) Plug in the power cords of the devices to the AC outlet.
Connection Using RF Modulator.
1) Disconnect the power cords of the devices from the AC outlet.
2) Make the connection as illustrated below.
rear of this unit
VHF / UHF
RF coaxial cable IN
antenna VIDEO
L
RF coaxial cable
R
OUT
rear of your
ANTENNA AV IN
or
RF modulator
RCA audio cable
(not supplied)
cable TV
company
3 4 R L
ANT. IN CHANNEL AUDIO IN VIDEO IN
Set channel 3 or 4
3) Set your RF modulator's channel 3/4 switch to either 3 or 4.
4) Plug in the power cords of the devices to the AC outlet.
5) Turn on your TV and choose the same channel as you set the RF modulator's channel 3/4 switch to.
• RF modulator is not supplied with this unit. You need to purchase it at your local store.
Connection to a Cable / Satellite Box
1) Disconnect the power cords of the devices from the AC outlet.
2) Make the connection as illustrated below.
e.g.)
satellite
dish This connection is for
TV loop through only
or
RF coaxial cable
cable TV
company
RF coaxial cable
ANT. IN RF OUT
AUDIO OUT VIDEO S-VIDEO
OUT OUT
R L
cable/satellite
box
or
3) Plug in the power cords of the devices to the AC outlet.
* Refer to the user manual for other connection methods.
How to Select External Input Channel on Your TV
After you have completed the connections, switch the input selector on your TV to an appropriate external
input channel. Press a button on the TV's original remote control that selects an external input channel
repeatedly until the DVD recorder's opening picture appears. Check your TV owner's manual for details.
Connections
VIDEO Y
IN OUT
L
P B /C B
L HDMI OUT
R
IN R P R /C R OUT COAXIAL
COMPONENT DIGITAL AUDIO OUTPUT
S-VIDEO AV OUT VIDEO OUTPUT S-VIDEO
PCM / BITSTREAM
RCA audio RCA video
cable cable
R L
AUDIO IN VIDEO IN
VIDEO
Y
IN OUT
L P B /C B
HDMI OUT
IN R OUT
P R /C R COAXIAL
S-VIDEO AV OUT COMPONENT S-VIDEO DIGITAL AUDIO OUTPUT
VIDEO OUTPUT PCM / BITSTREAM
RCA video cable
ANT. IN
RF coaxial cable
rear of your TV
TO TV
rear of your TV
ANT. IN
IN VIDEO VIDEO
IN OUT
IN L HDMI OUT
R RCA
OUT IN OUT COAXIAL
ANTENNA AV IN S-VIDEO S-VIDEO PCM / BITSTREAM DIGITAL AUDIO OUTPUT video
cable
VIDEO VIDEO VIDEO VIDEO
Y
IN IN OUT OUT
L L
P B /C B
L L
OUT
ANTENNA
R R
RCA video cable
R R OUT
IN IN P R /C R
COMPONENT
RCA audio cable AV IN AV IN S-VIDEO S-VIDEO AV OUT AV OUT S-VIDEO
VIDEO OUTPUT
S-video cable
Follow to the back side of this sheet.
AUDIO IN
VIDEO IN R L
RCA
audio
cable
