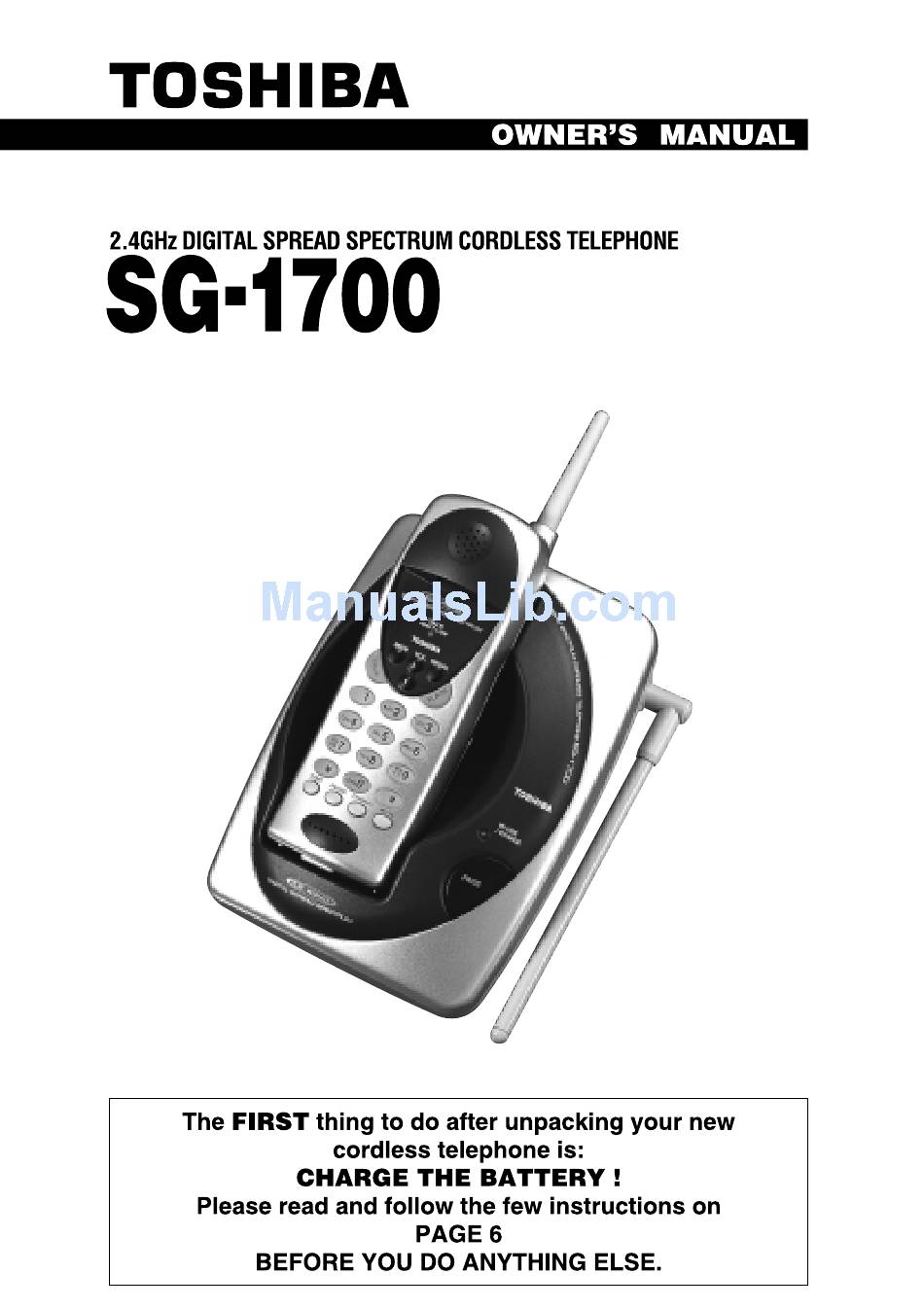

Toshiba SG-1700 Owner's Manual

2.4ghz digital spread spectrum cordless telephone
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for Toshiba SG-1700

Summary of Contents for Toshiba SG-1700

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: 1. Read and understand all instructions. 2. Follow all warnings and instructions marked on the product. 3.
  • Page 3 The RBRC Seal The RBRC (contained in our product) indicates that Toshiba America Consumer Products, Inc. (TACP) is voluntarily participating in an industry program to collect and recycle these batteries at the end of their useful lives, when taken out of service within the United States. The RBRC provides a convenient alternative to placing used nickel-cadmium batteries into the trash or municipal waste, which is illegal in some areas.

  • Page 4: Service Requirements

    We designate this as the unit’s “Ringer Equivalence Number.” It is most unlikely, but . . . If your SG-1700 should cause problems on the phone line, the phone company has the right to temporarily discontinue your service. If this happens, the phone company will notify you and give you the opportunity to correct the problem.
  • Page 5 INTRODUCTION Toshiba America Consumer Products, Inc. takes pride in presenting the SG-1700, one of the finest digital spread spectrum cordless telephones available. Intelligent design, superb craftsmanship, and the latest technological advances have been combined to provide you with a telephone that is easy to operate and will provide you with years of dependable service.

  • Page 6: Installation

    INSTALLATION 1. SETTING UP THE BASE UNIT For use on a desk or counter top follow the instructions below. DESKTOP MOUNTING: Snap the bracket's tab into the notches on the base. Raise the antenna to vertical position. • USE ONLY WITH Supplied AC ADAPTOR (TAC-1700; power source AC 120V, 60Hz/DC 9V).

  • Page 7: Charge The Battery Pack

    2. CHARGE THE BATTERY PACK Black IN USE/ CHARGE Charging contacts Note The battery pack is not charged properly if the charging contacts are dirty or tarnished. Clean the contacts occasionally with a dry cloth. Note Use only the supplied battery pack (TRB-8000; power source 600 mAh, 3.6V).

  • Page 8: Mounting On A Standard Wall Plate

    After the battery pack is fully charged; Operation While in use (Talk mode) While not in use (Standby mode) When TALK/BATT LOW LED blinks, all handset buttons are disabled and the battery needs to be charged. If you are during a call, you hear short beeps.
  • Page 9 • Route the cords through the guides. • Place the base unit on the posts of the wall plate and push down until it is firmly seated. • USE ONLY WITH Supplied AC ADAPTOR (TAC-1700; power source AC 120V, 60Hz/DC 9V). Notes •...

  • Page 10: Locations Of Controls

    LOCATIONS OF CONTROLS HANDSET CONTROLS TALK/BATT LOW LED MEM (Memory) button TALK button TONE button PAUSE button Charging Contacts BASE UNIT CONTROLS DC IN 9V jack LINE Modular jack Antenna Speed Dial Index Card (back) Write down numbers stored in memory.

  • Page 11: Tone/Pulse Setting

    Please see “LOCATION OF CONTROLS” for the location of each button used for the following operations. TONE/PULSE SETTING Set the TONE/PULSE switch on the back of the base unit to TONE and make a trial call. If the call does not connect, set the TONE/PULSE to PULSE. MAKING A CALL 1.

  • Page 12: Interference Or Static

    3. INTERFERENCE OR STATIC If you hear noise during a call, press The TALK/BATT LOW LED blinks during changing a channel. 4. CHANGING THE RINGER VOLUME Press to select one of four ringer tone and volume combinations during standby mode. Each time you press 5.

  • Page 13: Out Of Range

    8. SENDING TONE SIGNAL (for Pulse service user) Even if you have Pulse service (the Tone-Pulse switch is set to Pulse). You can use this phone with banking and other phone services requiring touch tone signals. q Dial the service number and wait for the connection. w Press then, enter the numbers required.

  • Page 14: Carrying The Handset In The Belt Clip

    CARRYING THE HANDSET IN THE BELT CLIP You can attach the Belt Clip to the handset in order to carry it on your belt. Attaching the Belt Clip to the Handset Removing the Belt Clip from the Handset Pull both sides of the Belt Clip to release the tabs from the holes. Note Remove the Belt Clip carefully from the handset, taking care not to hurt your fingers or damage your nails.

  • Page 15: Using A Headset

    USING A HEADSET You can talk with hands-free convenience using an optional headset (part #. RC008260) that has a 3/32-inch(2.5mm) plug. Notes • The handset’s earspeaker and microphone are turned off with a headset connected. • Pressing the button of the handset also controls the connected headset’s volume. •...

  • Page 16: Memory Dialing

    MEMORY DIALING You can store up to 10 telephone numbers in memory. Notes In memory dialing operation, • If more than 20 seconds elapse between pressing buttons, the operation will be cancelled and you must start over again. • If you press a wrong button, an error tone sounds and the handset returns to standby mode. •...

  • Page 17: Dialing A Stored Number

    2. DIALING A STORED NUMBER q Pick up the handset and press The TALK/BATT LOW LED lights. w Press e Enter the memory address (0 to 9). The stored number will be dialed. Note If you enter a memory address which does not have any stored number, error beeps sound. 3.

  • Page 18: Supplied Accessories

    ACCESSORIES SUPPLIED ACCESSORIES Rechargeable Battery pack (1) TRB-8000 Part #. RC004931 AC Adaptor Telephone Cord Belt Clip Owner’s Manual Speed Dial Index Bracket OPTIONAL ACCESSORIES Headset For the purchase of Accessories, please call 1-877-644-7373. TROUBLESHOOTING GUIDE Should any problem occur with the set, make the following simple tests to determine whether or not servicing is required.
  • Page 19 PROBLEM • The handset is too far from the base unit. Noise or interference. • The battery is low. • The base unit is located in a place with high • Interference from TV, appliances, etc. • There may be line noise. •...
  • Page 20 WARRANTY/SERVICE TELEPHONE/TELEPHONE ANSWER MACHINE LIMITED WARRANTY Toshiba America Consumer Products.Inc(“TACP”) and Toshiba Hawaii,Inc.(“THI”) make the following limited warranties. These limited warranties extend to the original consumer purchaser or any person receiving this set as a gift from the original consumer purchaser and to no other purchaser or transferee.
