LED

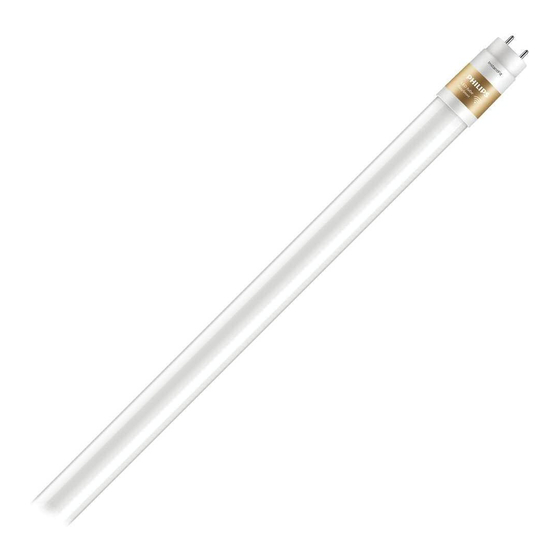

InstantFit T8
with EasySmart
technology
Technical
Application Guide
Philips is now introducing a new line of connected LED lighting products with
EasySmart technology. Philips InstantFit LED T8 with EasySmart technology is
compatible with veri ed
uorescent lamps with connected LED lamps without rewiring the xture. It is true
plug and play. The lamp o ers standard ZigBee based connectivity that easily
interoperates with various control devices. Compared with a non-connected LED
solution, EasySmart technology realizes more energy savings by enabling
advanced control options.
electronic ballasts. It is the easiest way to replace
1
Advertisement
Table of Contents
Related Manuals for Philips InstantFit T8
Summary of Contents for Philips InstantFit T8
- Page 1 Technical Application Guide Philips is now introducing a new line of connected LED lighting products with EasySmart technology. Philips InstantFit LED T8 with EasySmart technology is compatible with veri ed electronic ballasts. It is the easiest way to replace uorescent lamps with connected LED lamps without rewiring the xture.
- Page 2 Drivers Optics • • Compatible with verified electronic ballasts Advanced optical system with • Designed and approved to UL, CSA and FCC high efficiency reflector Connectivity • Standard ZigBee based wireless interface • Integrated infrared (IR) receiver IR receiver Thermal •...
-
Page 3: System Overview
Philips EasySmart IR Commission Tool, e.g. mobile app Programming Tool * Philips InstantFit LED T8 with EasySmart technology uses ZigBee protocol to communicate with each other and control devices. * EasySmart IR programming tool communicates with individual lamp via infrared. Applications... -
Page 4: Spectral Power Distribution
Spectral Power Distribution TLED 14W 3000K TLED 14W 3500K 100% 100% 300 350 450 500 650 700 750 300 350 450 500 650 700 750 Wavelength (nm) Wavelength (nm) TLED 14W 4000K TLED 14W 5000K 100% 100% 300 350 450 500 650 700 750 300 350 450 500... - Page 5 1 x 2100 lm Lifetime and Lumen Maintenance 100% Philips InstantFit LED T8 with EasySmart technology has a lifetime of 50,000 hours. This is de ned as the number of hours when 50% of a large group of identical lamps drop below 70% of its initial lumen.
- Page 6 Lifetime and Failure Rate Lifetime vs. Failure rate @Ta 25°C Lifetime vs. Failure Rate vs. Tcase 100% TC=35 TC=45 TC=55 10000 20000 30000 40000 50000 60000 10000 20000 30000 40000 50000 60000 Lifetime (Hrs) Lifetime (Hrs) Temperature Operating temperature °C °C min -20 max +45...
-
Page 7: Technical Speci Cation
Lumina RF PIR Occupancy Sensor, 450 sq ft Lumina RF PIR Occupancy Sensor, 1,500 sq ft Leviton ZSC15-IxW Lumina RF Wireless Photocell Leviton LURPC-00W Neuron App Leviton FREE Product must be used with compatible control devices. Please visit www.philips.com/EasySmart for latest information on control compatibility. -
Page 8: Application Notes
Approbation & Certi cates Philips InstantFit LED T8 with EasySmart technology strictly follows applicable legislation and standard. The product complies with UL, CSA, NSF and RoHS. Product is DLC quali ed. Philips is a member of ZigBee Alliance. Product is ZigBee certi ed.
