Switches CPE330

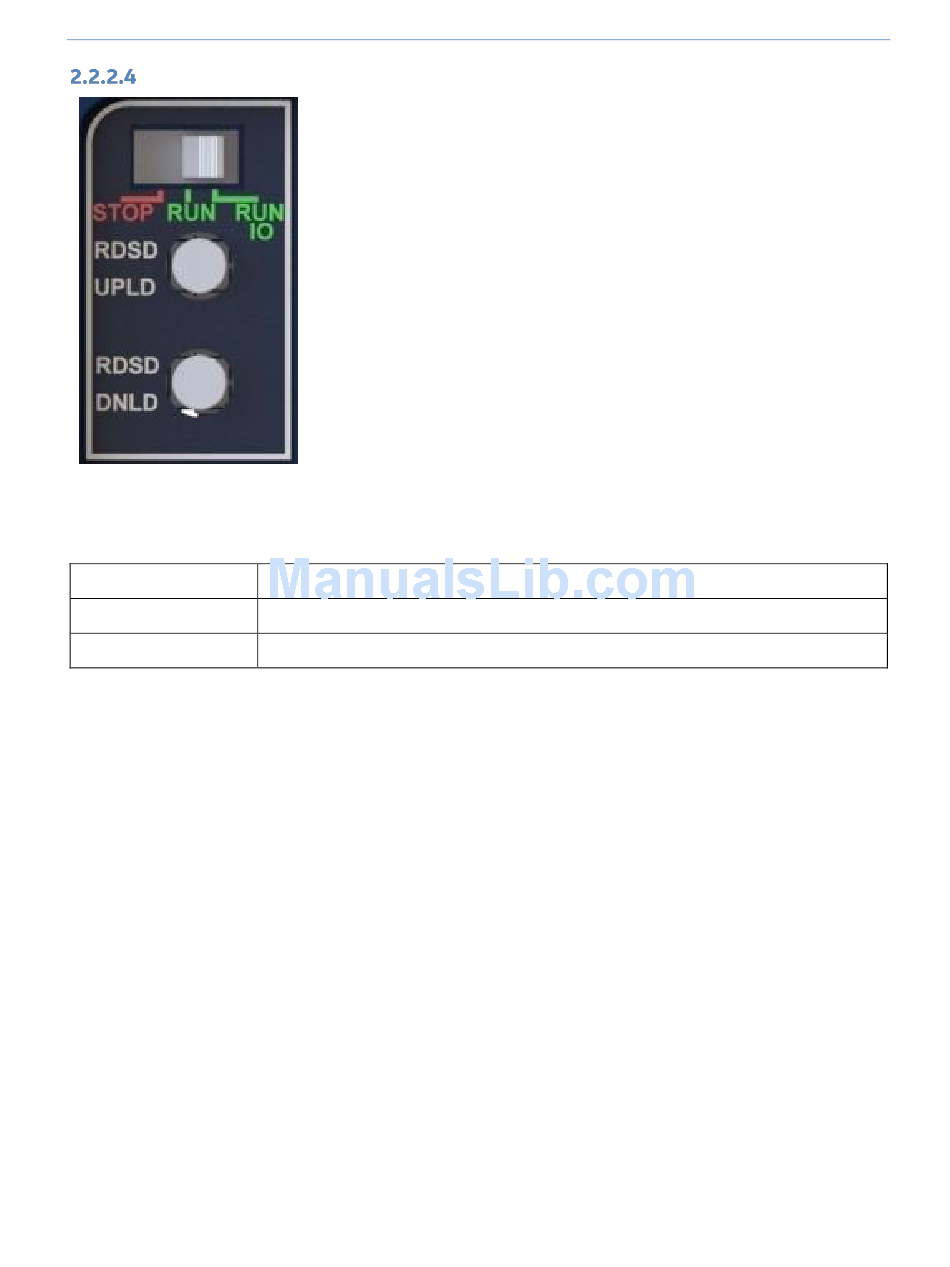

Figure 19: CPE330 RUN/STOP Switch and
RDSD Switches
RDSD Switch Operation CPE330
RDSD Pushbuttons
RDSD UPLD
RDSD DNLD
Refer to Removable Data Storage Devices (RDSDs) for full description of RDSD functionality.
GFK-2222AD
The RDSD and RUN/STOP Switches are located behind the
protective door, as shown in Figure 19.
Refer to RUN/STOP Switch Operation in Chapter 4.
The Reset pushbutton, located just above these switches,
is currently not used.
Function
Loads user program or data from CPU to RDSD.
Stores user program or data from RDSD to CPU.
April 2018
Chapter 2. CPU Features & Specifications
63
