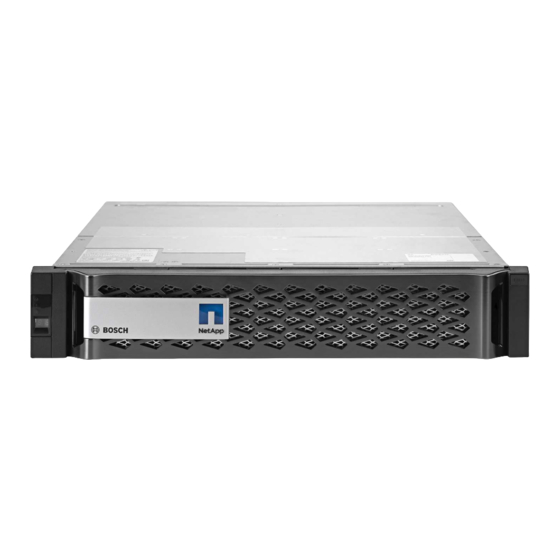

Bosch DSA-N2E8X4-12AT Quick Installation Manual
Dsa e-series e2800 12-bay
Hide thumbs
Also See for DSA-N2E8X4-12AT:
- Quick installation manual (30 pages) ,
- Installaton manual (50 pages)
Table of Contents
Advertisement
Advertisement
Table of Contents
Related Manuals for Bosch DSA-N2E8X4-12AT
Summary of Contents for Bosch DSA-N2E8X4-12AT

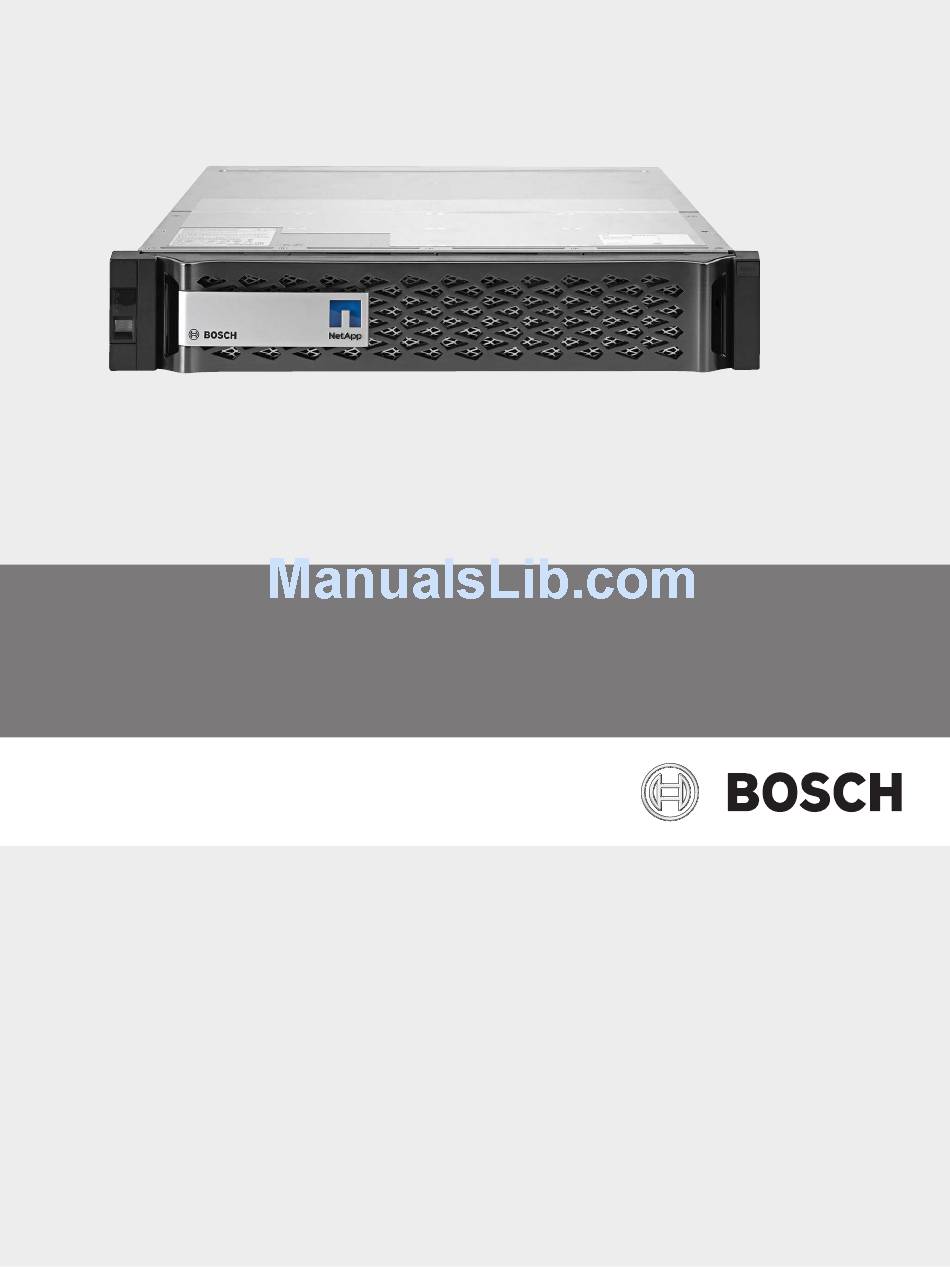

- Page 1 DSA E-Series (E2800 12-bay) DSA-N2E8X4-12AT | DSX-N1D8X4-12AT | DSA-N2C8X4-12AT | DSA-N2E8X8-12AT | DSX-N1D8X8-12AT | DSA-N2C8X8-12AT | DSA-N2E8XA-12AT | DSX-N1D8XA-12AT | DSA-N2C8XA-12AT | DSA-N2E8XC-12AT | DSX-N1D8XC-12AT | DSA-N2C8XC-12AT Quick Installation Guide...
-
Page 3: Table Of Contents
Connecting the controller unit to the management hosts Connecting the units to the power supply Supported connections Turning on/off AC power Turning on AC power Turning off AC power Installing and configuring the storage array Bosch Sicherheitssysteme GmbH Quick Installation Guide 2017.12 | V1 | DOC... -
Page 4: Safety
Permanently connected devices must have an external, readily operable mains plug or all‑pole mains switch in accordance with installation rules. – Pluggable devices must have an easily accessible socket-outlet installed near the equipment. 2017.12 | V1 | DOC Quick Installation Guide Bosch Sicherheitssysteme GmbH... - Page 5 SELV circuits. – If safe operation of the unit cannot be ensured, remove it from service and secure it to prevent unauthorized operation. In such cases, have the unit checked by Bosch Security Systems. –...
-
Page 6: Warning Notices
Do not remove more than one canister from the enclosure while power to the enclosure is turned on. – Bosch products may contain Class 1 laser devices, Class 1M laser devices, or both. – Keep away from moving fan blades. -
Page 7: Caution Notices
Notice! This is a class A product. In a domestic environment this product may cause radio interference, in which case the user may be required to take adequate measures. Bosch Sicherheitssysteme GmbH Quick Installation Guide 2017.12 | V1 | DOC... - Page 8 DSA E-Series (E2800 12-bay) Notice! Video loss is inherent to digital video recording; therefore, Bosch Security Systems cannot be held liable for any damage that results from missing video information. To minimize the risk of losing information, we recommend multiple, redundant recording systems, and a procedure to back up all analog and digital information.
-
Page 9: Before You Begin
If you already have a registered account, you can log on to it and add your new DSA E‑Series hardware to your existing account. If you are a new customer, fill in the registration form and send it to Bosch ST Service organization (mailto:RMADesk.STService@de.bosch.com). -
Page 10: Device Views
Status display Channel 5 (left) / Channel 6 (right) - Host interface ports (Dual 10 GB iSCSI, RJ45 Base‑T) Note: Use only RJ45 Base‑T ports or optical ports. Power-fan canister 1 On/off switch 2017.12 | V1 | DOC Quick Installation Guide Bosch Sicherheitssysteme GmbH... - Page 11 Note: Use only RJ45 Base‑T ports or optical ports. Power-fan canister 1 On/off switch Mains connection 100 - 240 VAC Power-fan canister 2 12-bay expansion unit - rear view 11 12 13 Bosch Sicherheitssysteme GmbH Quick Installation Guide 2017.12 | V1 | DOC...
- Page 12 IOM B - SAS port 2 IOM B - SAS port 3 IOM B - SAS port 4 Power-fan canister 1 On/off switch Mains connection 100 - 240 VAC Power-fan canister 2 See also – Supported connections, page 20 2017.12 | V1 | DOC Quick Installation Guide Bosch Sicherheitssysteme GmbH...
-
Page 13: Installation
You can install the unit in either a square-hole or round-hole rack. – If you are installing the unit in a cabinet not provided by Bosch, you must calculate the thermal output of your equipment and compare the results with the target system cabinet's thermal rating. - Page 14 (preinstalled on either side of the front of the unit), the holes on the rack or system cabinet, and the holes on the front of rails. 2017.12 | V1 | DOC Quick Installation Guide Bosch Sicherheitssysteme GmbH...
-
Page 15: Installing The Front Bezel And End Caps
If applicable, replace the end caps or the system bezel. Note: Additional documentation can be found on the Bosch online catalog. Notice! Install the expansion units below and above the controller unit, keeping the weight in the lower portion of the cabinet. -
Page 16: Connection
Controller A IOM B IOM A Three expansion units - dual controller configuration Controller B Controller A IOM B IOM A IOM B IOM A IOM B IOM A 2017.12 | V1 | DOC Quick Installation Guide Bosch Sicherheitssysteme GmbH... - Page 17 IOM B IOM A IOM B IOM A IOM B IOM A Notice! You can connect a 12-bay DSA E2800 controller unit to a maximum of seven 12-bay DSA E2800 expansion units. Bosch Sicherheitssysteme GmbH Quick Installation Guide 2017.12 | V1 | DOC...
-
Page 18: Connecting The Controller Unit To The Network
Connecting the controller unit to the network In case of a Bosch Video Recording Solution a host is an IP camera. To connect the controller unit to the Ethernet one or two of two available iSCSI host ports must be connected to the Ethernet. -
Page 19: Connecting The Units To The Power Supply
To connect the controller unit and the expansion units to the power supply: Confirm that the two power switches on the controller unit are off. Note: If you have expansion units, confirm that their power switches are off. Bosch Sicherheitssysteme GmbH Quick Installation Guide 2017.12 | V1 | DOC... -
Page 20: Supported Connections
If any of the amber LEDs are on, there might be a problem with a component. Confirm you completed the installation steps correctly. If you are unable to resolve the problem, contact your local Bosch Technical Support team. Supported connections We recommend using the following connection methods: 2017.12 | V1 | DOC... - Page 21 Note: Reserved for maintenance operations if the hardware contains a second Ethernet port. Channel 3 / Controller A and Channel 4 / Controller A and Channel 3 / Controller B (iSCSI, Channel 4 / Controller B (iSCSI, optical) optical) Bosch Sicherheitssysteme GmbH Quick Installation Guide 2017.12 | V1 | DOC...
- Page 22 Channel 6 / Controller A is the fallback of Channel 6 /. Controller B – Alternatively: iSCSI, optical Note: – Channel 3 / Controller B is the fallback of Channel 3 / Controller A and Channel 4 / Controller A is the fallback of Channel 4 /. Controller B 2017.12 | V1 | DOC Quick Installation Guide Bosch Sicherheitssysteme GmbH...
-
Page 23: Turning On/Off Ac Power
If any of the amber LEDs are on, there might be a problem with a component. Confirm you completed the installation steps correctly. If you are unable to resolve the problem, contact your local Bosch Technical Support team. Connect all cables if required. -
Page 24: Installing And Configuring The Storage Array
For the basic setup use the Video Recording Manager Configuration Manager software. For detailed information, in Configuration Manager refer to the Video Recording Manager Help. More information For more information, software downloads, and documentation, visit www.boschsecurity.com and go to the respective product page. 2017.12 | V1 | DOC Quick Installation Guide Bosch Sicherheitssysteme GmbH... - Page 28 Bosch Sicherheitssysteme GmbH Robert-Bosch-Ring 5 85630 Grasbrunn Germany www.boschsecurity.com © Bosch Sicherheitssysteme GmbH, 2017...
