3.5

Monitors

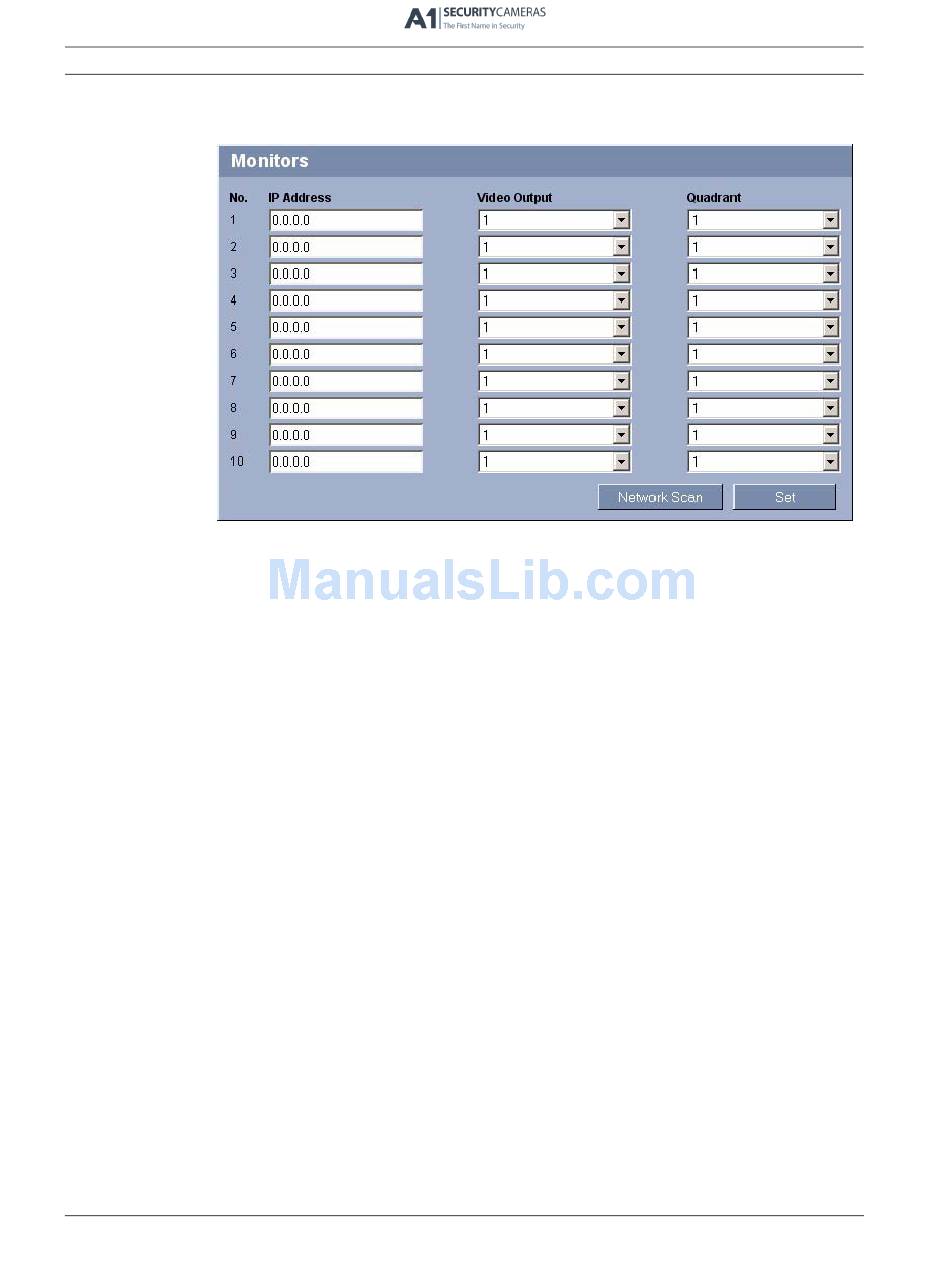

On this page, select the monitors that you want to integrate into your matrix system. To do
this, you must enter the IP address of the decoder unit (for example a VIP XD), select the
video output you require and select the decoder you are using. You can integrate a maximum
of ten monitors into the system.
You can use various decoder units in a system at the same time, for example several VIP XD
units together with an XFMD decoder module. Four quadrants each can be selected for a
VIP XD and for video outputs 1 and 3 of the XFMD module. This makes a quad view possible
for the video outputs concerned. If you want to use a VIP XD with connected monitor to
display four camera images, for example, select the same IP address and video output 1 four
times, and then select quadrants 1 to 4.
IP Address
Enter the IP address of the decoder unit here. Alternatively, you can perform a network scan
and select the IP address you require from the results.
1.
2.
3.
Video Output
Select the number of the video output you require from the list. The numbering follows the
labeling of the video outputs on the unit.
Quadrant
A decoder unit with a monitor output that allows quad view provides four decoders for this
monitor output. These correspond to quadrants 1 to 4. In this case, select the number of the
quadrant you require from the list.
F.01U.082.117 | V4.0 | 2008.12
Click the Network Scan button. The search for decoder units is started. When the search
has finished, a small arrow appears next to the fields for the IP addresses.
Move the cursor over the arrow next to the IP Address field. The list of units found is
displayed.
Click the IP address you require to transfer it to the IP Address field.
