Sony MCE-K700 Service Manual

Cd
Hide thumbs Also See for MCE-K700:
Table of Contents

Advertisement

Quick Links

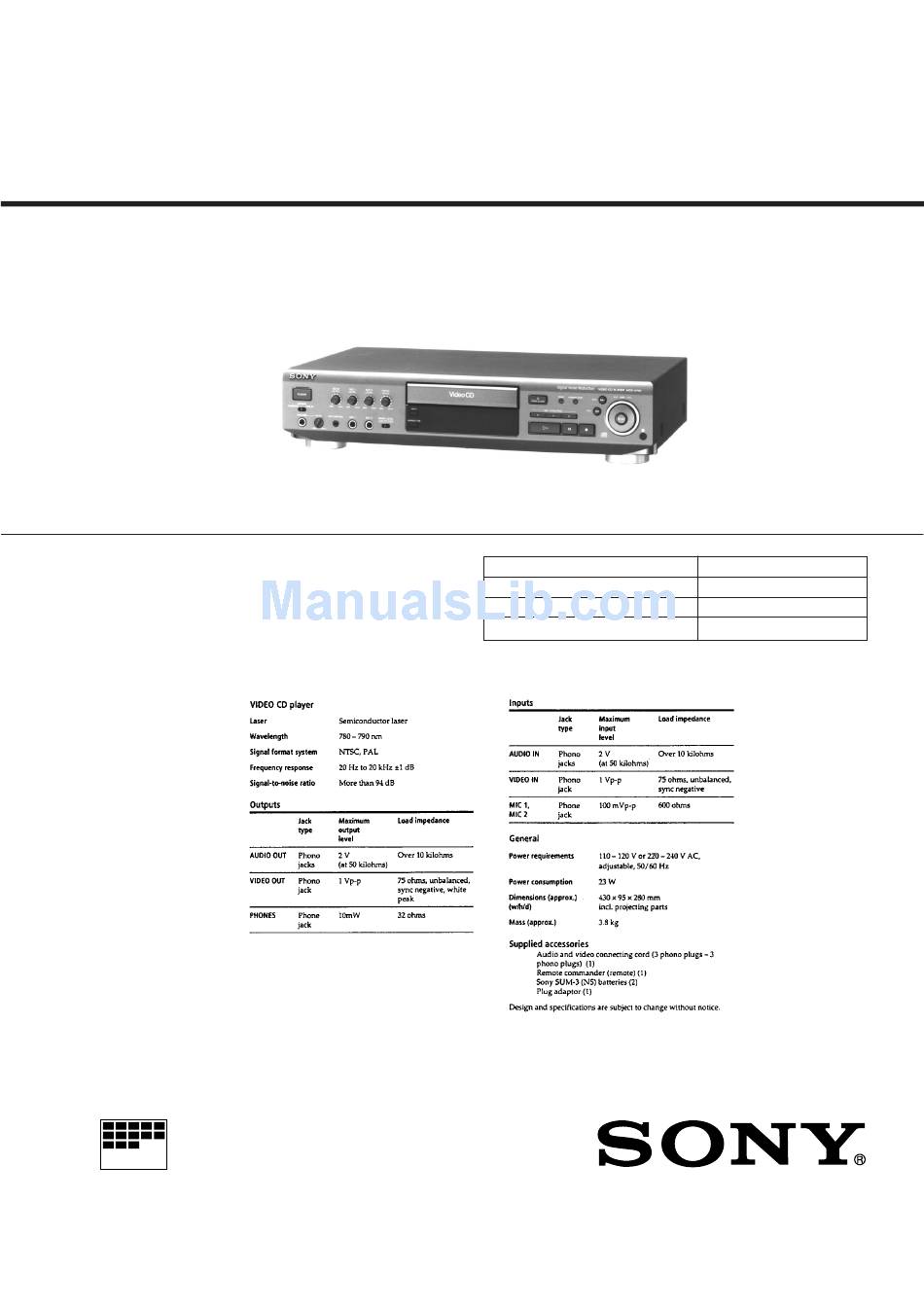

SERVICE MANUAL
MICROFILM
MCE-K700
Model Name Using Similar Mechanism
CD Mechanism Type
Base Unit Type
Optical Pick-up Type
SPECIFICATIONS
— 1 —
E Model
MCE-F500
CDM14-5BD21
BU-5BD21
KSS-213B
VIDEO CD PLAYER

Advertisement

Table of Contents
loading

Related Manuals for Sony MCE-K700

Summary of Contents for Sony MCE-K700

  • Page 1 MCE-K700 SERVICE MANUAL E Model Model Name Using Similar Mechanism MCE-F500 CD Mechanism Type CDM14-5BD21 Base Unit Type BU-5BD21 Optical Pick-up Type KSS-213B SPECIFICATIONS VIDEO CD PLAYER MICROFILM — 1 —...

  • Page 2: Table Of Contents

    WITH MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. — 2 —...

  • Page 3: Servicing Note

    SECTION 1 SERVICING NOTE SELF-DIAGNOSIS HOW TO OPEN THE DISC TRAY WHEN POWER SWITCH TURNS OFF This model has the self-diagnosis function for the video and audio decoder sections. Immediately after the power on, the self-diagnosis function searches Insert a tapeing driver into the aperture of the unit bottom, and turn in the direction of arrow (to OUT direction).

  • Page 4: Test Mode

    SECTION 2 TEST MODE VIDEO CD COLOR-BARS MODE [VIDEO BOARD] — SIDE B — On this mode, the data of the color-bars signal as a picture signal and the 1kHz sine wave signal as a sound signal are output by the mecha- nism control microcomputer (IC501) for video CD signal check.
  • Page 5 Lighting of All Fluorescent Indicator Tube Displays Button Number (Displayed only while a Button Name and Key Check Mode button is pressed.) KEY CONTROL ˜ Figure 9 1. Connect the TEST2 (Short round) on the Main board with solder. KEY CONTROL N Figure 10 2.

  • Page 6: General

    SECTION 3 This section is extracted from instruction manual. GENERAL Location of Parts and Controls Front Panel 2 3 4 5 !º !¡ !™!£ !¢ !∞ #º @ª @• @¶ @§ @∞ @¢ @£ @™ @¡ @º !ª !• !¶ !§...

  • Page 7: Printed Wiring Board - Bd Section

    — 7 —...
  • Page 8 — 8 —...

  • Page 9: Schematic Diagram - Bd Section

    — 9 —...
  • Page 10 — 10 —...
  • Page 11 — 11 —...

  • Page 12: Printed Wiring Board - Main, Displ Section

    — 12 —...
  • Page 13 — 13 —...
  • Page 14 — 14 —...

  • Page 15: Schematic Diagram - Main, Disp Section

    — 15 —...
  • Page 16 — 16 —...

  • Page 17: Disassembly

    SECTION 4 DISASSEMBLY Note: Follow the disassembly procedure in the numerical order given. 4-1. FRONT PANEL • In order to remove the front panel block when the power supply does not turn on, rotate the cam with tapering driver as the figure shows, and the disc table will be moved.

  • Page 18: Electrical Adjustments

    SECTION 5 ELECTRICAL ADJUSTMENTS CD SECTION Note : A clear RF signal waveform means that the shape “◊” can be clearly distinguished at the center of the waveform. NOTE : RF signal waveform 1. CD Block is basically designed to operate without adjustment. Therefore, check each item in order given.
  • Page 19 RF PLL Free-run Frequency Check VIDEO SECTION Procedure : 1. Connect frequency counter to TP (PLCK) with lead wire. Frequency adjustment frequency counter 1. Connect the frequency counter to check point of the VIDEO board. BD board frequency counter TP (PLCK) VIDEO board CHECK 13.5 MHz 2.

  • Page 20: Diagrams

    SECTION 6 DIAGRAMS 6-1. CIRCUIT BOARDS LOCATION TRANS board BD board VOL board PW board TR board REG board VIDEO board MIC board LOADING board MAIN board DISP board JOG board — 20 —...

  • Page 28: Ic Block Diagrams

    6-9. IC BLOCK DIAGRAMS – BD SECTION – IC101 CXD2545Q 67 62 63 64 20 19 32K RAM CLOCK GENERATOR C16M 43 PSSL DIGITAL ADDRESS PRIORITY VCO1 SERIAL GENERATOR ENCODER VCO0 PARALLEL DEMODULATOR VARI-PITCH 61-46 DA01-16 DOUBLE SPEED PROCESSOR FILI FILO 79 MUTE SYNC...

  • Page 29: Main, Disp Section

    – MAIN, DISP SECTION – IC104 CXD2721Q 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 60 59 58 57 56 55 54 53 52 51 N.C 81 AVD1 N.C 82 VSS6 83 –...

  • Page 30: Video Section

    – VIDEO SECTION – IC502 CXD1852Q 90 89 88 87 86 85 84 83 82 81 80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 60 VDD VIDEO POSTPROCESSOR HSYNC 59 OSDR &...
  • Page 31 IC510 MSM518126-50JSDR1 MEMORY CELL OUTPUT (1.048.576bit) BUFFER SENSE/ REFRESH AMP INPUT/OUTPUT CONTROL ROW DECODER INPUT BUFFER CLOCK GENERATOR IC511 CXD1913Q 50 49 48 46 45 44 43 42 41 40 37-39 36 35 34 33 XTEST4 BURST FLAG CSYNC SYNC Gen. SYNC Slope Gen.
  • Page 32 IC801 LC74760M-9077 28 27 26 25 24 23 21 20 19 18 17 16 CHARACTER OUTPUT SHIFT FONT DISPLAY SYNC SYNC /BACKGROUND DECODER DISCRIMINATION CIRCUIT REGISTER /VIDEO OUTPUT CONTROL DECODER CHARACTER CONTROL CONTROL COUNTER COUNTER COMPOSITE SYNC SIGNAL SEPARATION HORIZONTAL VERTICAL CONTROL DISPLAY...

  • Page 33: Ic Pin Functions

    6-10. IC PIN FUNCTIONS • IC101 DIGITAL SIGNAL PROCESSOR (CXD2545Q)/BD board Pin No. Pin Name Function SRON Sled drive output (Not used) SRDR Sled drive output SFON Sled drive output (Not used) TFDR Tracking drive output TRON Tracking drive output (Not used) TRDR Tracking drive output TFON...
  • Page 34 Pin No. Pin Name Function – Digital power supply ASYE Asymmetry circuit ON/OFF PSSL Audio data output mode selection input WDCK 48-bit slot D/A interface. Word clock. LRCK 48-bit slot D/A interface. LR clock. DATA DA 16 output when PSSL=1. 48-bit slot serial data when PSSL=0 BCLK DA 15 output when PSSL=1.
  • Page 35 Pin No. Pin Name Function XRST System reset DIRC Used in 1-track jump mode (+5v) SCLK SENS serial data read-out clock DFSW Defect selection pin (Ground) ATSK Input pin for anti-shock (Ground) DATA Serial data input, supplied from CPU XLAT Latch input, supplied from CPU CLOK Serial data transfer clock input, supplied from CPU...

  • Page 36: Ic104 Digital Signal Processor For Karaoke (Cxd2721Q)/Main Board

    • IC104 DIGITAL SIGNAL PROCESSOR FOR KARAOKE (CXD2721Q)/MAIN board Pin No. Pin Name Function Latch input from system controller (CXP82532-010Q) – Normally open RVDT Data input from system controller (CXP82532-010Q) – Normally open AVD0 – Digital power supply pin for DRAM ADS0 –...
  • Page 37 Pin No. Pin Name Function AVD4 – Power supply for CH-1 • DA converter – Normally open AVS4 – Ground for CH-1 • DA converter – Normally open AOUT1 CH-1 • DA converter • LPF output (Not used. open) AVS1 –...

  • Page 38: Ic402 System Control, Fl Driver (Cxp82532-010Q)/Disp Board

    • IC402 SYSTEM CONTROL, FL DRIVER (CXP82532-010Q)/DISP board Pin No. Pin Name Function TEST2 Test mode 2. Normally “H”. Remote commander signal input RM IN Jog shuttle input B JOG-1B Not used (Inhibit use. Keep the pin open.) 4 to 5 ——...

  • Page 39: Ic501 Mechanism Control (Hd6433032Sk07F)/Video Board

    • IC501 MECHANISM CONTROL (HD6433032SK07F)/VIDEO board Pin No. Pin Name Function CMD0 Input/output terminal exchanging data bus 0 with system controller CMD1 Input/output terminal exchanging data bus 1 with system controller CMD2 Input/output terminal exchanging data bus 2 with system controller CMD3 Input/output terminal exchanging data bus 3 with system controller SACK...
  • Page 40 Pin No. Pin Name Function Address bus output MPEG MPEG wait input Operation mode setting terminal (Connected to +5V) Operation mode setting terminal (Connected to ground) φ System clock output (Not used) Shifts to the hardware standby mode when the standby terminal becomes “Low”. STBY (Unable to use H level fixed) (Connected to +5V) RESET...

  • Page 41: Ic507 Mpeg Decoder (Cxd1852Q)/Video Board

    • IC507 MPEG DECODER (CXD1852Q)/VIDEO board Pin No. Pin Name Function – Ground Video decoder master clock pin. Input the XTL0I clock or connect an oscillator between XTL0O XTL0I and XTL0O. The recommended frequencies are 27MHz, 28.6363MHz (NTSC 8fsc), XTL0I and 35.4686 MHz (PAL 8fsc).
  • Page 42 Pin No. Pin Name Function Data input/output signal pin. Connect to the DRAM data pin so that the lower and upper bytes of the data correspond to the CAS0 to CAS3 controls. MD10 – +5V power supply – Ground MD11 MD12 Data input/output signal pin.
  • Page 43 Pin No. Pin Name Function B/Cb0 B/Cb1 B/Cb2 B/Cb3 Output pin of the B or Cb signal of the image data. MSB is B/Cb7. Synchronizes with B/Cb4 DCLK. B/Cb5 B/Cb6 B/Cb7 Dot clock (DCLK) signal pin. The DCLK frequency is normally 13.5MHz. The DCLK can DCLK be input from this pin or can be made by frequency-dividing (1/integer) the clock input from XTL0I.
  • Page 44 Pin No. Pin Name Function DATI Serial data input BCKI Bit clock input DOIN Digital input signal XHCS Register access chip select signal pin. Data acknowledge/wait signal pin for DMA transmission, register access, transparent XHDT memory access. Register access control signal pin. XHIRQ Interrupt request signal XRST...

  • Page 45: Ic509 Video Picture Quality Improvement (Cxd1853Q)/Video Board

    • IC509 VIDEO PICTURE QUALITY IMPROVEMENT (CXD1853Q)/VIDEO board Pin No. Pin Name Function – Ground [MSB] B input 0-7 (Connect to ground) [LSB] – Ground Y/GI7 [MSB] Y/GI6 Y/GI5 Y/GI4 G (Y) input 0-7 Y/GI3 Y/GI2 Y/GI1 Y/GI0 [LSB] – Ground C/RI7 [MSB]...
  • Page 46 Pin No. Pin Name Function – Ground DIO3 DIO2 DIO1 DIO0 DRAM data I/O 0-7 DIO4 DIO5 DIO6 DIO7 – Ground C/RO0 [MSB] C/RO1 C/RO2 C/RO3 R (Cb/Cr) output 0-7 C/RO4 C/RO5 C/RO6 C/RO7 [LSB] – Power supply (+5V) Y/GO7 [MSB] Y/GO6 Y/GO5...
  • Page 47 Pin No. Pin Name Function CSYNC.O Composit SYNC output – Ground TEST 0 For test (Connect to ground) TEST 1 TEST 2 For test TEST 3 For test (Connect to ground) IFSEL 1 Matrix select RGB/XYC (Connect to ground) IFSEL 2 System select D1851/XD1852 (Connect to ground) NRON NR on/off (L: off, H: on)

  • Page 48: Ic511 Digital Video Encoder (Cxd1913Q)/Video Board

    • IC511 DIGITAL VIDEO ENCODER (CXD1913Q)/VIDEO board Pin No. Pin Name Function 8-bit pixel data input pins (PD0 to 7). When control register bit “PIF MODE”=”0", serve as input pins for multiplexed Y, Cb, Cr signals. When control register bit “PIF MODE”=”1", serve as input pins for Y signal. –...
  • Page 49 – The functions of this pin are selected by Pin 64 XIICEN. When the XIICEN pin is “H”, sets into the SONY SIO mode, and becomes the SI serial data input pin. When the XIICEN pin is “L”, sets into the I C-BUS mode, and becomes the SDA input/ output pin.
  • Page 50 HSYNC The functions of this pin are selected by Pin 64 XIICEN. When the XIICEN pin is “H”, sets into the SONY SIO mode, and becomes the S0 serial- out output pin. When the XIICEN pin is “L”, this pin is not used and sets into high impedance.

  • Page 51: Ic801 Character Generator (Lc74760)/Video Board

    • IC801 CHARACTER GENERATOR (LC74760)/VIDEO board Pin No. Pin Name Function – Ground connect pin Pin for connecting to the capacitor or crystal of oscillator for internal sync signal oscilla- XTAL IN1 tion applications (Crystal oscilloation for NTSC: 4fsc=14.318MHz) Pin for connecting to the capacitor or crystal of oscillator for internal sync signal oscilla- XTAL OUT1 tion applications (Crystal oscilloation for NTSC: 4fsc=14.318MHz).

  • Page 52: Exploded Views

    4-984-999-01 PANEL, LOADING * 16 1-664-225-11 PW BOARD X-4947-889-1 PANEL ASSY, FRONT * 17 A-4699-498-A DISP BOARD, COMPLETE 4-963-404-21 EMBLEM (5-A), SONY * 18 4-932-810-11 CUSHION (FL) 4-984-893-22 PLATE (FL), INDICATION * 19 4-961-264-01 HOLDER (FL TUBE 3.5) 4-984-895-01 PLATE, INDICATON 4-988-408-21 BUTTON (SELECT) 4-981-435-01 RING (DIA.

  • Page 53: Chassis Section

    7-2. CHASSIS SECTION CNP901 CDM14-5BD21 F901 T901 not supplied supplied not supplied not supplied The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. Ref. No. Part No. Description Remark Ref.

  • Page 54: Mechanism Deck Section (Cdm14-5Bd21)

    7-3. MECHANISM DECK SECTION (CDM14-5BD21) BU-5BD21 not supplied not supplied M151 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 1-452-538-11 MAGNET 4-933-134-01 SCREW (+PTPWH M2.6X6) 4-933-110-41 HOLDER (MG) 4-933-112-01 TABLE, DISC 4-959-996-01 SPRING (932), COMPRESSION 4-967-268-01 GEAR (C) 4-933-129-01 HOLDER (BU) 4-927-649-01 BELT 4-933-111-41 CHASSIS (MD)

  • Page 55: Base Unit Section (Bu-5Bd21)

    7-4. BASE UNIT SECTION (BU-5BD21) M102 M101 (including r A) The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. Ref. No. Part No. Description Remark Ref. No. Part No.

  • Page 56: Electrical Parts List

    SECTION 8 ELECTRICAL PARTS LIST Note: • SEMICONDUCTORS • Due to standardization, replacements in the parts list The components identified by In each case, u: µ , for example: may be different from the parts specified in the mark ! or dotted line with mark ! uA...: µ...
  • Page 57 DISP Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R160 1-216-295-91 CONDUCTOR, CHIP (2012) < TRANSISTOR > R161 1-216-308-00 METAL CHIP 1/10W Q401 8-729-900-80 TRANSISTOR DTC114ES R162 1-216-101-00 METAL CHIP 150K 1/10W Q402 8-729-900-80 TRANSISTOR DTC114ES Q403 8-729-900-80 TRANSISTOR DTC114ES <...
  • Page 58 LOADING MAIN DISP Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R450 1-249-411-11 CARBON 1/4W < MOTOR > R451 1-249-411-11 CARBON 1/4W R452 1-249-411-11 CARBON 1/4W M151 A-4604-363-A MOTOR (L) ASSY (LOADING) R453 1-249-411-11 CARBON 1/4W R454 1-249-411-11 CARBON 1/4W...
  • Page 59 MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C145 1-137-360-11 FILM 220PF < DIODE > C146 1-124-748-11 ELECT 22uF 100V C147 1-126-024-11 ELECT 220uF D101 8-719-200-82 DIODE 11ES2 C152 1-126-960-11 ELECT D301 8-719-200-82 DIODE 11ES2 C153 1-137-364-11 FILM 0.001uF...
  • Page 60 MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark < RESISTOR > R153 1-259-460-11 CARBON 1/6W R154 1-259-460-11 CARBON 1/6W R101 1-249-429-11 CARBON 1/4W R156 1-259-466-11 CARBON 1/6W R102 1-249-433-11 CARBON 1/4W R157 1-259-428-11 CARBON 1/6W R103 1-247-807-31 CARBON 1/4W...
  • Page 61 MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R320 1-249-417-11 CARBON 1/4W F D706 8-719-987-63 DIODE 1N4148M < SWITCH > < GROUND TERMINAL > S301 1-571-552-11 SWITCH, SLIDE (COLOR SYSTEM) EB701 1-537-770-21 TERMINAL BOARD, GROUND <...
  • Page 62 TRANS Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R724 1-259-428-11 CARBON 1/6W 1-664-222-11 TR BOARD R725 1-259-428-11 CARBON 1/6W ********* R727 1-259-448-11 CARBON 6.8K 1/6W < TRANSISTOR > R728 1-259-448-11 CARBON 6.8K 1/6W R730 1-259-452-11 CARBON 1/6W Q301 8-729-141-83 TRANSISTOR 2SB1094-LK...
  • Page 63 TRANS VIDEO Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark < TRANSFORMER > C570 1-163-231-11 CERAMIC CHIP 15PF C571 1-163-038-91 CERAMIC CHIP 0.1uF ! T901 1-431-083-11 TRANSFORMER, POWER C583 1-163-038-91 CERAMIC CHIP 0.1uF C584 1-163-038-91 CERAMIC CHIP 0.1uF ************************************************************** C585...
  • Page 64 VIDEO Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark < CONNECTOR > R505 1-216-025-91 METAL GLAZE 1/10W CN501 1-766-942-11 CONNECTOR, FFC/FPC 29P R506 1-216-025-91 METAL GLAZE 1/10W * CN502 1-770-154-11 PIN, CONNECTOR (PC BOARD) 6P R507 1-216-025-91 METAL GLAZE 1/10W CN503...
  • Page 65 VIDEO Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R563 1-216-025-91 METAL GLAZE 1/10W < VARIABLE RESISTOR > R564 1-216-025-91 METAL GLAZE 1/10W R565 1-216-025-91 METAL GLAZE 1/10W RV702 1-225-407-11 RES, VAR 50K (VOCAL LEVEL) R567 1-216-047-91 METAL GLAZE 1/10W RV703...
  • Page 66 MCE-K700 Sony Corporation 96K097012-1 Printed in Singapore © 1996. 11 9-960-824-11 Home A&V Products Company Published by Service and Safety Engineering Dept. (Shibaura) — 88 —...
