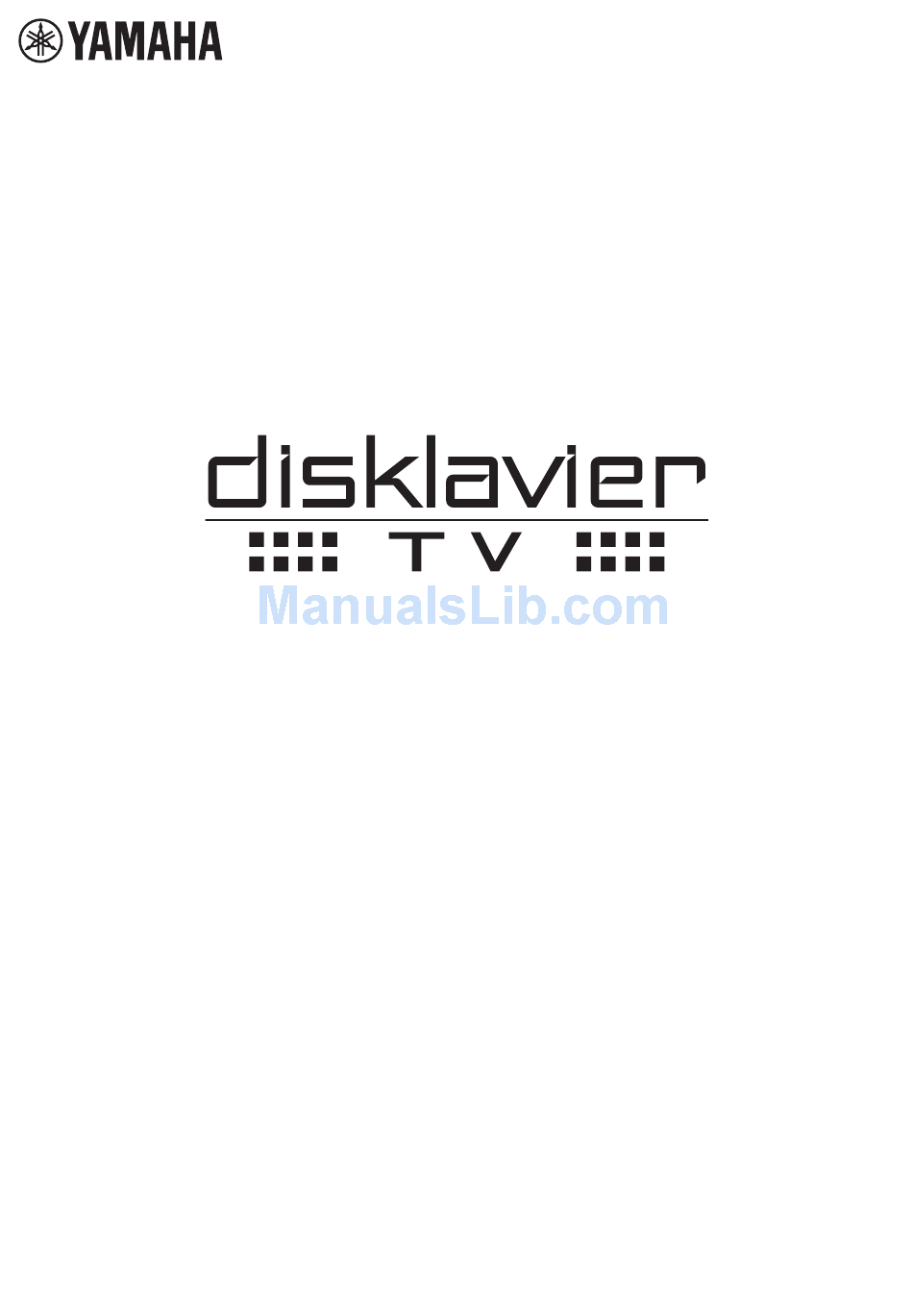

- Page 1 For Disklavier ENSPIRE Users powered by RemoteLive™ User’s Guide This service is available for USA and Canada customers only. Ver.1.05 (16/12/2016)
-
Page 2: Table Of Contents
Preparation ......................16 Logging into Your Account ................16 Activating DisklavierTV ................18 Receiving Test ....................18 Viewing Live Broadcast or On-demand Content ........20 Adjustments ......................22 Adjusting the Main Volume ................22 Adjusting the Audio Volume Balance ............22 DisklavierTV User’s Guide (For Disklavier ENSPIRE Users) -
Page 3: Disklaviertv User's Guide (For Disklavier Enspire Users)
Adjusting the Delay of the Piano Playback and Audio ........24 Adjusting the Delay of the Piano Playback ..........25 Adjusting the Depth of the Sustain Pedal ..........26 Checking the Broadcast Information ............27 Network Diagnostics ..................28 Checking the Error History ................30 Troubleshooting .....................31 DisklavierTV User’s Guide (For Disklavier ENSPIRE Users) -
Page 4: Introduction
Note: The keying sound of the keyboard remains even when the headphones are connected. DisklavierTV User’s Guide (For Disklavier ENSPIRE Users) -
Page 5: Usb Port
(10 steps). Each indicator shows the volume in 2 steps with brightness. 9 PLAY/PAUSE indicator Shows the playback status. Condition Status The song is being played back. Turning off The song playback is paused or stopped. DisklavierTV User’s Guide (For Disklavier ENSPIRE Users) -
Page 6: Switch Box (Rear Panel)
• No operation has been performed on the switch box. • No operation has been performed on the ENSPIRE Controller app. • The keyboard has not been played. • The Disklavier has not received MIDI data. DisklavierTV User’s Guide (For Disklavier ENSPIRE Users) -
Page 7: Control Center Unit (For Grand Pianos)
Used to connect to the input or output Used to connect the computer using a jacks of external audio devices using USB cable. RCA cables. 7 OUTPUT jacks Used to connect the monitor speakers. DisklavierTV User’s Guide (For Disklavier ENSPIRE Users) -
Page 8: Inlet Box (For Upright Pianos)
Used to connect optional monitor speakers. Used to connect the computer using a USB cable. 3 OMNI IN/OUT jacks Used to connect to the input or output jacks of external audio devices using RCA cables. DisklavierTV User’s Guide (For Disklavier ENSPIRE Users) -
Page 9: Monitor Speaker (For Compatible Grand Pianos)
There may be a notation that says “Only for use with the Disklavier M4 or E3.” to the tag attached to the AC power cable; however, it can be used with the Disklavier ENSPIRE series. DisklavierTV User’s Guide (For Disklavier ENSPIRE Users) -
Page 10: Connection Diagram (Basic)
• S ome types of modems (such as ADSL modems or cable modems) have multiple ports for connecting two or more devices (such as computer, musical instrument, etc.). If your modems have only one port, an optional router or hub is required in order to connect several devices simultaneously. DisklavierTV User’s Guide (For Disklavier ENSPIRE Users) -
Page 11: Notes On Network Security
The purchaser acknowledges that connection to the Internet and use of the Disklavier ENSPIRE Internet features is done at the risk of the purchaser. In no event shall Yamaha, its subsidiaries or Yamaha’s and/or its subsidiaries’ directors, officers, or employees be responsible for unauthorized access, loss or alteration of the data of the purchaser or be liable for any damage from intrusions. -
Page 12: Watching On Your Computer
Disklavier ENSPIRE (OMNI IN) Display cable Computer Monitor *1 You do not need a switching hub if your router has more than 2 empty LAN ports. *2 DO NOT use cables with impedance changers. DisklavierTV User’s Guide (For Disklavier ENSPIRE Users) -
Page 13: Watching On Your Tv
Audio cable (2 RCA; male - 2 RCA; male) Disklavier ENSPIRE (OMNI IN) *1 You do not need a switching hub if your router has more than 2 empty LAN ports. *2 Cable required depends on your TV. DisklavierTV User’s Guide (For Disklavier ENSPIRE Users) -
Page 14: Turning On Your Disklavier
(located on the rear) Press the POWER P button. The POWER P indicator flashes slowly (every one second). Flashing slowly After several seconds, the POWER P indicator lights up. Your Disklavier is now ready for use. DisklavierTV User’s Guide (For Disklavier ENSPIRE Users) -
Page 15: Registration
At checkout, you will be asked to create an account to complete the subscription and registration process. Note: To use the DisklavierTV service, you are required to enter your e-mail address and password with ENSPIRE Controller. DisklavierTV User’s Guide (For Disklavier ENSPIRE Users) -
Page 16: Preparation
Logging into Your Account Tap on [Information]. The [Information] screen appears. Tap on [Login]. The [Login] screen appears. Tap on [Login]. The information entry pop-up window appears. Enter your e-mail address and password. DisklavierTV User’s Guide (For Disklavier ENSPIRE Users) - Page 17 The [Information] screen appears. Tap on (Home) to return to the [Menu] screen. If you are successfully logged into your account, [DisklavierTV] appears on the [Menu] screen. You can now enjoy the DisklavierTV service. DisklavierTV User’s Guide (For Disklavier ENSPIRE Users)
-
Page 18: Activating Disklaviertv
LAN cable is connected to the Control Center Unit firmly. Then turn on the Disklavier and perform step 1 again. If the connection still fails, see “Setting Up the Disklavier for Internet Connection” in the Advanced Operation Manual and check the setting. DisklavierTV User’s Guide (For Disklavier ENSPIRE Users) - Page 19 Stop playing back the video, and return to the [DisklavierTV] screen. Note: Playback of your piano may continue for a while even after you have stopped playing back the video content. This is not a malfunction. DisklavierTV User’s Guide (For Disklavier ENSPIRE Users)
-
Page 20: Viewing Live Broadcast Or On-Demand Content
Disklavier and perform step 1 again. If the connection still fails, see “Setting Up the Disklavier for Internet Connection” in the Advanced Operation Manual and check the setting. Tap on [DisklavierTV]. The [DisklavierTV] screen appears. DisklavierTV User’s Guide (For Disklavier ENSPIRE Users) - Page 21 Stop playing back the video, and return to the [DisklavierTV] screen. Note: Playback of your piano may continue for a while even after you have stopped playing back the video content. This is not a malfunction. DisklavierTV User’s Guide (For Disklavier ENSPIRE Users)
-
Page 22: Adjustments
: Audio volume decreases by 1. : Audio volume increases by 1. Audio volume balance can be adjusted over a range of 000 to 127. Tap on (Back) to return to the [DisklavierTV] screen. DisklavierTV User’s Guide (For Disklavier ENSPIRE Users) -
Page 23: Appendix
Please check the setting on your own computer. The location of the setting differs depending upon the manufacturer. Here is an example setting. Start > Desktop > Click the speaker icon > Enhancements > Disable all sound effects > Apply DisklavierTV User’s Guide (For Disklavier ENSPIRE Users) -
Page 24: Adjusting The Delay
The delay time can be adjusted in a range of 0 ms to 500 ms (in increments of 10 ms). Increase this value to delay the piano playback and audio input. Tap on (Back) to return to the [DisklavierTV] function menu screen. DisklavierTV User’s Guide (For Disklavier ENSPIRE Users) -
Page 25: Adjusting The Delay Of The Piano Playback
The delay time can be adjusted in a range of 0 ms to 500 ms (in increments of 1 ms). Increase this value to delay the piano playback. Tap on (Back) to return to the [DisklavierTV] function menu screen. DisklavierTV User’s Guide (For Disklavier ENSPIRE Users) -
Page 26: Adjusting The Depth Of The Sustain Pedal
Increasing this value increases the effect of the sustain pedal, and decreasing this value decreases the effect of the sustain pedal. The setting range varies depending on the model and its condition. Tap on (Back) to return to the [DisklavierTV] screen. DisklavierTV User’s Guide (For Disklavier ENSPIRE Users) -
Page 27: Checking The Broadcast Information
Date and time when your Disklavier was played back [S-ID]: ID of the piano performance data [S-ID2]: ID of the piano performance data Tap on (Back) to return to the [Settings] function menu screen. DisklavierTV User’s Guide (For Disklavier ENSPIRE Users) -
Page 28: Network Diagnostics
Tap on [Network Diagnostics]. The [Network Diagnostics] pop-up window appears and the diagnostics process starts. When the diagnostics process is completed, the resulting error number and message is Error number and message displayed. DisklavierTV User’s Guide (For Disklavier ENSPIRE Users) -
Page 29: Error Messages
Make sure that the proxy server has been set correctly. Check Proxy setting. 2010 Failed to connect.(2010) The RemoteLive server may be temporarily down for maintenance. Cannot connect to server. Please try again later. 2011 Failed to connect. Check the cable. DisklavierTV User’s Guide (For Disklavier ENSPIRE Users) -
Page 30: Checking The Error History
You can check the error history. Tap on [Error History] in the [Settings] screen. The [Error History] function menu screen appears. Error number and message Tap on (Back) to return to the [DisklavierTV] function menu screen. DisklavierTV User’s Guide (For Disklavier ENSPIRE Users) -
Page 31: Troubleshooting
0. In case you are using a USB audio interface, make sure that the input and output on the USB audio interface are correctly connected. DisklavierTV User’s Guide (For Disklavier ENSPIRE Users) - Page 32 Make sure that your Disklavier firmware is the latest version on the the Menu. [Information] screen. See page 15 and register as a Yamaha Online Member by creating your account on Yamaha MusicSoft. See page 16 and properly log into your account (enter the e-mail and password registered on Yamaha MusicSoft).
- Page 33 OFF. Audio enhancements prevent DisklavierTV from working properly. Reverse the left and right connection, and then check the sound is appropriately output from the speakers. Replace the audio cable. Make sure that you are using a stereo audio cable. DisklavierTV User’s Guide (For Disklavier ENSPIRE Users)
- Page 34 Make sure that the audio volume of the external monitor is set to 0. external monitor. The external monitor sleeps Disable the power-saving setting on the external monitor. during playback. Contact Us Online: 4wrd.it/D-TVsupport DisklavierTV User’s Guide (For Disklavier ENSPIRE Users)
- Page 35 10-1 Nakazawa-cho, Naka-ku, Hamamatsu, 430-8650 Japan Manual Development Group © 2013 Yamaha Corporation MW-A0 Dec-16...
