SS-CHPZ7/CHPZ9
SERVICE MANUAL
Ver. 1.1 2005.05
• SS-CHPZ7 is the speaker
system in CMT-HPZ7.
• SS-CHPZ9 is the speaker
system in CMT-HPZ9.
SS-CHPZ9
Speaker system
Speaker units
Super tweeter:
Woofer:
Tweeter:
Nominal impedance
Dimensions (w/h/d)
Mass
Sony Corporation
9-879-568-02
2005E16-1
Personal Audio Group
© 2005.05
Published by Sony Engineering Corporation
SS-CHPZ7

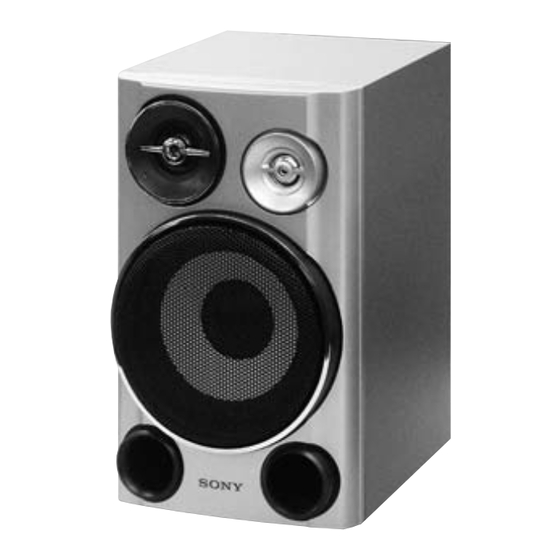

SS-CHPZ9 (L-ch)
SPECIFICATIONS
SS-CHPZ7
3-way, bass-reflex type
Speaker system
Speaker units
2 cm dia, cone type
Woofer:
15 cm dia, cone type
Tweeter:
4 cm dia, cone type
Nominal impedance
6 ohms
Dimensions (w/h/d)
×
×
Approx. 180
296
245 mm
Mass
Approx. 2.8 kg net per
speaker
Design and specifications are subject to change
without notice.
US Model
SS-CHPZ9
Canadian Model
SS-CHPZ7/CHPZ9
AEP Model
UK Model
SS-CHPZ7
E Model
SS-CHPZ7/CHPZ9
Australian Model
SS-CHPZ9
2-way, bass-reflex type
13 cm dia, cone type
4 cm dia, cone type
6 ohms
×
×
Approx. 165
275
215 mm
Approx. 2.3 kg net per
speaker
SPEAKER SYSTEM
