9.42 Eject sensor PCB ASSY

(1) Remove the taptite bind B M4x12 screw to remove the develop drive earth harness.
(2) Remove the taptite cup S M3x6 SR screw and the two taptite bind B M4x12 screws.
(3) Release the two hooks to remove the main PCB shield calking ASSY.
Main PCB shield calking ASSY
Assembling Note :
• When assembling the main PCB shield calking ASSY, insert the flat cable of the eject
sensor PCB ASSY into the hole of the main PCB shield calking ASSY.
• When assembling the main PCB shield calking ASSY, tighten the two taptite bind B
M4x12 screws in numerical order written on the plate.
Taptite bind B M4x12
2
Taptite cup S M3x6 SR
Hook
1

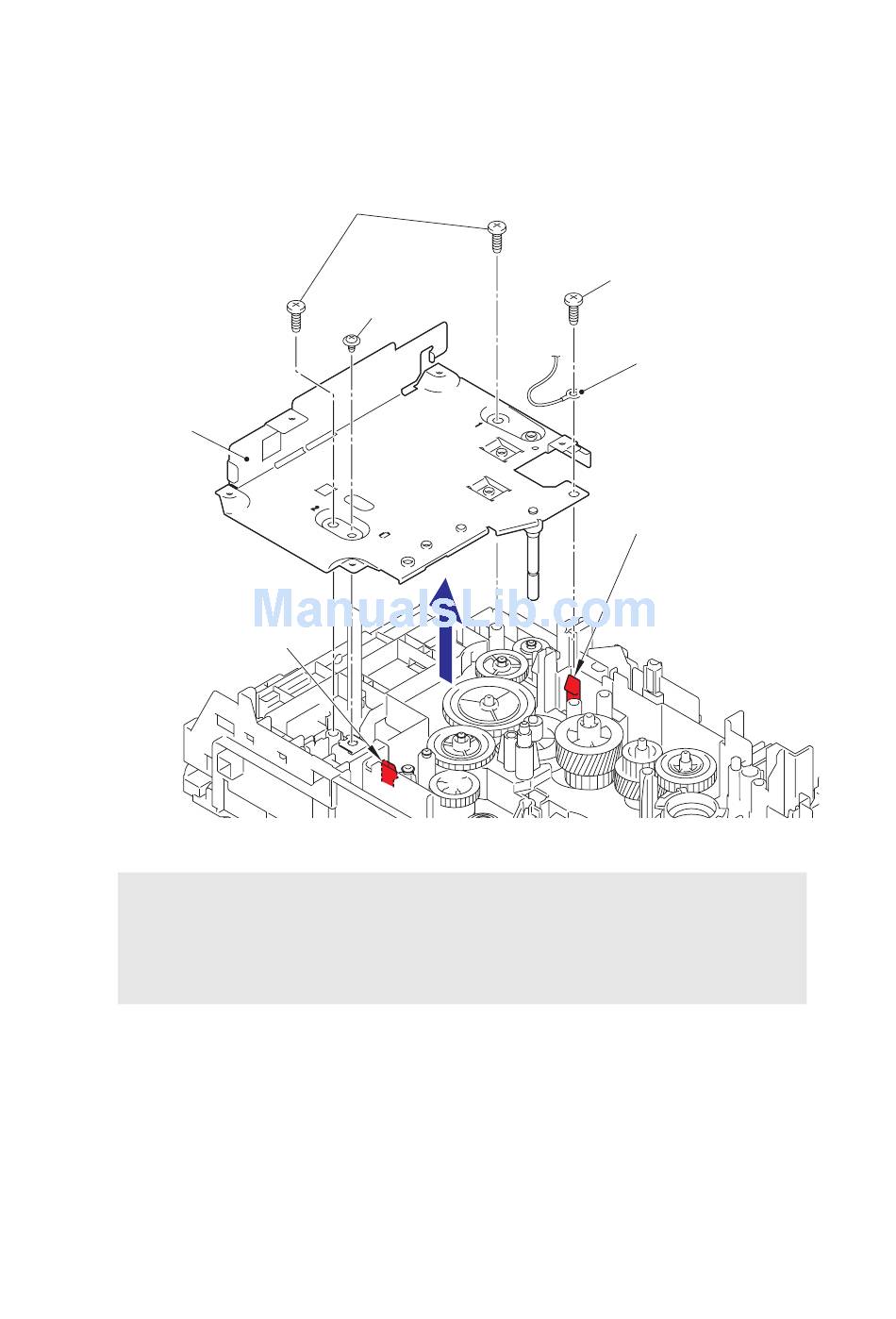

Fig. 3-67
3-77
Taptite bind B M4x12
Develop drive earth harness
Hook
Confidential
