MSA 2040 SAS controller module—rear panel LEDs
LINK
ACT
SAS 1 SAS 2
LED Description
1 Host 6/12 Gb SAS,
Link Status
2 Host 6/12 Gb SAS
Link Activity
3 Network Port Link
Active Status
4 Network Port Link Speed
5 OK to Remove
6 Unit Locator
7 FRU OK
8 Fault/Service Required
9 Cache Status
10 Expansion Port Status
1
See the qualified HD mini-SAS host cable options described in the QuickSpecs.
2
When port is down, both LEDs are off.

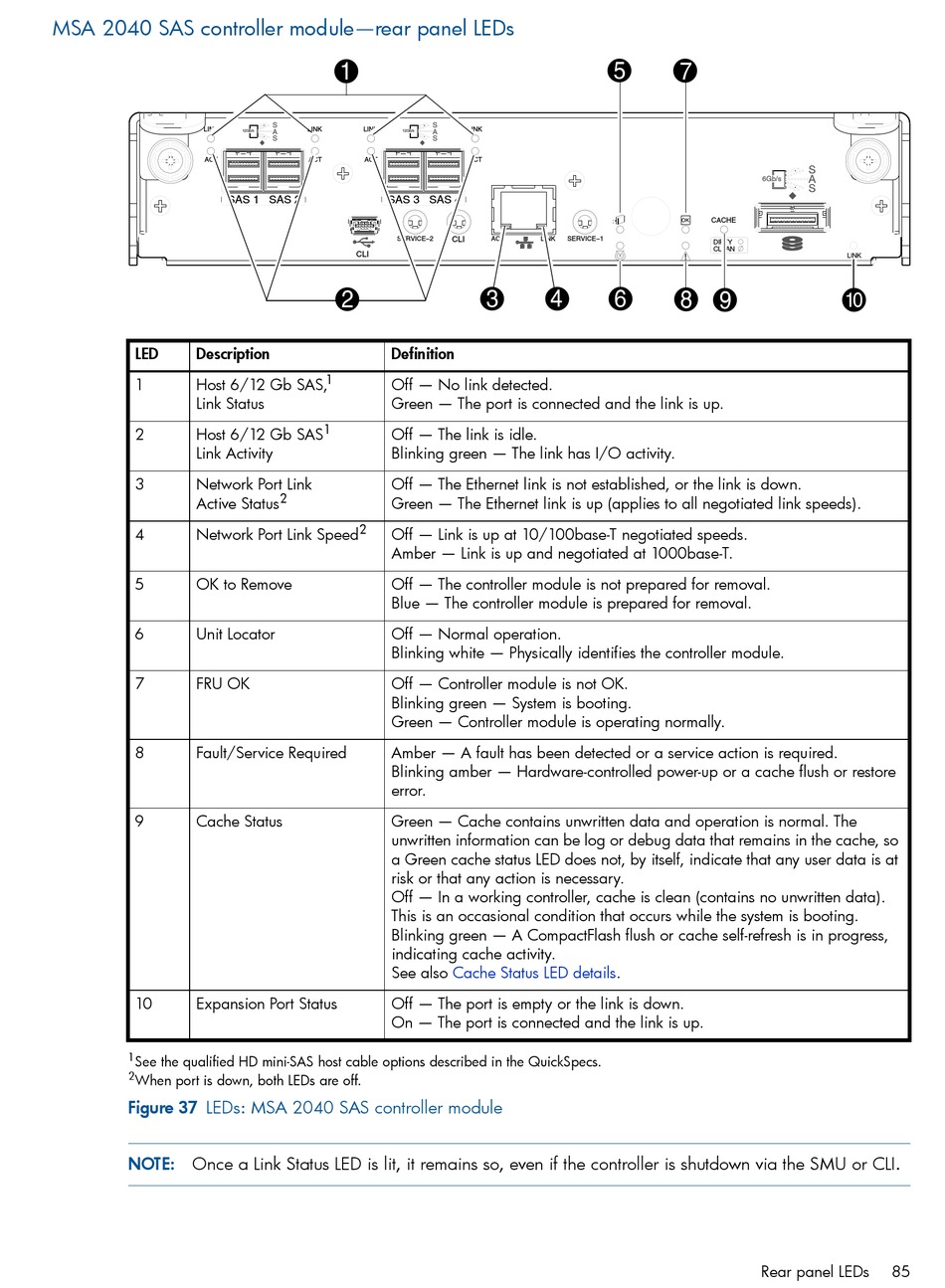

Figure 37 LEDs: MSA 2040 SAS controller module
NOTE: Once a Link Status LED is lit, it remains so, even if the controller is shutdown via the SMU or CLI.
1
S
LINK LINK
12Gb/s 12Gb/s
A
S
ACT ACT
SAS 3 SAS 4
SERVICE−2
CLI
2
Definition
1
Off — No link detected.
Green — The port is connected and the link is up.
1
Off — The link is idle.
Blinking green — The link has I/O activity.
Off — The Ethernet link is not established, or the link is down.
2
Green — The Ethernet link is up (applies to all negotiated link speeds).
2
Off — Link is up at 10/100base-T negotiated speeds.
Amber — Link is up and negotiated at 1000base-T.
Off — The controller module is not prepared for removal.
Blue — The controller module is prepared for removal.
Off — Normal operation.
Blinking white — Physically identifies the controller module.
Off — Controller module is not OK.
Blinking green — System is booting.
Green — Controller module is operating normally.
Amber — A fault has been detected or a service action is required.
Blinking amber — Hardware-controlled power-up or a cache flush or restore
error.
Green — Cache contains unwritten data and operation is normal. The
unwritten information can be log or debug data that remains in the cache, so
a Green cache status LED does not, by itself, indicate that any user data is at
risk or that any action is necessary.
Off — In a working controller, cache is clean (contains no unwritten data).
This is an occasional condition that occurs while the system is booting.
Blinking green — A CompactFlash flush or cache self-refresh is in progress,
indicating cache activity.
See also
Off — The port is empty or the link is down.
On — The port is connected and the link is up.
5
S
LINK
A
S
ACT
CLI ACT LINK SERVICE−1
3 4 6
Cache Status LED details.
7
6Gb/s
CACHE
8 9
:
Rear panel LEDs 85
