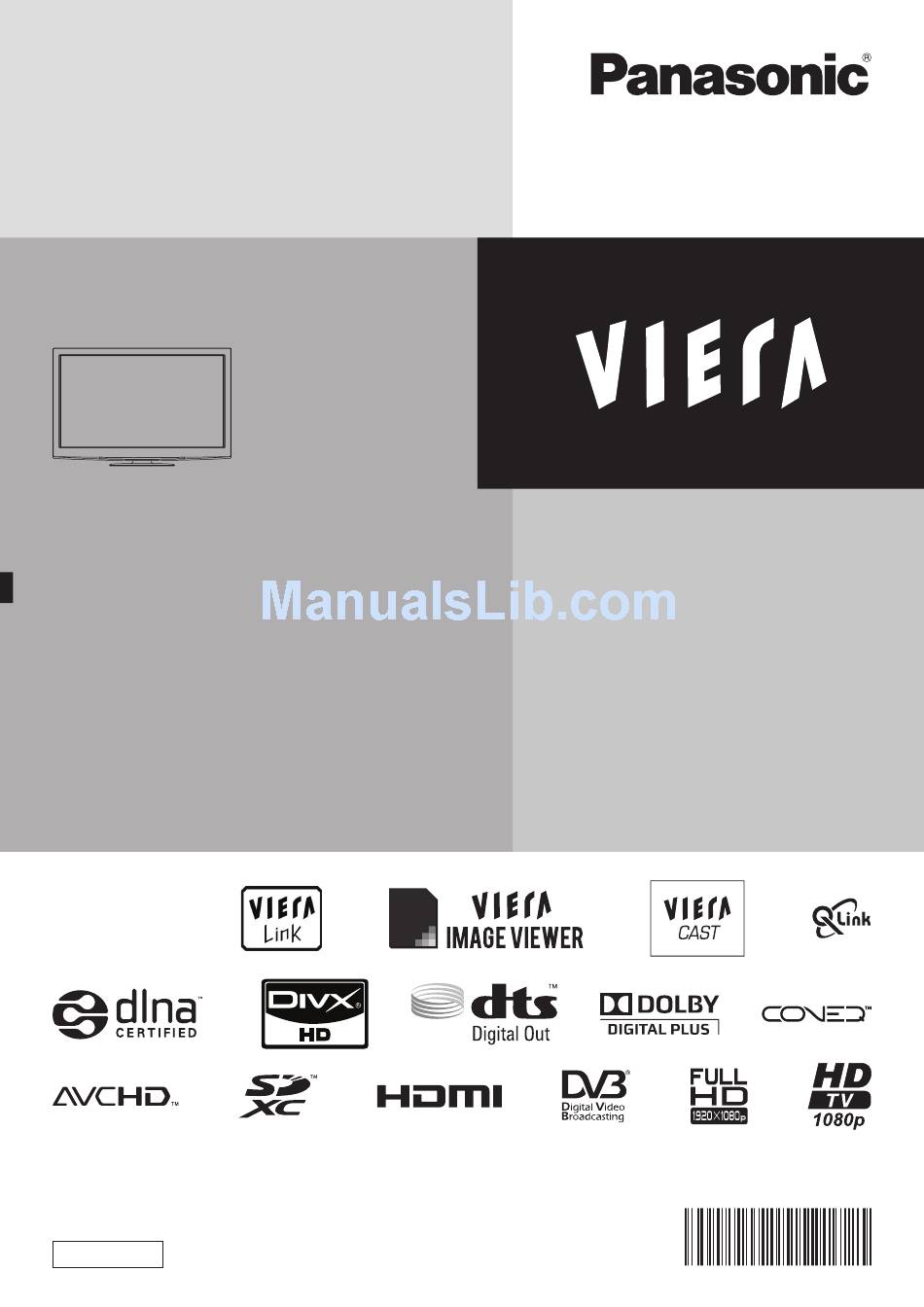

Operating Instructions
Plasma Television
For more detailed instructions, refer to the Operating
Instructions on the CD-ROM.
To view the Operating Instructions on the CD-ROM, you
need a computer equipped with a CD-ROM drive, and
Adobe® Reader® (Version 7.0 or later is recommended)
installed on your computer.
Depending on the operating system or settings on your computer,
the Operating Instructions may not start automatically.
In this case, open the PDF file under the "MANUAL" folder
manually to view the instructions.
Thank you for purchasing this Panasonic product.
Please read these instructions carefully before operating this product and retain them for future reference.
The images shown in this manual are for illustrative purposes only.
Please refer to Pan European Guarantee Card if you need to contact your local Panasonic dealer
for assistance.
English
TX-P42G20E
TX-P46G20E
TX-P50G20E
Contents
Be Sure to Read
●
●
·············································································· 5
●
··································································· 5
Quick Start Guide
●
··································· 6
●
······································· 8
●
······································· 10
●
·················································· 12
●
●
TQB0E0904U1G
Model No.
TX-P42G20ES
TX-P46G20ES
TX-P50G20ES
························· 4
························ 16
······················ 17
Advertisement
Table of Contents
Related Manuals for Panasonic Viera TX-P50G20ES
Summary of Contents for Panasonic Viera TX-P50G20ES
-
Page 1: Table Of Contents
Please read these instructions carefully before operating this product and retain them for future reference. The images shown in this manual are for illustrative purposes only. Please refer to Pan European Guarantee Card if you need to contact your local Panasonic dealer for assistance. - Page 2 This TV may not work correctly with CI module that is not approved by the service provider. ● Additional fees may be charged depending on the service provider. ● The compatibility with future DVB services is not guaranteed. ● Check the latest information on the available services at the following website. (English only) http://panasonic.jp/support/global/cs/tv/...
- Page 3 The recording and playback of content on this or any other device may require permission from the owner of the copyright or other such rights in that content. Panasonic has no authority to and does not grant you that permission and explicitly disclaims any right, ability or intention to obtain such permission on your behalf.
-
Page 4: Safety Precautions (Warning / Caution)
This TV must not be exposed make the TV unstable, risking injury. Be sure to ask to dripping or splashing water and objects filled with your local Panasonic dealer to perform setup. liquid, such as vases, must not be placed on top of ●... -
Page 5: Notes
Caution ■ ■ When cleaning the TV, remove the Do not block the rear air vents ● Blocked ventilation by newspapers, table mains plug ● cloths, curtains, etc. may cause overheating, Cleaning an energized TV may cause electrical shock. ■ fire or electrical shock. -
Page 6: Accessories / Options
This product contains possibly dangerous parts (such as plastic bags), that can be breathed in or swallowed by young children accidentally. Keep these parts out of reach of young children. Optional accessories Please contact your nearest Panasonic dealer to purchase the recommended optional accessories. For additional details, please refer to the manual of the optional accessories. - Page 7 Do not use the pedestal if it becomes warped or physically damaged. ● If you use the pedestal while it is physically damaged, personal injury may result. Contact your nearest Panasonic dealer immediately. During set-up, make sure that all screws are securely tightened.
-
Page 8: Identifying Controls
Identifying Controls Remote Control ■ Installing / removing remote’s batteries Pull Close open Note the correct Hook polarity (+ or -) Caution ● Incorrect installation may cause battery leakage and corrosion, resulting in damage to the remote control. ● Do not mix old and new batteries. ●... - Page 9 Remote control signal receiver ● Do not place any objects between the TV remote control signal receiver and remote control. C.A.T.S. (Contrast Automatic Tracking System) sensor ● Senses brightness to adjust picture quality when “Eco Mode” in the Picture Menu is set to “On” (p. 18) Power and Timer LED ●...
-
Page 10: Basic Connection
Basic Connection External equipment and cables shown are not supplied with this TV. Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any leads. When disconnecting the mains lead, be absolutely sure to disconnect the mains plug at the socket outlet first. - Page 11 Example 3 Example 2 Connecting DVD Recorder / VCR Connecting DVD Recorder / VCR and Set top box TV, DVD Recorder or VCR TV, DVD Recorder / VCR and Set top box Rear of the TV Terrestrial Rear of the TV Terrestrial aerial aerial...
-
Page 12: Auto Setup
Auto Setup Search and store TV channels automatically. ● These steps are not necessary if the setup has been completed by your local dealer. ● Please complete connections (p. 10 and p. 11) and settings (if necessary) of the connected equipment before starting Auto Setup. - Page 13 Select “Start Auto Setup” access TV Signal Selection DVB-C DVB-T select DVB-T support for HD services Analogue Start Auto Setup Auto Setup starts Auto Setup will start to search for TV channels and store them. The stored channels and sorted channel order vary depending on the country, area, broadcasting system and conditions of signal reception.
-
Page 14: Auto Setup
Auto Setup Setup the wireless LAN connection Setup the wireless LAN connection to enable the network service functions. (If you do not wish to use wireless LAN connection or the network service functions, skip this step.) ● To setup the wireless LAN connection, the Wireless LAN Adaptor (optional accessory) is required. For the information about the Wireless LAN Adaptor “Optional accessories”... - Page 15 Select “Home” Select “Home” viewing environment to use in your home environment. ■ Please select your viewing environment. “Shop” viewing environment Home Shop select (for shop display only) “Shop” viewing environment is the demonstration mode to explain main features of this TV. Select “Home”...
-
Page 16: How To Use Viera Tools
How to Use VIERA TOOLS You can access some special features easily by using the VIERA TOOLS function. Display icons of the feature EXIT Select a feature select access VIERA Link Control Follow the operations of each feature ● VIERA Link Control When two or more compatible equipment are connected, a selection screen will be displayed. -
Page 17: How To Use Menu Functions
How to Use Menu Functions Various menus allow you to make settings for the picture, sound, and other functions. Display the menu ● INPUT Displays the functions that can be set MENU (varies according to the input signal) ASPECT MENU DIRECT TV REC Select the menu EXIT... - Page 18 How to Use Menu Functions ■ Menu list Menu Item Adjustments / Configurations (alternatives) Basic picture mode (Dynamic / Normal / Cinema / THX (True Cinema) / Game / Photo / Professional1 / Professional2) In each Viewing Mode and input, Contrast, Brightness, Colour, Sharpness, Tint, Colour Balance, Vivid Colour, Eco Mode, P-NR and 3D-COMB can be adjusted and stored to suit your particular viewing requirement.
- Page 19 Menu Item Adjustments / Configurations (alternatives) Selects the basic sound mode (Music / Speech / User) ● The selected mode affects all input signals. Music: Improves sound quality for watching music videos, etc. Speech: Improves sound quality for watching news, drama, etc. ●...
- Page 20 How to Use Menu Functions Menu Item Adjustments / Configurations (alternatives) SPDIF : A standard audio transfer file format Selects the initial setting for digital audio output signal from DIGITAL AUDIO OUT terminal (Auto / PCM) Auto : Dolby Digital Plus and Dolby Digital are output as Dolby Digital Bitstream. SPDIF Selection HE-AAC (48 kHz) 5.1ch is output as DTS.
- Page 21 Menu Item Adjustments / Configurations (alternatives) Favourites Edit Creates list of favourite DVB-C channels Channel List Skips the unwanted DVB-C channels or edits DVB-C channels Auto Setup Automatically sets the DVB-C channels supplied Manual Tuning Sets the DVB-C channels manually Update Channel List Updates DVB-C Channel List while keeping your settings Selects your favourite network for each broadcasters (only available in some...
- Page 22 How to Use Menu Functions Menu Item Adjustments / Configurations (alternatives) OSD Language Changes language for on screen displays Selects the first and second preferred language for DVB multi audio (depending on Preferred Audio 1 / 2 the broadcaster) Preferred Subtitles Selects the first and second preferred language for DVB subtitles (depending on the 1 / 2 broadcaster)
- Page 23 Menu Item Adjustments / Configurations (alternatives) Selects the language that your USB Keyboard supports ● USB Keyboard Use a USB Keyboard to enter characters in VIERA CAST. ● Layout Characters may not be displayed correctly on the TV screen depending on the connected keyboard or the keyboard layout setting.
- Page 24 Warranty Service purposes. Model Number Serial Number M0210-1030 Web Site : http://panasonic.net © Panasonic Corporation 2010 Printed in Czech Republic...
