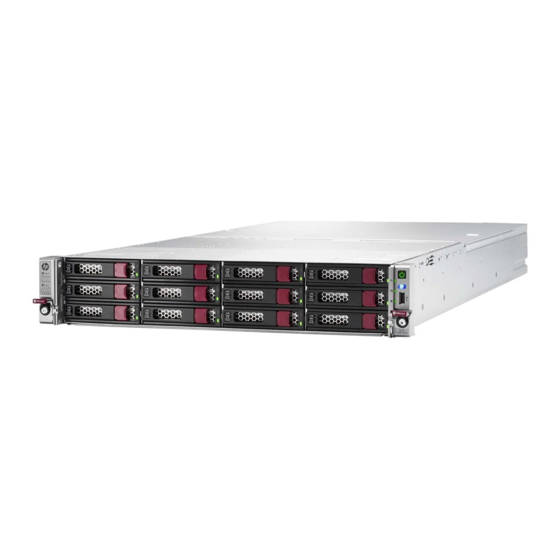

HPE Apollo 4200 Gen9 Server User Guide Abstract This document is for the person who installs, administers, and troubleshoots servers and storage systems. Hewlett Packard Enterprise assumes you are qualified in the servicing of computer equipment and trained in recognizing hazards in products with hazardous energy levels.
Page 2 © Copyright 2015, 2016 Hewlett Packard Enterprise Development LP The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty.
Page 3: Table Of Contents
Contents Component identification .......................... 7 Front panel components ............................7 Front panel LEDs and buttons ..........................7 Power fault LEDs ............................8 Front drive thermal LED ..........................9 Rear panel components ............................9 Rear panel LEDs ..............................11 System board components ............................. 12 DIMM slot locations .............................
Page 4 Installing a hot-plug AC power input module ..................... 125 Installing a hot-plug DC power input module ..................... 126 HP Trusted Platform Module option ........................132 HP Trusted Platform Module installation guidelines .................. 133 HP Trusted Platform Module requirements ....................134 Installing the Trusted Platform Module board .................... 134 Retaining the recovery key/password......................
Page 5 Erase Utility ............................... 158 Scripting Toolkit for Windows and Linux ......................159 Service Pack for ProLiant ............................. 159 HP Smart Update Manager ........................159 HPE UEFI System Utilities ........................... 159 Using UEFI System Utilities ........................160 Flexible boot control ..........................160 Restoring and customizing configuration settings ..................
Page 6 Electrostatic discharge .......................... 173 Preventing electrostatic discharge ........................173 Grounding methods to prevent electrostatic discharge ..................173 Specifications ............................174 Environmental specifications ..........................174 Mechanical specifications ............................. 174 Power supply specifications ..........................175 Hot-plug power supply calculations ........................175 Support and other resources ........................ 176 Accessing Hewlett Packard Enterprise Support ....................
Page 7: Component Identification
Component identification Front panel components • LFF chassis Item Description LFF hot-plug drives USB 2.0 connector • SFF chassis Item Description SFF hot-plug drives USB 2.0 connector Front panel LEDs and buttons Component identification 7...
Page 8: Power Fault Leds
Item Description Status Health LED Solid green = Normal Flashing green (1 flash per sec) = iLO is rebooting Flashing amber = System degraded Flashing red (1 flash per sec) = System critical NIC status LED Solid green = Link to network Flashing green (1 flash per second) = Network active Off = No network activity Front drive...
Page 9: Front Drive Thermal Led
Front drive thermal LED The thermal warning function of the front drive health/thermal LED depends on the iLO 08-HD Max sensor reading. This function is disabled under these conditions: • There are no drives in the front drive cages 1 and 2. •...
Page 10 • Rear panel with the two-bay SFF hot-plug rear drive cage and two-slot PCI riser cage options Item Description PCIe3 x16 (16, 8, 4, 1) slot 7 for low-profile, standup expansion board PCIe3 x8 (8, 4, 1) slot 6 for low-profile, standup expansion board PCIe3 x16 (16, 8, 4, 1) slot 5 for low-profile, standup expansion board SFF hot-plug drives...
Page 11: Rear Panel Leds
Item Description PCIe3 x16 (16, 8, 4, 1) slot 5 for low-profile, standup expansion board SFF hot-plug drives PCIe3 x16 (16, 8, 4, 1) slot 2 for low-profile, standup expansion board or riser cage options PCIe3 x8 (8, 4, 1) slot 1 for low-profile, standup expansion board FlexibleLOM slot Hot-plug power supply bay 1 Hot-plug power supply bay 2...
Page 12: System Board Components
Item Description Status Power supply LED Solid green = Normal Off = One or more of the following conditions exists: • Power is unavailable • Power supply failed • Power supply is in standby mode • Power supply error System board components The components shown in this section are associated with the HPE ProLiant XL420 Gen9 Server system board.
Page 13: Dimm Slot Locations
Item Description Processor 2 DIMM slots Processor 1 DIMM slots System battery Fan signal connector Smart Storage Battery connector Rear SFF drive backplane detection connector Fan power connector Front drive cage 2 backplane power connector Front drive cage 1 backplane power connector Storage backup power connector for expansion slots 1–2 SATA 6Gb/s connector 4 SATA 6Gb/s connector 5...
Page 14: Nmi Functionality
Position Default Function Reserved Reserved Off = Power-on password is enabled. On = Power-on password is disabled. Off = No function On = ROM reads system configuration as invalid. Off = Set default boot mode to UEFI. On = Set default boot mode to legacy. —...
Page 15: Drive Numbering
• Short the NMI header ("System board components" on page 12). For more information, see the Hewlett Packard Enterprise website (http://www.hpe.com/support/NMI-CrashDump). Drive numbering • 24-bay LFF hot-plug front drive numbering • 48-bay SFF hot-plug front drive numbering • Four-bay LFF hot-plug rear drive numbering •...
Page 16: Drive Leds
• Six-bay SFF hot-plug rear drive numbering Drive LEDs LFF and SFF drives have different sets of LEDs to reflect the drive status. LFF drive LED definitions Item Definition Fault/UID (amber/blue) Online/Activity (green) Online/Activity Fault/UID LED Definition LED (green) (amber/blue) Alternating One or more of the following conditions exist: On, off, or...
Page 17: Sff Drive Led Definitions
Online/Activity Fault/UID LED Definition LED (green) (amber/blue) The drive is active and is operating normally. 4 flashes per second Solid amber A critical fault condition has been identified for this drive and the controller has placed it offline. Replace the drive as soon as possible.
Page 18: Fan Locations
IMPORTANT: The Dynamic Smart Array B140i Controller is only available in UEFI Boot Mode. It cannot be enabled in Legacy BIOS Boot Mode. If the B140i controller is disabled, drives connected to the system board Mini-SAS connectors operate in AHCI or Legacy mode. Under this condition: •...
Page 19: Operations
Operations Power up the server To power up the server, press the Power On/Standby button. Power down the server Before powering down the server for any upgrade or maintenance procedures, perform a backup of critical server data and programs. IMPORTANT: When the server is in standby mode, auxiliary power is still being provided to the system.
Page 20: Extend The Front Drive Cages Out Of The Chassis
Extend the front drive cages out of the chassis The front drive cages are secured to the chassis by shipping screws upon product delivery. The location and number of these shipping screws depend on how the server was shipped during product delivery. Remove these shipping screws before extending the front drive cages for the first time.
Page 21 CAUTION: Do not operate the server for long periods with the front drive cages extended. When the front drive cages are extended while the server is powered on, do one of the following: • If the iLO 08-HD Max sensor reading is reporting a temperature value, monitor the status of the front drive health/thermal LED ("Front panel LEDs and buttons"...
Page 22: Slide The Front Drive Cages Into The Chassis
Slide the front drive cages into the chassis After performing the installation or maintenance procedure, pull and hold the front drive cage rail release latches, and then slide the drive cages back into the chassis. Remove a drive from the front drive cages WARNING: To reduce the risk of personal injury or equipment damage, be sure that the rack is adequately stabilized before extending a component from the rack.
Page 23: Remove A Drive From The Rear Drive Cage
If you intend to remove a drive from the front drive cage 1 and the security bezel is installed, remove the bezel ("Remove the security bezel" on page 19). If you intend to remove a drive from the front drive cage 2, extend the front drive cages out of the chassis (on page 20).
Page 24: Remove A Power Input Module
CAUTION: Do not operate the server with any of the rear drive bays empty. To maintain proper airflow and sufficient cooling in the rear drive cage, all drive bays in this cage should have a drive or a drive blank. Hewlett Packard Enterprise recommends installing at least one drive in the rear drive cage before operating the server.
Page 25 To remove the component: If the server is using a single power input module only, remove all power from the server: Back up all server data. Power down the server (on page 19). Disconnect all peripheral cables from the server. Release the power cords from the strain relief straps.
Page 26 Disconnect the power cord from the power input module. Remove the power input module. For a DC power input module, do the following: Slide the power input module out of the bay just enough to access the ground cable screw. Operations 26...
Page 27 Detach the ground (earthed) cable from the power input module. Remove the terminal block connector from the power input module. Operations 27...
Page 28: Remove The Server From The Rack
Remove the power input module. Remove the server from the rack WARNING: To reduce the risk of personal injury from hot surfaces, allow the drives, power input modules, and the internal system components to cool before touching them. WARNING: This server is very heavy. To reduce the risk of personal injury or damage to the equipment: •...
Page 29: Remove The Access Panel
Pull the thumbscrews to extend the server out of the rack until the rack rail lock is engaged. Press the server release latches, and then slide the server out of the rack. Place the server on a sturdy, level surface. Remove the access panel WARNING: To reduce the risk of personal injury from hot surfaces, allow the internal system components to cool before touching them.
Page 30: Install The Access Panel
Slide the access panel toward the rear of the server, then lift it from the server. Turn the access panel over to locate the HPE Apollo 4200 Gen9 Server hood label. This label provides convenient access to component identification, LED status indicators, and system maintenance switch settings information.
Page 31 Remove the access panel (on page 29). Remove the air baffle: If a Smart Storage Battery is installed on the air baffle, disconnect the battery cable. Remove the air baffle. Operations 31...
Page 32: Install The Air Baffle
Install the air baffle Insert the guide pins on the front edge of the air baffle in the holes located on the rear edge of the fan cage. If disconnected, connect the Smart Storage Battery cable. Install the access panel (on page 30). Install the server into the rack (on page 45).
Page 33 Pull down the front drive cage release latches and use them to completely extend the drive cages out of the chassis. Disconnect all system cables secured in the cable management holder from the system board or controller board, and then release them from the holder. Press and hold the cable management holder release latch, and then move the holder up.
Page 34: Close The Cable Management Holder
Close the cable management holder Return the cable management holder to its original position. Secure all disconnected system cables in the cable management holder, and then connect them to the system board and/or controller board. Pull and hold the drive cage rail release latches, and then slide the drive cages back into the chassis. Install the air baffle (on page 32).
Page 35 To remove the component: Power down the server (on page 19). Remove all power: Disconnect each power cord from the power source. Disconnect each power cord from the server. Remove the server from the rack (on page 28). Remove the access panel (on page 29). If expansion boards with internal cabling are installed on the PCI riser cage, disconnect all internal cables from the expansion boards to completely remove the cage from the server.
Page 36: Install The Pci Riser Cage
Install the PCI riser cage CAUTION: To prevent damage to electrical components, properly ground the server before beginning any installation procedure. Improper grounding can cause electrostatic discharge. To install the component: Connect the power cable to the riser board. Install the PCI riser cage: On the right side of the PCI riser cage, align the small tab on the drive cage with the notch on PCI riser cage.
Page 37: Remove A Rear Drive Cage
For more information on these cabling requirements, see the documentation that ships with the option. Install the access panel (on page 30). Install the server into the rack (on page 45). Power up the server (on page 19). Remove a rear drive cage WARNING: To reduce the risk of personal injury from hot surfaces, allow the internal system components to cool before touching them.
Page 38 Two-bay SFF hot-plug rear drive cage removal Six-bay SFF hot-plug rear drive cage removal Operations 38...
Page 39: Setup
Setup Optional services Delivered by experienced, certified engineers, HPE support services help you keep your servers up and running with support packages tailored specifically for HPE ProLiant systems. HPE support services let you integrate both hardware and software support into a single package. A number of service level options are available to meet your business and IT needs.
Page 40: Temperature Requirements
CAUTION: To prevent improper cooling and damage to the equipment, do not block the ventilation openings. When vertical space in the rack is not filled by a server or rack component, the gaps between the components cause changes in airflow through the rack and across the servers. Cover all gaps with blanking panels to maintain proper airflow.
Page 41: Electrical Grounding Requirements
When installing more than one server, you might need to use additional power distribution devices to safely provide power to all devices. Observe the following guidelines: • Balance the server power load between available AC supply branch circuits. • Do not allow the overall system AC current load to exceed 80% of the branch circuit AC current rating.
Page 42: Server Warnings And Caution
CAUTION: If the DC connection exists between the earthed conductor of the DC supply circuit and the earthing conductor at the server equipment, the following conditions must be met: • This equipment must be connected directly to the DC supply system earthing electrode conductor or to a bonding jumper from an earthing terminal bar or bus to which the DC supply system earthing electrode conductor is connected.
Page 43: Rack Warnings And Caution
CAUTION: Protect the server from power fluctuations and temporary interruptions with a regulating uninterruptible power supply. This device protects the hardware from damage caused by power surges and voltage spikes and keeps the system in operation during a power failure. Rack warnings and caution WARNING: To reduce the risk of personal injury or damage to the equipment, be sure that: •...
Page 44: Removing The Shipping Screws From The Front Drive Cages
• Power cord • Rack mounting hardware kit • Printed setup documentation In addition to the supplied items, you might need: • T-10/T-15 Torx screwdriver • T-25 Torx screwdriver • Hardware options Removing the shipping screws from the front drive cages The front drive cages are secured to the chassis by shipping screws upon product delivery.
Page 45: Installing Hardware Options
Installing hardware options Install any internal hardware options before installing the server in the rack. External hardware components—drives and power input modules—are installed after the server is installed in the rack. Install any hardware options before initializing the server. For options installation information, refer to the option documentation.
Page 46 The illustration below shows the rack rail with the shelf portion highlighted in gray. Install the chassis retention brackets on the non-shelf portion of the rack rail. Install the server into the rack. Tighten the rack ear thumbscrews. Setup 46...
Page 47 Make sure the pins on the chassis retention brackets slot into the notches located on both sides of the chassis. Install the drives in the front drive cages ("Installing a hot-plug drive in front drive cage 2" on page 54, "Installing a hot-plug drive in the front drive cage 1"...
Page 48 — AC power input module — DC power input module Employ best practices to route and manage the power cords and other cables in the server rear panel. Connect the power cord to the power source. WARNING: To reduce the risk of electric shock or damage to the equipment: •...
Page 49: Installing The Operating System
Installing the operating system This ProLiant server does not ship with provisioning media. Everything needed to manage and install the system software and firmware is preloaded on the server. To operate properly, the server must have a supported operating system. Attempting to run an unsupported operating system can cause serious and unpredictable results.
Page 50: Registering The Server
For more information on automatic configuration, see the UEFI documentation on the Hewlett Packard Enterprise website (http://www.hpe.com/info/ProLiantUEFI/docs). Registering the server To experience quicker service and more efficient support, register the product at the Hewlett Packard Enterprise Product Registration website (http://www.hpe.com/info/register). Setup 50...
Page 51: Hardware Options Installation
Hardware options installation Introduction If more than one option is being installed, read the installation instructions for all the hardware options and identify similar steps to streamline the installation process. WARNING: To reduce the risk of personal injury from hot surfaces, allow the drives, power input modules, and the internal system components to cool before touching them.
Page 52: Drive Installation Guidelines
Drive installation guidelines When adding drives to the server, observe the following general guidelines: • The system automatically sets all device numbers. • Populate drive bays, based on the drive numbering sequence. Start from the drive bay with the lowest device number ("Drive numbering"...
Page 53 LFF drive: Press the latch to open the release lever. SFF drive: Press the Do Not Remove button to open the release lever. Install the drive: LFF drive Hardware options installation 53...
Page 54: Installing A Hot-Plug Drive In Front Drive Cage 2
SFF drive Determine the status of the drive from the drive LED definitions ("Drive LEDs" on page 16). If removed, install the security bezel ("Security bezel option" on page 51). To configure arrays, see the HPE Smart Storage Administrator User Guide on the Hewlett Packard Enterprise website (http://www.hpe.com/info/smartstorage/docs).
Page 55 SFF drive: Press the Do Not Remove button to open the release lever. Install the drive: LFF drive Hardware options installation 55...
Page 56: Installing A Hot-Plug Drive In The Rear Drive Cage
SFF drive Determine the status of the drive from the drive LED definitions ("Drive LEDs" on page 16). Slide the front drive cages into the chassis (on page 22). To configure arrays, see the HPE Smart Storage Administrator User Guide on the Hewlett Packard Enterprise website (http://www.hpe.com/info/smartstorage/docs).
Page 57 SFF drive blank Open the drive release lever: LFF drive: Press the latch to open the release lever. SFF drive: Press the Do Not Remove button to open the release lever. Install the drive: LFF drive Hardware options installation 57...
Page 58: Drive Cage Options
SFF drive Determine the status of the drive from the drive LED definitions ("Drive LEDs" on page 16). To configure arrays, see the HPE Smart Storage Administrator User Guide on the Hewlett Packard Enterprise website (http://www.hpe.com/info/smartstorage/docs). Drive cage options Drive cage installation cautions CAUTION: To prevent damage to electrical components, properly ground the server before beginning any installation procedure.
Page 59 Remove the rear option blank. Retain the blank for future use. Install the four-bay LFF hot-plug rear drive cage: Align the pins on the drive cage with the notches on the rear panel. Tighten the thumbscrews to secure the drive cage to the rear panel. Tighten the captive screws to secure the drive cage to the system board.
Page 60 Connect the smaller 5x2 connector to the drive backplane. If you plan to use the Flexible Smart Array P840ar Controller to manage the rear LFF drives, connect the rear drive cage to the front drive cage 2 backplane: Release the preinstalled Mini-SAS x4 cable from the system board cable clips. Remove the plastic cover from the released Mini-SAS x4 cable.
Page 61 Connect the released Mini-SAS x4 cable to the four-bay hot-plug LFF rear drive backplane. If you plan to use the Dynamic Smart Array B140i Controller to manage the rear LFF drives, connect the rear drive cage to the system board: Connect the Mini-SAS x4 cable included in this option kit to the drive backplane.
Page 62: Two-Bay Sff Hot-Plug Rear Drive Cage And Two-Slot Pci Riser Cage Options
Two-bay SFF hot-plug rear drive cage and two-slot PCI riser cage options CAUTION: To prevent improper cooling and thermal damage, do not operate the server unless all expansion slots have either an expansion slot cover or an expansion board installed. This drive cage option supports SFF SAS and SATA HPE SmartDrives.
Page 63 Tighten the captive screws to secure the drive cage to the system board. Install the two-slot PCI riser cage: On the right side of the PCI riser cage, align the small tab on the drive cage with the notch on PCI riser cage.
Page 64 Connect the 3x2 connector to the riser board. If you plan to use the Flexible Smart Array P840ar Controller to manage the rear SFF drives, connect the rear drive cage to the front drive cage 2 backplane: Release the preinstalled Mini-SAS x4 cable from the system board cable clips. Remove the plastic cover from the released Mini-SAS x4 cable.
Page 65 Connect the released Mini-SAS x4 cable to the two-bay SFF hot-plug rear drive backplane. If you plan to use the Dynamic Smart Array B140i Controller to manage the rear SFF drives, connect the rear drive cage to the system board: Open the cable management holder (on page 32).
Page 66: Six-Bay Sff Hot-Plug Rear Drive Cage Option
Populate drive bays based on the drive numbering sequence. Start from the drive bay with the lowest device number. Power up the server (on page 19). Six-bay SFF hot-plug rear drive cage option This drive cage option supports SFF SAS and SATA HPE SmartDrives. These drives are assigned the drive numbers 49–54.
Page 67 Remove the rear option blank. Retain the blank for future use. Do one of the following: Remove the FlexibleLOM blank. Hardware options installation 67...
Page 68 If installed, remove the FlexibleLOM adapter. If you are NOT installing an H240 HBA or a P440 controller for the six-bay SFF rear drive cage, open the cable management holder (on page 32). Align the pins on the drive cage with the notches on the rear panel. Tighten the thumbscrews to secure the drive cage to the rear panel.
Page 69 Secure the cable in the rear drive cage cable clip. Do one of the following: Install the FlexibleLOM blank. If removed, install the FlexibleLOM adapter. Connect the common 5x2 connector of the power Y-cable to the system board. Connect the smaller 5x2 connector of the power Y-cable to the drive backplane. Secure the cable in the rear drive cage cable clip.
Page 70 Secure the cable in the rear drive cage cable clip. Close the cable management holder (on page 34). Depending on which storage controller you prefer to use for managing the rear drives, perform one of the succeeding storage cabling option procedures. Connect the preinstalled Mini-SAS x4 cable (on page 70).
Page 71 To show the location of preinstalled Mini-SAS x4 cable clearly, the six-bay SFF drive cage image is not shown in following illustration. Connect the released Mini-SAS x4 cable to port 1 of the rear drive backplane. Secure the cable in the rear drive cage cable clip. Connect the Mini-SAS x4 cable marked as MLB In this storage cabling option, the rear SFF drives are managed by the onboard Dynamic Smart Array B140i Controller.
Page 72 Secure the cable in the rear drive cage cable clip. Install the H240 HBA and its Mini-SAS x4 cables In the six-bay SFF rear drive configuration, the H240 HBA is supported in the low-profile PCIe expansion slots 1, 2, 5, 6, and 7. Remove the air scoop from the HBA.
Page 73 Remove the onboard PCI expansion slot cover. Install the HBA. Remove the plastic connector covers from the Mini-SAS x4 cable. Connect the two Mini-SAS x4 cables to the ports 1 and 2 of the drive backplane. Connect the other end of the Mini-SAS x4 cables to the HBA. Depending on the location of the HBA, secure the Mini-SAS cables in the rear drive cage cable clip or position them on top of the air baffle.
Page 74 H240 HBA Mini-SAS cable connections from the PCIe expansion slot 1 or 2 H240 HBA Mini-SAS cable connections from the PCIe expansion slot 5, 6 or 7 Install the P440 controller and its Mini-SAS Y-cable In the six-bay SFF rear drive configuration, the P440 controller is supported in the low-profile PCIe expansion slots 1, 2, 5, 6, and 7.
Page 75 Remove the air scoop from the storage controller. Remove the full-height bracket from the storage controller and attach the low-profile bracket. For more information, see the documentation that ships with the option. If you intend to use an FBWC module, install the module on the storage controller ("Installing the storage controller and FBWC module options"...
Page 76 Install the storage controller. Remove the plastic connector covers from the Mini-SAS Y-cable. Remove the cable tie securing the split ends of the Mini-SAS Y-cable. Connect the split ends of the Mini-SAS Y-cable to ports 1 and 2 of the rear drive backplane. The connector marked as P1 must be connected to port 1 and the connector marked as P2 must be connected to port 2.
Page 77: Drive Cable Options
P440 controller Mini-SAS Y-cable connections from the PCIe expansion slot 5, 6 or 7 Drive cable options Use these drive cable options to install a Host Bus Adapter or a Smart Array Controller board option. For more information about product features, specifications, options, configurations, and compatibility, see the product QuickSpecs on the Hewlett Packard Enterprise website (http://www.hpe.com/info/qs).
Page 78 Disconnect the Mini-SAS cable connected to the front drive cage 2 backplane from the rear drive backplane. Disconnect the Mini-SAS cable from the rear drive backplane and from the system board. Hardware options installation 78...
Page 79 If you are installing the H240 HBA for a two-bay SFF hot-plug rear drive cage that is connected to the front drive cage 2 backplane, disconnect the Mini-SAS cable from the rear drive backplane. If you are installing the H240 HBA for a two-bay SFF hot-plug rear drive cage that is connected to the system board, disconnect the multiconnector drive signal cable: Open the cable management holder (on page 32).
Page 80 Remove the air scoop from the HBA. If you intend to install the H240 HBA in any of the system board low-profile PCIe expansion slots 1, 2, 5, or 6, do the following: Remove the full-height bracket from the HBA, and attach the low-profile bracket. For more information, see the documentation that ships with the option.
Page 81 Install the HBA. Connect the Mini-SAS cable to the rear drive backplane and the HBA. For Mini-SAS cabling from the PCIe expansion slots 1 and 2, secure the Mini-SAS cable in the system board cable clips. For Mini-SAS cabling from the PCIe expansion slots 5 and 6, position the Mini-SAS cable on top of the air baffle.
Page 82 — Four-bay LFF rear drive cage – H240 HBA Mini-SAS cabling from the PCIe expansion slot 5 or 6 — Two-bay SFF rear drive cage – H240 HBA Mini-SAS cabling from the PCIe expansion slot 1 Hardware options installation 82...
Page 83 — Two-bay SFF rear drive cage – H240 HBA Mini-SAS cabling from the PCIe expansion slot 5 or 6 For the two-bay SFF rear drive cage only – If you intend to install the H240 HBA in the PCIe riser slot 3 or 4, do the following: Remove the PCI riser cage (on page 34).
Page 84: Smart Array P440 Controller Mini-Sas Y-Cable Option For Rear Drive Cage
Install the HBA. Install the PCI riser cage (on page 36). Connect the Mini-SAS cable to the rear drive backplane and the HBA. Position the Mini-SAS cable on top of the air baffle. Install the access panel (on page 30). Install the server into the rack (on page 45).
Page 85 Install the Smart Array P440 Controller Mini-SAS Y-cable for a rear drive cage option Power down the server (on page 19). Remove all power: Disconnect each power cord from the power source. Disconnect each power cord from the server. Remove the server from the rack (on page 28). Remove the access panel (on page 29).
Page 86 If you are installing the P440 controller for a two-bay SFF hot-plug rear drive cage that is connected to the front drive cage 2 backplane, disconnect the preinstalled Mini-SAS x4 cable from the two-bay SFF rear drive backplane. If you are installing the P440 controller for a two-bay SFF hot-plug rear drive cage that is connected to the system board, disconnect the multiconnector drive signal cable: Open the cable management holder (on page 32).
Page 87 Remove the air scoop from the storage controller. If you intend to use an FBWC module, install the module on the storage controller ("Installing the storage controller and FBWC module options" on page 92). For the four-bay LFF rear drive cage – Install the P440 controller in the low-profile PCIe expansion slots 1, 2, 5, 6 or 7: For the two-bay SFF rear drive cage –...
Page 88 Install the storage controller. Connect the Mini-SAS Y-cable to the rear drive backplane and the storage controller. Depending on the drive configuration type and the location of the controller board, secure the Mini-SAS Y-cable in the system board clips or position it on top of the air baffle. —...
Page 89 — Four-bay LFF rear drive cage – P440 controller Mini-SAS Y-cable connection from the PCIe expansion slot 5, 6 or 7 — Two-bay SFF rear drive cage – P440 controller Mini-SAS Y-cable connection from the PCIe expansion slot 1 Hardware options installation 89...
Page 90 — Two-bay SFF rear drive cage – P440 controller Mini-SAS Y-cable connection from the PCIe expansion slot 5, 6 or 7 For the two-bay SFF rear drive cage only – Install the P440 controller in the riser board slot 3 or 4: Remove the PCI riser cage (on page 34).
Page 91: Storage Controller Options
Position the Mini-SAS Y-cable on top of the air baffle. Install the access panel (on page 30). Install the server into the rack (on page 45). Power up the server (on page 19). Storage controller options The server ships with an embedded Dynamic Smart Array B140i Controller. This embedded controller is supported in UEFI Boot Mode only.
Page 92: Storage Controller Option Population Guidelines
CAUTION: The cache module connector does not use the industry-standard DDR3 mini-DIMMs. Do not use the controller with cache modules designed for other controller models, because the controller can malfunction and you can lose data. Also, do not transfer this cache module to an unsupported controller model, because you can lose data. CAUTION: To prevent a server malfunction or damage to the equipment, do not add or remove the battery pack while an array capacity expansion, RAID level migration, or stripe size migration is in progress.
Page 93 If you intend to use an FBWC module, install the module on the storage controller. Depending on the controller model, the cable connector on the cache module might be facing up or down when the module is installed on the controller board. Connect the cache module backup power cable to the module.
Page 94 Disconnect the Mini-SAS Y-cable from the Flexible Smart Array P840ar Controller port 1, and then release it from the cable clip. Install the storage controller ("Expansion board options" on page 118). Connect all necessary internal cables to the storage controller. For internal drive cabling information, see "Storage cabling (on page 138)."...
Page 95: Installing The Smart Storage Battery
If a cache module is installed on a storage controller located in the PCI riser cage, connect the cache module backup power cable to any of the storage backup power connectors located in front of the onboard PCIe expansion slot 7. If you are planning to install the Smart Storage Battery Pack, install it now ("Installing the Smart Storage...
Page 96: M.2 Ssd Enablement Board Option
Secure the battery cable on the air baffle clips, and then connect the cable to the system board. Install the access panel (on page 30). Install the server into the rack (on page 45). Power up the server (on page 19). M.2 SSD enablement board option The M.2 SSD enablement board is supported in the following expansion slots: •...
Page 97 Remove the full-height bracket from the M.2 SSD enablement board. Install the low-profile bracket on the M.2 SSD enablement board. Hardware options installation 97...
Page 98 Remove the onboard PCI expansion slot cover. Install the M.2 SSD enablement board. Verify that the board is firmly seated in the slot. — M.2 SSD enablement board installed in the onboard PCIe3 x8 expansion slot 1 Hardware options installation 98...
Page 99 — M.2 SSD enablement board installed in the onboard PCIe3 x16 expansion slot 2 Open the cable management holder (on page 32). Connect the SATA cables to the M.2 SSD enablement board and the system board. Close the cable management holder (on page 34). Secure the extra length of the SATA cables in the cable management holder.
Page 100 — M.2 SSD cabling from the onboard PCIe3 x16 expansion slot 2 To install the M.2 SSD enablement board in the PCI riser cage, do the following: Remove the PCI riser cage (on page 34). Remove the riser slot cover. Install the M.2 SSD enablement board.
Page 101: Installing An Ssd Module On The M.2 Ssd Enablement Board
— M.2 SSD enablement board installed in the PCIe3 x8 riser board slot 4 Install the PCI riser cage (on page 36). Open the cable management holder (on page 32). Connect the SATA cables to the M.2 SSD enablement board and the system board. Close the cable management holder (on page 34).
Page 102 Remove the server from the rack (on page 28). Remove the access panel (on page 29). Remove the air baffle (on page 30). Do one of the following: If you intend to install the SSD module in an M.2 SSD enablement board located in the PCI riser cage, make sure the board surface is accessible.
Page 103: Processor Option
Install the server into the rack (on page 45). Power up the server (on page 19). Processor option The server supports single-processor and dual-processor operations. For more information about product features, specifications, options, configurations, and compatibility, see the product QuickSpecs on the Hewlett Packard Enterprise website (http://www.hpe.com/info/qs). Processor installation cautions The server supports single-processor and dual-processor operations.
Page 104 Open each of the processor locking levers in the order indicated in the following illustration, and then open the processor retaining bracket. Remove the clear processor socket cover. Retain the processor socket cover for future use. CAUTION: THE PINS ON THE SYSTEM BOARD ARE VERY FRAGILE AND EASILY DAMAGED.
Page 105 Install the processor. Verify that the processor is fully seated in the processor retaining bracket by visually inspecting the processor installation guides on either side of the processor. THE PINS ON THE SYSTEM BOARD ARE VERY FRAGILE AND EASILY DAMAGED. Close the processor retaining bracket.
Page 106 Remove the thermal interface protective cover from the heatsink. Install the heatsink: Position the heatsink on the processor backplate. Tighten one pair of diagonally opposite screws halfway, and then tighten the other pair of screws. Finish the installation by completely tightening the screws in the same sequence. Install the air baffle (on page 32).
Page 107 If disconnected, connect the Smart Storage Battery cable. If the server is being upgraded from a single processor, nonredundant fan configuration to a dual-processor, nonredundant fan configuration, install the fan included in this processor option kit: Remove the fan blank from fan bay 5. Hardware options installation 107...
Page 108 Install the fan in fan bay 5. To enable fan redundancy in a dual-processor configuration, all 10 fan bays should be populated. Obtain a Redundant Fan Option Kit (PN 806562-B21) and install five more fans in fan bays 6–10: Remove the fan cage cover. Hardware options installation 108...
Page 109 Install the fans in fan bays 6–10. The PCIe expansion slots 5–7 are associated with processor 2. To enable expansion board installation in these now active slots, remove the slot cover air blocker. Remove the air blocker screws. Hardware options installation 109...
Page 110: Redundant Fan Option
Insert a pen or a small screwdriver into one of the slot cover hole to push the air blocker down, and then remove the air blocker from the chassis. Retain the air blocker for future use. Install the access panel (on page 30). Install the server into the rack (on page 45).
Page 111: Install The Fan Option
Fans are required in fan bays 1–4. Fan blank is required in fan bay 5. Fan bays 6–10 have a single fan cage cover. • Single processor, redundant configuration: Fans are required in fan bays 1–4 and 6–9. Fan blank is required in fan bay 5. Fan bay 10 is empty.
Page 112: Memory Options
Install the fans. Store any unused fans as spares. Install the access panel (on page 30). Install the server into the rack (on page 45). Power up the server (on page 19). Memory options IMPORTANT: This server does not support mixing LRDIMMs and RDIMMs. Attempting to mix any combination of these DIMMs can cause the server to halt during BIOS initialization.
Page 113 DIMM specifications DIMM specifications – Intel Xeon E5-2600 v3 processor installed Type Rank Capacity (GB) Native speed (MT/s) Voltage Single 2133 RDIMM Single 2133 RDIMM Dual 2133 RDIMM Dual 2133 RDIMM Dual 2133 RDIMM Dual 2133 LRDIMM Quad 2133 LRDIMM DIMM specifications –...
Page 114: Smartmemory
Capacity Maximum capacity for Maximum capacity for DIMM type DIMM rank (GB) one processor (GB) two processors (GB) Dual-rank RDIMM Dual-rank RDIMM Dual-rank LRDIMM Dual-rank RDIMM Quad-rank LRDIMM Maximum memory capacity – Intel Xeon E5-2600 v4 processor installed DIMM type DIMM rank Capacity Maximum capacity for...
Page 115: Dimm Identification
Dual- and quad-rank DIMMs provide the greatest capacity with the existing memory technology. For example, if current DRAM technology supports 8-GB single-rank DIMMs, a dual-rank DIMM would be 16 GB, and a quad-rank DIMM would be 32 GB. LRDIMMs are labeled as quad-rank DIMMs. There are four ranks of DRAM on the DIMM, but the LRDIMM buffer creates an abstraction that allows the DIMM to appear as a dual-rank DIMM to the system.
Page 116: General Dimm Slot Population Guidelines
that is degrading. This allows DIMMs that have a higher probability of receiving an uncorrectable memory error (which would result in system downtime) to be removed from operation. • Mirrored memory—Provides maximum protection against failed DIMMs. Uncorrectable errors in one channel are corrected by the mirror channel.
Page 117: Identifying The Processor Type
• When only one processor is installed, install DIMMs in sequential alphabetic order: Ch 1-A, Ch 2-B, Ch 3-C, Ch 4-D. • When two processors are installed, install the DIMMs in sequential alphabetical order balanced between the two processors: P1-A, P2-A, P1-B, P2-B, P1-C, P2-C, P1-D, P2-D. For more information about server memory, see the Hewlett Packard Enterprise website (http://www.hpe.com/info/memory).
Page 118: Expansion Board Options
Remove all power: Disconnect each power cord from the power source. Disconnect each power cord from the server. Remove the server from the rack (on page 28). Remove the access panel (on page 29). Remove the air baffle (on page 30). Open the DIMM slot latches.
Page 119 To install a low-profile, standup expansion board on the system board, do the following: If the expansion board option ships with a full-height bracket, remove that bracket and attach a low-profile one. For more information, see the documentation that ships with the option. Remove the onboard PCI expansion slot cover.
Page 120: Flexiblelom Adapter Option
Remove the riser slot cover. Verify that any switches or jumpers on the expansion board are set properly. For more information, see the documentation that ships with the option. Install the expansion board. Verify that the board is firmly seated in the slot. Install the PCI riser cage (on page 36).
Page 121 To install the component: Power down the server (on page 19). Remove all power: Disconnect each power cord from the power source. Disconnect each power cord from the server. Remove the server from the rack (on page 28). Remove the access panel (on page 29). Remove the FlexibleLOM blank.
Page 122: Dedicated Ilo Management Module Option
Dedicated iLO management module option For more information about product features, specifications, options, configurations, and compatibility, see the product QuickSpecs on the Hewlett Packard Enterprise website (http://www.hpe.com/info/qs). CAUTION: To prevent damage to electrical components, properly ground the server before beginning any installation procedure. Improper grounding can cause ESD. To install the component: Power down the server (on page 19).
Page 123: Enabling The Dedicated Ilo Management Module
Install the dedicated iLO management module. If removed, install the rear drive cage and connect the drive backplane cables ("Drive cage options" on page 58). Install the access panel (on page 30). Install the server into the rack (on page 45). Power up the server (on page 19).
Page 124: Dual 8Gb Microsd Enterprise Midline Usb Device
Press Esc until the main menu is displayed. Select Reboot the System to exit the utility and resume the boot process. The IP address of the enabled dedicated iLO connector appears on the POST screen on the subsequent boot-up. Access the Network Options screen again to view this IP address for later reference.
Page 125: Installing A Hot-Plug Ac Power Input Module
Installing a hot-plug AC power input module Access the product rear panel. Remove the power supply blank. Slide the power input module into the bay until it clicks into place. Connect the power cord to the power supply. To prevent accidental power cord disconnection when sliding the server in and out of the rack, secure the power cord in the strain relief strap attached to the power input module handle: Unwrap the strain relief strap from the power input module handle.
Page 126: Installing A Hot-Plug Dc Power Input Module
Secure the power cord with the strain relief strap. Roll the extra length of the strap around the power input module handle. Connect the power cord to the AC power source. Be sure that the power supply LED is green. Installing a hot-plug DC power input module The following input power cord option might be purchased from an authorized Hewlett Packard Enterprise reseller:...
Page 127 WARNING: To reduce the risk of electric shock, fire, and damage to the equipment, you must install this product in accordance with the following guidelines: • This power supply is intended only for installation in Hewlett Packard Enterprise servers located in a restricted access location. •...
Page 128 Remove the ring tongue. Crimp the ring tongue to the ground cable from the -48 V DC power source. Hardware options installation 128...
Page 129 Remove the terminal block connector. Loosen the screws on the terminal block connector. Hardware options installation 129...
Page 130 Attach the ground (earthed) wire to the ground screw and washer and tighten to 1.47 N m (13 lb-in) of torque. The ground wire must be connected before the -48 V wire and the return wire. Insert the -48 V wire into the left side of the terminal block connector, and then tighten the screw to 1.3 N m (10 lb-in) of torque.
Page 131 Insert the return wire into the right side of the connector, and then tighten the screw to 1.3 N m (10 lb-in) of torque. Install the terminal block connector in the power input module. To prevent accidental power cord disconnection when sliding the server in and out of the rack, secure the power cord, wires, and/or cables in the strain relief strap attached to the power input module handle: Unwrap the strain relief strap from the power input module handle.
Page 132: Hp Trusted Platform Module Option
HP Trusted Platform Module option Trusted Platform Module (TPM) Notice HP Special Reminder: Before enabling Trusted Platform Module (TPM) functionality on this system, you must ensure that your intended use of TPM complies with relevant local laws, regulations and policies, and approvals or licenses must be obtained if applicable.
Page 133: Hp Trusted Platform Module Installation Guidelines
For any compliance issues arising from your operation/usage of TPM which violates the above mentioned requirement, you shall bear all the liabilities wholly and solely. HP will not be responsible for any related liabilities. For more information about product features, specifications, options, configurations, and compatibility, see the product QuickSpecs on the Hewlett Packard Enterprise website (http://www.hpe.com/info/qs).
Page 134: Hp Trusted Platform Module Requirements
HP Trusted Platform Module requirements TPM installation requires the use of drive encryption technology, such as the Microsoft Windows BitLocker Drive Encryption feature. For more information on BitLocker, see the Microsoft website (http://www.microsoft.com). The TPM 2.0 requires an HPE ProLiant Gen9 server with the latest BIOS operating in UEFI mode. The TPM 2.0 option also requires a supported operating system such as Microsoft Windows Server 2012 or...
Page 135 CAUTION: Any attempt to remove an installed TPM from the system board breaks or disfigures the TPM security rivet. Upon locating a broken or disfigured rivet on an installed TPM, administrators should consider the system compromised and take appropriate measures to ensure the integrity of the system data.
Page 136: Retaining The Recovery Key/Password
If removed, install the rear option blank. If removed, install the four-bay LFF rear drive cage ("Install the four-bay LFF hot-plug rear drive cage" on page 58). If removed, install the six-bay SFF rear drive cage ("Install the six-bay SFF hot-plug rear drive cage option"...
Page 137 To set the TPM operational state: If TPM 1.2 is installed, then select No Action, Enable, Disable, or Clear. If TPM 2.0 is installed, then select No Action or Clear. Select Visible to set the TPM Visibility, if necessary. Press the F10 key to save your selection. When prompted to save the change in System Utilities, press the Y key.
Page 138: Cabling
Cabling Cabling overview This section provides guidelines that help you make informed decisions about cabling the server and hardware options to optimize performance. CAUTION: When routing cables, always be sure that the cables are not in a position where they can be pinched or crimped. Storage cabling 24-bay LFF hot-plug SAS/SATA front drive cabling •...
Page 139: 48-Bay Sff Hot-Plug Sas/Sata Front Drive Cabling
• Cabling for when the front LFF drive cage 1 is connected to the Flexible Smart Array P840ar Controller and the front LFF drive cage 2 is connected to the Smart Array P440 Controller option Item Description LFF front drive cage 2 Mini-SAS Y-cable LFF front drive cage 2 power cable LFF front drive cage 1 Mini-SAS Y-cable LFF front drive cage 1 power cable...
Page 140: Four-Bay Lff Hot-Plug Sas/Sata Rear Drive Cabling
• Cabling for when the front SFF drive cage 1 is connected to the Flexible Smart Array P840ar Controller and the front SFF drive cage 2 is connected to the Smart Array P440 Controller option Item Description Front SFF drive cage 2 Mini-SAS Y-cable Front SFF drive cage 2 power cable Front SFF drive cage 1 power cable Front SFF drive cage 1 Mini-SAS Y-cable...
Page 141 • Four-bay LFF hot-plug SATA rear drive cabling to the onboard SATA connector 1 Item Description Rear LFF drive cage Mini-SAS x4 cable Rear LFF drive cage power cable • Four-bay LFF hot-plug SAS/SATA rear drive cabling to the H240 HBA installed in the PCIe expansion slot 1 or 2 Item Description...
Page 142 • Four-bay LFF hot-plug SAS/SATA rear drive cabling to the H240 HBA installed in the PCIe expansion slot 5 or 6 Item Description Rear LFF drive cage Mini-SAS x4 cable Rear LFF drive cage power cable • Four-bay LFF hot-plug SAS/SATA rear drive cabling to the P440 Smart Array Controller installed in the PCIe expansion slot 1 or 2 Item Description...
Page 143: Two-Bay Sff Hot-Plug Sas/Sata Rear Drive Cabling
• Four-bay LFF hot-plug SAS/SATA rear drive cabling to the P440 Smart Array Controller installed in the PCIe expansion slot 5, 6 or 7 Item Description Rear LFF drive cage Mini-SAS Y-cable Rear LFF drive cage power cable Two-bay SFF hot-plug SAS/SATA rear drive cabling •...
Page 144 For clarity of the multiconnector signal cable connections, the cable management holder image is removed from the illustration below. Item Description Rear SFF drive cage and two-slot PCI riser board power Y-cable Rear SFF drive cage multiconnector signal cable • Two-bay SFF hot-plug SAS/SATA rear drive cabling to the H240 HBA installed in the PCIe expansion slot 1 Item...
Page 145 • Two-bay SFF hot-plug SAS/SATA rear drive cabling to the H240 HBA installed in the PCIe expansion slot 5 or 6 Item Description Rear SFF drive cage Mini-SAS cable Rear SFF drive cage and two-slot PCI riser board power Y-cable •...
Page 146 • Two-bay SFF hot-plug SAS/SATA rear drive cabling to the P440 Smart Array Controller installed in the PCIe riser slot 3 or 4 Item Description Rear SFF drive cage Mini-SAS Y-cable Rear SFF drive cage and two-slot PCI riser board power Y-cable •...
Page 147: Six-Bay Sff Hot-Plug Sas/Sata Rear Drive Cabling
Six-bay SFF hot-plug SAS/SATA rear drive cabling • Six-bay LFF hot-plug SAS/SATA rear drive cabling to the front drive cage 2 backplane and the onboard SATA connectors Item Description Rear SFF backplane sideband cable Rear SFF drive cage preinstalled Mini-SAS x4 cable Rear SFF drive cage power cable Rear SFF drive cage multiconnector signal cable •...
Page 148 Item Description Rear SFF drive cage power cable Rear SFF drive cage multiconnector signal cable • Six-bay LFF hot-plug SAS/SATA rear drive cabling to the H240 HBA installed in the PCIe expansion slot 1 or 2 Item Description Rear SFF backplane sideband cable Mini-SAS x4 cable Rear SFF drive cage power cable Mini-SAS x4 cable...
Page 149 Item Description Rear SFF backplane sideband cable Mini-SAS x4 cable Rear SFF drive cage power cable Mini-SAS x4 cable • Six-bay LFF hot-plug SAS/SATA rear drive cabling to the P440 Smart Array Controller installed in the PCIe expansion slot 1 or 2 Item Description Rear SFF backplane sideband cable...
Page 150: M.2 Ssd Cabling
Item Description Rear SFF backplane sideband cable Rear SFF drive cage power cable Mini-SAS Y-cable M.2 SSD cabling For clarity of the SATA cable connections, part of the cable management holder image is removed from this section's illustrations. • M.2 SSD cabling from the onboard PCIe3 x8 expansion slot 1 Item Description M.2 SSD 1 SATA cable...
Page 151: Fbwc Module Backup Power Cabling
• M.2 SSD cabling from the PCI riser cage Item Description M.2 SSD 1 SATA cable M.2 SSD 2 SATA cable FBWC module backup power cabling The FBWC solution is a separately purchased option. This server only supports FBWC module installation ("Installing the storage controller and FBWC module options"...
Page 152: Smart Storage Battery Cabling
• FBWC module backup power cabling from an Smart Array P841 Controller installed in the PCI riser cage Smart Storage Battery cabling Cabling 152...
Page 153: Fan Assembly Cabling
Fan assembly cabling Item Description Fan assembly power cable Fan assembly signal cable Ambient temperature sensor cabling This cable is present in SFF drive configurations only; the ambient temperature sensor function in LFF drive configurations is integrated in the front LFF drive cage 1 backplane. Cabling 153...
Page 154: Front Panel Cabling
Front panel cabling Item Description Front I/O cable Front USB 2.0 cable Cabling 154...
Page 155: Software And Configuration Utilities
Scripting Toolkit for Windows and Linux (on page 159) Online and Offline Service Pack for ProLiant (on page 159) Online and Offline HP Smart Update Manager (on page 159) Offline HPE UEFI System Utilities (on page 159) Online and Offline...
Page 156: Active Health System
• Implement true Agentless Management with SNMP alerts from iLO, regardless of the state of the host server. • Download the Active Health System log. • Register for HPE remote support. • Use iLO Federation to manage multiple servers from one system running the iLO web interface. •...
Page 157: Restful Api Support For Ilo
log can be downloaded manually from iLO 4 or HPE Intelligent Provisioning and sent to Hewlett Packard Enterprise. For more information, see the following documents: • iLO User Guide on the Hewlett Packard Enterprise website (http://www.hpe.com/info/ilo/docs) • Intelligent Provisioning User Guide on the Hewlett Packard Enterprise website (http://www.hpe.com/info/intelligentprovisioning/docs) RESTful API support for iLO HPE iLO 4 firmware version 2.00 and later includes the RESTful API.
Page 158: Hpe Insight Diagnostics
For more information about Intelligent Provisioning software, see the Hewlett Packard Enterprise website (http://www.hpe.com/servers/intelligentprovisioning). For Intelligent Provisioning recovery media downloads, see the Resources tab on the Hewlett Packard Enterprise website (http://www.hpe.com/servers/intelligentprovisioning). For consolidated drive and firmware update packages, see the Smart Update: Server Firmware and Driver Updates page on the Hewlett Packard Enterprise website (http://www.hpe.com/info/SmartUpdate).
Page 159: Scripting Toolkit For Windows And Linux
The SPP is a comprehensive systems software (drivers and firmware) solution delivered as a single package with major server releases. This solution uses HP SUM as the deployment tool and is tested on all supported ProLiant servers including ProLiant Gen8 and later servers.
Page 160: Using Uefi System Utilities
• Configuring memory options • Selecting a language • Launching other pre-boot environments such as the Embedded UEFI Shell and Intelligent Provisioning For more information on the UEFI System Utilities, see the HPE UEFI System Utilities User Guide for HPE ProLiant Gen9 Servers on the Hewlett Packard Enterprise website (http://www.hpe.com/info/uefi/docs).
Page 161: Restoring And Customizing Configuration Settings
For more information, see the HPE UEFI System Utilities User Guide for HPE ProLiant Gen9 Servers on the Hewlett Packard Enterprise website (http://www.hpe.com/info/uefi/docs). Restoring and customizing configuration settings You can reset all configuration settings to the factory default settings, or you can restore system default configuration settings, which are used instead of the factory default settings.
Page 162: Embedded Diagnostics Option
Embedded Diagnostics option The system BIOS in all ProLiant Gen9 servers includes an Embedded Diagnostics option in the ROM. The Embedded Diagnostics option can run comprehensive diagnostics of the server hardware, including processors, memory, drives, and other server components. For more information on the Embedded Diagnostics option, see the HPE UEFI System Utilities User Guide for HPE ProLiant Gen9 Servers on the Hewlett Packard Enterprise website (http://www.hpe.com/info/uefi/docs).
Page 163: Automatic Server Recovery
• Supports online array capacity expansion, logical drive extension, assignment of online spares, and RAID or stripe size migration • Provides diagnostic and SmartSSD Wear Gauge functionality on the Diagnostics tab • For supported controllers, provides access to additional features. For more information about HPE SSA, see the Hewlett Packard Enterprise website (http://www.hpe.com/servers/ssa).
Page 164: Redundant Rom Support
Access to some updates for ProLiant Servers may require product entitlement when accessed through the Hewlett Packard Enterprise Support Center support portal. Hewlett Packard Enterprise recommends that you have an HP Passport set up with relevant entitlements. For more information, see the Hewlett Packard Enterprise website (http://www.hpe.com/support/AccessToSupportMaterials).
Page 165 Download the FWUPDATE flash component from the Hewlett Packard Enterprise Support Center website (http://www.hpe.com/support/hpesc). Save the FWUPDATE flash components to a USB key. Set the boot order so the USB key will boot first using one of the following options: Configure the boot order so the USB key is the first bootable device.
Page 166: Drivers
Online Flash components This component provides updated system firmware that can be installed directly on supported operating systems. Additionally, when used in conjunction with the HP SUM ("HP Smart Update Manager" on page 159), this Smart Component allows the user to update firmware on remote servers from a central location.
Page 167: Operating System Version Support
Version Control Agent User Guide, and the Version Control Repository Manager User Guide on the Hewlett Packard Enterprise website (http://www.hpe.com/info/enterprise/docs). Select HP Insight Management from the available options in Products and Solutions. Select HP Version Control from the available options in Insight Management.
Page 168: Troubleshooting
Troubleshooting Troubleshooting resources The HPE ProLiant Gen9 Troubleshooting Guide, Volume I: Troubleshooting provides procedures for resolving common problems and comprehensive courses of action for fault isolation and identification, issue resolution, and software maintenance on ProLiant servers and server blades. To view the guide, select a language: •...
Page 169: System Battery Replacement
System battery replacement System battery information If the server no longer automatically displays the correct date and time, then replace the battery that provides power to the real-time clock. Under normal use, battery life is 5 to 10 years. WARNING: The computer contains an internal lithium manganese dioxide, a vanadium pentoxide, or an alkaline battery pack.
Page 170 Slightly push the metal tab, then install the system battery in the socket. For more information about battery replacement or proper disposal, contact an authorized reseller or an authorized service provider. System battery replacement 170...
Page 171: Warranty And Regulatory Information
Warranty and regulatory information Warranty information HPE ProLiant and x86 Servers and Options (http://www.hpe.com/support/ProLiantServers-Warranties) HPE Enterprise Servers (http://www.hpe.com/support/EnterpriseServers-Warranties) HPE Storage Products (http://www.hpe.com/support/Storage-Warranties) HPE Networking Products (http://www.hpe.com/support/Networking-Warranties) Regulatory information Safety and regulatory compliance For important safety, environmental, and regulatory information, see Safety and Compliance Information for Server, Storage, Power, Networking, and Rack Products, available at the Hewlett Packard Enterprise website (http://www.hpe.com/support/Safety-Compliance-EnterpriseProducts).
Page 172: Turkey Rohs Material Content Declaration
Local representative information Kazakh: • Russia: • Belarus: • Kazakhstan: Manufacturing date: The manufacturing date is defined by the serial number. CCSYWWZZZZ (serial number format for this product) Valid date formats include: • YWW, where Y indicates the year counting from within each new decade, with 2000 as the starting point;...
Page 173: Electrostatic Discharge
Electrostatic discharge Preventing electrostatic discharge To prevent damaging the system, be aware of the precautions you need to follow when setting up the system or handling parts. A discharge of static electricity from a finger or other conductor may damage system boards or other static-sensitive devices.
Page 174: Specifications
Specifications Environmental specifications Specification Value — Temperature range* 10°C to 35°C (50°F to 95°F) Operating -30°C to 60°C (-22°F to 140°F) Nonoperating — Relative humidity (noncondensing) Minimum to be the higher (more moisture) of Operating -12°C (10.4°F) dew point or 8% relative humidity Maximum to be 24°C (75.2°F) dew point or 90% relative humidity...
Page 175: Power Supply Specifications
Dimension Value 40.60 kg (89.51 lb) With the four-bay LFF rear drive cage option, maximum — 48-bay SFF drive models 23.40 kg (51.59 lb) Without the two- or six-bay rear SFF drive cage option, minimum 34.72 kg (76.54 lb) Without the two- or six-bay rear SFF drive cage option, maximum 23.68 kg (52.21 lb) With the two-bay SFF rear drive cage option,...
Page 176: Support And Other Resources
Hewlett Packard Enterprise Support Center More Information on Access to Support Materials page (http://www.hpe.com/support/AccessToSupportMaterials). IMPORTANT: Access to some updates might require product entitlement when accessed through the Hewlett Packard Enterprise Support Center. You must have an HP Passport set up with relevant entitlements. Websites •...
Page 177: Customer Self Repair
Software Depot (http://www.hpe.com/support/softwaredepot) • Customer Self Repair (http://www.hpe.com/support/selfrepair) • Insight Remote Support (http://www.hpe.com/info/insightremotesupport/docs) • Serviceguard Solutions for HP-UX (http://www.hpe.com/info/hpux-serviceguard-docs) • Single Point of Connectivity Knowledge (SPOCK) Storage compatibility matrix (http://www.hpe.com/storage/spock) • Storage white papers and analyst reports (http://www.hpe.com/storage/whitepapers) Customer Self Repair Hewlett Packard Enterprise products are designed with many Customer Self Repair (CSR) parts to minimize repair time and allow for greater flexibility in performing defective parts replacement.
Page 178 • Obligatoire—Pièces pour lesquelles la réparation par le client est obligatoire. Si vous demandez à Hewlett Packard Enterprise de remplacer ces pièces, les coûts de déplacement et main d'œuvre du service vous seront facturés. • Facultatif—Pièces pour lesquelles la réparation par le client est facultative. Ces pièces sont également conçues pour permettre au client d'effectuer lui-même la réparation.
Page 179 spedizione fornito. La mancata restituzione del componente può comportare la fatturazione del ricambio da parte di Hewlett Packard Enterprise. Nel caso di riparazione da parte del cliente, Hewlett Packard Enterprise sostiene tutte le spese di spedizione e resa e sceglie il corriere/vettore da utilizzare. Per ulteriori informazioni sul programma CSR di Hewlett Packard Enterprise, contattare il centro di assistenza di zona.
Page 180 • Obligatorio—componentes cuya reparación por parte del usuario es obligatoria. Si solicita a Hewlett Packard Enterprise que realice la sustitución de estos componentes, tendrá que hacerse cargo de los gastos de desplazamiento y de mano de obra de dicho servicio. •...
Page 181 Hewlett Packard Enterprise vermeldt in de documentatie bij het vervangende CSR-onderdeel of het defecte onderdeel aan Hewlett Packard Enterprise moet worden geretourneerd. Als het defecte onderdeel aan Hewlett Packard Enterprise moet worden teruggezonden, moet u het defecte onderdeel binnen een bepaalde periode, gewoonlijk vijf (5) werkdagen, retourneren aan Hewlett Packard Enterprise. Het defecte onderdeel moet met de bijbehorende documentatie worden geretourneerd in het meegeleverde verpakkingsmateriaal.
Page 182 Support and other resources 182...
Page 183 Support and other resources 183...
Page 184: Remote Support
Remote support Remote support is available with supported devices as part of your warranty or contractual support agreement. It provides intelligent event diagnosis, and automatic, secure submission of hardware event notifications to Hewlett Packard Enterprise, which will initiate a fast and accurate resolution based on your product’s service level.
Page 185: Acronyms And Abbreviations
Acronyms and abbreviations ABEND abnormal end Array Configuration Utility Advanced Memory Protection application program interface ASHRAE American Society of Heating, Refrigerating and Air-Conditioning Engineers Automatic Server Recovery American wire gauge column address strobe Canadian Standards Association Customer Self Repair DDR3 double data rate-3 DDR4 double data rate-4...
Page 186 FBWC flash-backed write cache host bus adapter HPE SIM HPE Systems Insight Manager HPE SSA HPE Smart Storage Administrator International Electrotechnical Commission Integrated Lights-Out Integrated Management Log International Organization for Standardization JBOD just a bunch of disks JSON JavaScript Object Notation large form factor Lights-Out Management LRDIMM...
Page 187 NVDIMM non-volatile dual in-line memory module NVRAM nonvolatile memory Onboard Administrator PCIe Peripheral Component Interconnect Express power distribution unit POST Power-On Self Test QR code quick response code RBSU ROM-Based Setup Utility RDIMM registered dual in-line memory module REST representational state transfer RoHS Restriction of Hazardous Substances serial attached SCSI...
Page 188 small form factor Service Pack for ProLiant solid state device standard (DIMM voltage) TMRA recommended ambient operating temperature telephone network voltage Trusted Platform Module UEFI Unified Extensible Firmware Interface unit identification Virtual Connect Version Control Agent VCRM Version Control Repository Manager Acronyms and abbreviations 188...
Page 189: Documentation Feedback
Documentation feedback Hewlett Packard Enterprise is committed to providing documentation that meets your needs. To help us improve the documentation, send any errors, suggestions, or comments to Documentation Feedback (mailto:docsfeedback@hpe.com). When submitting your feedback, include the document title, part number, edition, and publication date located on the front cover of the document. For online help content, include the product name, product version, help edition, and publication date located on the legal notices page.
Page 190: Index
Index components, system board 12 configuration of system 155 configuration settings 161 AC power supply 125 contacting HPE 176 access panel, installing 30 crash dump analysis 14 access panel, removing 29 CSR (customer self repair) 177 Active Health System 155, 156 ACU (Array Configuration Utility) 162 Advanced ECC memory 115, 116, 117 Advanced ECC population guidelines 117...
Page 191 124, 125, 126 memory, configuration requirements 115, 117 hot-plug power supply calculations 175 memory, configuring 115, 116 HP Smart Update Manager overview 155, 159 memory, mirrored 116, 117 HP Trusted Platform Module option 132 memory, online spare 116, 117...
Page 192 NIC link LED 7 rear panel components 9 NMI functionality 14 rear panel LEDs 11 NMI header 14 recommended ambient operating temperature notification actions 167 (TMRA) 40 recovery key 136 redundant fan 110 redundant power supply 124 online flash components 164, 166 redundant ROM 164 online spare memory 116, 117 re-entering the server serial number 162...
Page 193 static electricity 173 storage cabling 138 storage controller 91 supported operating systems 167 system board battery 12, 169 system board components 12 system configuration settings 12, 13, 164 System Erase Utility 158 system maintenance switch 13 system ROM 164, 166 system, keeping current 164 technical support 167, 176 technology services 167...

HP Apollo 4200 Gen9 User Manual

Component Identification

Operations

Setup

Hardware Options Installation

Cabling

Software and Configuration Utilities

Troubleshooting

System Battery Replacement

Warranty and Regulatory Information

Electrostatic Discharge

Specifications

Support and Other Resources

Acronyms and Abbreviations

Documentation Feedback

Index

Quick Links

User Guide

Related Manuals for HP Apollo 4200 Gen9

Summary of Contents for HP Apollo 4200 Gen9

Table of Contents
