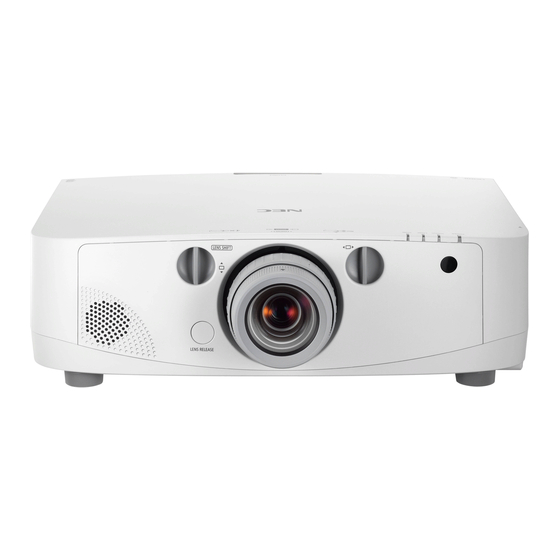

Page 1 Portable Projector PA600X/PA500X/ PA550W/PA500U User’s Manual Model No. NP-PA600X/NP-PA500X/NP-PA550W/NP-PA500U Downloaded From projector-manual.com NEC Manuals...
Page 2 (3) Great care has been taken in the preparation of this user’s manual; however, should you notice any questionable points, errors or omissions, please contact us. (4) Notwithstanding article (3), NEC will not be responsible for any claims on loss of profit or other matters deemed to result from using the Projector.
Page 3: Important Information
Important Information Safety Cautions Precautions Please read this manual carefully before using your NEC projector and keep the manual handy for future reference. CAUTION To turn off main power, be sure to remove the plug from power outlet. The power outlet socket should be installed as near to the equipment as possible, and should be easily accessible.
Page 4: Important Safeguards
The Federal Communications Commission does not allow any modifications or changes to the unit EXCEPT those specified by NEC Display Solutions of America, Inc. in this manual. Failure to comply with this government regu- lation could void your right to operate this equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
Page 5 • Do not place any objects, which are easily affected by heat, in front of a projector exhaust vent. Doing so could lead to the object melting or getting your hands burned from the heat that is emitted from the ex- haust. Downloaded From projector-manual.com NEC Manuals...
Page 6: Caution On Handling The Optional Lens
Remote Control Precautions • Handle the remote control carefully. • If the remote control gets wet, wipe it dry immediately. • Avoid excessive heat and humidity. • Do not short, heat, or take apart batteries. Downloaded From projector-manual.com NEC Manuals...
Page 7: Lamp Replacement
This device is not intended for use in the direct field of view at visual display workplaces. To avoid incommoding reflec- tions at visual display workplaces this device must not be placed in the direct field of view. Downloaded From projector-manual.com NEC Manuals...
Page 8: Table Of Contents
 Turning off the Projector ....................25  After Use........................26 3. Convenient Features ..................27 1 Turning off the Image and Sound ................27  Freezing a Picture ....................... 27  Enlarging a Picture ...................... 27 Downloaded From projector-manual.com NEC Manuals...
Page 9  List of Menu Items ....................... 84  Menu Descriptions & Functions [SOURCE] ..............87 COMPUTER 1, 2, and 3 ..................87 HDMI ........................87 DisplayPort ......................87 VIDEO ........................87 S-VIDEO ........................ 87 VIEWER ......................... 87 NETWORK ......................87 Downloaded From projector-manual.com NEC Manuals...
Page 10 Connecting an External Monitor ................146 Connecting Your DVD Player or Other AV Equipment .......... 147 Connecting Component Input ................148 Connecting HDMI Input..................149 Connecting to a Wired LAN ................. 150 Connecting to a Wireless LAN (sold separately) ..........151 Mounting a wireless LAN unit ................151 To remove the wireless LAN unit ................153 viii Downloaded From projector-manual.com NEC Manuals...
Page 11  Compatible Input Signal List ..................207  Specifications ......................209  Cabinet Dimensions ....................211  Mounting the cable cover (sold separately) ..............212  Pin Assignments of D-Sub COMPUTER Input Connector ........213  Troubleshooting ......................214 Indicator Messages ....................214 Downloaded From projector-manual.com NEC Manuals...
Page 12 Common Problems & Solutions ................216 If there is no picture, or the picture is not displayed correctly....... 218  PC Control Codes and Cable Connection ..............219  Troubleshooting Check List ..................220  TravelCare Guide ....................... 222 Downloaded From projector-manual.com NEC Manuals...
Page 13: Introduction
This screw makes it difficult to remove the falling) (x2) lens mounted on the projector. (→ page 142) Attaching the straps to the lamp and filter covers prevents them from falling when the projector is suspended from the ceiling. Downloaded From projector-manual.com NEC Manuals...
Page 14: Introduction To The Projector
0.76" (with MLA) 1920 × 1200 dots 16:10 The PA600X/PA500X/PA550W projectors cover input signals up to WUXGA (1920 × 1200 dots) thanks to the Advanced AccuBlend function. • Wide range of optional lenses selectable according to the place of installation This projector supports 5 types of optional lenses, providing a selection of lenses adapted to a variety of places of installation and projection methods.
Page 15: About This User's Manual
Seven utility software programs (Virtual Remote Tool, Image Express Utility Lite, Image Express Utility 2.0, Desktop Control Utility 1.0, PC Control Utility Pro 4, Viewer PPT Converter 3.0, Image Express Utility 2 for Mac) are provided on the included NEC Projector CD-ROM. •...
Page 16: Part Names Of The Projector
2. Insert the knot in the strap into the hole on the bottom of the projector and pull in the direction of the arrow to fasten. Lamp cover strap insertion hole Filter cover strap insertion hole Downloaded From projector-manual.com NEC Manuals...
Page 17: Rear
Cable cover connection (→ page 13) (right and left) Screw holes and grooves for the optional cable cover (→ page 212) Built-in Security Slot ( * This security slot supports the MicroSaver Security System. ® Downloaded From projector-manual.com NEC Manuals...
Page 18: Control Panel/Indicator Section
7. AUTO ADJ. Button (→ page 24) 8. 3D REFORM Button (→ page 32) 9. MENU Button (→ page 82) 10.  / Volume Buttons  (→ page 24) 11. ENTER Button (→ page 82) 12. EXIT Button (→ page 82) Downloaded From projector-manual.com NEC Manuals...
Page 19: Terminal Panel Features
If you are writing your own program, typical PC control codes are on page 219. 17. REMOTE Connector (Stereo Mini) Use this connector for wired remote control of the projector using the NEC optional remote control. Connect the projector and optional remote control using a commercially available wired remote control cable.
Page 20: Part Names Of The Remote Control
(not available on this series of projectors) 11. DisplayPort Button (→ page 16) 36. HELP Button (→ page 112) * The PAGE /, , L-CLICK and R-CLICK buttons work only when a USB cable is connected with your com- puter.. Downloaded From projector-manual.com NEC Manuals...
Page 21: Battery Installation
• The projector will not respond if there are objects between the remote control and the sensor, or if strong light falls on the sensor. Weak batteries will also prevent the remote control from properly operating the projector. Downloaded From projector-manual.com NEC Manuals...
Page 22: Operating Environment For Software Included On Cd-Rom
197. * A separately sold wireless LAN unit is required to use a wireless LAN. NOTE: • Image Express Utility Lite and Image Express Utility for Mac do not support “Meeting Mode” which is provided in Image Express Utility 2.0. Download service For the update information about these software programs, visit our website: URL: http://www.nec-display.com/dl/en/index.html Downloaded From projector-manual.com NEC Manuals...
Page 23: Operating Environment
1024 dots × 768 lines - 1280 dots × 800 lines recommended (PA550W/PA500U) Screen Colors High Color (15 bits, 16 bits) True Color (24 bits, 32 bits) (recommended) • 256 or fewer colors are not supported. Downloaded From projector-manual.com NEC Manuals...
Page 24: Projecting An Image (Basic Operation)
- Optimizing a computer signal automatically (→ page 24) - Turning up or down volume (→ page 24) Step 6 • Making a presentation Step 7 • Turning off the projector (→ page 25) Step 8 • After use (→ page 26) Downloaded From projector-manual.com NEC Manuals...
Page 25: Connecting Your Computer/Connecting The Power Cord
Parts of the projector may become temporarily heated if the projector is turned off with the POWER button or if the AC power supply is disconnected during normal projector operation. Use caution when picking up the projector. Downloaded From projector-manual.com NEC Manuals...
Page 26: Turning On The Projector
Power On • Pressing buttons such as power button and MENU button will make sound. To turn off the beep sound, select [OFF] for [BEEP] from the menu. (→ page 109) After you turn on your projector, ensure that the computer or video source is turned on. Steady orange light Blinking blue light Steady blue light (→ page 214) NOTE: A blue screen (blue background) is displayed when no signal is being input (by factory default menu settings). Downloaded From projector-manual.com NEC Manuals...
Page 27: Note On Startup Screen (Menu Language Select Screen)
101) NOTE: • Turning the power back on directly after it is turned off (by direct power off) while an image is being projected can result in malfunction. Be sure to wait at least 1 second before turning the power back on. • Keep the lens cap off the lens while the projector’s power is on. If the lens cap is on, it could be warped due to high temperature. • If one of the following things happens, the projector will not turn on. - If the internal temperature of the projector is too high, the projector detects abnormal high temperature. In this condition the projector will not turn on to protect the internal system. If this happens, wait for the projector’s internal components to cool down. - When the lamp reaches its end of usable life, the projector will not turn on. If this happens, replace the lamp. - If the STATUS indicator lights orange with the power button pressed, it means that the [CONTROL PANEL LOCK] is turned on. Cancel the lock by turning it off. (→ page 106) - If the lamp fails to light, and if the STATUS indicator flashes on and off in a cycle of six times, wait a full minute and then turn on the power. • While the POWER indicator is blinking blue in short cycles, the power cannot be turned off by using the power button. • Immediately after turning on the projector, screen flicker may occur. This is normal. Wait 3 to 5 minutes until the lamp lighting is stabilized. • When the projector is turned on, it may take some time before the lamp light becomes bright. • If you turn on the projector immediately after the lamp is turned off or when the temperature is high, the fans run without display- ing an image for some time and then the projector will display the image. Downloaded From projector-manual.com NEC Manuals...
Page 28: Selecting A Source
6. Press the EXIT button a few times to close the menu. 7. Restart the projector. The source you selected in step 5 will be projected. NOTE: Even when [AUTO] is turned on, the [NETWORK] will not be automatically selected. To set your network as the default source, select [NETWORK]. TIP: • When the projector is in Standby mode, applying a computer signal from a computer connected to the COMPUTER 1 IN input will power on the projector and simultaneously project the computer’s image. ([AUTO POWER ON(COMP1/3)] → page 111) • On the Windows 7 keyboard, a combination of the Windows and P keys allows you to set up external display easily and quickly. Downloaded From projector-manual.com NEC Manuals...
Page 29: Adjusting The Picture Size And Position
Finely adjusting the size of an image Adjusting the projected image’s height and horizontal [Zoom lever/Zoom ring] tilt [Tilt foot] *¹ (→ page 21) (→ page 21) Adjusting the keystone correction [Keystone] (→ page 22) NOTE*1: Adjust the projected image’s height using the tilt feet when you want to project the image at a position higher than the lens shift adjustment range. Downloaded From projector-manual.com NEC Manuals...
Page 30: Adjusting The Vertical Position Of A Projected Image (Lens Shift)
Turn this clockwise or counterclockwise to adjust the projection position in the horizontal direction. Approximate turning range: About 1 turn counterclockwise, about 1 turn clockwise when the lens is at the center position. NOTE: • The dials can be turned more than one full turn, but the projection position cannot be moved more than the range indicated on the following page. • If the lens is shifted to the maximum in the diagonal direction, the edges of the screen will be dark or shaded. • The lens shift function cannot be used when using the separately sold NP11FL lens. Downloaded From projector-manual.com NEC Manuals...
Page 31: Focus
• For the PA550W/PA500U and the ceiling mount/front projection lens shift adjustment range, see page 205, 206. PA600X/PA500X Height of projected image 0.5V Vertical shift range (0 to 0.5V) 0.1V 0.1H 0.1H 0.3H*¹ 0.3H*¹ NOTE* : Horizontal lens shift range is 0.15H at 150" projected image with the lens NP13ZL Focus Applicable lens: NP12ZL/NP13ZL/NP14ZL/NP15ZL Use the FOCUS ring to obtain the best focus. Focus ring Downloaded From projector-manual.com NEC Manuals...
Page 32: Applicable Lens: Np11Fl
* If the focus at the center of the screen is off, turn the distortion ring a little counterclockwise. The focus at the center of the screen can now be adjusted with the focus lever. Downloaded From projector-manual.com NEC Manuals...
Page 33: Zoom
- The tilt feet can be used to tilt the projector by a maximum of 4º. NOTE: • Do not lengthen the tilt feet any more than 20 mm/0.8". Doing so will make the tilt feet’s mount section unstable and could cause the tilt feet to come off the projector. • Do not use the tilt feet for any purpose other than adjusting the projector’s projection angle. Handling the tilt feet improperly, such as carrying the projector by grasping the tilt feet or hooking it onto a wall using the tilt feet, could damage the projector. Down Tilt foot Downloaded From projector-manual.com NEC Manuals...
Page 34: Correcting Keystone Distortion
4. Press the  button to select [HORIZONTAL] and then use the  or  so that the top and bottom sides of the projected image are par- allel. • Adjust the horizontal keystone distortion. Downloaded From projector-manual.com NEC Manuals...
Page 35 • To perform Keystone correction again, press the 3D REFORM button to display the Keystone screen and repeat above steps 1 to 6. NOTE: • If the projection angle is the same as in the last use, the previous correction setting values are retained in the memory. • When doing Step 2, adjust the position of image so that the screen is smaller than the area of the projected area. • To reset the 3D Reform correction setting values, press and hold the 3D REFORM button for a minimum of 2 seconds. • Each time the 3D REFORM button is pressed, the item will change as follows: KEYSTONE → CORNERSTONE → None → KEY- STONE → ... For information on [CORNERSTONE], see “Correcting Horizontal and Vertical Keystone Distortion (Cornerstone)” on page 32. • The Cornerstone adjustment will not be available during the Keystone adjustment. To perform the Cornerstone adjustment, press and hold the 3D REFORM button for a minimum of 2 seconds to reset the Keystone correction setting values. The Keystone adjustment will not be available during the Cornerstone adjustment. To perform the Keystone adjustment, press and hold the 3D REFORM button for a minimum of 2 seconds to reset the Cornerstone correction setting values. • The 3D Reform feature can cause an image to be slightly blurred because the correction is made electronically. Downloaded From projector-manual.com NEC Manuals...
Page 36: Optimizing Computer Signal Automatically
95)  Turning Up or Down Volume Sound level from the speaker can be adjusted. Increase volume Decrease volume TIP: When no menus appear, the  and  buttons on the projector cabinet work as a volume control. NOTE: • Volume control is not available with the  or  button when an image is enlarged by using the D-ZOOM (+) button or when the menu is displayed. • Volume control is not available with the  or  button when VIEWER or NET- WORK is used. Downloaded From projector-manual.com NEC Manuals...
Page 37: Turning Off The Projector
Parts of the projector may become temporarily heated if the projector is turned off with the POWER button or if the AC power supply is disconnected during normal projector operation. Use caution when picking up the projector. NOTE: • While the POWER indicator is blinking blue in short cycles, the power cannot be turned off. • You cannot turn off the power for 60 seconds immediately after turning it on and displaying an image. • Wait at least 20 minutes after the power is turned on (after starting to project) before turning the AC power off while an image is being projected or while the cooling fan is running. • Do not unplug the power cord from the projector or from the power outlet while an image is being projected. Doing so could deteriorate the projector’s AC input connector or the power plug’s contact. To turn off the AC power while an image is being projected, use the projector’s main power switch, the power strip’s switch, the breaker, etc. • Do not disconnect the AC power supply to the projector within 10 seconds of making adjustment or setting changes and closing the menu. Doing so can cause loss of adjustments and settings. Downloaded From projector-manual.com NEC Manuals...
Page 38: After Use
• Remove the USB memory if it is inserted into the projector. 3. Mount the lens cap on the lens. 4. Before moving the projector, screw in the tilt feet if they have been lengthened. Downloaded From projector-manual.com NEC Manuals...
Page 39: Convenient Features
Press the FREEZE button to freeze a picture. Press again to resume motion. NOTE: The image is frozen but the original video is still playing back.  Enlarging a Picture You can enlarge the picture up to four times. NOTE: The maximum magnification may be less than four times depending on the signal. To do so: 1. Press the D-ZOOM (+) button to magnify the picture. Downloaded From projector-manual.com NEC Manuals...
Page 40: Changing Eco Mode/Checking Energy-Saving Effect Using Eco Mode
To change from [ON] to [OFF], Go back to Step 2 and select [OFF]. Repeat Step 3. NOTE: • The [ECO MODE] can be changed by using the menu. Select [SETUP] → [BASIC] → [ECO MODE]. • The lamp life remaining and lamp hours used can be checked in [USAGE TIME]. Select [INFO.] →[USAGE TIME]. • [ECO MODE] is always set to [OFF] for 1 minute immediately after the lamp is turned on. The lamp condition will not be affected even when [ECO MODE] is changed. • After a lapse of 1 minute from when the projector displays a blue, black or logo screen, [ECO MODE] will automatically switch to [ON]. • If the projector is overheated in [OFF] mode, there may be a case where the [ECO MODE] automatically changes to [ON] mode to protect the projector. This is called “Forced ECO Mode”. When the projector is in the Forced Eco Mode, the picture brightness decreases slightly and the TEMP. indicator lights orange. At the same time the Thermometer symbol [ ] is displayed at the bottom right of the screen. When the projector comes back to normal temperature, the Forced Eco Mode is cancelled and the [ECO MODE] returns to [OFF] mode. Downloaded From projector-manual.com NEC Manuals...
Page 41: Checking Energy-Saving Effect [Carbon Meter]
SESSION] message will be displayed in the [POWER OFF/ ARE YOU SURE ?] message at the time of power-off. TIP: • The formula as shown below is used to calculate the amount of CO emission reduction. Amount of CO emission reduction = (Power consumption in OFF for ECO MODE − Power consumption in ON for ECO MODE) × conversion factor.* When the image is turned off with the AV-MUTE button the amount of CO emmission reduction will also increase. * C alculation for amount of CO emission reduction is based on an OECD publication “CO Emissions from Fuel Combustion, 2008 Edition”. • The [TOTAL CARBON SAVINGS] is calculated based on savings recorded in 15 minutes intervals. • This formula will not apply to the power consumption which is not affected by whether [ECO MODE] is turned on or off. Downloaded From projector-manual.com NEC Manuals...
Page 42: Using The Optional Remote Mouse Receiver (Np01Mr)
When connecting using the USB terminal For PC, the mouse receiver can only be used with a Windows XP*, Windows Vista, Windows 7, or Mac OS X 10.0.0 or later operating system. * NOTE: In SP1 or older version of Windows XP, if the mouse cursor will not move correctly, do the following: Clear the Enhance pointer precision check box underneath the mouse speed slider in the Mouse Properties dialog box [Pointer Options tab]. NOTE: The PAGE  and  buttons do not work with PowerPoint for Macintosh. NOTE: Wait at least 5 seconds after disconnecting the mouse receiver before reconnecting it and vice versa. The computer may not identify the mouse receiver if it is repeatedly connected and disconnected in rapid intervals. Downloaded From projector-manual.com NEC Manuals...
Page 43 By pressing the L-CLICK or R-CLICK button for 2 or 3 seconds then releasing, the drag mode is set and the drag operation can be performed simply by pressing the  button. To drop the item, press the L-CLICK (or R-CLICK) button. To cancel it, press the R-CLICK (or L-CLICK) button. TIP: You can change the Pointer speed on the Mouse Properties dialog box on the Windows. For more information, see the user documentation or online help supplied with your computer. Downloaded From projector-manual.com NEC Manuals...
Page 44: Correcting Horizontal And Vertical Keystone Distortion [Cornerstone]
3. Pick up any one of the corners and align the corner of the image with a corner of the screen. Projected image The drawing shows the up- per right corner. TIP: PA600X/PA500X: When [WIDE SCREEN] is selected from [SCREEN TYPE], lines that show “16:9” or “16:10” will be displayed. Click the outer corners. PA550W/P-PA500U: When [4:3 SCREEN] is selected from [SCREEN TYPE], lines that show “4:3” will be displayed. Click the outer corners.
Page 45 10. Press the  or  button to highlight the [OK] and press the ENTER button. This completes the Cornerstone correction. Selecting [CANCEL] will return to the adjustment screen without saving changes (Step 3). Selecting [RESET] will return to the factory default. Selecting [UNDO] will exit without saving changes. NOTE: To reset the 3D Reform correction setting values, press and hold the 3D REFORM button for a minimum of 2 seconds. Downloaded From projector-manual.com NEC Manuals...
Page 46 When the lens shift is used and yet the image is not displayed in the center of the screen, the adjustable range will be increased or decreased. • Image is projected in maximum wide with the zoom ring NOTE: • Even when the projector is turned on, the last used correction values are applied. • If the Cornerstone screen is unavailable (grayed), press and hold the 3D REFORM button for a minimum of 2 seconds to reset the current correction data. The Cornerstone function becomes available. • Turning on the projector will reset the previous correction setting values and correct distortion anew if the projection angle is changed from the last use. If the projection angle is the same as in the last use, the previous correction setting values are retained in the memory. • The range of keystone correction is not the maximum tilt angle of projector. NOTE: Using 3D Reform correction can cause the image to be slightly blurred because the correction is made electronically. Downloaded From projector-manual.com NEC Manuals...
Page 47: Displaying Two Pictures At The Same Time
PIP: This option allows you to view a sub picture in the main picture. Main picture picture PICTURE BY PICTURE: This allows you to view two pictures side by side. Main picture Sub picture NOTE: • The main picture will be displayed on the left side and the sub picture on the right side. • The main picture signal supports the COMPUTER 1, COMPUTER 2, and COMPUTER 3 connectors. The sub picture signal supports the VIDEO IN and S-VIDEO IN connectors. • The main picture supports an RGB signal with a resolution of 1280 × 1024 pixels or less. Downloaded From projector-manual.com NEC Manuals...
Page 48: [Position]
The following adjustments and settings are available for the main picture only. - Adjusting picture and sound - Magnifying a picture The following operations are available for both the main and sub pictures. - Picture and audio mute - Freezing a moving picture Downloaded From projector-manual.com NEC Manuals...
Page 49: Preventing The Unauthorized Use Of The Projector [Security]
5. Press the  button to select [ON] and press the ENTER button. The [SECURITY KEYWORD] screen will be displayed. 6. Type in a combination of the four  buttons and press the ENTER button. NOTE: A keyword must be 4 to 10 digits in length. The [CONFIRM KEYWORD] screen will be displayed. NOTE: Make a note of your password and store it in a safe place. Downloaded From projector-manual.com NEC Manuals...
Page 50 The projector will be turned on and display a message to the effect that the projector is locked. 2. Press the MENU button. 3. Type in the correct keyword and press the ENTER button. The projector will display an image. NOTE: The security disable mode is maintained until the main power is turned off or unplugging the power cord. Downloaded From projector-manual.com NEC Manuals...
Page 51 3. Select [OFF] and press the ENTER button. The SECURITY KEYWORD screen will be displayed. 4. Type in your keyword and press the ENTER button. When the correct keyword is entered, the SECURITY function will be disabled. NOTE: If you forget your keyword, contact your dealer. Your dealer will provide you with your keyword in exchange for your request code. Your request code is displayed in the Keyword Confirmation screen. In this example [NB52-YGK8-2VD6-K585-JNE6-EYA8] is a request code. Downloaded From projector-manual.com NEC Manuals...
Page 52: Controlling The Projector By Using An Http Browser
• Start the Web browser on the computer via the network connected to the projector and enter the following URL : http://<the projector’s IP address> /index.html • Use Image Express Utility Lite or Image Express Utility 2.0 contained on the supplied NEC Projector CD- ROM. TIP: The factory setting IP address is [DHCP ON].
Page 53: Handling Of The Address For Operation Via A Browser
IP address of the projector has been set in the “HOSTS” file of the computer being used. Example 1: When the host name of the projector has been set to “pj.nec.co.jp”, access is gained to the network setting by specifying http://pj.nec.co.jp/index.html...
Page 54 FILTER HOURS USED ��Displays how many hours the filter has been used� ERROR STATUS ��Displays the status of errors occurring within the projector� LOG OFF: Logging off your projector and returning to the authentication screen (LOGON screen). Downloaded From projector-manual.com NEC Manuals...
Page 55 [AD HOC], make sure that the projector and your computer are on the same channel. PROFILE 1/PROFILE 2 Two settings can be set for wireless LAN connection. Select PROFILE 1 or PROFILE Downloaded From projector-manual.com NEC Manuals...
Page 56 Enter encryption key. Key length must be 8 or greater and 63 or less. USERNAME Set a user name for WPA-EAP/WPA2-EAP. PASSWORD Set a password for WPA-EAP TKIP PEAP-MSCHAP v2/WPA-EAP AES PEAP-MSCHAP v2/WPA2-EAP TKIP PEAP-MSCHAP v2/WPA2-EAP AES PEAP-MSCHAP v2. Downloaded From projector-manual.com NEC Manuals...
Page 57 1, 2, 3 TEST MAIL Send a test mail to check whether your settings are correct or not NOTE: • If you execute a test, you may not receive an Alert mail. Should this happen, check if network settings are correct. • If you entered an incorrect address in a test, you may not receive an Alert mail. Should this happen, check if the Recipient’s Address is correct. SAVE Click this button to save your settings to the projector’s memory. Downloaded From projector-manual.com NEC Manuals...
Page 58 Set your IP ID of Crestron server. • INFORMATION WIRED LAN Display a list of settings of wired LAN connection. WIRELESS LAN Display a list of settings of wireless LAN connection. UPDATE Reflect settings when they are changed. Downloaded From projector-manual.com NEC Manuals...
Page 59: Projecting Your Computer's Screen Image From The Projector Via A Network [Network Projector]
1. With the projector turned on, press the SOURCE button. The input selection window appears. Another way to display the input selection window is to press the NETWORK button on the remote control. The APPLICATION MENU screen will be displayed. Go to step 3. Downloaded From projector-manual.com NEC Manuals...
Page 60 2. Press the  or  button to select [NETWORK] and press the ENTER button. In the screen, the [APPLICATION MENU] menu is displayed. 3. From the [APPLICATION MENU] menu, select [NETWORK PROJECTOR]. The [PROJECTOR NAME/DISPLAY RESOLUTION/PASSWORD/URL] will be displayed. Downloaded From projector-manual.com NEC Manuals...
Page 61 5. Click [→ Search for a projector (recommended)]. In the “Available projectors” box, “PA600 Series” is displayed. 6. Click [PA600 Series]. The message “Enter the password for the projector that you selected.” is displayed at the bottom of the window. Downloaded From projector-manual.com NEC Manuals...
Page 62 The Network Projector function is stopped. 3. Press the SOURCE button of the projector to select an input terminal other than [NETWORK]. When using the remote control, press a button other than the NETWORK button. Downloaded From projector-manual.com NEC Manuals...
Page 63: Using The Projector To Operate Your Computer Via A Network
• We do not warrant that the USB port of the projector will support all USB devices in the market. Prepare a commercially available wireless keyboard (US layout version). Connect the USB wireless receiver to the USB port (Type A) of the projector. Make all necessary settings for your wireless keyboard and mouse. Downloaded From projector-manual.com NEC Manuals...
Page 64 Remote Desktop box and click [OK]. Checking the IP address on Windows 7 1. Click [Start] from the desktop of Windows 7. 2. Click [Control Panel]. 3. Click [View network status and tasks] displayed under [Network and Internet]. Downloaded From projector-manual.com NEC Manuals...
Page 65 1. With the projector turned on, press the SOURCE button. The input selection window appears. Another way to display the input selection window is to press the NETWORK button on the remote control. The NETWORK screen will be displayed. Go to step 3. Downloaded From projector-manual.com NEC Manuals...
Page 66 Log out the computer. Use the wireless keyboard connected to the projector to operate Windows 7. NOTE: When the projection is made with the remote desktop function, the background color of the desktop is changed to black. Downloaded From projector-manual.com NEC Manuals...
Page 67 MENU AND WINDOW ANIMATION: Clear the check mark to disable menu and window animation. THEMES: Clear the check mark not to use Themes. SHOW CONTENTS OF WINDOW WHILE DRAGGING: Clear the check mark to show only the window pane while dragging. Downloaded From projector-manual.com NEC Manuals...
Page 68: Using The Viewer
Resolution: 320 × 240 to 1280 × 720 Video frame rate: up to 30fps Bitrate: up to 15Mbps Audio sampling rate: up to 48kHz Channel: up to 2ch stereo Audio bit rate: up to 256 Kbps Max. file size: up to 2GB Downloaded From projector-manual.com NEC Manuals...
Page 69: Supported Usb Memory Devices
- Wait at least 5 seconds after disconnecting a USB memory device before reconnecting it and vice versa. The projector may not identify the USB memory device if it is repeatedly connected and disconnected in rapid intervals. Downloaded From projector-manual.com NEC Manuals...
Page 70 Movie files in the shared folder or the media server may not be played back correctly depending on your network environment or the bit rate of your file. NOTE: Do not disconnect between the projector and your computer by removing the LAN cable or turning off the projector when a Pow- erPoint file or PDF file is displayed from a shared folder. Doing so will make Viewer inoperable. NOTE • The following operations by using the buttons on the projector are not possible when the VIEWER screen such as the slide screen and the thumbnail screen is displayed. - Auto Adjustment by using the AUTO ADJ. button - Volume control with the ◀ or ▶ button • Freezing picture by using the FREEZE, ASPECT, or AUTO ADJ. button on the remote control is not possible when the VIEWER screen such as the slide screen and the thumbnail screen is displayed. • Executing [RESET] → [ALL DATA] from the menu will return the settings for the Viewer toolbar to the factory default. Downloaded From projector-manual.com NEC Manuals...
Page 71: ❷ Preparing Presentation Materials
Use the Windows Explore to copy the file to your USB memory. To place a file in a shared folder you create in your computer, see page 72. To use “Media Sharing” in Windows Media Player 11, see page 76. Downloaded From projector-manual.com NEC Manuals...
Page 72: ❸ Projecting Images Stored In A Usb Memory Device
A few more presses of the SOURCE button will display the drive list screen. Another way to select [VIEWER] is to press the VIEWER button on the remote control. TIP: • For more information about the drive list screen, see page 64. • To display graphics in a shared folder, see page 72; to display still images or movie files in a media server, see page 76. Downloaded From projector-manual.com NEC Manuals...
Page 73 The ◀ or ▶ button can be used to select the next (right) slide or the previous (left) slide in the thumbnail screen. • Pressing the ENTER button will display the control bar with which is used to select or rotate an slide.(→ page Downloaded From projector-manual.com NEC Manuals...
Page 74 Select [OK] and press the ENTER button. The PDF file will be displayed. • For more information on the software keyboard, see page 131. NOTE: Bookmarks and notes that were added after PDF conversion will not be displayed. If fonts were not embedded at the time of PDF conversion, those fonts will not be displayed. TIP: It takes some time (about 30 seconds to two minutes) to display a large size file or to turn pages of a PDF file that has many pages. Downloaded From projector-manual.com NEC Manuals...
Page 75: Exiting The Viewer
A press of the SOURCE button will display the source select screen. A few more presses of the SOURCE button will display another source. • To exit the Viewer using the remote control, select a source other than [VIEWER]. Downloaded From projector-manual.com NEC Manuals...
Page 76: Names And Functions Of Viewer Screen
Press the ▼ or ▲ button to select a type of drive; press the ◀ or ▶ button to select the drive connected to the projector. 2. Select the drive and press the ENTER button to switch to the thumbnail screen of the selected drive. Downloaded From projector-manual.com NEC Manuals...
Page 77 Displays free space and capcity of a drive. (USB only) Menu guide Displays the description of a selected menu. Operation button guide Displays information about operation buttons. * It is displayed in three-digit number (rounding up) NOTE: When the OPTIONS menu is displayed, the drive list screen or thumbnail screen is not displayed. To display it, select the [RETURN] icon and press the ENTER button. Downloaded From projector-manual.com NEC Manuals...
Page 78 (only M/D/Y/H/M/B capacity name when folder selected) Menu guide Displays the description of a selected menu. Operation button guide Displays information about operation buttons. TIP: • If an unsupported image is selected, the icon [?] will be displayed, • The maximum displayable number of images is 300 in the thumbnail screen including the number of folders. • If a file name or path of a folder is longer than specified, it will be displayed with center characters or path skipped. Example: “123456789.jpg” will be displayed in “123..789.jpg”. Downloaded From projector-manual.com NEC Manuals...
Page 79 SIZE CLOSE Closes the control bar. • You can also press the EXIT button to close the control bar. Stops playing slides or slideshow, and closes the control bar to return to the thumbnail screen. Downloaded From projector-manual.com NEC Manuals...
Page 80 Displays the image in its actual size. SIZE CLOSE Closes the control bar. • You can also press the EXIT button to close the control bar. Stops playing a movie, and closes the control bar to return to the thumbnail screen. Downloaded From projector-manual.com NEC Manuals...
Page 81: Viewer Option Settings
MANUAL Selects manual play. AUTO Selects auto play. INTERVAL 5 - 300 seconds Specifies interval time when [AUTO] is selected for PLAY MODE. REPEAT Check mark Turns on or off the repeat function. • To play one or more slides, place those files into a folder. Downloaded From projector-manual.com NEC Manuals...
Page 82 Plays the first still image found in a drive. MOVIE Plays the first movie found in a drive. PowerPoint Plays the first PowerPoint file found in a drive. • Auto play behavior is different between when a USB memory device is inserted into the USB port of the projector and when [VIEWER] is selected for [SOURCE]. • Auto play starts for the first found file supporting the file type set up for Auto Play. The file will be searched in the drive root or lower level. • When [VIEWER] is selected for [SOURCE], the last selected file will be automatically played if it is found, or the last selected folder will be searched and the first found file will be automatically played. To automatically play a movie file in a USB memory, store one movie file or change its file name so that it can be searched first. Downloaded From projector-manual.com NEC Manuals...
Page 83 Displays the files in reverse chronological order. DATE (OLD) Displays the files in chronological order. SIZE (BIG) Displays the files in descending order of its file size. SIZE (SMALL) Displays the files in ascending order of its file size. Downloaded From projector-manual.com NEC Manuals...
Page 84: ❹ Projecting Data From Shared Folder
1. Press the VIEWER button on the remote control. The drive list window will be displayed. • Another way to start the VIEWER is to press the SOURCE button a few times on the projector cabinet. (→ page Downloaded From projector-manual.com NEC Manuals...
Page 85 • Up to four shared folders can be added. • The maximum length of a path of the shared folder must be 15 alphanumeric characters for computer name and 23 alphanumeric characters for folder name. Downloaded From projector-manual.com NEC Manuals...
Page 86 6. Exit the setting. Press the ▼ button to select [OK] and press the ENTER button. This will close the [SHARED FOLDER] screen. • If an error message appear, your settings are not correct. Try again. Downloaded From projector-manual.com NEC Manuals...
Page 87: Disconnecting The Shared Folder From The Projector
• Disable the number of a shared folder you wish to disconnect Press the ▼ button to select [ENABLE] and press the ENTER button to clear it. NOTE: • When a PowerPoint file or PDF file is displayed, do not disconnect your LAN cable. If doing so, the Viewer will not work. TIP: • Connecting settings for Shared folder Settings of up to four folders can be saved. Restarting the projector will display setting-saved shared folders in grey folder icon on the drive list screen. Selecting the grey icon folder will skip entry for a folder path. • Failing to connect with a shared folder will display the folder icon with “x” mark. If this happen, check your folder setting. Downloaded From projector-manual.com NEC Manuals...
Page 88: ❺ Projecting Data From Media Server
NOTE: • Both the projector and the media server must be on the same subnet. Connecting to the media server beyond the subnet is not possible. • Types of images and movies which can be shared may vary depending on Windows version. Setting up “Media Sharing” in Windows Media Player 11 1. Start Windows Media Player 11. 2. Select “Media Sharing” from “Library”. The “Media Sharing” dialog box will be displayed. Downloaded From projector-manual.com NEC Manuals...
Page 89 A check mark will be added to the “PA600 Series” icon. • The “PA600 Series” is a projector name specified in [NETWORK SETTINGS]. 5. Select “OK”. This will make pictures and video in “Library” available from the projector. Downloaded From projector-manual.com NEC Manuals...
Page 90: Setting Up "Media Sharing" In Windows Media Player 12
2. Select “Stream”, and then select “Automatically allow devices to play my media”. The “Allow All Media Devices” windows will be displayed. 3. Select “Automatically allow all computers and media devices”. Graphics and movie files in “Library” can be used from the projector. Downloaded From projector-manual.com NEC Manuals...
Page 91: Connecting The Projector To The Media Server
Another way to do this is to point the cursor to “Media server” and select [REFRESH] from the thumbnail menu and press the ENTER button. NOTE: • Up to four accessible media servers can be automatically searched and displayed. The fifth device or later cannot be displayed. (→ page 60) Downloaded From projector-manual.com NEC Manuals...
Page 92: Disconnecting The Projector From The Media Server
3. Disable the connection. Press the ENTER button to clear the checkmark to disable the connection. Press the ▼ button to select [OK] and press the ENTER button to close the MEDIA SERVER setting screen. Downloaded From projector-manual.com NEC Manuals...
Page 93: ❻ Restrictions On Displaying Files
Example: There are some restrictions on annotations, selection, form, or color space. • It may take longer time to feed pages compared with a computer • In some cases Adobe Acrobat format files may not be displayed. Downloaded From projector-manual.com NEC Manuals...
Page 94: Using On-Screen Menu
7. Repeat steps 2 -6 to adjust an additional item, or press the EXIT button on the remote control or the projec- tor cabinet to quit the menu display. NOTE: When a menu or message is displayed, several lines of information may be lost, depending on the signal or settings. 8. Press the MENU button to close the menu. To return to the previous menu, press the EXIT button. Downloaded From projector-manual.com NEC Manuals...
Page 95: Menu Elements
Thermometer symbol ��Indicates the [ECO MODE] is forcibly set to [ON] mode because the internal temperature is too high� High Altitude symbol ��Indicates the [FAN MODE] is set to [HIGH ALTITUDE] mode� Wireless symbol ��Indicate the wireless LAN connection is enabled� Downloaded From projector-manual.com NEC Manuals...
Page 96: List Of Menu Items
The [GAMMA CORRECTION] item is available when an item other than [DICOM SIM.] is selected for [REFERENCE]. The [SCREEN SIZE] item is available when [DICOM SIM.] is selected for [REFERENCE]. When [PRESENTATION] or [HIGH-BRIGHT] is selected in [REFERENCE], the [COLOR TEMPERATURE] is not available. Downloaded From projector-manual.com NEC Manuals...
Page 97 AUTO, NTSC3.58, NTSC4.43, PAL, PAL-M, PAL-N, PAL60, AUTO (VIDEO) SECAM DIGITAL AUDIO HDMI HDMI HDMI, COMPUTER2 SELECT DisplayPort DisplayPort DisplayPort, COMPUTER2 BEEP OFF, ON The asterisk (*) indicates that the default setting varies depending on the signal. Downloaded From projector-manual.com NEC Manuals...
Page 98 VERSION (2) FIRMWARE3 PROJECTOR NAME MODEL NO. SERIAL NUMBER OTHERS LAN UNIT TYPE CONTROL ID (when [CONTROL ID] is set) CURRENT SIGNAL ALL DATA RESET ALL DATA(INCLUDING ENTRY LIST) CLEAR LAMP HOURS CLEAR FILTER HOURS Downloaded From projector-manual.com NEC Manuals...
Page 99: Menu Descriptions & Functions [Source]
Australia, Asia and other countries than North America). ENTRY LIST Displays a list of signals. See the following pages. TEST PATTERN Closes the menu and switches to the test pattern screen. The previous screen reappears when the EXIT button is pressed. Downloaded From projector-manual.com NEC Manuals...
Page 100 The ENTRY LIST windows will be displayed. If the ENTRY LIST window is not displayed, switch the menu to [ADVANCED]. To switch the menu between [ADVANCED] and [BASIC], select [APPLICATION MENU] → [TOOLS] → [ADMINISTRATOR MODE]. (→ page 136) Downloaded From projector-manual.com NEC Manuals...
Page 101 LOCK execution cannot be saved. SKIP Set so that the selected signal will be skipped during auto search. 3. Set the above items and select [OK] and press the ENTER button. NOTE: The input terminal cannot be changed to the currently projected signal. Downloaded From projector-manual.com NEC Manuals...
Page 102 1. Press the , , , or  button to select [ALL DELETE] and press the ENTER button. The confirmation message will be displayed. 2. Press the  or  button to select [YES] and press the ENTER button. NOTE: The locked signal cannot be deleted. Downloaded From projector-manual.com NEC Manuals...
Page 103: Menu Descriptions & Functions [Adjust]
VIDEO �� Recommended for typical TV program viewing� MOVIE �� Recommended for movies� GRAPHIC �� Recommended for graphics� sRGB �� Standard color values DICOM SIM� �� Recommended for DICOM simulation format� NOTE: • The [DICOM SIM.] option is for training/reference only and should not be used for actual diagnosis. • DICOM stands for Digital Imaging and Communications in Medicine. It is a standard developed by the American College of Radiol- ogy (ACR) and the National Electrical Manufacturers Association (NEMA). The standard specifies how digital image data can be moved from system to system. [DETAIL SETTINGS] Downloaded From projector-manual.com NEC Manuals...
Page 104 This allows you to adjust the white balance. Contrast for each color (RGB) to adjust the white level of the screen; Brightness for each color (RGB) is used to adjust the black level of the screen. Downloaded From projector-manual.com NEC Manuals...
Page 105: Color Correction
The settings and adjustments for [PICTURE] will be returned to the factory settings with the exception of the following; Preset numbers and [REFERENCE] within the [PRESET] screen. The settings and adjustments under [DETAIL SETTINGS] within the [PRESET] screen that are not currently selected will not be reset. Downloaded From projector-manual.com NEC Manuals...
Page 106: [Image Options]
PHASE �� Use this item to adjust the clock phase or to reduce video noise, dot interference or cross talk� (This is evident when part of your image appears to be shimmering�) Use [PHASE] only after the [CLOCK] is complete� NOTE: The [CLOCK] and [PHASE] items are available for RGB signals only. Downloaded From projector-manual.com NEC Manuals...
Page 107 Adjusts the display range (blanking) at the top, bottom, left and right edges of the input signal. Selecting Overscan Percentage [OVERSCAN] Select overscan percentage (Auto, 0%, 5% and 10%) for signal. Projected image Overscaned by 10% NOTE: • The [OVERSCAN] item is not available: - w hen [NATIVE] is selected for [ASPECT RATIO]. - w hen [VIEWER] or [NETWORK] is selected for [SOURCE] Downloaded From projector-manual.com NEC Manuals...
Page 108 (→ page 2) When the incoming computer signal has a higher resolution than the projector's native resolution, the center of an image will be displayed. Downloaded From projector-manual.com NEC Manuals...
Page 109 The image of a signal(4:3) is stretched left and right in 16:9. TIP: • Image position can be adjusted vertically using [POSITION] when the [16:9], [15:9], or [16:10] aspect ratios are selected. • The term “letterbox” refers to a more landscape-oriented image when compared to a 4:3 image, which is the standard aspect ratio for a vide source. The letterbox signal has aspect ratios with the vista size “1.85:1” or cinema scope size “2.35:1” for movie film. • The term “squeeze” refers to the compressed image of which aspect ratio is converted from 16:9 to 4:3. [RESOLUTION] This function sets the resolution of a projected image if auto-detect fails to work well. Downloaded From projector-manual.com NEC Manuals...
Page 110: [Video]
RGB or component signals to project the image. If the colors are unnatural, however, try switching the setting. * For COMPUTER 3, the computer signal and video signal can be selected at SIGNAL SELECT(COMP3). RGB �� Switches to the RGB input� COMPONENT �� Switches to the component signal input� Downloaded From projector-manual.com NEC Manuals...
Page 111 Depending on the connected device, this setting may not be made properly� In this case, switch to “NORMAL” or “ENHANCED” from the menu and view with the optimum setting� NORMAL �� This disables the enhanced mode� ENHANCED �� This improves the image’s contrast, expressing the dark and light sections more dynamically� Downloaded From projector-manual.com NEC Manuals...
Page 112: Menu Descriptions & Functions [Setup]
POSITION: When [PIP] is selected for [MODE], this option allows you to select the position of a sub picture in the main pic- ture. The options are: TOP-LEFT, TOP-RIGHT, BOTTOM LEFT, and BOTTOM RIGHT. NOTE: The [POSITION] cannot be selected when [PICTURE BY PICTURE] is selected. Downloaded From projector-manual.com NEC Manuals...
Page 113 3. The remaining time starts counting down. 4. The projector will turn off after the countdown is complete. NOTE: • To cancel the preset time, set [OFF] for the preset time or turn off the power. • When the remaining time reaches 3 minutes before the projector is turned off, the [THE PROJECTOR WILL TURN OFF WITHIN 3 MINUTES] message will be displayed on the bottom of the screen. Selecting Menu Language [LANGUAGE] You can choose one of 27 languages for on-screen instructions. NOTE: Your setting will not be affected even when [RESET] is done from the menu. Downloaded From projector-manual.com NEC Manuals...
Page 114: [Menu]
[ON] for [ECO MODE]. When [ON] is selected for [ECO MODE] To close the message, press any one of the buttons. The message will disappear if no button operation is done for 30 seconds. Downloaded From projector-manual.com NEC Manuals...
Page 115: [Installation(1)]
This projector is a free-tilt projector with which it is possible to project images on the ceiling (upward) or floor (downward). When installed in the vertical direction, set the [FAN MODE] installation orientation. (→ page 108) Downloaded From projector-manual.com NEC Manuals...
Page 116 Using Multi-Screen Compensation [MULTI-SCREEN COMP.] This feature allows you to match hue of images projected from multiple projectors that are placed in parallel. MODE �� OFF: Turns off this function to return to the normal brightness� Downloaded From projector-manual.com NEC Manuals...
Page 117 This features allows you to adjust for color deviation in the picture. This can be adjusted in units of ± 1 pixel in the horizontal direction for HORIZONTAL R, G and B, in the vertical direc- tion for VERTICAL R, G and B. NOTE: This feature can only be set for the PA500U. Downloaded From projector-manual.com NEC Manuals...
Page 118: [Installation(2)]
CONTROL ID NUMBER ��Select a number from 1 to 254 you wish to assign to your projector� CONTROL ID ��Select [OFF] to turn off the CONTROL ID setting and select [ON] to turn on the CONTROL ID set- ting� Downloaded From projector-manual.com NEC Manuals...
Page 119 No ID means that all the projectors can be operated together with a single remote control. To set “No ID”, enter “000” or press the CLEAR button. TIP: The range of IDs is from 1 to 254. 4. Release the ID SET button. The updated CONTROL ID screen will be displayed. NOTE: • The IDs can be cleared in a few days after the batteries are run down or removed. • Accidentally pressing any one of the buttons of the remote control will clear currently specified ID with batteries removed. Downloaded From projector-manual.com NEC Manuals...
Page 120: [Options(1)]
HIGH ALTITUDE 1600 to 2100 m 5200 to 6800 ft HIGH ALTITUDE 2100 to 2600 m 6800 to 8500 ft Not available When you wish to cool down the temperature inside the projector quickly, select [HIGH]. Downloaded From projector-manual.com NEC Manuals...
Page 121: Color System
This feature turns on or off the button sound or alarm when an error occurs or the following operations are per- formed. - Displaying the main menu - Switching sources - Resetting data by using [RESET] - Pressing POWER ON or POWER OFF button Downloaded From projector-manual.com NEC Manuals...
Page 122: [Options(2)]
Enabling Direct Power On [DIRECT POWER ON] Turns the projector on automatically when the power cord is inserted into an active power outlet. This eliminates the need to always use the POWER button on the remote control or projector cabinet. Downloaded From projector-manual.com NEC Manuals...
Page 123 VIEWER �� Displays slides or plays back movie files from the USB memory device every time the projector is turned on� NETWORK �� Displays the data sent from the computer via the LAN port (RJ-45) or the wireless LAN unit (sold separately) mounted on the projector is projected� Downloaded From projector-manual.com NEC Manuals...
Page 124: Menu Descriptions & Functions [Info.]
4000 NP21LP • [TOTAL CARBON SAVINGS] This displays the estimated carbon saving information in kg. The carbon footprint factor in the carbon saving cal- culation is based on the OECD (2008 Edition). (→ page 29) Downloaded From projector-manual.com NEC Manuals...
Page 125: [Source(1)]
HORIZONTAL FREQUENCY VERTICAL FREQUENCY SYNC TYPE SYNC POLARITY SCAN TYPE SOURCE NAME ENTRY NO. [SOURCE(2)] SIGNAL TYPE VIDEO TYPE BIT DEPTH VIDEO LEVEL LINK RATE LINK LANE [WIRED LAN] IP ADDRESS SUBNET MASK GATEWAY MAC ADDRESS Downloaded From projector-manual.com NEC Manuals...
Page 126: [Wireless Lan(1)]
5. Using On-Screen Menu [WIRELESS LAN(1)] IP ADDRESS SUBNET MASK GATEWAY MAC ADDRESS [WIRELESS LAN(2)] SSID NETWORK TYPE WEP/WPA CHANNEL SIGNAL LEVEL [VERSION(1)] FIRMWARE DATA FIRMWARE2 SUB-CPU Downloaded From projector-manual.com NEC Manuals...
Page 127: [Version(2)]
5. Using On-Screen Menu [VERSION(2)] FIRMWARE3 [OTHERS] PROJECTOR NAME MODEL NO. SERIAL NUMBER LAN UNIT TYPE CONTROL ID (when [CONTROL ID] is set) Downloaded From projector-manual.com NEC Manuals...
Page 128: Menu Descriptions & Functions [Reset]
Also deletes all the signals in the [ENTRY LIST] and returns to the factory preset. NOTE: Locked signals in Entry List cannot be reset. Clearing Lamp Hour Meter [CLEAR LAMP HOURS] Resets the lamp clock back to zero. Selecting this option displays submenu for a confirmation. Select [YES] and press the ENTER button. NOTE: Elapsed time of the lamp use will not be affected even when [RESET] is done from the menu. NOTE: The projector will turn off and go into standby mode when you continue to use the projector for another 100 hours after the lamp has reached the end of its life. In this condition you cannot clear the lamp hour meter on the menu. If this happens, press the HELP button on the remote control for 10 seconds to reset the lamp clock back to zero. Do this only after replacing the lamp. Downloaded From projector-manual.com NEC Manuals...
Page 129 Resets the filter usage back to zero. Selecting this option displays submenu for a confirmation. Select [YES] and press the ENTER button. The [OFF] item is selected for [FILTER MESSAGE] at the time of shipment. When [OFF] is selected, you do not need to clear the filter usage hour. NOTE: Elapsed time of the filter use will not be affected even when [RESET] is done from the menu. Downloaded From projector-manual.com NEC Manuals...
Page 130: ❾ Application Menu
The application menu allows you to set up the User Supportware, Network Settings (NETWORK SETTINGS) and Tools (TOOLS). The User Supportware is contained on the supplied NEC Projector CD-ROM. In [ADMINISTRATOR MODE], either [ADVANCED] menu or [BASIC] menu can be selected. (→ page 136) The [BASIC] menu contains minimum essentials of menus and commands.
Page 131: Network Projector
This shows information for projector name, resolution, and network (wired/wireless) which are required to use Network Projector. Use this information to set up for your computer. REMOTE DESKTOP CONNECTION This allows you to set up for computer name entry and effects for Remote Desktop. NOTE: • A USB keyboard is required to set up the Remote Desktop Connection. Downloaded From projector-manual.com NEC Manuals...
Page 132: Network Settings
The Image Express Utility Lite, Image Express Utility 2.0, and Image Express Utility 2 for Mac are contained on the supplied NEC Projector CD-ROM. To use [EASY CONNECTION], select [WIRELESS LAN] → [PROFILES] → [EASY CONNECTION]. NOTE: The [EASY CONNECTION] function is available on Windows 7, Windows Vista or Windows XP SP3. Downloaded From projector-manual.com NEC Manuals...
Page 133 LAN can be achieved. Data transmission between wireless LAN and wired LAN is not possible. When the [SIMPLE ACCESS POINT] mode is used to send images, it is recommended to connect to only one computer. Downloaded From projector-manual.com NEC Manuals...
Page 134 [PROFILES]. * The [ADVANCED] setting screen is available for [WIRELESS LAN] only. NOTE: • If you select [EASY CONNECTION] from [PROFILES], you cannot make settings to DHCP and its following items except [CHAN- NEL] in [ADVANCED]. Advanced Settings (settings only required when using a separately sold wireless LAN unit) (AD- (AD- VANCED menu only) Downloaded From projector-manual.com NEC Manuals...
Page 135 [INFRASTRUCTURE], make sure that the projector and your access point are on the same channel; when you select [AD HOC], make sure that the projector and your computer are on the same channel. Downloaded From projector-manual.com NEC Manuals...
Page 136 WEP 64bit WEP 128bit When [WPA-PSK], [WPA-EAP], [WPA2-PSK], or [WPA2-EAP] is selected for [SECURITY TYPE] ENCRYPTION TYPE Select [TKIP] or [AES]. Enter encryption key. Key length must be 8 or greater and 63 or less. Downloaded From projector-manual.com NEC Manuals...
Page 137 • Select [PROFILE 1] or [PROFILE 2] for [PROFILES]. If [EASY CONNECTION] is selected, WPA-PSK, WPA2- PSK, WPA-EAP, or WPA2-EAP is not available. 3. Select [ADVANCED] and press the ENTER button. The [ADVANCED] setting screen will be displayed. Downloaded From projector-manual.com NEC Manuals...
Page 138 9. Select the [TKIP/AES] field and press the ENTER button. The pull-down list will be displayed. 10.Select [TKIP] or [AES] and press the ENTER button. Select [TKIP] or [AES] according to the setting for your access point. Downloaded From projector-manual.com NEC Manuals...
Page 139 12.Select the [USER NAME] field and press the ENTER button. The character entry screen (software keyboard) will be displayed. Set a user name. • A user name must be 1 character or more and 32 characters or less. (→ page 131) Downloaded From projector-manual.com NEC Manuals...
Page 140 • When the root CA certificate is not included in the file that was selected in Step 14, proceed to Step 16. When the root certification authority certificate is included, proceed to Step 18. 16. Select [CA CERTIFICATE] and press the ENTER button. The drive list screen will be displayed. Downloaded From projector-manual.com NEC Manuals...
Page 141 14.Select [USER NAME] field and press the ENTER button. The character entry screen (software keyboard) will be displayed. Set a user name. • A user name must be 32 characters or less. (→ page 131) Downloaded From projector-manual.com NEC Manuals...
Page 142 17.On the thumbnail screen, select a digital certificate (DER format file) saved in your USB memory device and press the ENTER button. • Select your root CA certificate here. The selected digital certificate will be installed on the projector. Downloaded From projector-manual.com NEC Manuals...
Page 143 • Hexadecimal uses 0 to 9 and A to F. 3. After entering your WEP key or passphrase, use the ▼, ▲, ◀, or ▶ button to select [OK] and press the ENTER button. The character entry screen (software keyboard) will be closed. Downloaded From projector-manual.com NEC Manuals...
Page 144 Authentication failed. Authenticating… Authentication is in process. Expired The digital certificate is expired. Or [DATE, TIME PRESET] is not set correctly. Time Error The [DATE, TIME PRESET] has been cleared. Set the correct date and time. Downloaded From projector-manual.com NEC Manuals...
Page 145 Set a host name and domain name of the projector. HOST NAME Set a host name of the projector. Up to 15 alphanumeric characters DOMAIN NAME Set a domain name of the projector. Up to 60 alphanumeric characters Downloaded From projector-manual.com NEC Manuals...
Page 146 Send a test mail to check if your settings are correct. — NOTE: • If you entered an incorrect address in a test, you may not receive an Alert mail. Should this happen, check if the Recipient’s Address is correctly set. • Unless any one of the [SENDER'S ADDRESS], [SMTP SERVER'S NAME] or [RECIPIENT'S ADDRESS 1-3] is selected, [TEST MAIL] is not available. • Be sure to highlight [OK] and press the ENTER button before executing [TEST MAIL]. Downloaded From projector-manual.com NEC Manuals...
Page 147 AMX’s NetLinx control system. TIP: When using a device that supports AMX Device Discovery, all AMX NetLinx control system will recognize the device and download the appropriate Device Discovery Module from an AMX server. Placing a checkmark will enable detecting the projector from AMX Device Discovery� Clearing a checkmark will disable detecting the projector from AMX Device Discovery� Downloaded From projector-manual.com NEC Manuals...
Page 148: Tools
1. Use the SOURCE button on the cabinet or press the NETWORK button on the remote control to select [NETWORK] to display the APPLICATION MENU. 2. Select [TOOLS] → [ADMINISTRATOR MODE] → [MENU MODE] → [ADVANCED MODE]. Downloaded From projector-manual.com NEC Manuals...
Page 149 2. Select a blank program number and press the ENTER button. The [EDIT] screen will be displayed. 3. Make settings for each item as required. ACTIVE �� Place a check mark to enable the program� Downloaded From projector-manual.com NEC Manuals...
Page 150 6. Select [OK] and press the ENTER button. You will be returned to the [TOOLS] screen. NOTE: • Up to 30 different timer settings can be programmed. • When [PROGRAM TIMER] is turned on, the [STANDBY MODE] setting is ignored. • The Program Timer is executed on a set time basis, not in a program basis. • Once the program not marked with a check in [REPEAT] has been executed, the check mark in the [ACTIVE] check box will be cleared automatically and the program will be disabled. • When the on-time and the off-time set for the same time, the off-time setting will take preference. • Two different sources are set for the same time, the larger program number will take preference. • The on-time setting will not be executed while the cooling fans are running or an error is occurring. • If the off-time setting is expired under the condition in which the power off is not possible, the off-timer setting will not be executed until the power off becomes possible. • Programs not marked with a check mark in [ACTIVE] of the [EDIT] screen will not be executed even if the Program Timer is enabled. • When the projector is turned on by using the program timer and if you want to turn off the projector, set the off-time or do it manually so as not to leave the projector on for a long period of time. Downloaded From projector-manual.com NEC Manuals...
Page 151 2. Press the ▼ button to select [DELETE]. 3. Press the ENTER button. The confirmation screen will be displayed. 4. Select [YES] and press the ENTER button. The program will be deleted. This will complete deleting the program. Downloaded From projector-manual.com NEC Manuals...
Page 152 This option lets you to change your USB mouse settings. The mouse settings feature is available for USB mouse only. Choose the settings you want: MOUSE BUTTON �� [RIGHT HAND] or [LEFT HAND] MOUSE SENSITIVITY �� [FAST], [MEDIUM] or [SLOW] Downloaded From projector-manual.com NEC Manuals...
Page 153: Connecting To Other Equipment
There is a positioning slit on the projector’s lens insertion slot. Insert the lens slowly all the way in, keeping the positioning slit at the same angle. Yellow mark Downloaded From projector-manual.com NEC Manuals...
Page 154: Removing The Lens
- After removing the lens, mount the lens caps (front and back) included with the lens before storing the lens. - If no lens is going to be mounted on the projector, mount the dust cap included with the projector. Downloaded From projector-manual.com NEC Manuals...
Page 155: Installation And Connections
• Select the source name for its appropriate input connector after turning on the projector. SOURCE button on the projector Input connector Button on the remote control cabinet COMPUTER 1 IN COMPUTER 1 COMPUTER 1 COMPUTER 2 IN COMPUTER 2 COMPUTER 2 COMPUTER 3 IN COMPUTER 3 COMPUTER 3 Downloaded From projector-manual.com NEC Manuals...
Page 156: Digital Rgb Signal Connection
• Lower the computer’s volume setting before connecting an audio cable to the headphones connector. When using with a computer connected to the projector, adjust the volume of both the projector and computer to set the appropriate volume level. • If the computer has a mini-jack type audio output connector, we recommend connecting the audio cable to that connector. • This projector does not support NEC video unit (model ISS-6020) video decoded outputs. • When a video deck is connected via a scan converter, etc., the display may not be correct during fast-forwarding and rewinding. • The Computer 1 and Computer 2 video input connectors support Windows Plug and Play. The Computer 3 video input connector does not support Windows Plug and Play. • A Macintosh signal adapter (commercially available) may be required to connect a Macintosh computer. To connect a Macintosh computer equipped with a Mini DisplayPort to the projector, use a commercially available Mini DisplayPort → DisplayPort converter cable. Downloaded From projector-manual.com NEC Manuals...
Page 157 [COMPUTER2]. (→ page 109) To connect the computer’s DVI output connector to the projector’s DisplayPort input connector, use a commercially available converter. NOTE: When Viewing a DVI Digital Signal • Use a DVI-to-HDMI cable compliant with DDWG (Digital Display Working Group) DVI (Digital Visual Interface) revision 1.0 stan- dard. The cable should be within 197"/5 m long. • Turn off the projector and the PC before connecting the DVI-to-HDMI cable. • To project a DVI digital signal: Connect the cables, turn the projector on, then select the HDMI input. Finally, turn on your PC. Failure to do so may not activate the digital output of the graphics card resulting in no picture being displayed. Should this happen, restart your PC. • Some graphics cards have both analog RGB (15-pin D-Sub) and DVI (or DFP) outputs. Use of the 15-pin D-Sub connector may result in no picture being displayed from the digital output of the graphics card. • Do not disconnect the DVI-to-HDMI cable while the projector is running. If the signal cable has been disconnected and then reconnected, an image may not be correctly displayed. Should this happen, restart your PC. Downloaded From projector-manual.com NEC Manuals...
Page 158: Connecting An External Monitor
(not supplied) (not supplied) Com- puter cable (VGA) (supplied) You can connect a separate, external monitor to your projector to simultaneously view on a monitor the computer analog image you’re projecting. NOTE: • Daisy chain connection is not possible. • When audio equipment is connected, the projector speaker is disabled. Downloaded From projector-manual.com NEC Manuals...
Page 159: Connecting Your Dvd Player Or Other Av Equipment
SOURCE button on the projector Input connector Button on the remote control cabinet VIDEO IN VIDEO VIDEO S-VIDEO IN S-VIDEO S-VIDEO NOTE: The AUDIO IN L and R jacks (RCA) are shared between the Video and S-Video inputs. NOTE: Refer to your VCR owner’s manual for more information about your equipment’s video output requirements. NOTE: • An image may not be displayed correctly when a Video or S-Video source is played back in fast-forward or fast-rewind via a scan converter. • Video signals can be projected when a video cable (commercially available) is connected to the Computer 3 video input connector’s G/Y connector. In this case, set the on-screen menu’s SETUP → OPTION(1) → SIGNAL SELECT(COMP3) to [VIDEO] and select Computer 3 for the input selection. Downloaded From projector-manual.com NEC Manuals...
Page 160: Connecting Component Input
Input connector Button on the remote control cabinet COMPUTER 1 IN COMPUTER 1 COMPUTER 1 COMPUTER 2 IN COMPUTER 2 COMPUTER 2 COMPUTER 3 IN COMPUTER 3 COMPUTER 3 NOTE: • Normally the computer signal and component signal are identified and switched automatically. If the signal cannot be identified, however, select the signal at [ADJUST] → [VIDEO] → [SIGNAL TYPE] on the projector’s on-screen menu. Select “COMPUTER” or “VIDEO” for the Computer 3 video input connector at [SETUP] → [OPTION (1)] → [SIGNAL SELECT(COMP3)] (→ page 109). • To connect to a video device with a D connector, use the sold separately D connector converter adapter (model ADP-DT1E). Downloaded From projector-manual.com NEC Manuals...
Page 161: Connecting Hdmi Input
If the HDMI input sound cannot be heard, in the menu select [AUDIO SELECT] → [HDMI]. • If the HDMI input’s sound is not output, check that [OPTIONS(1)] → [DIGITAL AUDIO SELECT] → [HDMI] on the • projector’s on-screen menu is set to “HDMI”. (→ page 109) Downloaded From projector-manual.com NEC Manuals...
Page 162: Connecting To A Wired Lan
To use a LAN connection, you are required to set the LAN on the projector menu. Select [APPLICATION MENU] → [NETWORK SETTINGS] → [WIRED LAN]. (→ page 121). Example of LAN connection Example of wired LAN connection Server LAN cable (not supplied) NOTE: Use a Category 5 or higher LAN cable. Downloaded From projector-manual.com NEC Manuals...
Page 163: Connecting To A Wireless Lan (Sold Separately)
Removing the filter unit while the projector is running could result in burns or electric shocks from touching internal parts. NOTE: • The wireless LAN unit has a front and a back and must be mounted in the wireless LAN port in a specific direction. The port is designed so that the unit cannot be mounted in the opposite direction, but trying to push it in by force could damage the wireless LAN unit port. • To prevent damage due to static electricity, touch a nearby metal object (a door knob, aluminum sash, etc.) before touching the wireless LAN unit to eliminate the static electricity from your body. • Disconnect the power cord when mounting and removing the wireless LAN unit. Mounting and removing the wireless LAN unit while the projector’s power is on could damage the wireless LAN unit or result in malfunction on the projector. If the projector should malfunction, turn off the projector’s power, unplug the power cord, then plug the power cord back in. • Do not connect any USB device other than the wireless LAN unit to the USB (LAN) port. Also, do not connect the wireless LAN unit to the USB port in the connector section. Downloaded From projector-manual.com NEC Manuals...
Page 164 Insert the 4 catches on the top of the filter cover into the grooves in the projector, then press the left and right buttons to close. - A click is heard and the filter cover is fastened in place. Downloaded From projector-manual.com NEC Manuals...
Page 165: To Remove The Wireless Lan Unit
If the wireless LAN unit is hard to remove, place a cloth, etc., over needle- nose pliers to grasp the wireless LAN unit and pull it out. NOTE: Do not grasp the wireless LAN unit with excessive force. Doing so will damage 3. Mount the filter unit and filter cover as described in steps 5 and 6 above. Downloaded From projector-manual.com NEC Manuals...
Page 166 USB Wireless LAN Unit PC with wireless PC with built-in wireless LAN card inserted LAN function To enable direct communication (i.e., peer-to-peer) between computers and projectors, you need to select the Ad Hoc mode. (→ page 123) Downloaded From projector-manual.com NEC Manuals...
Page 167: Maintenance
Filter cover Button 2. Remove the filter unit by pulling out the tab. Filter unit 3. Remove the four filters. (1) Turn the filter unit over and pull out the two soft accordion filters. Downloaded From projector-manual.com NEC Manuals...
Page 168 Slit 7. Mount the filter unit back onto the projector cabinet. Insert the filter unit onto the projector with the sides on which the left and right hooks are located on the outside. Hook Downloaded From projector-manual.com NEC Manuals...
Page 169 From the menu, select [RESET] → [CLEAR FILTER HOURS]. (→ page 117) Button The interval time to clean the filters is set to [OFF] at time of shipment. When using the projector as it is, you do not clear the filter usage Downloaded From projector-manual.com NEC Manuals...
Page 170: Cleaning The Lens
Clogged ventilation slits may cause a rise in the internal temperature of the projector, resulting in malfunction. • Do not scratch or hit the cabinet with your fingers or any hard objects • Contact your dealer for cleaning the inside of the projector. NOTE: Do not apply volatile agent such as insecticide on the cabinet, the lens, or the screen. Do not leave a rubber or vinyl product in prolonged contact with it. Otherwise the surface finish will be deteriorated or the coating may be stripped off. Downloaded From projector-manual.com NEC Manuals...
Page 171: Replacing The Lamp And The Filters
Do not touch them as the pieces of glass may cause injury. If this happens, contact your NEC dealer for lamp replacement.
Page 172 • There is an interlock on this case to prevent the risk of electrical shock. Do not attempt to circumvent this interlock. (2)Remove the lamp housing by holding it. CAUTION: Make sure that the lamp housing is cool enough to before removing it. Interlock Guide hole Downloaded From projector-manual.com NEC Manuals...
Page 173 (1)Insert the top edge of the lamp cover into the groove in the projector and close the lamp cover. (2)Tighten the screw to secure the lamp cover. • Be sure to tighten the screw. This completes the lamp replacement. Go on to the filter replacement. NOTE: When you continue to use the projector for another 100 hours after the lamp has reached the end of its life, the projector cannot turn on and the menu is not displayed. If this happens, press the HELP button on the remote control for 10 seconds to reset the lamp clock back to zero. When the lamp time clock is reset to zero, the LAMP indicator goes out. Downloaded From projector-manual.com NEC Manuals...
Page 174 Filter cover 2. Remove the filter unit by pulling out the tab. Filter unit 3. Remove the four filters. (1) Turn the filter unit over and pull out the two soft accordion filters (large and small). Downloaded From projector-manual.com NEC Manuals...
Page 175 3. Clear the lamp usage hours and the filter usage hours. 1. From the menu, select [RESET] → [CLEAR LAMP HOURS] and reset the lamp usage hours. 2. Select [CLEAR FILTER HOURS].and reset the filter usage hours. (→ page 117) Downloaded From projector-manual.com NEC Manuals...
Page 176: User Supportware
• To run Virtual Remote Tool or PC Control Utility Pro 4 on Windows XP Home Edition and Windows XP Professional, “Microsoft .NET Framework Version 2.0 or later” is required. The Microsoft .NET Framework Version 2.0 or later is available from Microsoft’s web page. Download and install it on your computer • Image Express Utility Lite will be installed to the system drive of your computer. If the message “There is not enough free space on destination” is displayed, free up enough space (about 100 MB) to install the program. 1 Insert the accompanying NEC Projector CD-ROM into your CD-ROM drive. The menu window will be displayed. TIP: If the menu window will not be displayed, try the following procedure. For Windows 7 1. Click “start” on Windows. 2. Click “All Programs” → “Accessories” → “Run”.
Page 177 2 Double-click “Add / Remove Programs”. The Add / Remove Programs window will be displayed. 3 Click the software program from the list and then click “Remove”. Follow the instructions on the screens to complete the uninstallation. Downloaded From projector-manual.com NEC Manuals...
Page 178: Installation For Macintosh Software
8. User Supportware Installation for Macintosh software Image Express Utility 2 for Mac supports Mac OS X. 1 Insert the accompanying NEC Projector CD-ROM into your CD-ROM drive. The menu window will be displayed. 2 Double-click the CD-ROM icon. 3 Double-click the “Mac OS X” folder.
Page 179: Operating The Projector Via The Lan (Virtual Remote Tool)
Connect the projector to the LAN by following the instructions in “Connecting to a Wired LAN” (→ page 150), “Con- necting to a Wireless LAN (sold separately)” (→ page 151) and “9 Application Menus - NETWORK SETTINGS” (→ page 120) Downloaded From projector-manual.com NEC Manuals...
Page 180 Windows Desktop. Start from the Start menu • Click [Start] → [All Programs] or [Programs] → [NEC Projector User Supportware] → [Virtual Remote Tool] → [Virtual Remote Tool]. When Virtual Remote Tool starts for the first time, “Easy Setup” window will be displayed.
Page 181 The Help screen will be displayed. • Displaying the help file using the Start Menu. 1. Click “Start”.“All programs” or “Programs”.“NEC Projector User Supportware”.“Virtual Remote Tool”. and then “Virtual Remote Tool Help” in this order. The Help screen will be displayed.
Page 182: Projecting Your Computer's Screen Image From The Projector Over A Lan
Wireless LAN (sold separately)” (→ page 151) and “9 Application Menus - NETWORK SETTINGS” (→ page 120) Start Image Express Utility Lite. 1. On Windows, click “Start” → “All programs” → “NEC Projector UserSupportware” → “Image Express Utility Lite” → “Image Express Utility Lite”. Image Express Utility Lite will start.
Page 183 The Help screen will be displayed. • Displaying the help file using the Start Menu. Click “Start” → “All programs” or “Programs” → “NEC Projector User Supportware” → “Image Express Utility Lite” → “Image Express Utility Lite Help”. The Help screen will be displayed.
Page 184: Projecting An Image From An Angle
2. Click the “Start Correction” button and then “Start 4-point Correction” button. A green frame and a mouse pointer ( ) will be displayed. • Four [ • ] marks will be appeared at four corners of the green frame Downloaded From projector-manual.com NEC Manuals...
Page 185 7. Click the “X” (close) button on the “4-point Correction” window. The “4-point Correction” window will disappear and the 4-point correction will take effect. 8. Click the “ ” button on the control window to exit the GCT. TIP: • After performing the 4-point correction, you can save the 4-point correction data to the projector by clicking “File” → “Writing to the projector…” on the “4-point Correction” window. • See the Help of Image Express Utility Lite for operating “4-point Correction” window and other functions than GCT. (→ page 171) Downloaded From projector-manual.com NEC Manuals...
Page 186: Projecting Images Or Videos From The Projector Over A Lan (Image Express Utility 2.0)
When “Meeting Mode” is used, projected images can be sent and received between two or more computers. • High-speed, high-quality image transmissions based on NEC’s original compression algorithm NEC’s original compression algorithm allows high-quality images to be sent over the network at high speed, from your computer to the projector. •...
Page 187: Connecting The Projector To A Lan
Connect the projector to the LAN by following the instructions in “Connecting to a Wired LAN” (→ page 150), “Con- necting to a Wireless LAN” (→ page 151) and “9 Application Menus - NETWORK SETTINGS” (→ page 120) Downloaded From projector-manual.com NEC Manuals...
Page 188: Basic Operation Of Image Express Utility 2.0
1 Turn on the power to the projector for which LAN has been set. 2 Click Windows [Start] → [All Programs] → [NEC Projector User Supportware] → [Image Express Utility 2.0] → [Image Express Utility 2.0 ], in that order.
Page 189 When your computer is connected to the projector, the screen of the computer is projected from the projector as is. To make your presentation by using a PowerPoint file, open the PowerPoint file and start your presentation. Downloaded From projector-manual.com NEC Manuals...
Page 190 • End the transmission of images Exit Image Express Utility 2.0. 1 Click the projector icon ( ) on the Windows taskbar. A pop-up menu will be displayed. 2 Click [Exit]. Downloaded From projector-manual.com NEC Manuals...
Page 191: Holding Conferences
2 Before clicking [Send to PC and Projector], check that there is a “ • ” mark applied. 3 Click the [Image Express Utility 2.0] button on the taskbar. The presenter window will be opened. 4 Click [Select Folder]. Click Downloaded From projector-manual.com NEC Manuals...
Page 192: Participating In Conference
Participating in Conference • Participating in conferences 1 Click Windows [Start] → [All Programs] → [NEC Projector User Supportware] → [Image Express Utility 2.0] → [Image Express Utility 2.0 ], in that order. The “Selection Of Network Connections” window will be displayed.
Page 193 The computer will be connected to the selected conference and the attendant window will be displayed. If the presenter selects “Send to PC And Projector”, the image projected from the projector is displayed in the at- tendant window. Downloaded From projector-manual.com NEC Manuals...
Page 194 • The saved image is added to the memo list and a thumbnail is displayed. • A memo can be attached to the saved image. REFERENCE: • In case of Windows XP, a created file is saved to “My Documents\ImageExpress\” under the default settings. In case of Windows 7/Windows Vista, “Document\ImageExpress\” is the default folder to save a created file. • A folder is created below the default folder based on the time and date of the conference, and the image is saved to a file in the created folder. For example, if a conference is held at 11:20 on May 14, 2009, the default folder name on Windows XP will be “My Documents\ ImageExpress\2009-05-14_11-20_Meeting Records”. In this folder, an HTML file named “Meeting Records” is created. The saved image is saved in “Images” folder. Downloaded From projector-manual.com NEC Manuals...
Page 195 3 When downloading is complete, click [File] in the “File Transfer” window, and click [Exit]. The “File Transfer” window will be closed. REFERENCE: • If “Open After Downloading” is checked, the file is opened by specified Windows application software after downloading is com- plete. • In case of Windows XP, a created file is saved to “My Documents\ImageExpress\” under the default settings. In case of Windows 7/Windows Vista, “Document\ImageExpress\” is the default folder to save a created file. • A folder is created below the default folder based on the time and date of the conference, and the image is saved to a file in the created folder. For example, if a conference is held at 11:20 on May 14, 2009, the default folder name on Windows XP will be “My Documents\ ImageExpress\2009-05-14_11-20_Meeting Records”. Downloaded From projector-manual.com NEC Manuals...
Page 196 Leave the conference and exit Image Express Utility 2.0. • Click [File] in the attendant window, and click [Exit]. You can also leave the conference by clicking [×] at the upper right of the attendant window. Downloaded From projector-manual.com NEC Manuals...
Page 197: Using The Projector To Operate Your Computer Over A Lan (Desktop Control Utility 1.0)
Connect the projector to the LAN by following the instructions in “Connecting to a Wired LAN” (→ page 150), “Con- necting to a Wireless LAN” (→ page 151) and “9 Application Menus - NETWORK SETTINGS” (→ page 120) Downloaded From projector-manual.com NEC Manuals...
Page 198: Using The Projector To Operate Your Computer's Desktop Screen
3 Click [User Account]. 4 Click [Enable/Disable User Account Control]. 5 Remove the checkmark for [Use User Account Control (UAC) to Help Computer Protection] and click [OK]. • If rebooting is requested, click [Reboot Now]. Upon completion of Desktop Control Utility, it is recommended to enable the user account control. Downloaded From projector-manual.com NEC Manuals...
Page 199 8. User Supportware • Operation on computer 1 Click Windows [Start] → [All Programs] → [NEC Projector User Supportware] → [Desktop Control Utility 1.0] → [Desktop Control], in that order. The “Selection Of Network Connections” window is displayed. This displays a list of the network devices connected to the computer you are using.
Page 200 Write down “PMHN” in the screen example of step 3. 5 Click [OK]. Desktop Control Utility 1.0 will be started. Move to the room where the projector is installed, with the paper on which you have written down the password in step 4. Downloaded From projector-manual.com NEC Manuals...
Page 201 In case of the remote control, press the NETWORK button. The “network menu” screen will be displayed, proceed to step 5. 4 Press the / buttons to select [NETWORK], and then press the ENTER button. The “network menu” screen will be displayed. Downloaded From projector-manual.com NEC Manuals...
Page 202 If the connection destination has not been found as a result of a COMPUTER SEARCH, search for the connection destination by inputting the IP address of the computer at the connection destination, click “Input IP Address”. Downloaded From projector-manual.com NEC Manuals...
Page 203 Manipulate the auxiliary operation bar by using the buttons of the projector or remote control. Downloaded From projector-manual.com NEC Manuals...
Page 204 Communication will be disconnected and you are returned to the “DESKTOP CONTROL UTILITY” menu screen. To resume communication, click [COMPUTER SEARCH]. After that, follow step 10 on the preceding page. REFERENCE: Communication can also be disconnected by clicking the projector icon on the taskbar and then clicking “Disconnect” while the desktop screen is displayed. Downloaded From projector-manual.com NEC Manuals...
Page 205 The “network menu” screen will be displayed. 4 Press the MENU button on the projector unit or on the remote control. The on-screen menu will be displayed. 5 Select an input source other than [NETWORK]. Downloaded From projector-manual.com NEC Manuals...
Page 206: Controlling The Projector Over A Lan (Pc Control Utility Pro 4)
Wireless LAN (sold separately)” (→ page 151) and “9 Application Menus - NETWORK SETTINGS” (→ page 120) Start PC Control Utility Pro 4 Click “Start” → “All programs” or “Programs” → “NEC Projector User Supportware” → “PC Control Utility Pro 4” → “PC Control Utility Pro 4”. NOTE: • For the Schedule function of the PC Control utility Pro 4 to work, you must have your computer running and not in standby/...
Page 207: Converting Powerpoint Files To Slides (Viewer Ppt Converter 3.0)
Converting PowerPoint files and saving them to a USB memory 1. Insert the USB memory into the USB port of the computer. 2. On Windows, click “Start” → “All programs” → “NEC Projector UserSupportware” → “Viewer PPT Converter 3.0” → “Viewer PPT Converter 3.0”.
Page 208 A confirmation message will be displayed. 7. Click “OK”. Exporting a file will start. 8. Click “OK”. 9. Click “Exit”. Viewer PPT Converter 3.0 will exit. 10. Remove the USB memory from the computer. NOTE: • Before removing the USB memory from the USB port of the computer, click the “Safe to Remove Hardware” icon on the task- bar. Downloaded From projector-manual.com NEC Manuals...
Page 209: Projecting Your Mac's Screen Image From The Projector Over A Lan
Connect the projector to the LAN by following the instructions in “Connecting to a Wired LAN” (→ page 150), “Con- necting to a Wireless LAN” (→ page 151) and “9 Application Menus - NETWORK SETTINGS” (→ page 120) Downloaded From projector-manual.com NEC Manuals...
Page 210: Using Image Express Utility 2
5 Check the “Show AirPort status in menu bar” check box at the bottom configuration item. The AirPort status ( ) will be displayed on the menu bar. 6 Click the [ ] button at the upper left on the Network configuration window. The Network configuration window will be closed. Downloaded From projector-manual.com NEC Manuals...
Page 211 ) check box to the left of the projector name to connect and click [Connect]. The Macintosh computer and the projector are connected via wireless LAN, and images on the Macintosh screen are projected from the projector. Downloaded From projector-manual.com NEC Manuals...
Page 212 1 Click [Tools] on the menu bar, and click [Start Sending]. Image transmission is started again. Exiting Image Express Utility 2 1 Click [Image Express Utility 2] on the menu bar, and click [Quit Image Express Utility 2]. Image Express Utility 2 is exited. Downloaded From projector-manual.com NEC Manuals...
Page 213: Appendix
9.8 - 12.8 12.3 - 24.7 24.6 - 39.4 38.8 - 59.0 500" 12.3 - 16.0 15.4 - 30.8 30.7 - 49.2 48.6 - 73.8 Calculation of the throw distance from the screen size NP11FL lens throw distance (m) = H × 0.8 : 0.6 m (min.) to 2.5 m (max.) NP12ZL lens throw distance (m) = H × 1.2 to H × 1.6 : 0.7 m (min.) to 16.0 m (max.) NP13ZL lens throw distance (m) = H × 1.5 to H × 3.0 : 1.2 m (min.) to 30.8 m (max.) NP14ZL lens throw distance (m) = H × 3.0 to H × 4.8 : 3.6 m (min.) to 49.2 m (max.) NP15ZL lens throw distance (m) = H × 4.7 to H × 7.3 : 5.7 m (min.) to 73.8 m (max.) “H” (Horizontal) refers to the screen width. * Figures differ by several % with the table above because the calculation is approximate. Ex.: Throw distance when projecting on a 150" screen with the PA600X/PA500X using the NP13ZL lens: According to the “Screen Size (for reference)” table (→ page 204), H (screen width) = 304.8 cm. The throw distance is 304.8 cm × 1.5 to 304.8 cm × 3.0 = 457.2 cm to 914.4 cm (because of the zoom lens). Downloaded From projector-manual.com NEC Manuals...
Page 214 10.2 - 13.2 12.8 - 25.5 25.4 - 40.7 40.1 - 61.1 500" 12.7 - 16.5 16.0 - 31.9 31.8 - 50.9 50.2 - 76.4 Calculation of the throw distance from the screen size NP11FL lens throw distance (m) = H × 0.8 : 0.5 m (min.) to 2.0 m (max.) NP12ZL lens throw distance (m) = H × 1.2 to H × 1.5 : 0.7 m (min.) to 16.5 m (max.) NP13ZL lens throw distance (m) = H × 1.5 to H × 3.0 : 1.2 m (min.) to 31.9 m (max.) NP14ZL lens throw distance (m) = H × 2.9 to H × 4.7 : 3.7 m (min.) to 50.9 m (max.) NP15ZL lens throw distance (m) = H × 4.6 to H × 7.1 : 5.9 m (min.) to 76.4 m (max.) “H” (Horizontal) refers to the screen width. * Figures differ by several % with the table above because the calculation is approximate. Ex.: Throw distance when projecting on a 150" screen with the PA500U using the NP13ZL lens: According to the “Screen Size (for reference)” table (→ page 204), H (screen width) = 323.1 cm. The throw distance is 323.1 cm × 1.5 to 323.1 cm × 3.0 = 484.7 cm to 969.3 cm (because of the zoom lens). Downloaded From projector-manual.com NEC Manuals...
Page 215 9. Appendix Projection range for the different lenses PA600X/PA500X : 0.6 - 2.5m NP11FL PA550W : 0.7 - 2.6m PA500U : 0.5 - 2.0m 30-500" 40-150" 60-500" 60-500" 40-500" NP12ZL PA600X/ PA500X 0.7 - 16.0m PA550W 0.7 - 16.8m PA500U 0.7 - 16.5m...
Page 216: Tables Of Screen Sizes And Dimensions
107.7 84.8 215.4 53.0 134.6 101.8 258.5 63.6 161.5 Screen width 127.2 323.1 79.5 201.9 169.6 430.8 106.0 269.2 203.5 516.9 127.2 323.1 254.4 646.2 159.0 403.9 339.2 861.6 212.0 538.5 424.0 1077.0 265.0 673.1 Downloaded From projector-manual.com NEC Manuals...
Page 217: Lens Shifting Range
0.3H 0.3H Ceiling/front projector 0.3H 0.3H 0.1H 0.1H 0.1V Height of projected image 0.5V Width of projected image PA550W Width of projected image Desk/front projection 0.6V Height of projected image 0.1H 0.1H 0.1V 0.3H 0.3H Downloaded From projector-manual.com NEC Manuals...
Page 218 : Horizontal lens shift range is 0.15H at 150" projected image with the lens NP13ZL Ex.: When projecting on a 150" screen This section is illustrated in the example for PA600X/PA500X • The following description can apply to the PA550W and PA500U (16:10). To calculate, use screen sizes and the maximum value for the lens shift for PA550W and PA500U.
Page 219: Compatible Input Signal List
1280 × 720 16 : 9 50/60 SDTV (480p) 720 × 480 4:3 / 16:9 SDTV (576p) 720 × 576 4:3 / 16:9 SDTV(480i) 1440 × 480 4:3 / 16:9 SDTV(576p) 1440 × 576 4:3 / 16:9 Downloaded From projector-manual.com NEC Manuals...
Page 220 4 : 3 SECAM 4 : 3 *1 Native resolution on XGA model (PA600X/PA500X) *2 Native resolution on WXGA model (PA550W) *3 Native resolution on UXGA model (PA500U) *4 The projector may fail to display these signals correctly when [AUTO] is selected for [ASPECT RATIO] in the on-screen menu.
Page 221: Specifications
Optical isolation by dichroic mirror, combining by dichroic prism Light output (*2) ECO OFF PA600X: 6000 lm, PA500X: 5000 lm, PA550W: 5500 lm, PA500U: 5000 lm (*3) ECO ON(80 %) PA600X: 4800 lm, PA500X: 4000 lm, PA550W: 4400 lm, PA500U: 4000 lm...
Page 222 Storage temperature: -10 to 50ºC (*6) Storage humidity: 20 to 80% (with no condensation) Power supply 100-240V AC, 50/60Hz Power Eco mode off PA600X/PA500X/PA550W: 464W (100-130V)/443W (200-240V) consumption PA500U: 477W (100-130V)/455W (200-240V) Eco mode on PA600X/PA500X/PA550W: 372W (100-130V)/356W (200-240V) PA500U: 384W (100-130V)/369W (200-240V)
Page 223: Cabinet Dimensions
9. Appendix  Cabinet Dimensions Unit: mm (inch) 499 (19.6") Lens center Lens center 250 (9.8") Holes for ceiling mount Unit: mm (inch) Downloaded From projector-manual.com NEC Manuals...
Page 224: Mounting The Cable Cover (Sold Separately)
- Hold the cable cover while doing this to prevent it from falling. - The screw does not come completely off. 2. Remove the cable cover. - Turn the cable cover a little, then lift it off. Downloaded From projector-manual.com NEC Manuals...
Page 225: Pin Assignments Of D-Sub Computer Input Connector
Sync signal : TTL level Green Ground Y Ground Blue Ground Cb Ground No Connection Sync Signal Ground No Connection Bi-directional DATA (SDA) Horizontal Sync or Composite Sync Vertical Sync Data Clock COMPUTER 1 IN NOTE: Pin Nos. 12 and 15 are required for DDC/CI(Virtual Remote Tool). Downloaded From projector-manual.com NEC Manuals...
Page 226: Troubleshooting
The lamp cover is not properly mounted. Mount it properly. (→ of 1) Page 161) Red (cycles Fan problem The cooling fan has stopped turning. Contact an NEC projector of 4) customer support center for repairs. Red (cycles Iris error The iris is not operating properly.
Page 227: Lamp Indicator
Flashing Red (cycles of 2) Temperature problem The temperature protector has been activated. If the room temperature is high, move the projector to a cool place. If the problem still persists, contact an NEC projector customer support center. Orange High surrounding temperature The surrounding temperature is high. Lower the room temperature.
Page 228: Common Problems & Solutions
(→ page 201) • Has the lens been shifted by an amount exceeding the guaranteed range? (→ page 205) • Condensation may form on the lens if the projector is cold, brought into a warm place and is then turned on. Should this happen, let the projector stand until there is no condensation on the lens� Downloaded From projector-manual.com NEC Manuals...
Page 229 • To perform computer mouse operations using the projector’s remote control, connect the optional mouse receiver to the computer� (→ page 30) Indicator is lit or • See the POWER/STATUS/LAMP Indicator. (→ page 214) blinking Cross color in RGB • Press the AUTO ADJ. button on the projector cabinet or the remote control. (→ page 24) mode • Adjust the computer image manually with [CLOCK]/[PHASE] in [IMAGE OPTIONS] in the menu. (→ page For more information contact your dealer. Downloaded From projector-manual.com NEC Manuals...
Page 230: If There Is No Picture, Or The Picture Is Not Displayed Correctly
“Fn” key along with one of the 12 function keys gets the external display to come on or off. For example, NEC laptops use Fn + F3, while Dell laptops use Fn + F8 key combinations to toggle through external display selections.
Page 231: Pc Control Codes And Cable Connection
X on/off ��None Communications procedure ��Full duplex NOTE: Depending on the equipment, a lower baud rate may be recommended for long cable runs. PC Control Connector (D-SUB 9P) To TxD of PC To RxD of PC To GND of PC To RTS of PC To CTS of PC NOTE 1: Pins 1, 4, 6 and 9 are no used. NOTE 2: Jumper “Request to Send” and “Clear to Send” together on both ends of the cable to simplify cable connection. NOTE 3: For long cable runs it is recommended to set communication speed within projector menus to 9600 bps. Downloaded From projector-manual.com NEC Manuals...
Page 232: Troubleshooting Check List
Projector is placed near a fluorescent light that can disturb the infrared remote controls� Still unchanged even though you press and hold the EXIT button for a minimum of 10 seconds� Batteries are new and are not reversed in installation� Downloaded From projector-manual.com NEC Manuals...
Page 233 Native resolution: Refresh rate: Video adapter: Other: Projector DVD player Video equipment VCR, DVD player, Video camera, Video game or other Signal cable NEC standard or other manufacturer’s cable? Manufacturer: Model number: Length: inch/m Model number: Distribution amplifier Model number: Switcher...
Page 234: Travelcare Guide
9. Appendix  TravelCare Guide TravelCare - a service for international travelers This product is eligible for “TravelCare”, NEC’s unique international warranty and repair service. For more information on TravelCare service, visit our website (in English only). http://www.nec-display.com/dl/en/pj_support/travel_care.html Downloaded From projector-manual.com NEC Manuals...
