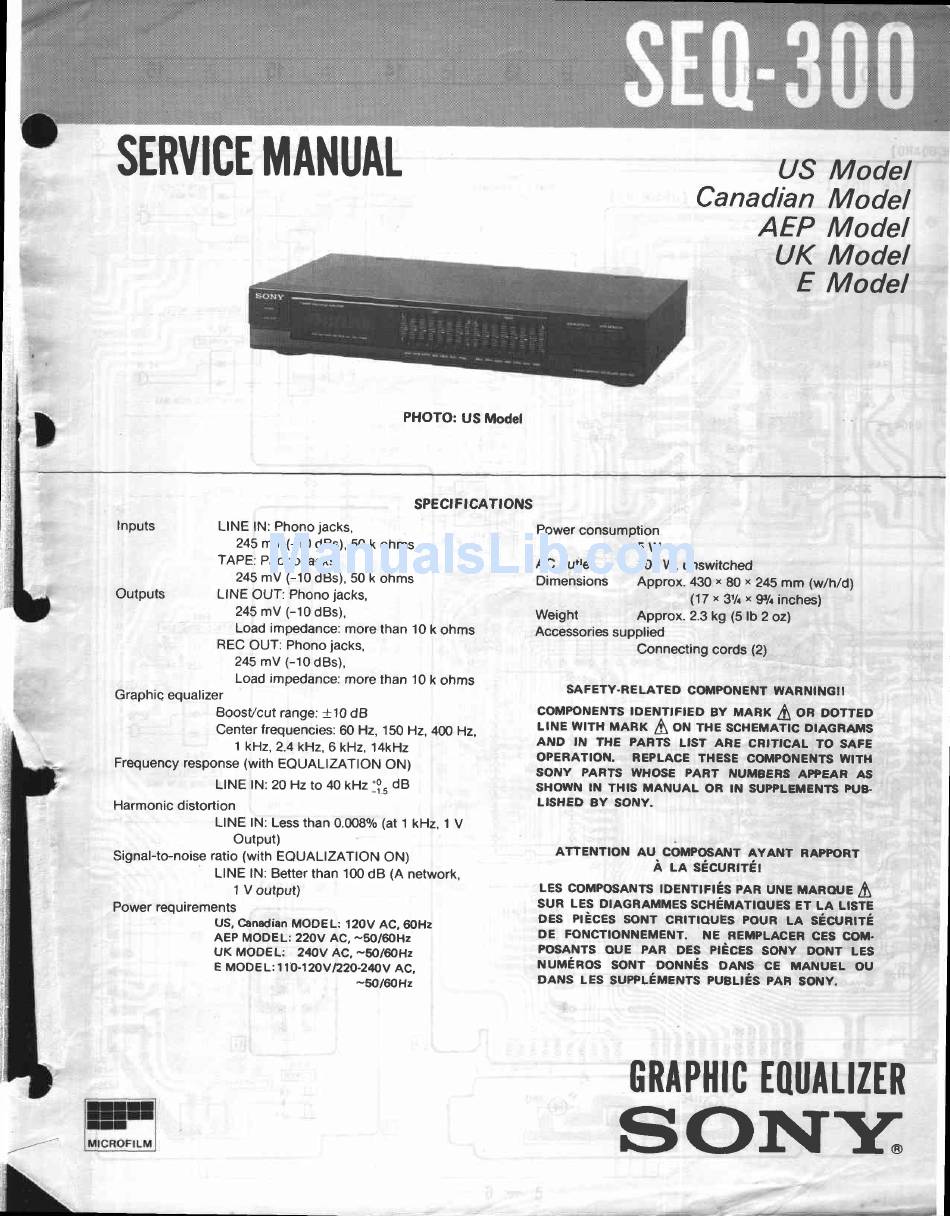

Sony SEQ-300 Service Manual

SERVICE MANUAL
US Model
Canadian Model
AEP Model
UK Model
E Model
PHOTO: US Model
Inputs
Outputs
Graphiç equalizer
BoosVcut range: +10 dB
Center frequencies: 60 Hz, 1S0 Hz, 400 Hz.
1 kH.z,2.4 kHz, 6 kHz, 14kHz
Frequency response (with EOUALIZATION ON)
LINE lN: 20Hzto 40 kHz lfu dB
Harmonic distortion
LINE lN: Less than 0.008o/o (at 1 kHz, 1 V
Output)
Signal-to.noise ratio (with EQUALIZATION ON)
LINE lN: Better than 100 dB (A network,
1 V output)
Power requirements
US, Canadian MODEL: 12OV AC,6OHz
AEP MODEL: 220V AC, -50/60H2
UK MOOEL: 24OV AC,-ûl6(JHz
E MODE L: 1 1O-12OV 2ZO-240V AC,
-filffiHz
SPECIFICATIONS
LINE lN: Phono jacks,
245 mV (-10 dBs), 50 k ohms
TAPE: Phono jacks,
245 mV (-10 dBs), 50 k ohms
LINE OUT: Phono jacks,
245 mY (-10 dBs),
Load impedance: more than 10 k ohms
REC OUT: Phono jacks,
245 mV (-10 dBs),
Load impedance: more than 10 k ohms
Power consumption
AC outlet
Dimensions
Weight
5 W
10O W, unswitched
Approx. 430 ' 80 x 245 mm (w/h/dl
(17 x 31h x 9{r inches)
Approx. 2.3 kg (5 lb 2 oz)
Accessories supplied
Connecting cords (2)
SAFETY.RE LATED COMPONENT WARNINGI I
coMpoNENTs tDENTtFtED By MARK I
on oorrso
L|NE W|TH Ulnr
l\ oN THE SCHEMAT|C DtAcRArrrs
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COITIPONENTS WITH
SONY PARÏS WHOSE PART NUMBERS APPEAF AS
SHOWN IN THIS MANUAL OR IN SUPFLETIENTS PU&
LISHED AY SONY.
