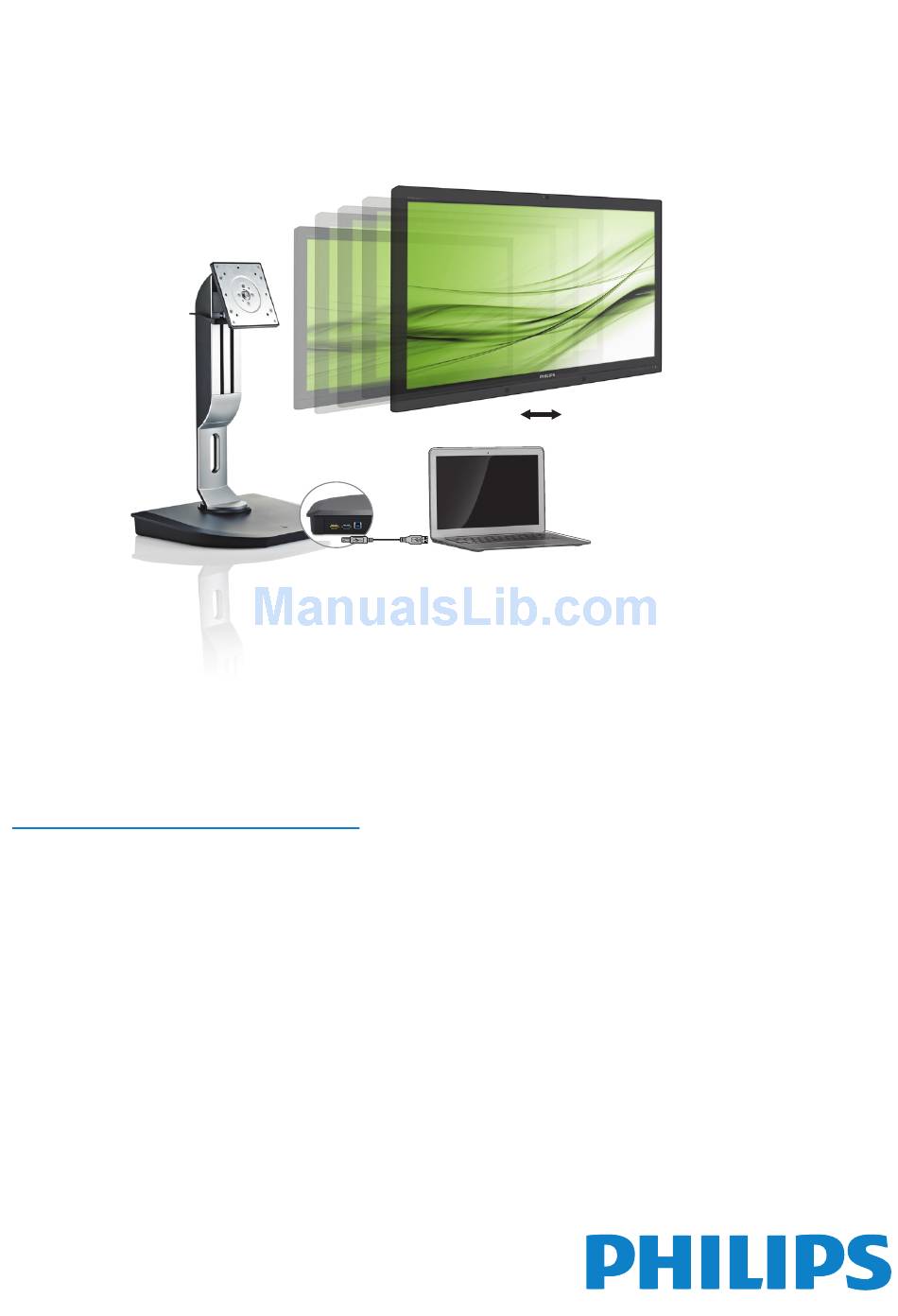

- Page 1 USB Docking stand SB4B1928 19” 28” www.philips.com/welcome EN User manual Customer care and warranty Troubleshooting & FAQs...
-
Page 2: Table Of Contents
Table of Contents 1. Important ..........1 1.1 Safety precautions and maintenance .1 1.2 Notational Descriptions ......2 1.3 Disposal of product and packing material ...............3 2. Setting up the USB docking stand ..4 2.1 Installation ............4 2.2 Operating the USB docking stand ..7 3. -
Page 3: Important
1. Important • Please use approved power cord provided 1. Important by Philips at all times. If your power cord is missing, please contact with your local This electronic user’s guide is intended for service center. (Please refer to Customer anyone who uses the Philips USB docking stand. -
Page 4: Notational Descriptions
1. Important Service 1.2 Notational Descriptions • The casing cover should be opened only by The following subsections describe notational qualified service personnel. conventions used in this document. • If there is any need for any document for repair or integration, please contact with Notes, Cautions and Warnings your local service center. -
Page 5: Disposal Of Product And Packing
Taking back/Recycling Information for Customers Philips establishes technically and economically viable objectives to optimize the environmental performance of the organization's product, service and activities. From the planning, design and production stages, Philips emphasizes the important of... -
Page 6: Setting Up The Usb Docking Stand
使用 前请阅读使用说明 User’s Manual 保留备用 USB docking stand drivers Philips and the Philips’ Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license from Koninklijke Philips N.V. * HDMI Cable * DP Cable USB Cable... - Page 7 2. Setting up the USB docking stand Connecting to your monitor and server 1 2 3 9 10 11 12 13 Components Description For connection with USB devices (USB 1.0, 1.1, 2.0, 3.0 USB3.0 with B.C.1.2 fast compatible). USB port is compatible for quick-charging B.C.1.2 charging compatible devices.
- Page 8 2. Setting up the USB docking stand Connect to AC power 1. Connect your USB docking stand power cord to the power connector. 2. Connect the power cord to an AC outlet. 3. Turn on your USB docking stand by switching “ON”...
-
Page 9: Operating The Usb Docking Stand
2. Setting up the USB docking stand Pivot 2.2 Operating the USB docking stand Physical Function Tilt 20˚ -5˚ 0˚ 90˚ Swivel +65˚ -65˚ Height adjustment 120mm... -
Page 10: Usb Docking Stand
With the flexibility of mounting existing 19” up to 28” monitors with VESA mounting standard, Philips USB docking stand is also able to expand your workspace by adding additional monitors. You can also connect HDMI/DP port to your HDMI/DP monitor or USB port to DisplayLink™... - Page 11 3. USB docking stand USB docking stand W/ display USB docking stand W/ display Monitor Monitor HDMI HDMI HDMI USB docking stand W/ display Monitor HDMI Notebook Note 1. You could extend to maximum six displays for Windows and four displays for Mac system. 2.
-
Page 12: Minimum Systems Requirement
3. USB docking stand 3.2 Minimum systems requirement Operation system For optimal performance, use the docking stand with notebook/PC running the Windows Vista, Windows 7 or Windows 8/8.1 operation system. System requirement Minimum System Requirements PC with non-4K displays • Microsoft Windows Vista®... -
Page 13: Setting The Software
(1). Insert the included driver CD USB docking stand 使用 前请阅读使用说明 User’s Manual 保留备用 USB docking stand drivers Philips and the Philips’ Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license from Koninklijke Philips N.V. (2). Double click on "DisplayLink_***.exe"... - Page 14 3. USB docking stand For Windows OS For Mac OS (3). Follow the on- screen instructions until the installation is completed. Note For details regarding your DisplayLink user guide, please refer to the CD that comes with your USB docking stand at the following directory: \PC\Drivers The latest version of this software can be obtained from: http://www.DisplayLink.com For further support please visit http://www.displaylink.com/support.
-
Page 15: Using The Software
3. USB docking stand 3.4 Using the software Using DisplayLink 1. Using DisplayLink to configure the display of an extra monitor. In the notification area, click the DisplayLink icon, and select "DisplayLink Manager". 2. To extend the Windows desktop, click " Multiple displays" tab, and select " Extend these displays". To mirror the primary monitor, click "... - Page 16 3. USB docking stand 3. Click the DisplayLink icon A menu appears with several options. These are shown and described below. Further Support Please visit http://www.displaylink.com/support or http://www.displaylink.org/forum. Sub-menu Menu Option Description Option This is the UI title. Clicking on this item will show the version DisplayLink Manager of DisplayLink software installed.
- Page 17 3. USB docking stand Sub-menu Menu Option Description Option Displays a list of available resolutions. Some resolutions may be enclosed by [ ]. Please see, Inferred Modes. Screen Resolution This option is not available in mirror mode, as the resolution is defined as the resolution of the main monitor.
-
Page 18: Technical Specifications
4. Technical Specifications 4. Technical Specifications Picture/Display Single Head HDMI1.3: 2560 x 1440@50Hz (max.) or DP1.2: 3840 x 2160@30Hz (max.) Supported resolution Dual Head (HDMI1.3/DP1.2): 2048 x 1152@60Hz (max.) Ergonomics Tilt -5° / +20° Swivel -65° / +65° Height Adjustment 120 mm +/-5 mm Pivot Adjustment 90°... - Page 19 Note 1. USB port 5V standby power is not supported when USB docking stand is off. 2. This data is subject to change without notice. Please visit http://www.philips.com/support for the most updated information. 3. USB docking stand does not support hot plug EDID detection. System only enables USB upstream port when connected to notebook/PC.
-
Page 20: Regulatory Information
5. Regulatory Infomation EN 55022 Compliance (Czech Republic Only) 5. Regulatory Information CE Declaration of Conformity This product is in conformity with the following standards • EN60950-1:2006+A11:2009+A1:20 10+A12:2011 (Safety requirement of Polish Center for Testing and Certification Information Technology Equipment). Notice • EN55022:2010 (Radio Disturbance The equipment should draw power from a requirement of Information Technology socket with an attached protection circuit (a... - Page 21 5. Regulatory Infomation North Europe (Nordic Countries) Information Aus ergonomischen Gründen wird empfohlen, die Gr undfarben Blau und Rot nicht auf Placering/Ventilation dunklem Untergrund zu verwenden (schlechte VARNING: Lesbarkeit und erhöhte Augenbelastung bei zu FÖRSÄKRA DIG OM ATT HUVUDBRYTARE geringem Zeichenkontrast wären die Folge). OCH UTTAG ÄR LÄTÅTKOMLIGA, NÄR Der arbeitsplatzbezogene Schalldruckpegel DU STÄLLER DIN UTRUSTNING PÅPLATS.
- Page 22 For more information about where you can drop off your waste equipment for recycling in India please visit the below web link. http://www.india.philips.com/about/sustainability/ recycling/index.page...
- Page 23 5. Regulatory Infomation How to connect a plug 根 据 中 国 大 陆 《 电 子 电 气 产 品 有 害 物 质 限 制 使 用 标 识 要 求 》 （ 也 称 为 中 国 大 陆 The wires in the mains lead are coloured in RoHS），以下部分列出了本产品中可能包...
-
Page 24: Customer Care And Warranty
6.1 Customer Care & Warranty For warranty coverage information and additional support requirement valid for your region, please visit www.philips.com/support website for details. You may also contact your local Philips Customer Care Center number listed below. Contact Information for WESTERN EUROPE region:... - Page 25 Estonia FUJITSU +372 6519972(workshop) Georgia Esabi +995 322 91 34 71 +36 1 814 8080(General) Hungary Profi Service +36 1814 8565(For AOC&Philips only) Kazakhstan Classic Service I.I.c. +7 727 3097515 +371 67460399 Latvia ServiceNet LV +371 27260399 +370 37 400160(general)
- Page 26 Tel: +852 2619 9639 Macau Technology Ltd. Sat. 9:00am-1:00pm Macau:Tel: (853)-0800-987 Tel: 1 800 425 6396 India REDINGTON INDIA LTD Mon.~Fri. 9:00am-5:30pm SMS: PHILIPS to 56677 +62-21-4080-9086 (Customer Mon.~Thu. 08:30-12:00; PT. CORMIC SERVISINDO Hotline) Indonesia 13:00-17:30 PERKASA +62-8888-01-9086 (Customer Fri. 08:30-11:30; 13:00-17:30 Hotline) Mon.~Fri.
-
Page 27: Troubleshooting & Faqs
Disconnect the USB docking stand from show all available options. the main power source immediately for safety. HDCP content is not able to display on the • Contact with Philips customer service attached monitor. representative immediately. • Check that the attached monitor is HDCP compliant. - Page 28 © 2015 Koninklijke Philips N.V. All rights reserved. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license from Koninklijke Philips N.V. Specifications are subject to change without notice. Version: M4SB4B1928UE1WWT...
