HP ProLiant ML150
Generation 5 Server
Installation Sheet
Part number: 457547-002
May 2008 Second edition
Configuring the server
Refer to the HP ProLiant ML150 Generation 5 Server Support CD
contents for additional information and updates not provided in this
installation sheet.
1.
Connect the keyboard, mouse, and monitor
2.
To determine the BIOS version:
a. Power up the server.
b. Press the Esc key at the HP logo screen, and then press the
Pause key to halt screen movement.
c.
Note the server BIOS version. Verify the server BIOS
version against the latest BIOS version listed for this server
on the HP website:
d. If necessary, update the BIOS (refer to the HP ProLiant
ML150 Generation 5 Server Maintenance and Service
Guide available on the HP website:

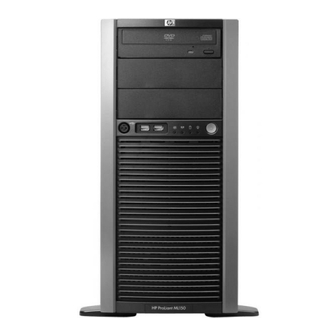

Identifying server components

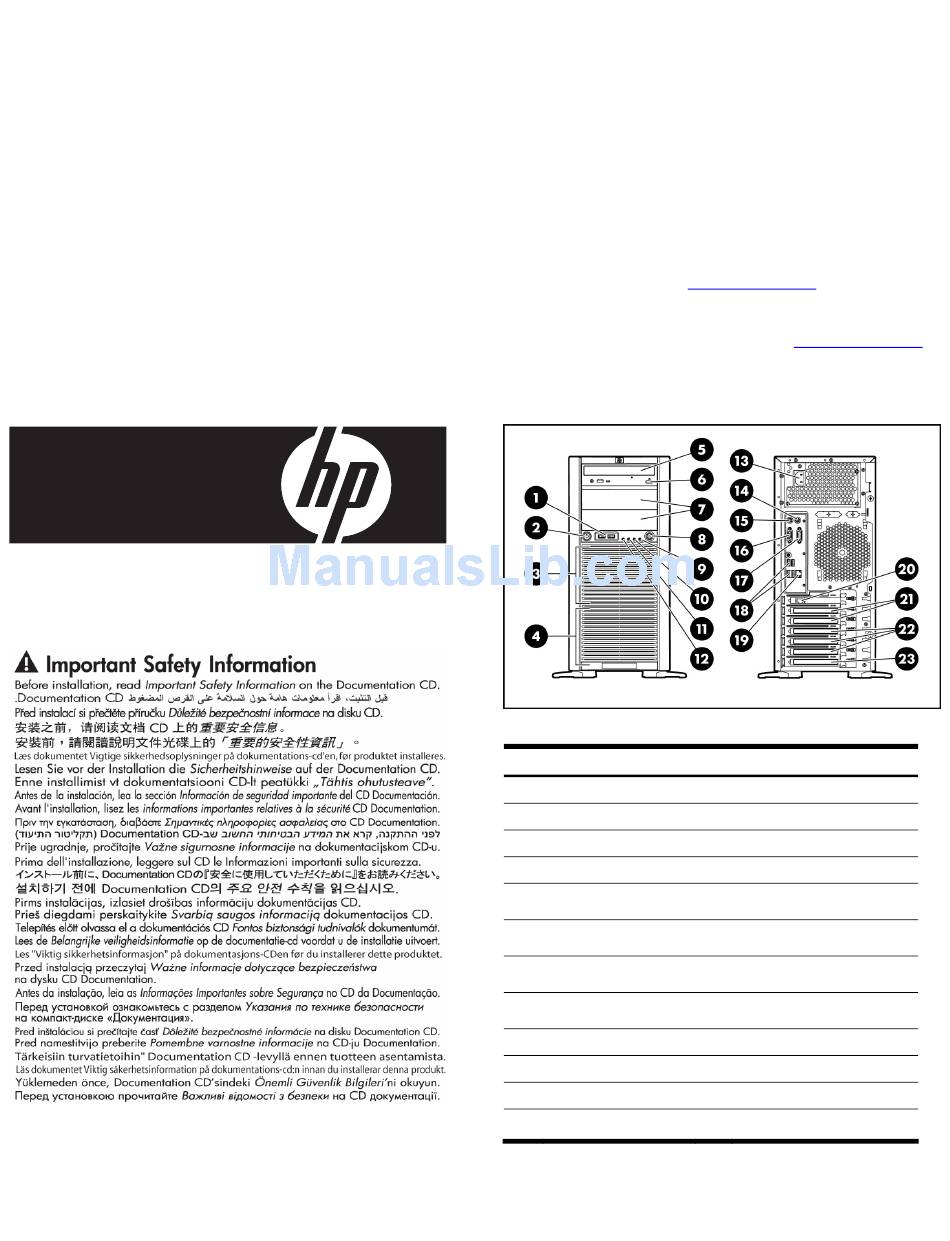

Figure 1 Front and rear panel components
Table 1 Front and rear panel components
Item
Description
1
USB 2.0 ports (2)
2
Front key lock
3
HDD bays 1-4
4
HDD bays 5-8
5
Optical drive bay
Media eject button
6
Half-height drive bays
7
8
System power button
9
System power LED
10
HD activity LED
11
NIC LED
12
System health LED
http://www.hp.com
http://www.hp.com
Item Description
13
AC input connector
14
Mouse connector
15
Keyboard connector
16
VGA monitor connector
Serial port connector
17
USB 2.0 ports (4)
18
NIC connector
19
IPMI connector (slot7)
20
21
PCIe x8 slots (2)
22
PCIe x4 slots (3)
23
PCI 2.3-compliant slot
--
--
