VX7020A

6.2" Double DIN Multimedia Receiver

DVD / NAV / SiriusXM-Ready®/ Built-in Bluetooth /

Pandora® / iPhone® - iPod® / USB / AV In

INSTALLATION GUIDE

The following items are supplied

with the VX7020A:

•

WARNING! Never install this unit where operation and viewing could interfere with

safe driving conditions.

What's in the Box

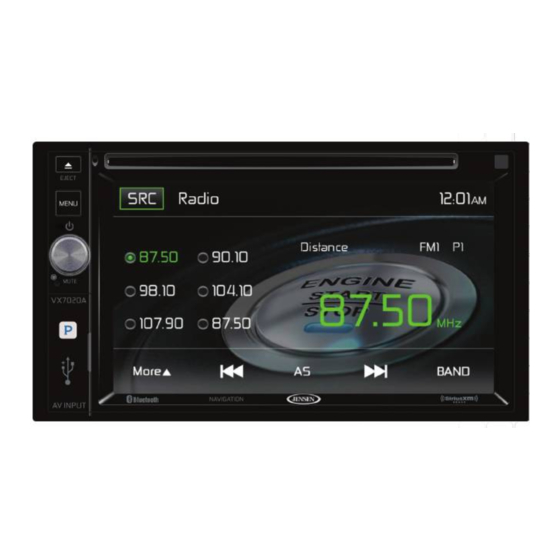

VX7020A Head Unit

Trim Rings

Hardware

Power / Speaker Output / Accessory Harness

Remote Control

External Microphone

GPS Antenna

Operation / Navigation Manual / Warranty Card

Installation Guide

Table of Contents

Page 1: Installation Guide
DVD / NAV / SiriusXM-Ready®/ Built-in Bluetooth / Pandora® / iPhone® - iPod® / USB / AV In INSTALLATION GUIDE What’s in the Box The following items are supplied with the VX7020A: • VX7020A Head Unit Trim Rings • •...
Page 2: Optional Equipment
ISO-DIN Installation The VX7020A is designed to fi t into a 2.0 DIN dashboard opening. The unit has threaded holes in the chassis side panels which may be used with the original factory mounting brackets of some Toyota, Nissan, Mitsubishi, Isuzu, Hyundai and Honda vehicles to mount the radio to the dashboard.
Page 3: Wiring Diagram
Wiring Diagram CAUTION! IMPORTANT: Incorrect wiring connections can damage the unit. Follow the wiring instructions carefully, or have the installation handled by an experienced technician. Yellow RCA - Rear Camera Black DIN Cable - SiriusXM Black Female 3.5mm - BT Microphone Black 1mm Wire - BT Antenna...
