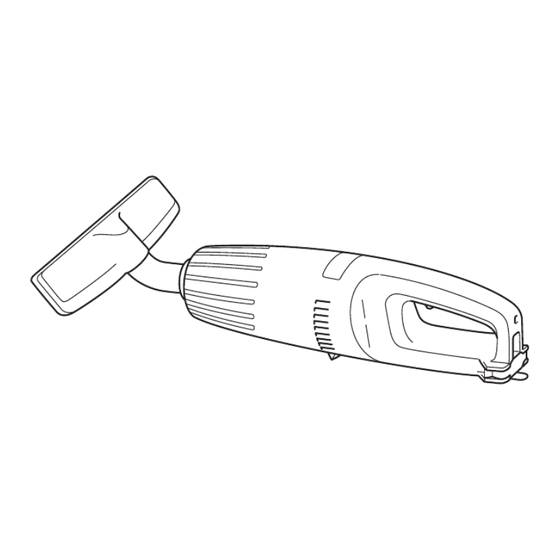

Cordless Cleaner
Dimensions IL
x W x
H )
3 6 5 mm x 102
mm x
108 mm
!
114
318" x
4"
x 4-1/4")
Capacity
600 mi
HANDY VAC II
MODEL 4071D
Net
weight
0 6 kg
I1
3 Ibs)
INSTRUCTION MANUAL
SPEC I F I CAT1
0
N S
~~
* Manufacturer reserves the right t o change specifications without notice
*
Note Specifications may differ from country t o country

Advertisement

loading

Related Manuals for Makita HANDY VAC II 4071D

Summary of Contents for Makita HANDY VAC II 4071D

  • Page 1 Cordless Cleaner HANDY VAC II INSTRUCTION MANUAL SPEC I F I CAT1 Capacity 600 mi * Manufacturer reserves the right t o change specifications without notice Note Specifications may differ from country t o country Dimensions IL x W x 3 6 5 mm x 102 108 mm mm x...

  • Page 2: Important Safety Instructions

    SAFETY INSTRUCTIONS When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE WARNINGTO injury: not leave appliance when the battery cartridge is installed. Remove the battery cartridge from your appliance when n o t before servicing.
  • Page 3 IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS - T h i s Length of Cord (Feet) AWG Size of Cord...
  • Page 4 ADDITIONAL SAFETY RULES FOR CHARGER & BATTERY CARTRIDGE Do not charge Battery Cartridge w h e n temperature is BELOW 10°C (5OOF) or ABOVE 4OoC (104OF). Do not attempt t o use a step-up transformer, an engine generator or DC power receptacle.
  • Page 5 Installing or removing battery cartridge *Always switch off the tool before inser- tion or removal of the battery cartridge. To remove the battery cartridge, pull out the set plate on the tool and grasp both sides of the cartridge while withdrawing i t from the barrel.
  • Page 6 Switch action To start the tool, simply pull Release the trigger StOD. CAUTION Before operation, always check to be sure that the filter and pre-filter are correctly in- stalled, or dirt and foreign matter will get into the motor and cause a failure. Cleaning (Suction) Nozzle Attach the nozzle to clean off tables, desks,...
  • Page 7 Crevice tool Fit on the crevice tool attachment for cleaning corners and crevice tool of a car or furniture. Sand and other heavy items can be sucked up easily. Crevice tool Extension wand In tight quarters where the cleaner itself cannot squeeze in, or in high places hard to reach, the extension wand may be used.
  • Page 8 Dust disposal Raise the end of the cleaner so that the contents will not fall out. Then tap hand the side of the capsule 4 or 5 times in order to detach materials from the pre- filter and filter and facilitate emptying. Tip end of cleaner (with suction hole) down and unscrew capsule as indicated in arrow direction.
  • Page 9 Turn the pre-filter and pull you, emptying out the fine dust inside. Then take out the filter and tap out any adhering dust. After emptying out the cleaner, re-assemble in the order shown in the figure. 1 . Fit filter snugly on all the way. 2.
  • Page 10 Do not use oil, benzine, thinner or the like to clean off the cleaner itself. Cracks or dis- coloration will result. To maintain product SAFETY and RELIABILITY, repairs, maintenance or adjustment should be performed by Makita Authorized or Factory Service Centers, always using Makita replacement parts. Never use an electric washer...
  • Page 11 ACC ESSO R I ES CAUTION These accessories attachments are recommended for use with your Makita tool specified in this use of manual The any other accessories The accessories or attachments should be used only in the proper and intended manner.
  • Page 12 J a n . - 0 8 ' 8 7 CORDLESS CLEANER Model 4071D Note: The switch and other part configurations may differ from country to country.
  • Page 13 Hanger Screw 3 x 2 0 Tapping Filter Filter Stop Ring CS Valve Capsule Housing Set I W i t h Item 31...
  • Page 14 ”Tools-Electric’ ! MAKITA LIMITED ONE YEAR WARRANTY I,.very Makita tool is thoroughly inspected and tested before leaving the factory. It is warranted to be free defects from workmanship and materials for the period of ONE YEAR from the date of original purchase.
