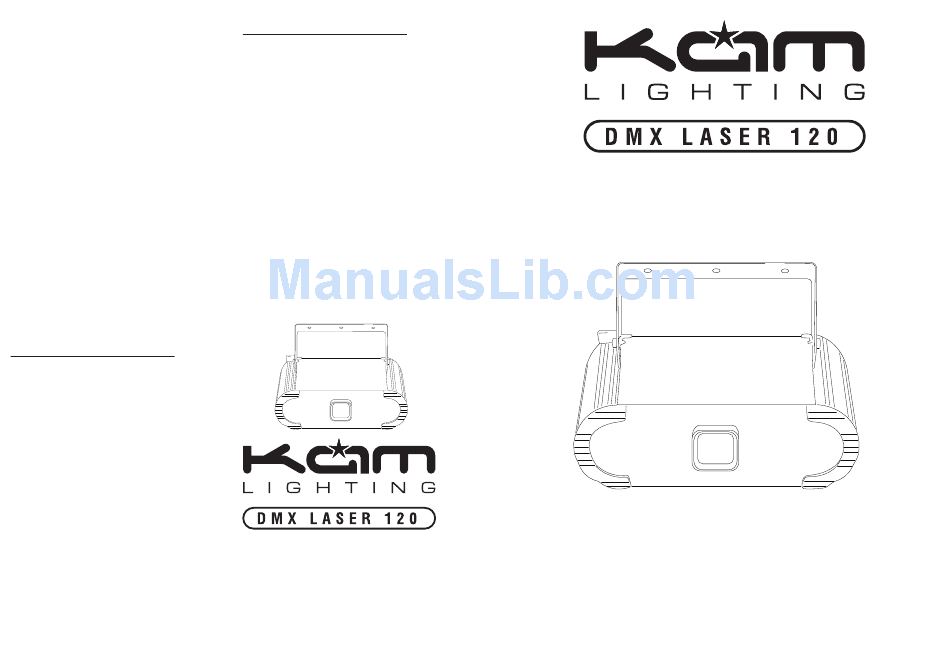

KAM DMX LASER 120 PRO Instruction Manual

Remarks:
G DIP SWITCH NO.1 & NO.10 in "ON" control via
dmx controller
G DIP SWITCH NO.1 & NO.10 in "ON".
The mini-controller can be use to control the
laser light.
G When using DMX, the mini-controller function
is not available. When using mini-controlle
control, the DMX is not available.
G When not using any controller to control laser
, set DIP SWITCH No.1 "ON", then the laser light
will be in automatic mode
G Link laser to master & slave by DMX control,
Master & slave DIP SWITCH setting to No.1 &
NO.10 in "ON", then all lasers will show same
patterns & work together in sync.
G Link laser to master & slave by DMX control,
Master laser DIP SWITCH setting to No.1 & NO.10
in "ON", slave lasers DIP SWITCH setting will
follow laser function
G Use DMX channel binary numbers to set
different head addresses in each unit. Then all
lasers will show different patterns via DMX
controller programming
G When no using any controller to control laser,
the laser will be in automatic and sound active
mode. The laser can be linked in master and
slave mode. From master 5-XLR to slave 3-XLR.
THE DIP SWITCH SETTINGS
Master DIP SWITCH address: NO.1
and NO.10 in "OFF".
All slaves DIP SWITCH address: NO.2 in "ON".
G The DMX LASER 120 PRO is designed with a
blackout function.
A: When no sound is present the laser will go into
blackout mode
B: When the sensitivity is set to low the laser will
go into blackout mode
C: When no DMX signal, the laser will go into
blackout mode
D: When OFF DMX signal, the laser will go into
blackout mode
E: Under DMX signal control to Manual with
sound active mode, blackout function is not
available.
Technical Specification
Operation Voltage: AC 220/240V/50Hz
Working power: 30W
Laser Wavelength: 532nm
Laser power: 120mW
Laser class: Class IIIb
Fuse: 3A F
Insulation Resistance: >2M
Channels: 12 channels
Control signal: DMX512 signal
Control mode: Mini-Controller/Sound
active/Automatic DMX Linkable
Net weight: 4.20Kg
Dimensions: 225x300x280mm
Attention: The laser light is designed indoor use
only Working temperature in 10° ~ 60°C.
Due to continuous product
development, specifications
and appearance are subject to
change. E&O E.
