Summary of Contents for Kaption Audio 570-DZR600X1

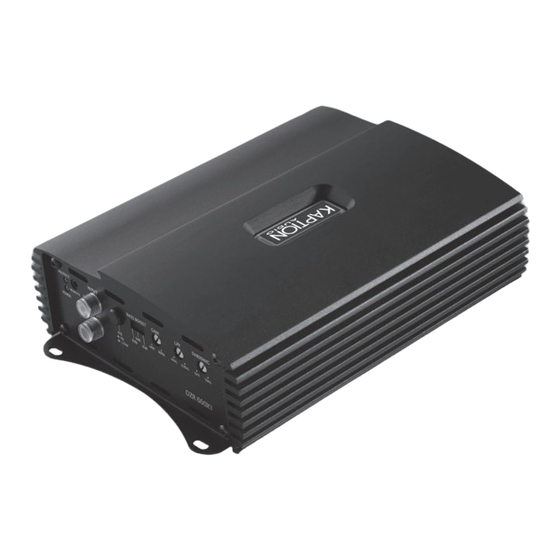

- Page 1 Mono Block Amplifier Owner’s Manual 570-DZR600X1 570-DZR1200X1...
-
Page 2: Limited Warranty
Mono Block Amplifiers Introduction: Congratulations on your new purchase of Kaption Audio amplifier. These amplifiers are engineered to reproduce music that is so detailed, you will hear music in a whole new truly superior product. We always recommend you have these amplifiers installed by an authorized Kaption Audio dealer. -
Page 3: Pre-Installation
Mono Block Amplifiers ArNINg NvEsTIgATE ThE lAyOUT Of yOUr AUTOmOBIlE ThOrOUghly BEfOrE drIllINg Or CUTTINg ANy hOlEs sE ExTrEmE CArE WhEN yOU WOrK NEAr ThE gAs TANKs gAs Or hydrAUlIC lINEs ANd ElECTrICAl WIrINg lWAys mAKE sUrE ThE mplIfIEr Is sECUrEly mOUNTEd OUNTINg ThE mplIfIEr sECUrEly TO ThE AUTOmOBIlE WIll prEvENT dAmAgE TO ThE CAr Or INjUry TO A pErsON... - Page 4 Mono Block Amplifiers 570-DZR600X1 Parts List • 600w Mono Block Amplifier • Wired Bass remote control • High level-In wire adapter • Hardware pack 7.58 2.40 8.74 6.06 570-DZR1200X1 Parts List • 1200w Mono Block Amplifier • Wired Bass remote control •...
-
Page 5: Speaker Terminals
Mono Block Amplifiers Controls and wiring locations 1. Speaker Terminals Terminals outputs to amplifier. See wire diagrams for the type of sub- woofer the amplifier will be connected to. 2. +12 Volt Power connection. Th amplifier must be connect to the positive terminal on the vehicle’s battery. - Page 6 The boost frequency is centred at 50Hz. 9. Auto Sensing (AS) selector switch (570-DZR600X1 model only) When the AS level switch button is sticking up for “LOW”; the amplifier is set for low level input. The amplifier REM connection is required to Remote Turn-on from the source unit When the AS level switch button is pushed in for “HI”;...
- Page 7 If the source unit is not equipped with RCA outputs, The 570-DZR600X1 amplifier can be connect to the source unit to the high level (speaker connection) by following the high level setup below. • LOW LEVEL: Using RCA Connections (Low level input): If the source unit has RCA outputs, simply attach a signal cable from the source unit to the amplifier’s RCA input.
- Page 8 Mono Block Amplifiers High Level In adapter wire setup High Level In adapter Use the high level output from the source unit and the HIGH LEVEL-IN ADAPTER supplied with the amplifier. Splice the source unit speaker wires to HIGH LEVEL-IN ADAPTER’S terminal block on the adapter. Be sure to connect the car audio’s system (+) wiring to the terminal block (+) and the (-) car audio system to the (-) terminal block for each the LEFT (L) and RIGHT (R).
- Page 9 Mono Block Amplifiers Model 570-DZR600X1 570-DZR1200X1 Cable Size 4ga AWG 4 - 2ga AWG Fuse 60 amps 150 amps • REM (Item 3): This connection turns the amplifier on and off with a low level input. Connect the REM to the source unit’s remote-turn-on output.
-
Page 10: Speaker Wiring Diagram
Mono Block Amplifiers Speaker wiring diagram Single Woofer setup FUSE SOURCE UNIT - 9 -... - Page 11 Mono Block Amplifiers Dual Woofer setup FUSE SOURCE UNIT - 10 -...
-
Page 12: Troubleshooting Guide
Mono Block Amplifiers Troubleshooting Guide Problem Causes and solutions Power indicator is not lit A. Check +12 volt wire fuse blown and replace if needed B. Check remote turn on +12V and GND connections ensure the ground is secured to clean metal on the vehicle chassis. C. -
Page 13: Specifications
Mono Block Amplifiers Specifications Model 570-DZR600X1 570DZR1200X1 Description 600W Mono Block 1200W Mono Block Continuous 1Ω load 1800W RMS Power @ 14.4V 2Ω Load 600W RMS 1000W RMS 4Ω Load 400W RMS 650W RMS Features Minimum Load 2 Ohm 1 Ohm Low Input Level 0.2 ~ 5V... -
Page 14: Limited Warranty Information
In order to receive service, proof of purchase is required stating the customers name, dealer name, product purchased and date of purchase. Products found to be defective during the warranty period will be repaired or replaced with a product deemed to be equivalent at Kaption Audio’s discretion. What is not covered 1. -
Page 15: Warranty Registration Card
KAPTION AUDIO PRODUCTS COME WITH A ONE-YEAR PARTS AND LABOUR LIMITED WARRANTY. This warranty covers the original purchaser of a Kaption Audio product, purchased from an authorized Kaption Audio dealer. In order to receive service, proof of purchase is required stating the customers name, dealer name, product purchased and date of purchase. - Page 16 Kaption Audio 95 Cousins Drive Aurora, Ontario Canada, L4G 1B5 www.KaptionAudio.com 866-Kaption (527-8466) Designed in Canada; Made in China R0 (04/15)
