Summary of Contents for Airflow Aura-eco

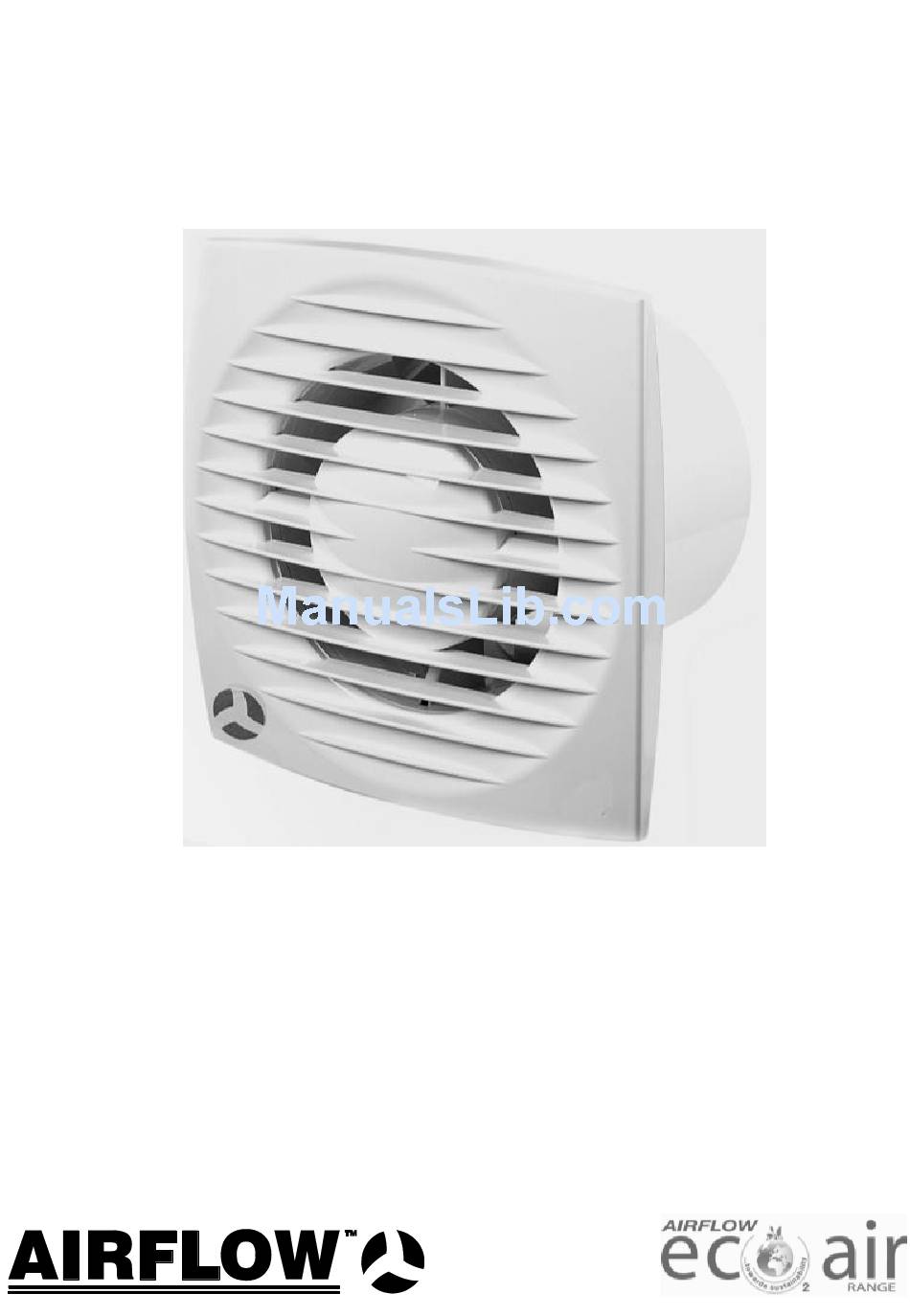

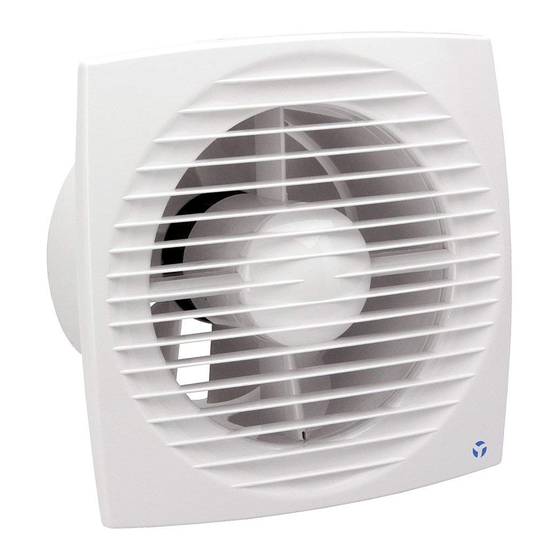

- Page 1 9041411 INSTALLATION & OPERATING INSTRUCTIONS Aura-eco 100mm & 150mm Axial Fans...
- Page 2 Introduction This Service Instructions are combined with technical specification, operating guide and specification for the “Aura-eco ” fan; it contains information on installation, that are important for ensuring correct and safe operation of the fan. Designation Fans are designed for ventilation of...
- Page 3 The options arrangement of the fans is given in the table 1. Table 1 Adjustable timer (2-30) minutes Timer with humidity sensor Timer with motion sensor Key features The fans' designation, their characteristics, appearance, overall and connection dimensions are listed in the tables 2,3 and at the Fig. 1,2. The fans are designed for the connection to the AC network with the voltage of 220-240 V and current frequency of 50 Hz.
- Page 4 Table 3 Dimensions, Weight, Type 0,56 Aura eco-air 100 Aura eco-air 150 Overall and connection dimensions Fig. 1- Timer with motion sensor Fig.
-
Page 5: Safety Requirements
SAFETY REQUIREMENTS The fan “Aura-eco” complies with the requirements according to the EU norms and directives. Level of protection from access to hazardous parts and waterproof is to IPX4 Connection of fans supplied with the electric cords to power supply as well as replacement of electric cord should be perfomed by a competent person (Part P) and in accordance with latest IEE wiring regulations. - Page 6 Diagrams of the connection to electric supply Diagram of the connection of “Aura-eco” fan without built-in switch, where B is an external connection of switch “Aura-eco” fan 100/150 B Diagram of the connection of “Aura-eco” fan with timer / timer with humidity sensor, with...
- Page 7 USER MAINTENANCE AND SENSOR ADJUSTMENT Before starting work ensure the fan is disconnected from the power supply. Cleaning should be done with a soft cloth wet with soap solution; after that, the surfaces should be rubbed dry. The blades of the fan need careful cleaning each 6 months.
- Page 8 Fig. 6 Fig. 7...
- Page 9 Fig. 8 Fig. 9...
- Page 10 Fig. 10...
- Page 11 Warranty: Applicable to units installed and used in the United Kingdom Airflow guarantees the Aura eco-air for 2 years. The guarantees can be upgraded to 3 years upon registering on our website airflow.com from date of purchase against faulty material or workmanship.
