VIZIO

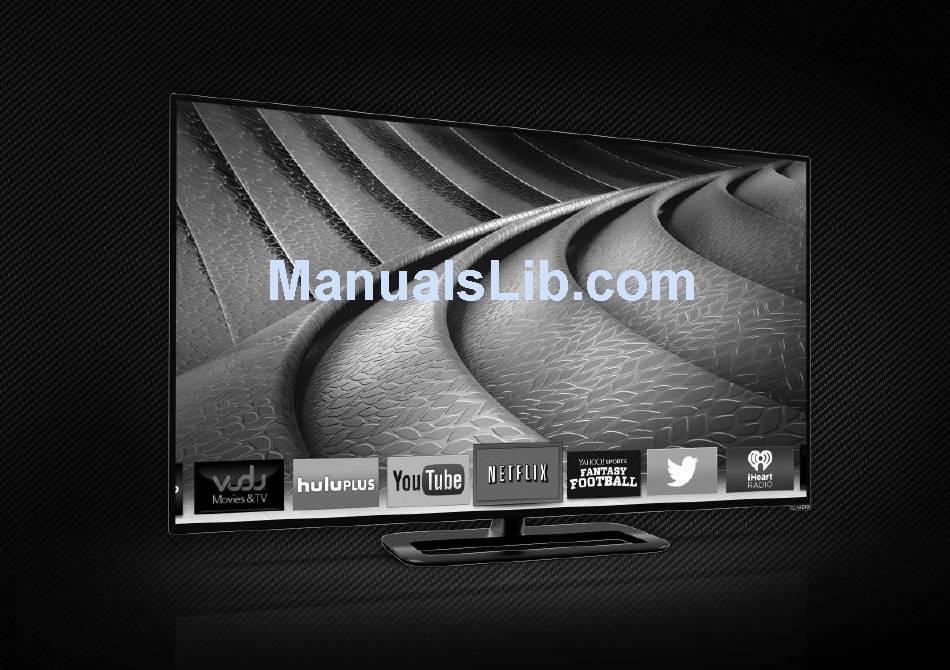

QUICK START GUIDE
Model: P602ui-B3 & P702ui-B3
1

Advertisement

Table of Contents
loading

Related Manuals for Vizio P602ui-B3

Summary of Contents for Vizio P602ui-B3

  • Page 1 VIZIO QUICK START GUIDE Model: P602ui-B3 & P702ui-B3...

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Your TV is designed and manufactured to operate within defined design limits. Misuse may result in electric may cause fire or electric shock. shock or fire. To prevent your TV from being damaged, the following instructions should be observed for the •...
  • Page 3 TELEVISION ANTENNA CONNECTION PROTECTION Ground Clamp Antenna Lead In Wire Antenna Discharge Unit (NEC Section 810-20) Grounding Conductors (NEC Section 810-21) Ground Clamps Power Service Grounding Electrode System (NEC ART 250, part H) Electric Service Equipment • If an outside antenna/satellite dish or cable system is to be connected to •...

  • Page 4: Table Of Contents

    Using the Remote ............... 8 First-Time Setup ..............10 Connecting to the Internet with Wi-Fi ........ 16 Viewing the On-Screen User Manual ........ 18 Getting Started with VIZIO Internet Apps Plus ....20 ® Viewing Ultra HD Content ..........22 Help Topics .................

  • Page 5: Package Contents

    PACKAGE CONTENTS VIZIO LED UHDTV with Stand This Quick Start Guide Two-Sided Remote with Keyboard (Batteries Included) Power Cord 4 x M5 20mm 4 x M5 23mm Phillips Screws Phillips Screws...

  • Page 6: Installing The Base

    INSTALLING THE BASE It is recommended that two people Align the neck piece with the back of the TV. take part in the base installation. Use a Phillips screwdriver to insert and tighten Place the TV screen-down on a clean, flat four (4) M5 x 20mm Phillips screws into the holes surface.
  • Page 7 Align the base with the neck piece. Use a Phillips screwdriver to insert and tighten four (4) M5 x 23mm Phillips screws into the holes at the bottom of the base. When you are finished, place the TV on a stable, level surface.

  • Page 8: Using The Remote

    Navigate the on-screen menu. GUIDE Select the highlighted menu option. Display the info window. V BUTTON BACK Open the VIZIO Internet Apps Go to the previous on-screen menu. Plus dock. VOLUME UP/DOWN CHANNEL UP/DOWN Increase or decrease loudness of the Change the channel.
  • Page 9 DO NOT COVER THIS AREA The IR blaster is located here. ARROW SHIFT Navigate the on-screen Press and hold while pressing Press and hold while pressing another menu. another key to enter a key to enter a blue character. For capital letter.

  • Page 10: First-Time Setup

    FIRST-TIME SETUP Connect all of your devices first. Choose ONE connection type for each device. (Cables are not included) White White Match colored connectors to colored ports. Blue Yellow Green Connect to HDMI 5 Port: BACK OF TV...
  • Page 11 Commonly-Connected Devices: AV CABLE • ANALOG • SD VIDEO (480i) GOOD • STEREO AUDIO Cable or Satellite Boxes COMPONENT CABLE • ANALOG BETTER Blu-ray or DVD Players ™ • HD VIDEO (1080p) • STEREO AUDIO COAXIAL CABLE • ANALOG/DIGITAL BETTER •...
  • Page 12 TV as Plug the power cord into an electrical outlet. shown. For the best Smart TV experience, VIZIO recommends using an Ethernet cable. However, your TV also has built-in Wi-Fi. See the Connecting to the Internet with Wi-Fi section...
  • Page 13 Press in on the button Lift the cover up to remove on the rear of the remote. the battery cover.
  • Page 14 Replace the battery cover Insert two batteries into the remote control. Make sure that the (+) and (-) symbols on the batteries match the (+) and (-) symbols Turn the TV on by pressing inside the battery compartment. the Power Button.
  • Page 15 Choose your mode. Select Store Demo for in-store display. Select Home Use for in-home use. Seleccione "Home Use" para Modo de Casa o "Store Demo" para Demostración en la Tienda. Choisissez "Home Use" pour le Mode Domicile ou "Store Demo" pour la Démo en Magasin. Store Demo Home Use The Guided Setup App is displayed.

  • Page 16: Connecting To The Internet With Wi-Fi

    CONNECTING TO THE INTERNET WITH Wi-Fi VIZIO VIZIO If you have already set up a wireless TV SETTINGS GUIDED SETUP connection during the first-time setup, you Wide Zoom Normal Panoramic Wide Picture Tuner Setup can skip this section. Audio Network Setup...
  • Page 17 If you are having trouble connecting to your network, check your router placement: • Walls and large metal objects can block the signal. • Other devices broadcasting at 2.4 or 5 GHz can interfere with the signal. • Wall blocks signal •...

  • Page 18: Viewing The On-Screen User Manual

    VIEWING THE ON-SCREEN USER MANUAL The full user manual is located in the TV Settings menu. The user manual contains information regarding the features of your TV along with a guided setup. VIZIO MENU TV SETTINGS Button Wide Zoom Normal...
  • Page 19 Note: Content location, appearance, and availability subject to change without notice. Use the Up and Down Arrow Buttons to select the chapter you want to view. Use the Left and Right Arrow Buttons to browse through the pages in each chapter. Press the EXIT Button to exit the on-screen User Manual.

  • Page 20: Getting Started With Vizio Internet Apps Plus

    GETTING STARTED WITH VIZIO INTERNET APPS PLUS ® VIZIO Internet Apps Plus (V.I.A. Plus) delivers ® popular online content to your TV. V.I.A. Plus features a selection of Apps that allow you to watch movies and TV shows, listen to music, get weather and news information, and more–all on demand.
  • Page 21 The fullscreen V.I.A. Plus Apps window allows you to add and store apps. The Apps on the first page are displayed in the Dock and Apps on additional pages can be moved to the Dock. Press the V Button twice to launch the fullscreen V.I.A. Plus Apps window. My Apps Tab Displays the apps installed...

  • Page 22: Viewing Ultra Hd Content

    HDMI movies, and sports upscaled and the latest Wi-Fi standard standard and HDCP 2.2* delivers to beautiful Ultra HD resolution 802.11ac (that’s Ultra HD playback from next-gen with VIZIO's Spatial Scaling faster than 802.11n), P-Series cable satellite receivers, Engine (SSE).
  • Page 23 VIZIO RECOMMENDS VIZIO 8 FT. HIGH-SPEED HDMI CABLE – E-SERIES ® This 8 ft. high-speed HDMI® cable is ideal for HDTVs. Supporting 1080p and 4k x 2k Ultra High Definition resolutions, the E-Series HDMI cable provides picture-perfect HD video, 3D, and superior audio, all at up to 18 Gbps. This all-in-one cable also supports advanced 7.1 surround sound and Audio Return Channel, eliminating the need for...
  • Page 24 5.1 HOME THEATER SOUND BAR WITH WIRELESS SUB & SATELLITE SPEAKERS For the pinnacle of surround sound immersion and convenience, the VIZIO 5.1 Sound Bar sets the bar exceptionally high. Designed to fit any medium to large sized HDTV, this sound bar comes with a wireless subwoofer, rear satellite speakers and is packed with the latest in Dolby and DTS audio technology.
  • Page 25 54” 3.0 HOME THEATER SOUND BAR WITH INTEGRATED DEEP BASS Upgrade your big screen with big audio from VIZIO’s 54” 3.0 Sound Bar with High Performance Bass. Designed for large HDTVs, this three-channel sound bar provides room filling sound and features deep bass technology that adds low end frequency without the need for an external subwoofer.
  • Page 26 Customized Support Get assistance quickly with your information on-hand. News & Offers Take advantage of the latest news and special offers from VIZIO. Safety & Satisfaction Stay up to date with important product updates and notifications. REGISTER YOUR VIZIO PRODUCT NOW...
  • Page 27 Do You Have Questions? Find Answers At SUPPORT.VIZIO.COM Find help with: • New Product Setup • Connecting Your Devices • Technical Problems • Product Updates • And More Live Chat Support Available You can also contact our award-winning support team at:...

  • Page 28: Help Topics

    HELP TOPICS • The on-screen menu has guided setup. Press MENU, then select Guided Setup. Select the type of setup you need and press OK. The Setup App will begin. How do I return to the To reset the TV to factory defaults, press MENU > System > Reset & Admin > Reset TV to Factory Defaults. •...

  • Page 29: Legal / Compliance

    Sunday, Central Time, or visit www.VIZIO.com. PRE-AUTHORIZATION MUST BE OBTAINED BEFORE SENDING ANY PRODUCT TO A VIZIO SERVICE CENTER. Proof of purchase in the form of a purchase receipt or copy thereof is required CHECK WWW.VIZIO.COM FOR THE MOST CURRENT VERSION.
  • Page 30 VIZIO Technical Support will provide instructions for packing to send the unit to a VIZIO service center. VIZIO will cover the transportation charges to and from the same customer and shipping the covered Product to the VIZIO service center.
  • Page 31 If a Product covered by this warranty is determined to be defective within the warranty period, VIZIO Sales & Marketing México S. de. R.L. de C.V. will either repair or replace the unit at its sole option and (c) When the Product has been altered or repaired by persons not authorized by VIZIO Sales &...
  • Page 32 © 2014 VIZIO INC. ALL RIGHTS RESERVED. 140815OC-US-NC...
