V
:
12016
ersion
uk
r
:
#100-2010
eVision
e
:
12/09
dition
cd

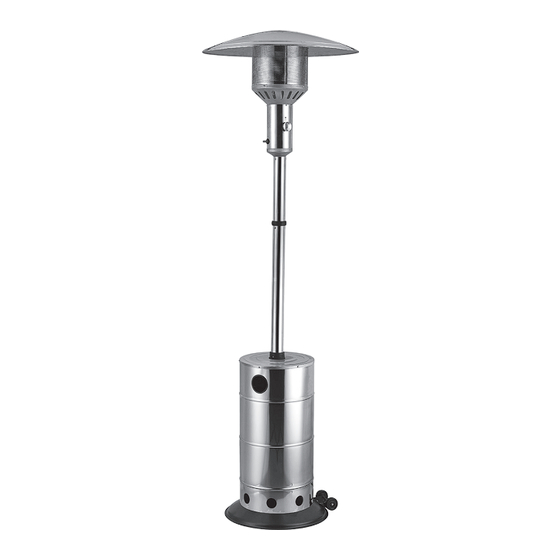

Assembly and operating in-
structions for patio heater, item
Failure to observe these instructions can affect or damage the device and other objects and lead to
We therefore recommend that you read the relevant chapter of these instructions prior to assembly
and before each use. Follow the steps in the order they are specified and please observe the safety
These instructions form part of the product. They should therefore always be stored with the product
no. 12016
Please read before starting!
personal injury.
warnings.
and should be passed on to each subsequent user.
Advertisement
Table of Contents
Summary of Contents for Landmann 12016
- Page 1 Assembly and operating in- structions for patio heater, item no. 12016 Please read before starting! Failure to observe these instructions can affect or damage the device and other objects and lead to personal injury. We therefore recommend that you read the relevant chapter of these instructions prior to assembly and before each use.
-
Page 2: Table Of Contents
Operation ..........................18 Starting up the heater ....................... 18 Switching off the heater ....................19 Cleaning ..........................20 Heater ..........................20 Maintenance ........................... 20 Environmental information and disposal measures..............20 Troubleshooting ........................21 Declaration of Conformity ....................... 22 2 Landmann... -
Page 3: Technical Specifications
-approved pressure regulator Flow rate max. 1.5 kg/h Operating pressure 28-30 mbar at butane, 37 mbar at propane Gas hose -approved hose (max 1.5 m) Ignition Piezo ignition Flame regulation infinitely adjustable 0 - max. Nozzle diameter 1,88 mm Landmann... -
Page 4: Delivery Specifications
Connection for cylinder cham- Ø20xØ6,5x1,0 ber support Rubber attachment M6x15 lower column (long) Connection M5x15 upper column (short) M4x15 Cylinder chamber with cover Spanner Ø12xØ4,3x1,0 Burner unit Reflector, 3-piece Connection for reflector Connecting ring for reflector Pressure regulator 4 Landmann... - Page 5 Landmann...
-
Page 6: Exploded View
Exploded view 6 Landmann... -
Page 7: Function
Cut-off safety device with 2 settings: 9 o'clock setting: gas off / shut off gas cylinder 12 o'clock setting: Gas is on. gas cylinder with bottle valve Fuel container Gas hose with hose clip Directs gas to burner. Landmann... -
Page 8: Utilisation
• if technical alterations are made to the heater • if accessories are used that are not expressly authorised for this heater (if in doubt please ask our customer service department). • if LANDMANN GmbH & Co. KG original spare parts are not used. 8 Landmann... -
Page 9: Definition Of Terms Used
Danger ... a possible danger that can result in damage to property if the specified measures are not observed. Caution Operating notes Pictogram Note on ..a useful function or tip. Landmann... -
Page 10: Danger "Hot Surfaces And Parts
– the heater is positioned firmly on a sufficiently large surface area. It must not be moved during operation. Safety measures during operation: • Never leave the heater unattended. Take particular care to ensure that children and pets are kept at a safe distance from the heater. 10 Landmann... -
Page 11: Danger "Gas Is Highly Flammable
If the connections for the gas supply are porous or faulty, the heater must not be used. This also applies, for example, to hoses or fittings blocked by insects, as this can lead to a dangerous flashback. Landmann... -
Page 12: Danger "Gas Displaces Oxygen
– Fit the gas cylinder valve with a cap nut and safety cap. – Do not store the gas cylinder in rooms below ground level, in or near stairways, hallways or passages and thoroughfares between buil- dings. – Always store gas cylinders upright, even if they are empty! 12 Landmann... -
Page 13: Assembly
• Read the text for each step before carrying it out, as useful information is sometimes only provided at the end of the section. • Even if you are not experienced at DIY, assembly does not generally take more than one hour. Landmann... -
Page 14: Assembly Procedure
(4) align with the holes in the lower co- lumn (5). Now insert the lower column (long) (5) with the rubber at- tachment (4) onto the connecting element (3) and secure it in place using three M5x15 (f) cylinder head screws. 14 Landmann... - Page 15 (long) (5) until the three holes overlap. Secure the column (long and short) (5 +7) using M5x15 (f) bolts. 5. Slide the cylinder chamber (8) over the column (long and short) (5 +7) until it reaches the base. (1). Landmann...
- Page 16 (12) in place using Ø 6.5 (c) washers and M6 (b) bolts. 8. Feed the hose through the column (long and short) (5+7) and secure the burner unit (11) to the column (long and short) (5+7) using 3 M6x15 (d) hex bolts. (see Fig. d) 16 Landmann...
- Page 17 9. To connect a gas cylinder slide the cylinder chamber (8) upwards, connect the cylinder and position it between the cylinder chamber supports (3). Then lower the cylin- der chamber (8) over the gas cylinder until it comes into contact with the base (1). 10. Assembled gas patio heater. Landmann...
-
Page 18: Connecting And Disconnecting The Gas Cylinder
Please follow the operating instructions of the leak detector. The following parts are included in delivery. They comply with the standards applicable in the country to which they have been supplied by LANDMANN. Pressure regulator Preset and -approved pressure regulator, max. - Page 19 – Fit the gas cylinder valve with a cap nut and safety cap. – Do not store the gas cylinder in rooms below ground level, or in or near stairways, hallways or passages and thoroughfares between buildings. – Always store gas cylinders upright, even if they are empty! Landmann...
-
Page 20: Operation
11. When the burner has heated up sufficiently turn the flame regulator (B) to the desired setting (size of flame). 12. You can now place the food on the roasting tray (2). We recommend that you wear barbecue gloves or similar for protection against the heat. 20 Landmann... -
Page 21: Switching Off The Heater
• Check to ensure that all connections are present and are securely fastened. Tighten if necessary. Gas system The gas system needs to be checked every time a gas cylinder is connected (see chapter "Connecting and disconnecting the gas cylinder"). If necessary, replace the hose in order to comply with the corresponding national requirements. Landmann... -
Page 22: Environmental Information And Disposal Measures
Flashback caused by blo- 1. Close the cylinder valve im- ckages in the burner. mediately (turn G1 clockwise) 2. Wait for three minutes and start up the heater again. 3. If the malfunction reoccurs, disassemble and clean the burner 22 Landmann... -
Page 23: Declaration Of Conformity
Declaration of Conformity Landmann... - Page 24 Unit 1, Ryelands Business Centre, Ryelands Lane, Elmley Lovett, Worcs, WR9 0PT, United Kingdom e-mail: enquiries@landmann.co.uk, internet: www.landmann.co.uk Hotline Barbecue Helpline **44 - 12 99 - 25 17 47, Sales Office fax: **44 - 12 99 - 25 11 34 Monday to Thursday 9am to 5pm, Friday, 9am to 4pm.
