Motorola BLINK83-B User Manual

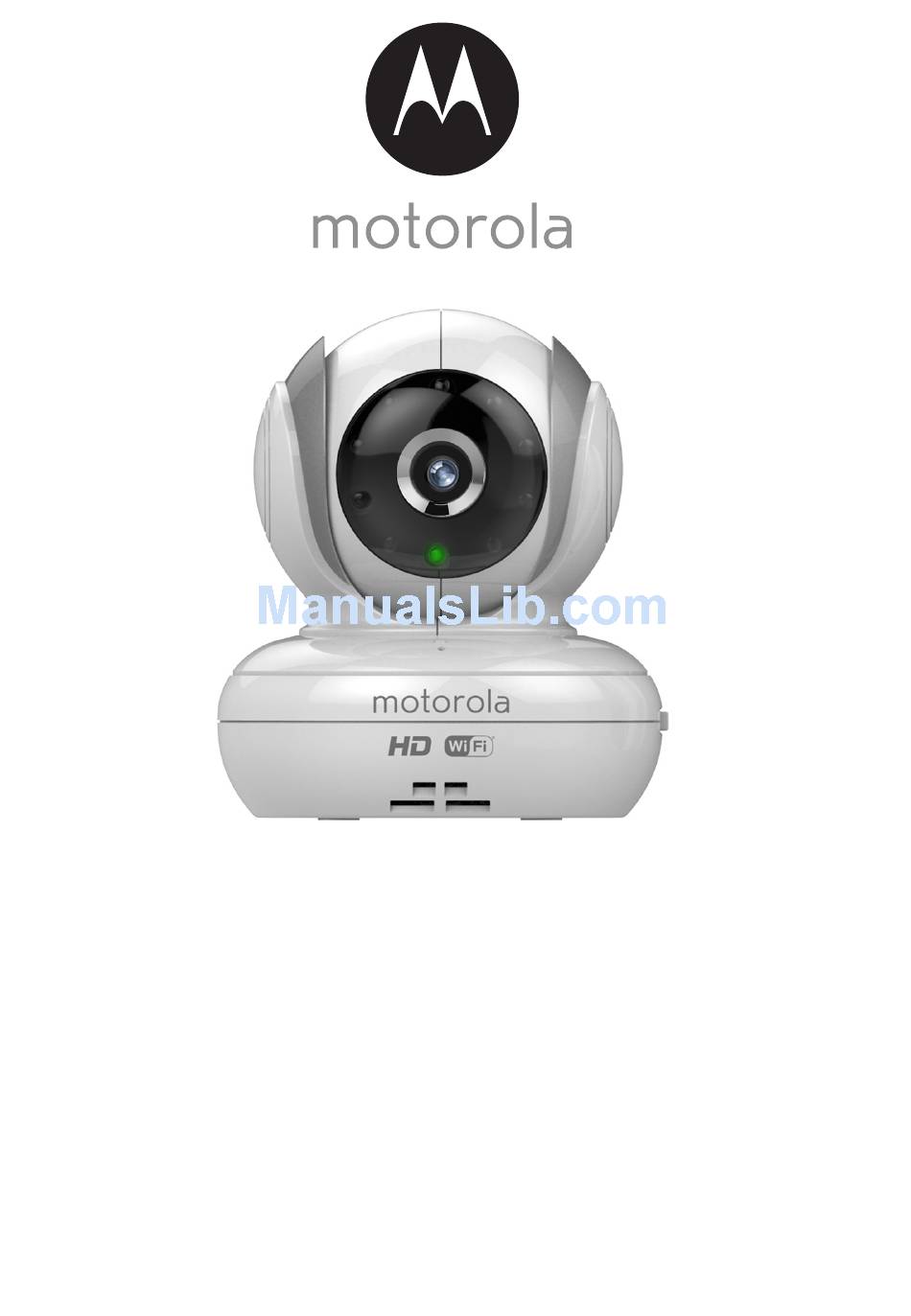

Wi-fi® video baby monitor camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

USER'S GUIDE
®
Wi-Fi
Video Baby Monitor Camera
Model: BLINK83-B, BLINK83-S, BLINK83-W
The features described in this user's guide are subject to modifications without prior notice.

Advertisement

Table of Contents
loading

Related Manuals for Motorola BLINK83-B

Summary of Contents for Motorola BLINK83-B

  • Page 1 USER’S GUIDE ® Wi-Fi Video Baby Monitor Camera Model: BLINK83-B, BLINK83-S, BLINK83-W The features described in this user’s guide are subject to modifications without prior notice.
  • Page 2 /iPad Please keep your original dated sales receipt for your records. For warranty service of your Motorola product, you will need to provide a copy of your dated sales receipt to confirm warranty status. Registration is not required for warranty coverage.
  • Page 3 Overview of your Camera PAIR Photo Sensor (Night Vision Mode) ON/OFF Switch Camera Lens Power Adapter Socket Infrared LEDs Antenna Power LED Temperature Sensor Microphone Pair Key Speaker ® Important guidelines for installing your Wi-Fi Camera Unit ® • Use of other 2.4 GHz products, such as other wireless networks, Bluetooth systems or microwave ovens may cause interference with this product.

  • Page 4: Table Of Contents

    Remove a Camera ..............23 4.2.3 Change your Account Information .......... 23 4.2.4 Camera Settings ............... 25 4.2.5 General Settings ............... 26 4.2.6 Features of the Hubble for Motorola Monitors application ..27 Camera Functions: ® ® Working with iPhone /iPad ..............31 4.3.1 Add more cameras ..............

  • Page 5: Safety Instructions

    1. Safety Instructions WARNING: Strangulation Hazard: Children have STRANGLED in cords. Keep this cord out of the reach of children (more than 3ft (1m) away). Never use extension cords with AC Adapters. Only use the AC Adapters provided. Safety Instructions...
  • Page 6 ® Wi-Fi CAMERA UNIT SET UP & USE: ® ● Choose a location for the Wi-Fi Camera which will provide the best view of your baby (or whatever else you intend to monitor). ® ● Place the Wi-Fi Camera Unit on a flat surface, such as a chest of drawers, desk, shelf or wall-mount it using the keyhole slot in the base.

  • Page 7: System Requirements

    2. System Requirements Web Portal ® • Windows systems, 7 or 8 (Java browser plug-in needed) ® • Mac OS version 10.7 or above ® • Internet Explorer version 8.0 or above ® • Firefox version 11.0 or above • Chrome™ version 18.0 or above ®...

  • Page 8: Getting Started - Connecting Devices

    3. Getting Started - Connecting Devices How does it work? Access your BLINK83 Camera View your Camera from any Camera locally compatible device remotely When a user tries to access the Camera, our secure server authenticates the user's identity to permit access to the Camera. Setup Connect the Camera to the power adapter, then plug it into a suitable electrical outlet and make sure the power switch is in the ON position.

  • Page 9: User Account And Camera Setup On Android™ Devices

    When you hear two beeps, this means the Camera is ready for setup. 3.2.2 Download Hubble for Motorola Monitors application • Go to the Google Play™ Store to search for “Hubble for Motorola Monitors” application. • Download the Hubble for Motorola Monitors application from the Google Play™...

  • Page 10: Run Hubble For Motorola Monitors Application On Your Android™ Device

    • Ensure your Android™ device is connected to your Wi-Fi router. • Run the Hubble for Motorola Monitors application and key in your Hubble account information, read through the Terms of Service then select “I agree to the Terms of Service” and tap on Create. (Picture A1) Note: If you have a Hubble for Motorola Monitors account, please select Already have a Account? to go to the next step.

  • Page 11: Add Blink83 Camera To Your Account

    3.2.4 Add BLINK83 Camera to your account • Your new account is created and you are automatically logged in. • Tap on Add Camera. (Picture A2) • Tap on Continue. (Picture A3) • Follow the on-screen setup instructions. (Picture A4) Getting Started - Connecting Devices...
  • Page 12 • Press and hold the PAIR button for 3 seconds at the bottom of the BLINK83 camera, you will hear a Beep tone and voice “Ready for pairing“ from the Camera unit, then tap on Search for Camera. • The App auto searches and connects to your Camera as in the pictures below (A5 &...
  • Page 13 ® • Select Wi-Fi Network and tap Continue, enter the password for the selected network then tap on OK. (Picture A7, A8) ® • Connecting the Camera to a Wi-Fi network takes a few the minutes and will show the connection status as displayed below. (Picture A9, A10) If the connection fails, please tap on the Retry button and repeat the steps in section 3.2.4.
  • Page 14 • Tap on the camera you wish to view from the camera tab to view the Camera’s video stream, the Camera’s green LED will start flashing. (Picture A11) • Tap on the Hubble logo to go back to the Camera tab for a list of available cameras.

  • Page 15: User Account And Camera Setup On Iphone /Ipad

    When you hear two beeps, this means the Camera is ready for setup. 3.3.2 Download Hubble for Motorola Monitors • Go to the App Store to search for the “Hubble for Motorola Monitors” application. • Download Hubble for Motorola Monitors application and install it on your ®...

  • Page 16: Run Hubble For Motorola Monitors Application On Your Iphone ® /Ipad

    Wi-Fi Router. • Run the Hubble for Motorola Monitors application and key in your Hubble account information, read through the Terms of Service then select “I agree to the Terms of Service” and tap on Create. (Picture i1) Note: If you have a Hubble for Motorola Monitors account, please select Already have a Account? to go to the next step.

  • Page 17: Add Blink83 Camera To Your Account

    3.3.4 Add BLINK83 Camera to your account • Your new account is created and you are automatically logged in. • Tap on Add Camera. (Picture i2) • Tap on “ BLINK83”. (Picture i3) FOCUS85 BLINK83 • Follow the on-screen instructions to turn on the Bluetooth™ function on your iPhone/iPad.
  • Page 18 • Tap on the Home button, then enter the “Settings” menu to turn on the Bluetooth™ function on your iPhone/iPad. • Press the HOME button to exit the Settings menu and tap on the “Hubble for Motorola Monitors” application to enter the start-up screen. Getting Started - Connecting Devices...
  • Page 19 • Follow the above steps to find your current Camera ID “CameraHD- ® ® xxxxxxxxxx” , then tap on Continue. Ensure your iPhone or iPad connected to the camera. (Picture i8) ® • Select Wi-Fi Network and tap Continue, enter the password for the selected network and tap Join.
  • Page 20 ® • Connecting the Camera to a Wi-Fi network takes a few minutes will show the connection status as displayed below (Pictures i11, i12). If the connection fails, please tap on the Retry button and repeat the steps in 3.3.4. •...

  • Page 21: Camera

    ON/OFF switch to OFF.) Camera Functions: Working with Android™ devices • Run the Hubble for Motorola Monitors application on your Android™ device. • The Camera view appears on the screen. 4.2.1 Add more cameras •...
  • Page 22 • Once a Camera has been added, the Camera view will be automatically displayed. Note : You can only have up to 4 cameras connected to one account. Camera...

  • Page 23: Remove A Camera

    4.2.2 Remove a Camera You can remove a Camera from your account by following these steps: • Tap the Settings icon on the Camera tab page, then tap on Remove Camera. (Picture A15) • Select Yes to delete the unit from the camera list. (Picture A16) 4.2.3 Change your Account Information You can change your account information using your Android™...
  • Page 24 • Enable Disconnect Alert : When disconnected, the Camera will give a "beep" alert. Enable the Disconnect Alert by selecting Yes. • Tap on Send Log to send your Hubble for Motorola Monitors application report to our server via e-mail; this should be sent if requested by a customer service agent.

  • Page 25: Camera Settings

    4.2.4 Camera Settings You can change the Camera Settings by tapping the Settings icon on the Camera tab page. (Picture A18) • Tap on Camera Details to review Camera Name, Change Image & show the Firmware version. (Picture A19) • Tap on Notification Sensitivity to set the sensitivity of sound & motion detection, and set Alert of High/Low temperature.

  • Page 26: General Settings

    4.2.5 General Settings • Tap on the Settings tab. • Tap on General Settings to change the format of the Clock (12hr/24hr) & Temperature (°C / °F). (Picture A21) • Tap on Do Not Disturb to set the desired time duration and select ON, the Camera will not send any sound or alert notifications to your Android™...

  • Page 27: Features Of The Hubble For Motorola Monitors Application

    4.2.6 Features of the Hubble for Motorola Monitors application While in Camera View, tap the viewing area, Function Icons will appear as follows: Two Way Talk – Tap on the Microphone icon to activate the talkback function on the Camera, press the circle button once to speak. Press again to switch back to just listening to the Camera.
  • Page 28 Pan and Tilt Function: Tap the 4 Way Arrow icon to activate the pan/tilt function. Press the up/down arrows to tilt the camera up and down, press the left/right arrows to pan the camera left and right. (Pictures A25, A26) Camera...
  • Page 29 Photo/Video - Take a photo or record a video from your Camera. Tap the on-screen Video icon to activate the photo/video function. Select the video record function by selecting the small video icon to the right of the large blue button, press the large blue button to start recording. The button will turn red, press again to stop recording.
  • Page 30 Android™, they can be accessed from the Gallery or a Media Player. To play videos, please use the "Hubble for Motorola Monitors" application or a 3rd party application, such as MX player (i.e. Google Play™ Store), which is able to play MJPG (Motionjpeg).

  • Page 31: Camera Functions: Working With Iphone ® /Ipad

    ® Working with iPhone /iPad ® ® • Run the Hubble for Motorola Monitors application on your iPhone /iPad • The Camera view appears on the screen. 4.3.1 Add more cameras • Whilst in Camera view, tap on Hubble logo to go to the Camera tab page.

  • Page 32: Remove A Camera

    4.3.2 Remove a Camera You can remove a camera from your account by following these steps: • Tap the Settings icon on the Camera tab page, then tap on Remove Camera. (Picture i17) • Select Yes to delete the unit from camera list. (Picture i18) Camera...

  • Page 33: Change Your Account Information

    To obtain more information, please visit our website www.hubbleconnected.com/motorola/plans. • Tap on Send Log to send your Hubble for Motorola Monitors application report to our server via e-mail; this should be sent if requested by a customer service agent.

  • Page 34: Camera Settings

    4.3.4 Camera Settings You can change the Camera settings to tap the Settings icon on the Camera tab page (Picture i20), to review Camera Name, Change Image & show the Firmware Version (Picture i21). • Tap on Notification Sensitivity to set the sensitivity of sound & motion detection, and set Alert of High/Low temperature.

  • Page 35: General Settings

    4.3.5 General Settings • Tap on the Settings tab. (Picture i23) • Tap on General Settings to change the format of the Clock (12hr/24hr) & Temperature (°C / °F). (Picture i24) • Tap on Do Not Disturb to set the desired time duration and select ON, the ®...

  • Page 36: Hubble For Motorola Monitors Application Settings

    ® ® • Select Settings on your iPhone /iPad , and the application list will appear, tap on Hubble for Motorola Monitors , the settings for Hubble for Motorola Monitors application will be shown on the screen. (Picture i26) Camera...

  • Page 37: Features Of The Hubble For Motorola Monitors Application

    4.3.7 Features of the Hubble for Motorola Monitors application While in Camera view, tap the viewing area, Function Icons will appear as follows: Two Way Talk – Tap on the microphone icon to activate the talkback function on the Camera, press the circle button once to speak. Press again to switch back to just listening to the Camera.
  • Page 38 Pan and Tilt Function: Tap the 4 Way Arrow icon to activate the pan/tilt function. Press the up/down arrows to tilt the camera up and down, press the left/right arrows to pan the camera left and right. (Pictures i29, i30) Camera...
  • Page 39 Photo Function - Tap the on-screen Camera icon to activate the photo capture function. Press the large blue Camera button to take a photograph. (Picture i31) Note: ® ® Photos will be stored in the internal flash memory of your iPhone /iPad Camera...
  • Page 40 Melody – To play one of the 5 pre-set melodies, tap on Melody to show the available Melodies and select the one you wish to play on your Camera, tap again to stop the melody. (Picture i32) Temperature – The temperature reading from the temperature sensor on ®...

  • Page 41: Camera Functions: Working With Your Pc/Notebook

    Camera Functions: Working with your PC/Notebook • Go to URL: http://www.hubbleconnected.com/motorola/login/ • Enter your User Name and Password and then click Login if you have already created an account. • Click on the Camera paired to your account via Android™ device or ®...

  • Page 42: Procedure For Resetting The Camera

    5. Procedure for Resetting the Camera Note: If your Camera is moved from one router (e.g. home) to another (e.g. office) or if you have Camera setup issues, then the Camera must be reset. Please reset the Camera with the following procedure: 1.

  • Page 43: Help

    6. Help Noise interference To avoid background noise or echoes, ensure that there is enough distance ® between your device and the Wi-Fi Camera Unit. ® Use of other 2.4 GHz products, such as Bluetooth systems or microwave ® ovens, may cause interference with this product. Keep the Wi-Fi Camera Unit at least 1.5m away from these types of products, or turn them off if they appear to be causing interference.
  • Page 44 What do I do if I forget Click on the "Forgot Password" link on my password? the website http:// www.hubbleconnected.com/ motorola/login/ OR your Android™ or iOS application. An email will be sent to your registered email address. Account I am unable to receive a 1.
  • Page 45 Features The sound alert setting You can Adjust Sound Sensitivity to threshold is not right. trigger notifications under the Camera Settings menu. ® Connectivity My phone application 1. Check the Wi-Fi network strength. Issues displays the following 2. Check if you are connected to message: "Unable to the internet by starting the connect to BMS...
  • Page 46 General What is the A flashing LED indicates the following significance of LED status: flashing? Slow flashing: 1. Your Camera is in setup mode. You can add the Camera to your account in this mode. Out of the box, the Camera is in setup mode. To reset to Setup mode, press and hold the PAIR button on the bottom of the Camera untill you hear a beep.
  • Page 47 Connectivity Even though I am Please check your wireless router Issues accessing my Camera settings. For example, for Buffalo ® from the same Wi-Fi branded routers there is an option network, I still find my called Wireless Isolation. Please Camera is shown as disable this option.
  • Page 48 APP for Android™ and - Open the Google Play APP on your iOS devices? Android™ device - Select Search - Type "Hubble for Motorola Monitors" - The results will have Hubble for Motorola Monitors application by Binatone - Select to install it...
  • Page 49 Setting up When the video is cut You will need to turn off the auto lock off, the application function on your smart device to attempts to reconnect ensure continuous video/audio and this results in lost streaming. sound and choppy video.

  • Page 50: General Information

    Email: support@motorolamonitors.com Consumer Products and Accessories Limited Warranty ("Warranty") Thank you for purchasing this Motorola branded product manufactured under license by Binatone Electronics International LTD ("BINATONE"). What Does this Warranty Cover? Subject to the exclusions contained below, BINATONE warrants that this Motorola branded product ("Product") or certified accessory ("Accessory") sold...
  • Page 51 PROVIDED UNDER THIS EXPRESS LIMITED WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER, AND IS PROVIDED IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. IN NO EVENT SHALL MOTOROLA OR BINATONE BE LIABLE, WHETHER IN CONTRACT OR TORT (INCLUDING...
  • Page 52 (c) use of the Products or Accessories for commercial purposes or subjecting the Product or Accessory to abnormal usage or conditions; or (d) other acts which are not the fault of MOTOROLA or BINATONE, are excluded from coverage.
  • Page 53 (b) broken seals or that show evidence of tampering; (c) mismatched board serial numbers; or (d) nonconforming or non-Motorola branded housings, or parts, are excluded from coverage. Communication Services. Defects, damages, or the failure of Products or Accessories due to any communication service or signal you may subscribe to or use with the Products or Accessories is excluded from coverage.

  • Page 54: Fcc And Ic Regulations

    FCC and IC regulations FCC Part l5 NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the Federal Communications Commission (FCC) rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 55 WARNING Changes or modifications, to this equipment not expressively approved by the party responsible for compliance could void the user’s authority to operate the equipment. The socket-outlet shall be installed near the equipment and shall be easily accessible. Industry Canada This device complies with Industry Canada licence-exempt RSS standard(s): Operation is subject to the following Two conditions:(1) this device may not cause interference, and (2) this device must accept any interference, including...

  • Page 56: Technical Specifications

    8. Technical Specifications Camera Unit ® Wi-Fi 802.11 b/g/n Image sensor Color CMOS 1M Pixels Lens f = 2.3 mm, F = 2.4 IR LED 7 pcs Power Adapter: By Ten Pao International Ltd. Input 100-240 VAC, 50/60 Hz, 300 mA Output 5 V DC, 1500 mA Technical Specifications...
  • Page 57 Manufactured, distributed or sold by Binatone Electronics International LTD., official licensee for this product. MOTOROLA and the Stylized M logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC. and are used under license. Mac, Mac OS, iPhone, iPad and Safari are the trademarks of Apple Inc., registered in the U.S.
