Summary of Contents for XtendLan XL-DM307G

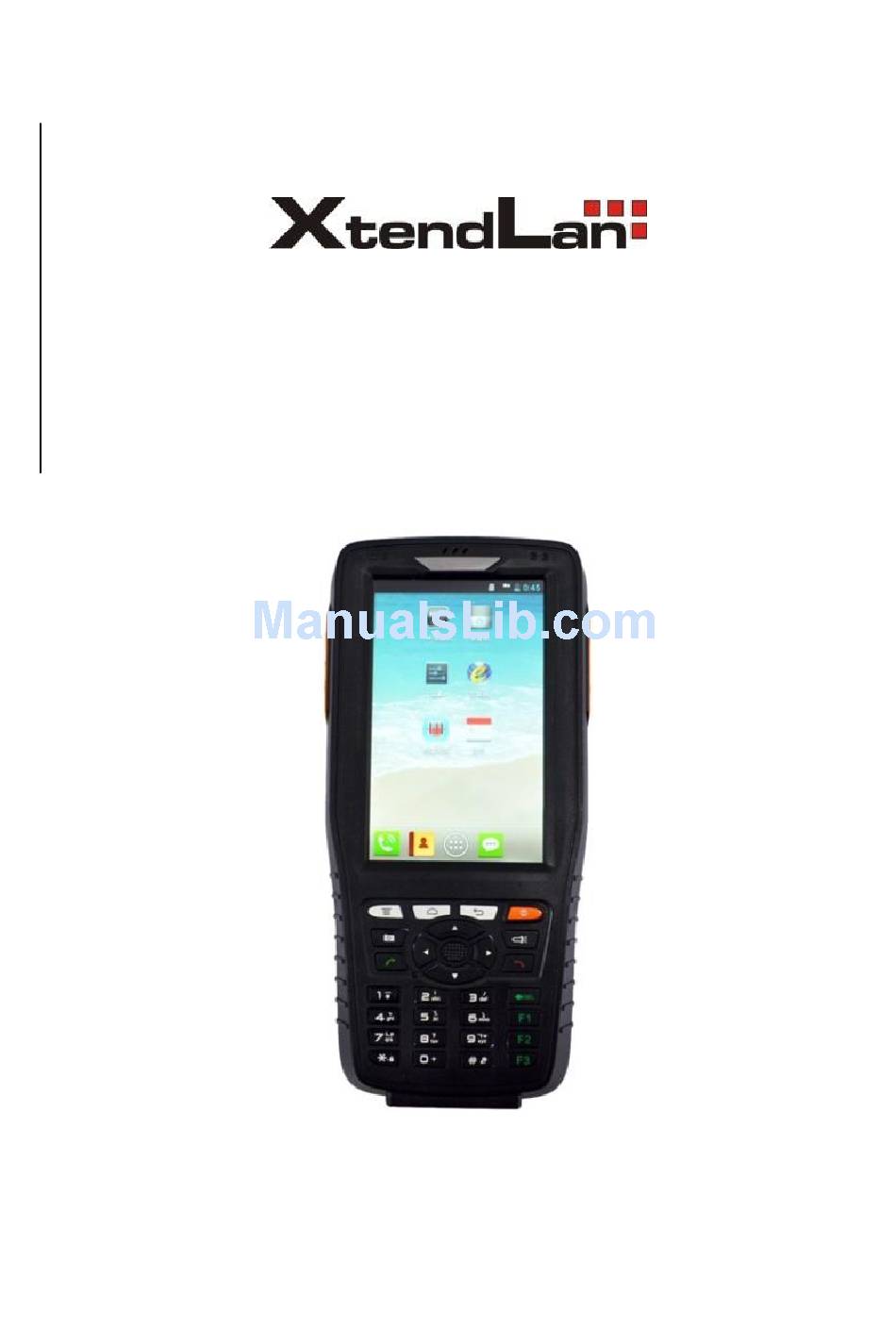

  • Page 1 XL-DM307G User manual...
  • Page 2 Industrial PDA Brief Introduction First and foremost, thanks for buying Industrial PDA. This user manual includes module introduction, maintenance, wiring and operation as well as the solutions to module problems. In order to guarantee the proper operation of Industrial PDA, please read this manual in detail before using;...

  • Page 3: Table Of Contents

    Industrial PDA Contents Chapter I Summary and System Structure..1 1. Summary................1 2. Checking the Package............2 3. Safety Warning and Attentions.........4 4. Operation Standards and Attentions in Using....7 4.1. Operation Standards..........7 4.2. Attentions in Using............8 5. Structures and Functions..........10 6.
  • Page 4 Industrial PDA 1.1 Rf Performance Index..........25 1.2. xDSL Index (optional)..........25 1.3. Optical Power Index (optional)....... 26 1.4. Visual Fault Locator (optional)........27 2. General Functions............27 2.1. On/Off.................27 2.2. Standby and Wake up..........27 2.3. Table Management...........28 2.4. Open/Close the Network Card....... 32 2.5.
  • Page 5 Industrial PDA 2.14. External Power Supply.......... 43 2.15. Earphone..............43 2.16. Vibration Application..........44 2.17. GPSone Passive Positioning........44 2.18. WIFI................44 Chapter III Usage of Main Functions....46 1. Test Functions..............46 2. SN Code................66 3. Test Setting............... 68 4. Records................73 5.
  • Page 6 Industrial PDA 13. Settings................86 14. Camera................93 15. Gallery................95 16. My Files................95 17. Calculator................98 18. Video................99 19. Music................99 20. Recorder............... 101 21. Downloads..............102 22. Screen Calibration............103 23. How to install and uninstall software......103 24. How to install the USB driver........105 Chapter IV Usage and Maintenance....

  • Page 7: Chapter I Summary And System Structure

    Industrial PDA Chapter I Summary and System Structure 1. Summary Industrial PDA is designed for meeting entire network requirement, whose functions including wireless signal collection, GPS positioning, xDSL test, LAN test, optical power test, visual fault locator, tracing and PDA. The PDA have wireless voice and communication module, which can logon Internet through wireless network, and finish the task quickly.

  • Page 8: Checking The Package

    Industrial PDA system. It is easy to operate and check the test results. It can meet the installation and maintenance requirements of wireless device, xDSL access, LAN access and optical access and so on. Meanwhile, it’s a powerful tool for improving the efficiency of maintaining Internet.

  • Page 9: Standard Accessories

    Industrial PDA Bar Code Scan 1D Bar code Optical Power Optical Power module Visual Fault Visual Fault module Locator Tracing Tracing module For example: Industrial PDAE-AG has the function of ADSL, optical power module and EVDO module. Standard Accessories Please make sure all the accessories are in good condition.

  • Page 10: Safety Warning And Attentions

    Industrial PDA User Manual Other Accessories: (It is different due to different modules.) USB inverting power line Test Line Tracing receiver Belt 3. Safety Warning and Attentions In order to use the tester safely and efficiently, please read the following information before using. Ø...
  • Page 11 Industrial PDA before using the tester. Ø Don't use the chemical solvent to clean the tester. Ø The waste battery should be put into the battery recycling bin and please don't throw it away. Ø Please don't touch the antenna when you are talking on the tester to avoid affecting the tester's performance when the signal is weak.
  • Page 12 Industrial PDA the radiant efficiency and the safety of the interference. The same as operating other mobile wireless transmission equipments please don't be too close to the antenna. Ø Please use this tester within network coverage range. Ø The LCD display effect will change a little in the temperature severely-changed and long-time conversation environment.

  • Page 13: Operation Standards And Attentions In Using

    Industrial PDA 4. Operation Standards and Attentions in Using 4.1. Operation Standards Test Interface Please firstly connect the test cord to test interface and then connect to the test line. Please don’t touch the metal pars of clamps to avoid the high dangerous voltage. USB port Don’t input things with electricity to USB port and please don’t short it by metal things.

  • Page 14: Attentions In Using

    Industrial PDA time When the instrument is not used for a long period of time, the battery characteristics may have deteriorated. The battery also may take longer to charge. If the operation period of fully charged battery is excessively short, the battery must be replaced.
  • Page 15 Industrial PDA another place where the ambient temperature is higher, or the temperature if the room changes rapidly. In this case, let the instrument adjust to the new environment for at least one hour before using the instrument. ● Using the instrument near strong magnetic field sources will have adverse affects on the internal circuit of the instrument.

  • Page 16: Structures And Functions

    Industrial PDA 5. Structures and Functions...
  • Page 17 Industrial PDA Name Functions Window of bar code scanning Scanning Head engine, which is used to scan the bar codes. Dust-proof cap Protect the electric port from of electric port dust and water Dust-proof cap Protect the optical port from of optical port dust and water It is used to indicate the...
  • Page 18 Industrial PDA LED light also can be used as LED light flashlight. Camera Take pictures or make a video. Touch pen Touch pen of the tester Charger hole Charging port The USB port of the tester and USB port it is used to connect the PC. Connect with fiber...
  • Page 19 Industrial PDA Cable Tracing Receiver Number Name Function Receiver probe Antenna probe Test button Press it to test the signal Loudspeaker Audio signal generator loudspeaker Switch and volume Turn it down to increase the adjustment key volume and turn it up to decrease the volume...
  • Page 20 Industrial PDA Instruction of the buttons is as the following shows: Button Name Function Under power-on state, shortly pressing the button can close or light the screen; long pressing the button can Power popup an operating menu of button "Device Options".
  • Page 21 Industrial PDA When input text, it is used to Delete delete words before the Button cursor. Under power-on state, shortly pressing the button Hang can close or light the screen; Button when a call is coming, it can hang up the call. Camera Long pressing the button to Button...
  • Page 22 Industrial PDA Indicator lights: The meaning of the 6 indicator lights from left to right is as following shows: Indicator light 1: Mobile phone light, indicating the mobile state, which have 3 glittering state. 1) Normal state: 0.5s on, 4.5s off 2) Incoming call state: 0.5s on, 0.5s off 3) Receive the message or missed call: 0.5s on, 1.5s off Indicator light 2: Unused...

  • Page 23: Instructions Of Fixed Icon Display Area

    Industrial PDA : Click to enter into main menu interface. : Click to enter into dialing plate interface. : Click to enter into message interface. : Click to enter into browser interface. : Click to enter into contacts 6. Instructions of Fixed Icon Display Area Display the current signal intensity of CDMA network and EVDO: the more column bar is, the better the signal intensity will be;...
  • Page 24 Industrial PDA Means Bluetooth function has been open. Means uploading or downloading documents Means that there is unread short message of C network. Means it is in the vibration mode Means it is in the flight mode Means the USB connection Means that the alarm clock has been set.

  • Page 25: Charging Battery Icon

    Industrial PDA Means the network card is open. Means the PPPoE link has been built. Means GPS is open. 7. Charging Battery Icon : The battery is in low power and needs to charge. : The battery is charging and will display in motion. : The battery has already been full.

  • Page 26: Install Uim/Sim Card

    Industrial PDA 9. Install UIM/SIM Card Open the battery cover; remove the battery; insert UIM card with the nick on the left and the chip down. As follows; Notice: Insert CDMA/EVDO UIM card for EVDO edition; and the GSM/WCDMA SIM card for WCDMA, Please insert the corresponding card for different mode to keep the phone function.
  • Page 27 Industrial PDA Remove the battery Firstly, unscrewed the two screws, remove the battery cover and then pull the transparent tape to take the battery out. Note: Please close the tester before removing the battery. Please follow the above procedures. Please tighten the screws for the battery cover, in case the battery Battery performance The standby time will be affected by system...
  • Page 28 Industrial PDA Charging Insert the charger into the charger port of the tester. Insert the charger into the power socket with 100~240V, 50/60Hz. When it is charging, the battery power icon on the screen will shine; after charging finished, the battery power icon on the screen will stop shining.

  • Page 29: Others

    Industrial PDA Note: ■ You should fully charge the tester before the first usage; please disconnect the charger in time after charging finished because the long-time charging will damage the battery performance. ■ Please guarantee that the battery is inside of the tester. ■...
  • Page 30 Industrial PDA memory card(The biggest capacity is 32G) Ø Rechargeable 3.7V 6000mAh polymer battery and the max power is 3W. Ø Support external power supply DC 5V/500mA. (needs additional line) Ø Can make a phone call in earphone and listen to music.(needs earphone) Ø...

  • Page 31: Chapter Ii Specifications And Functions

    Industrial PDA Chapter II Specifications and Functions 1. Technical Specifications 1.1. Rf Performance Index Industrial PDA-E Ø Frequency range: 800MHz/1900MHz Ø Maximum transmitting power of transmission: 23dBm-30dBm Ø Network type: EVDO Rev.A\CDMA 1X Industrial PDA-W Ø Frequency Range: WCDMA/HSDPA/HSUPA 900/1900/2100MHz and GSM/GPRS/EDGE 850/1800/1900MHz Ø...

  • Page 32: Optical Power Index (Optional)

    Industrial PDA 2) It can test the transmission parameters in the DSL line: ◆ Attenuation: 0~63.5dB ◆ Noise Margin: 0~32dB ◆ Upstream Channel Rate (interweaved / fast mode): 0~1.2Mbps ◆ Downstream Channel Rate (interweaved / fast mode): 0~24Mbps ◆ The maximum rate and capacity ratio of upstream Channel and downstream channel.

  • Page 33: Visual Fault Locator (Optional)

    Industrial PDA 1.4. Visual Fault Locator (Optional) Ø Wavelength: 650nm±20nm Ø Light source: FP-LD laser Ø Output power: 1mW Ø Connector: 2.5mm universal adapter(SC,FC,ST) Ø Working mode: CW or 2Hz modulation Ø Applicable fiber: SM/MM 2. General Functions 2.1. On/Off Start the tester Under the "off "condition and there is electricity in the battery, long press the power key to start the equipment.

  • Page 34: Table Management

    Industrial PDA standby automatically. But you still can realize the standby by pressing on/off key.) After waking up, the system will restore to the interface before the standby and the program will restore to the state before the standby. 2.3. Table Management There are five default pages of the table screen and it can display different screens by sliding with finger.
  • Page 35 Industrial PDA Operate "Setting—Display—Sleep" in the main menu to set the delay time before the screen automatically locks. Add table icon Click the icon to enter into menu to find the program which you want to build the table shortcut; press the icon to shake and then you can move the icon to the place where you want and then loose it.
  • Page 36 Industrial PDA popup drop-down list to drag it down. Add & delete Widget Enter into the menu interface to add the Widget. Click the Widget and keeping pressing until shake, then you can move the Widget to the place you want to put it. (keep pressing the Widget in the moving process).
  • Page 37 Industrial PDA Uninstall the existed programme Enter into the menu interface and choose the programme need to be uninstalled and keep pressing until shake, then you can move the icon to the desktop and a uninstalled interface will pop up. Click OK to uninstall the programme, and then click OK again to finish uninstall.

  • Page 38: Open/Close The Network Card

    Industrial PDA 2.4. Open/Close the network card Pull down the prompt list to open the network card, as follows: Click LAN icon (blue means the network card...

  • Page 39: Pppoe Dial

    Industrial PDA being open, and white is close), the network properties window will pop up as follows: Select LAN to open the network card; DHCP and IP can be used. You can get new IP in DHCP mode. IP address, subnet mask, gateway and DNS can be modified in static IP mode.
  • Page 40 Industrial PDA Click PPPoE icon (blue means PPPoE dial has been connected, and white means disconnect),; then PPPoE properties window will pop up:...

  • Page 41: Task Management

    Industrial PDA Enter the user name and the password to do the PPPoE dial. 2.6. Task Management There is a task management program in the system. This program can help close the open program to free the memory, and then improve the operating efficiency. Press the status bar and drag it down.

  • Page 42: Dial

    Industrial PDA 2.7. Dial Click the dialing plate in the main menu interface or standby table to input the telephone numbers. Press the call button or the dial button to make a phone call. If you want to finish the call, just click the hang up button or press power button or to hang up...

  • Page 43: Input Text

    Industrial PDA 2.9. Input Text Click the text box of application program and then the system will automatically call out the built-in input method. As follows:...
  • Page 44 Industrial PDA TouchPal Input Click to switch the input between Uppercase and Lower case. Click to hide the input Click to switch the input to Pinyin, and click again, it will switch to English. Press the slide key to switch the keyboard layout. Click switch to digital input, which includes English character, mood, web, number, Greek, Latin, math, etc..
  • Page 45 Industrial PDA Long press , a window will pop up as bellow:...
  • Page 46 Industrial PDA You can choose the input. (and you can install other input method too such as The Wubi input system). And the other input method such as Sogou input and Baidu input. Change the text input method...

  • Page 47: Flashlight

    Industrial PDA System tip column will display a keyboard icon after popup input method; press and drag the status bar down to open the prompts as above; and then click input method, you can see all the input method. 2.10. Flashlight This tester supports flashlight function which can be used as a light.
  • Page 48 Industrial PDA data cable to the PC. The equipment will visualize a mass U disk, you can copy and delete the documents in U disk. Connect the tester to the PC through Mini USB data cable, prompt bar will show that USB has been connected, drop down the prompt bar and click the USB connection, and choose the Mass storage, then the U disc can be shown in PC and you can operate the document in U disc.

  • Page 49: External Power Supply

    Industrial PDA 2.14. External Power Supply It can provide DC 5V/550mA power, and the power interface is Mini USB port; it needs to connect with the special power supply line. One end of the power line is Mini USB and the other end is USB port; it also can connect with other standard USB line to provide power to other equipment.

  • Page 50: Vibration Application

    Industrial PDA sheath ABS white electroplate 2.16. Vibration Application Tester has two vibration modes: one is vibration only, and the other is ring and vibration. Click in the pull down prompt bar till the icon change into , the tester will be in the vibration mode.
  • Page 51 Industrial PDA through other equipment with WIFI, and connect with the network. Click "Configure WLAN hotspot" to configure the SSID, security mode and password of the WIFI hot, as follows:...

  • Page 52: Chapter Iii Usage Of Main Functions

    Industrial PDA Chapter III Usage of Main Functions Click below the screen. It will show main menu, see the following picture: Sliding screen can check more options; pressing return key can close main menu. Users can also drag favorite functions to desktop; just press the option you want to move all along;...
  • Page 53 Industrial PDA corresponding functions. Test interface picture is as following: Please see the details: xDSL test (optional) Through inner xDSL Modem, test xDSL line. It includes Physical layer test, Modem setting and web.
  • Page 54 Industrial PDA Physical layer test can test physical layer parameter, which including xDSL connection status, connection mode, Upstream/downstream channel rate, noise margin, attenuation, the output power, the number of error codes (CRC, HEC, FEC, NCD, OCD) and channel bits picture. Using this function can check whether there is problem in the user line or not, and the user line parameter.
  • Page 55 Industrial PDA Bits in map Bits in text The current status means: Handshake: Shake Hands Discovery: Discover the local DSLAM; Training: it is training; Showtime: distal end DSLAM is connected. Connection mode: G.DMT: ADSL G.DMT protocol mode, in accordance with ITU-T G992.1 standard;...
  • Page 56 Industrial PDA mode, in accordance with ITU-T G992.5. ADSL2: ADSL2 G.DMT.BIS protocol mode，in accordance with ITU-T G992.3 standard; Physical layer parameter: Activating times: Display the active times from the beginning of test to the current time, the activation time will increase one with each active.
  • Page 57 Industrial PDA connection. When local side cannot connect the ADSL2+ mode, will connect ADSL mode automatically, but ADSL mode is only part compatible with ADSL line. ADSL Compatible Mode: The ADSL2+ connection mode is unavailable under such mode. The seven groups of VPI/VCI parameters which were set before will be displayed.
  • Page 58 Industrial PDA PPPoE Dial PPPoE is in the status bar, you can see it pull-down list, as follows: Click icon, the dialing window will pop up, as follows:...
  • Page 59 Industrial PDA Input the user name and password, click connect to do the PPPoE dial, the equipment will memorize the user name and password automatically. User can test the web browsing. Internet When dialing succeeded, click web icon to open the browser and input the website in the address bar, and then click the triangle arrow or click OK on the keyboard to enter into the website.
  • Page 60 Industrial PDA menu, do PPPoE dial. xDSL test flow is: xDSL line quality test—>line exit with power test—>PPPoE Dial —>network layer test—>application layer test. Insert telephone line into RJ11 as follows: xDSL test wiring diagram Into xDSL test interface, it can show activation situation, when line activated, it can show the parameter of Up/down steam channel rate, noise margin, attenuation, the output power, the number of error codes (CRC, HEC,...
  • Page 61 Industrial PDA picture: The tester will emulate user Modem to realize PPPoE dial through PC. (If the VPI/VCI value needs to be modified, please modify it from Modem Parameter window). Tester can realize PPPoE dial through user Modem emulation, and check the fault of user Modem. If it needs to exit Modem Emulation state, please Click Exit! to exit it.
  • Page 62 Industrial PDA Modem emulation connection is as follows: Optical power test (optional) Optical power test can test the power of optic fiber, please see the picture: There are six wavelengths as calibration wavelength, choose corresponding wavelength can test current optical...
  • Page 63 Industrial PDA power value. It is shown as dBm and xW when having a test. User can stop testing by pressing "Stop Test", and the data displayed is the latest testing result. You can also choose save current test result, in help of checking afterwards.
  • Page 64 Industrial PDA Click "Open" to turn on the VFL, and click "Close" to turn off the VFL. CW/2Hz is the switch button of the continuos and modulated light, the tester can memorize the VFL mode automatically. The output power is 1mW. Cable Tracing (Optional) Tester can do cable tracing and twisted pair and line distinguish.
  • Page 65 Industrial PDA interface. As follows: Cable tracing interface Click “Open” to start cable tracing, tester start sending video signal, and then click "Close" to stop the video signal sending, and user can exit cable tracing by pressing return. Turn on the receiver, connect the RJ11 test line to the cable needed to be test, and the click "Open"...
  • Page 66 Industrial PDA switch test items. Ping Test Type IP address or domain name; choose the data package size and Ping times. At last click "Yes". Ifconfig Test...
  • Page 67 Industrial PDA Click "Yes" to see current network information. Route Test...
  • Page 68 Industrial PDA Click "Yes" to check the current web information. Traceroute Test...
  • Page 69 Industrial PDA Typed the destination address, choose overtime, click "Yes". E Netcom Test Click "Search Device" to look for the network equipment in the local network. The IP, MAC address and host name of the equipment will display on the interface. You can also save the current test result to check later.
  • Page 70 Industrial PDA Download Meter Download speed test can test the web download speed, reflect the web state directly. Can browse the download attachment by entering the website, and user can also download the well-settled attachment in menu. (the homepage and the address of attachment download is settled in setting.) Click "Download", the following interface will be shown:...
  • Page 71 Industrial PDA Tester will statistic the max and average download speed and download progress, the screen will display as follows after finishing download:...

  • Page 72: Sn Code

    Industrial PDA FTP Client FTP Client can log on FTP server, upload and download programs like the following picture: Typed FTP server address, user name, password and port number, and then clicking "Connect" can log on FTP server. The system will memorize the logged on FTP server address, user name, password and port number.
  • Page 73 Industrial PDA (should know IP address, and set up network card IP address and Modem IP address in same range). This tester can set up four SN code address, see the following picture: SN code device address is IP address of SN code device.

  • Page 74: Test Setting

    Industrial PDA Input the user name and password, and login the configuration page of WEB, double-click the browser to enlarge the content, slide the screen to view the different area of the webpage. 3. Test Setting Test setting used in device software setting, including files management and SN code device setting, Modem time setting, like the following picture:...
  • Page 75 Industrial PDA Webbrowser Config Set the homepage address of the testing speed, the download address of files and whether the speed testing file need to be stored. As follows:...
  • Page 76 Industrial PDA SN code equipment address This option is setting for SN code default IP address; it can setup four IP address. Modem power off time setting It is used to setup Modem working time; over the setting time, Modem will shut down. As follows:...
  • Page 77 Industrial PDA Settings of shortcut key Set the corresponding program for F1 and F2, which can start the setting related program through the two keys, the setting widow is as follows:...
  • Page 78 Industrial PDA Click shortcut key F1 or F2, the program selected window is as follows:...

  • Page 79: Records

    Industrial PDA Select the program need to be started, and then long press F1 or F2 will start the program. About Device software version and company contact way: 4. Records Browse the test records which have stored. See the picture:...

  • Page 80: Read Serial

    Industrial PDA Note: when show device name, if the name is too long, it will intercept appropriate name automatic. Click opposite test records can open and check records. 5. Read Serial Scan test interface is:...

  • Page 81: Control Of Electric Quantity And Wireless Dial

    Industrial PDA In the "Read Serial" interface, after pressing "SCAN" key on the side, it can work. The red light just aim at bar code, the test result will show on screen. Tester can scan continuously and show the scan result in table, and record the scan time.
  • Page 82 Industrial PDA Description of the control item is as follows: setting: shortcut icon of setting open, click it can open the setting quickly. WLAN icon: the switch for WIFI, if use a router for the first time, user need to enter into setting, searching WIFI router at first, and enter the password to connect with the router.

  • Page 83: Web

    Industrial PDA close the link when do not use. PPPoE icon: switch for PPPoE. Airplane mode icon: switch for flight mode of the tester. LAN icon: switch for the LAN network card. 7. Web Click web to enter into the browser interface for all functions, and user can login the common site under the main menu.

  • Page 84: Phone

    Industrial PDA Internet setting menu will pop up when clicking the menu key , which includes refresh, forward, bookmarks, save to bookmarks, share page, find on page and so on. Click "Save to bookmark" to store the current page into the bookmark, and then user can open the webpage quickly.
  • Page 85 Industrial PDA Dial interface Call interface Press call or dial key after input the phone number to make a phone call; click key to hang up the phone. Under phone interface, user can adjust the volume by pressing the volume key. Click to show the call records, and click the corresponding phone icon to dial the number.

  • Page 86: People

    Industrial PDA 9. People People is storage information about personal and business. Press menu key in "People" interface, can display the contacts information and Import/Export contacts. Note: The Import/Export contacts are in the catalogue of TF card mnt/sdcard. Find Contacts Click icon, can lookup contact person or typing the contact person name.

  • Page 87: Messaing

    Industrial PDA Create new contact In Contacts list interface, click "Add" , can add contact person into device. Note: More contact persons will affect the system running speed. The operation for each contact person Press the contact person shortly to enter into the interface with detailed info of the contact person.
  • Page 88 Industrial PDA New message In messaging interface, click to enter into the new message interface and it will show as follows:...

  • Page 89: Clock

    Industrial PDA Click "To" to type into the number of receipts and then type the content need to be sent in "Type Message". Clicking number edit box can type number. Click to add the attachment. Press to send message. 11. Clock Click clock icon, the clock interface will pop up as follows:...
  • Page 90 Industrial PDA Click alarm, and then tester will enter into the alarm add interface. As follows: Setting: you can turn on/off the alarm, set time, repeat, ring tone, vibrate and so on.

  • Page 91: Calendar

    Industrial PDA Open alarm Click on the top right corner of the alarm interface and bright display means the function is open. Note: In the off state, the system will automatically open and then start the alarm service. In order to ensure the alarm effect, please do not set mute mode.

  • Page 92: Settings

    Industrial PDA 13. Settings "Settings" includes all the content needed to be set, detail see the following: 13.1 Wireless & Networks WLAN Slide the switch from left to right to open or close WLAN and click the icon into WLAN setting, as follows: Tester will search WLAN router automatically after entering into WLAN setting, and the result will be shown in list.
  • Page 93 Industrial PDA Bluetooth Slide switch from left or right to open or close Bluetooth and click the icon into Bluetooth setting, as follows: When open Bluetooth, click "device name" can make the device be found, and detect all the equipments around. Click "Search for Devices", the device will search and show Bluetooth list.
  • Page 94 Industrial PDA usage of data. More: Do the operation of airplane mode, VPN, tethering & portable hotspot, WLAN direct, WLAN direct setting and mobile networks. 13.2 Device Sound Open or close the silent mode. Set the volume, ring tone, default notification and so on. Open or close the vibrate and ring, dial pad touch tones, touch sound, screen lock sound, vibrate on touch and emergency tone.
  • Page 95 Industrial PDA Note: Adjust the volume of the loudspeaker through the up and down key Display Adjust screen brightness, wallpaper, sleep time and font size. As follows: Storage Check TF card space capacity and available system space as follows:...
  • Page 96 Industrial PDA Battery Check the quantity of the electricity. Application program You can manage the application program. Application management: used in managing the installed applications including display application program storage, permissions and other information as well as clear data, clear default settings and forced stop. Running service: view and control the currently running services.
  • Page 97 Industrial PDA 13.3 Personal Includes the settings related to personal: Account and Synchronous: After opening the function, add the account to keep the synchronization of the equipment and account. Location Services: Click to choose the different location modes such as GPS satellite. Security: choose the screen lock mode;...
  • Page 98 Industrial PDA 1234; Install the unknown sources with default password 1234 and you can change the password in "Application Password". Choose the trusted evidence. Install from the SD card; Clear credentials. Language and input Select the display language Open or close the spelling correction Choose different input method Backup&reset Factory reset function will clear all the information.

  • Page 99: Camera

    Industrial PDA Accessibility Press power key to end the phone call. Choose the touch and hold delay time. Choose whether install the network script or not. Developer Options: Choose the options for develop person. Auto power on/off Set the time of auto power on/off. About device View basic device information.
  • Page 100 Industrial PDA Click to enter into the basic setting for the camera, which includes select storage position, scene mode, picture size, picture quality and so on. Click to enter into the location setting. After opening the GPS, photo will have the longitude and latitude. (see the detail in the photos) Click to enter into white balance...

  • Page 101: Gallery

    Industrial PDA Click to enter into white balance. Click to shoot video. 15. Gallery View the pictures and videos stored in the SD card, as shown in the following picture: Click the folder to enter into the picture and video browsing mode;...
  • Page 102 Industrial PDA return to the previous interface; click to choose locating file. Click "all" to pop up the file types. As the following picture: From the "My Files", you can browse and manage the files and folders on the memory card. Long press the selected file icon, the following picture will pop up:...
  • Page 103 Industrial PDA is to open file. is to rename. is to delete. More operation: copy, cut, share and property. Press menu to pop up : Ø New: Edit the folder name and save file. Ø Paste: paste the copied files or folders. Ø...

  • Page 104: Calculator

    Industrial PDA Note: The default storage path is as the following: Ø Photo and video storage path is "DCIM/Camera". Ø Download file storage path is "Download". Ø System test record storage path is "Record". 17. Calculator Use calculator function to make simple arithmetic. You can click the number and symbol to do corresponding calculation, as the following picture: Press menu key...

  • Page 105: Video

    Industrial PDA 18. Video Click "Videos" to enter into video play interface. As follows: Note: support formats: 3gp, MP4 etc. 19. Music Click music to show all the music types and click file to play the music. As follows:...
  • Page 106 Industrial PDA Ø All music: check all the music Ø Artist: in accordance with the artist's name to divide the type of songs. Ø Album: in accordance with the album name to view the songs. Ø All songs: all music list. Ø...

  • Page 107: Recorder

    Industrial PDA Add to playlist: add the songs to the playlist. ● Set Bell: set this song as ring. ● Remove: remove this song. ● Note: support formats: MP3, AMR, WAV, mid, Ogg etc. 20. Recorder The device provides a long time recording function; please make sure that your device has enough storage space.

  • Page 108: Downloads

    Industrial PDA Ø Click to start recording; click to end, and then click pop up the record list to check the record file. Ø After the recording, it will save automatically. Ø Click to choose the storge location and choose the file type.

  • Page 109: Screen Calibration

    Industrial PDA 22. Screen Calibration Click "Settings--Touch Screen Sensor", please operate as the screen calibration instruction, as shown in the following picture: You should touch the five points to calibrate the screen. 23. How to install and uninstall software Install In the "My Files"...
  • Page 110 Industrial PDA “Settings--Security--Unknown Source” and then input password(default password is 1234); then returned to the "Settings--apps" to click "Install". After successful installation, go back to the main menu to run the installed application. Uninstall Enter " Settings > apps". Choose the application; click "uninstall". Or enter into the menu interface and choose the programme need to be uninstalled and keep pressing until shake, then you can move the icon to the desktop and a uninstalled interface...

  • Page 111: How To Install The Usb Driver

    Industrial PDA this feature is only used by personal but not for commercial purposes. For commercial purposes, it must need professional adaptation and test. 24. How to install the USB driver Connect the USB data cable to the tester, pull down the prompt bar and click the USB computer connection, as the following: Choose eSurfing Data connection, the following...
  • Page 112 Industrial PDA Close the installation window; computer will display a more drive as (drive code will change with the number of computer drives). Open the Disk, the content will be as follows: Click install the cell-phone drive only, the following window will pop up:...
  • Page 113 Industrial PDA After finish install the drive, the program will display as follows: Click OK, and restart PC to enforce the program.

  • Page 114: Chapter Iv Usage And Maintenance

    Industrial PDA Chapter IV Usage and Maintenance The following suggestions are helpful for the users to use and maintain this tester. Ø Put the tester and all the accessories in the place where the children can't reach. Ø Please keep the equipment dry. Because there may be mineral substance in the rain, moisture and various liquids which can corrode the circuits.
  • Page 115 Industrial PDA Ø Please don't throw, hit or shake the tester because all rude using method break the inside main board. Ø Please don't use the irritant chemicals, irritant cleanser or caustic cleanser to clean the tester. When cleaning the tester, please use rag with mild soap water to wipe gently.

  • Page 116: Chapter V Faults And Solutions

    Industrial PDA Chapter V Faults and Solutions If you meet the following problems during the using process, please try to use the "Faults and Solutions" first to do the relative operation. If the problems still exist, please contact the professional maintenance person. Problem Reason Solution...
  • Page 117 Industrial PDA time. Check the contacts or Poor contact change plug. There will be no charging display. Charging for Low battery about half an hour and voltage. then unplug it to Charging recharge. fault Battery fault Change battery. Wrong charger Change proper charger.
  • Page 118 Industrial PDA calls can't number digits number. realize. exceed the limit. Check whether set Setting fault "calling barring". Can't find The equipment Use the original card is changed. equipment card. Contacts. Wrong setting or There is the battery is The saved data have lost no number long time in low due to the long time low...
  • Page 119 Industrial PDA automatic enough. ally closed Check whether setting Setting reason the auto power-off or not. Get accident Restart interference.
