Summary of Contents for Philips LTC0335

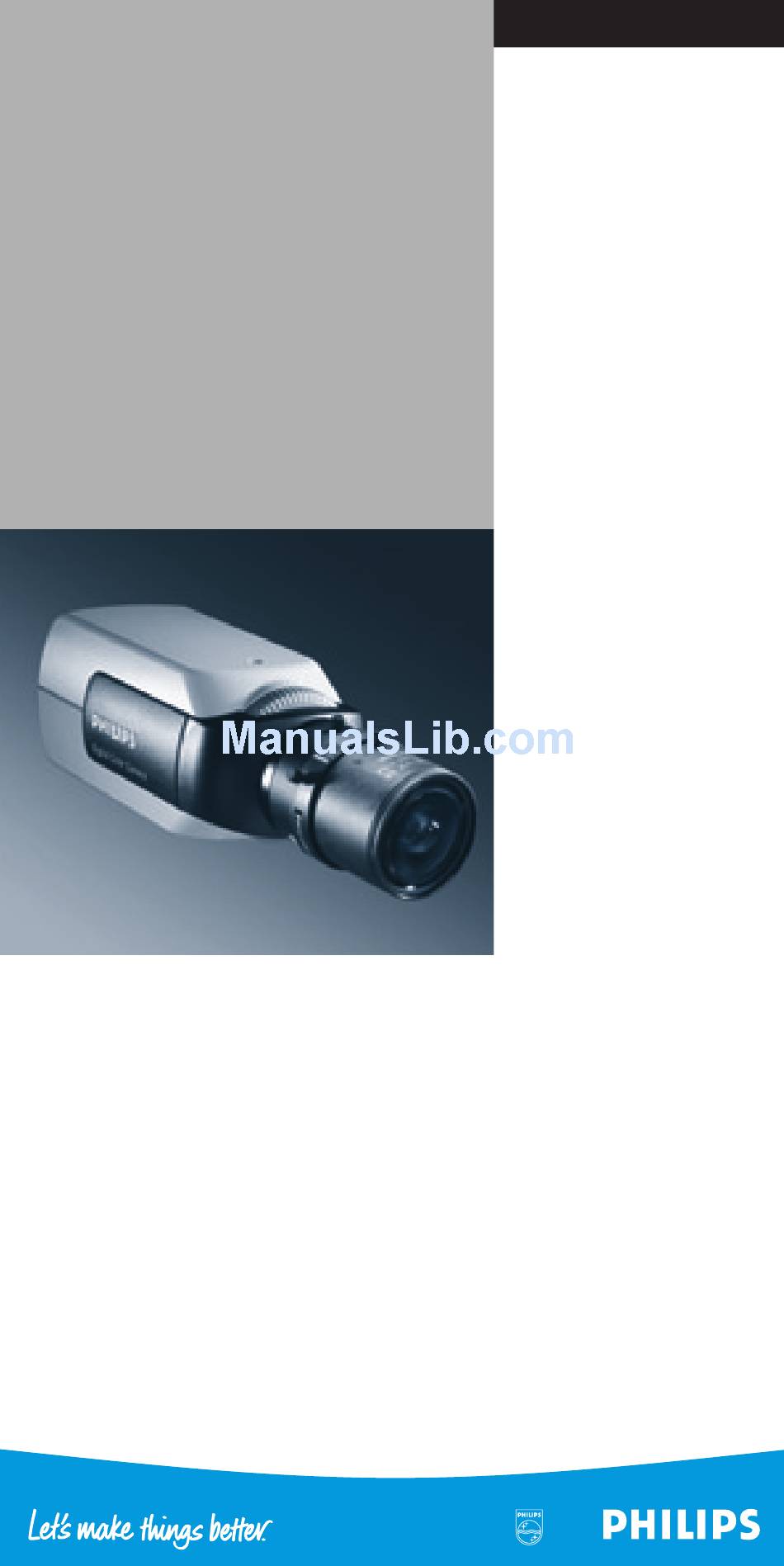

- Page 1 www.philipscsi.com A P E R F E C T M A T C H F O R E V E R Y A P P L I C A T I O N C A M E R A R E F E R E N C E G U I D E...
-
Page 2: Table Of Contents
P H I L I P S C C T V C A M E R A S C O N T E N T S Selection table FlexiDome I & II cameras Dinion cameras Indoor and outdoor camera assemblies High-end digital cameras VariDome cameras Phortress high-impact security dome cameras... -
Page 3: P H I L I P S C C T V
Whatever your application, there's a Philips camera to match it To help you make the best choice from the Philips range of cameras, this guide summarizes the features and benefits, and gives clear reasons for choosing each family for virtually all applications you may encounter. -
Page 4: Selection Table
C A M E R A S E L E C T I O N T A B L E This table summarizes the Philips CCTV camera range. Starting from your requirements or typical application area, it is easy to select the most appropriate model. - Page 5 C A M E R A S E L E C T I O N T A B L E Outdoor Cameras High-end Cameras Phortress Domes (see page 10) (see page 12) (see page 15) P H I L I P S C C T V C A M E R A S...
-
Page 6: Flexidome I & Ii Cameras
F L E X I D O M E & C A M E R A S • Compact fixed cameras in a stylish dome • Excellent picture clarity with true color reproduction • Lightly-tinted dome masks camera with minimum light loss •... -
Page 7: Typical Applications
When should you use FlexiDome cameras? • Indoor applications • Standard lighting situations • Where the viewing direction needs to be concealed • Where discrete observation is desirable Typical applications Entrances lobbies and reception areas, cash desks and checkouts. FlexiDome type number overview Standard Resolution High Resolution Standard... -
Page 8: Dinion Cameras
• Superb low-light performance – The superb sensitivity range of the Dinion cameras is further extended in the high resolution color version by Philips NightSense, which makes use of the extra sensitivity of monochrome images. • Optimal lens performance – Thanks to the unique Lens Wizard, it is possible to set the correct (back) focusing for a sharp picture under all lighting conditions –... - Page 9 Voltage Voltage Color LTC0435/10 LTC0435/50 LTC0455/10 LTC0455/50 NTSC LTC0435/20 LTC0435/60 LTC0455/20 LTC0455/60 Monochrome CCIR LTC0335/10 LTC0335/50 LTC0355/10 LTC0355/50 LTC0335/20 LTC0335/60 LTC0355/20 LTC0355/60 P H I L I P S C C T V C A M E R A S...
-
Page 10: Indoor And Outdoor Camera Assemblies
• State-of-the-art cameras – The Dinion color and monochrome cameras are optimized for superb picture quality, and are easy to set-up and configure. The Philips Dinion video processing chip enables many image-enhancing features. • Convenience – The completely assembled and tested outdoor camera comprises camera, lens, housing with sunshield and wall bracket, ready to connect and install. - Page 11 Outdoor cameras use lenses with DC Iris control to cater for the wide range of lighting conditions encountered outside. When should you use Indoor and Outdoor camera kits? • To minimize installation and set up costs • Outdoors and in dirty environments (outdoor assemblies) •...
-
Page 12: High-End Digital Cameras
• Fine-tuned setup – The camera's advanced parameters can be configured and fine-tuned from a PC using Philips camera configuration software or remote control systems. Settings are stored in the camera's non-volatile memory. Up to three different configuration modes can be pre-set for individual applications. - Page 13 When should you use high-end cameras? • When the highest possible picture quality is required • Where extremes of light conditions are encountered • When special lenses are required Typical applications Traffic and transportation, banking, perimeter observation, stadiums, city centers and public areas. High-end camera type number overview Mains Standard...
-
Page 14: Varidome Cameras
V A R I D O M E C A M E R A S • Fixed color cameras in compact domes • Integrated varifocal auto-Iris lens • High resolution camera with backlight compensation Why select VariDome™ cameras? • Lens flexibility – The required field of view can be selected after the camera has been mounted using the 2.6-6 mm Varifocal lens. - Page 15 P H O R T R E S S H I G H - I M P A C T S E C U R I T Y C A M E R A S • Fully featured cameras in high-security dome •...
- Page 16 F R E Q U E N T L Y A S K E D Q U E S T I O N S What is NightSense? NightSense is a method of boosting the sensitivity of the high-resolution Dinion color camera by 9dB (a factor of 3!) by combining all the signals of the color image in a single monochrome picture.
- Page 17 F R E Q U E N T L Y A S K E D Q U E S T I O N S Why is the resolution of a camera less than the pixels on the sensor? The resolution of CCTV cameras is usually defined in terms of TV lines. In other words, the finest detail, expressed as the equivalent number of TV lines, that could be resolved with a sensor with a given number of pixels.This results in a resolution that is typically about 0.7 x the number...
- Page 18 C O M P A R I S O N T A B L E CAMERAS FIXED CAMERAS LTC0335 LTC0355 LTC0500 LTC0435 LTC0455 LTC0600 Camera type Mono Std Res Mono High Res Mono High Res Col Std res Col High Res...
- Page 19 Ø 155 x 77 Ø 155 x 77 Ø 154 x 114 Ø 154 x 114 Ø 154 x 114 OUTDOOR ASSEMBLIES IN IP65 HOUSING LTC0033/5x LTC0035/5x LTC0043/5x LTC0045/5x LTC0335/50 LTC0355/50 LTC0435/50 LTC0455/50 1/3" 1/3" 1/3" 1/3" 0.16 0.12 0.53 0.88...
- Page 20 S T A M P : www.philipscsi.com © 2002 Philips Communication, Security & Imaging Inc., All Rights Reserved. Philips is a registered trademark of ® Philips Electronics N.V. Data subject to change without notice. Printed in The Netherlands 9922 141 00141 en...
