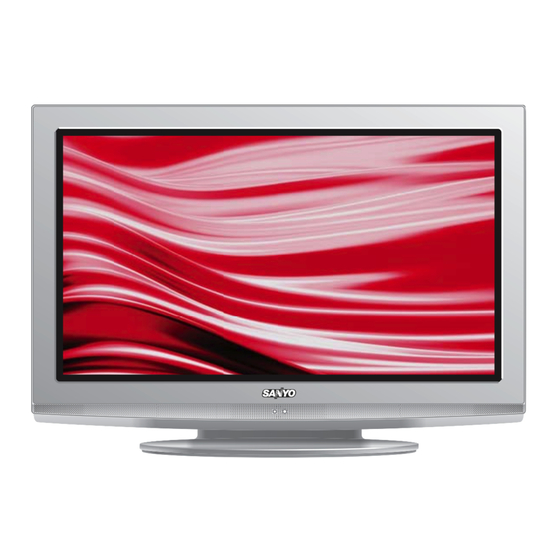

18.5" hdtv lcd
Hide thumbs Also See for DP19649:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual, Setup Manual
SANYO Factory Code N7SFE
Service Reference NO. 379
DP19649

SERVICE MANUAL

18.5" HDTV LCD
ORIGINAL
MFR'S VERSION B
Design and specifications are subject to change without notice.

Advertisement

Table of Contents
loading

Related Manuals for Sanyo DP19649

Summary of Contents for Sanyo DP19649

  • Page 1: Service Manual

    SANYO Factory Code N7SFE Service Reference NO. 379 DP19649 SERVICE MANUAL 18.5" HDTV LCD ORIGINAL MFR'S VERSION B Design and specifications are subject to change without notice.

  • Page 2: Servicing Notices On Checking

    SERVICING NOTICES ON CHECKING 1. KEEP THE NOTICES 6. PERFORM A SAFETY CHECK AFTER SERVICING As for the places which need special attentions, they are indicated with the labels or seals on the Confirm that the screws, parts and wiring which cabinet, chassis and parts.

  • Page 3: About Lead Free Solder (Pbf)

    ABOUT LEAD FREE SOLDER (PbF) Distinction of PbF PCB: PCBs (manufactured) using lead free solder will have a PbF printing on the PCB. (Please refer to figures.) Caution: • Pb free solder has a higher melting point than standard solder; Typically the melting point is 86 F~104 F(30...

  • Page 4: Table Of Contents

    CONTENTS SERVICING NOTICES ON CHECKING………………………………………………………………… A1-1 HOW TO ORDER PARTS………………………………………………………………………………… A1-1 IMPORTANT………………………………………………………………………………………………… A1-1 ABOUT LEAD FREE SOLDER (PbF)…………………………………………………………………… A1-2 CONTENTS…………………………………………………………………………………………………… A2-1 GENERAL SPECIFICATIONS…………………………………………………………………………… A3-1~A3-5 DISASSEMBLY INSTRUCTIONS 1. REMOVAL OF MECHANICAL PARTS AND P. C. BOARDS……………………………………B1-1, B1-2 2. REMOVAL AND INSTALLATION OF FLAT PACKAGE IC………………………………………B2-1, B2-2 SERVICE MODE LIST………………………………………………………………………………………...

  • Page 5: General Specifications

    GENERAL SPECIFICATIONS LCD Size / Visual Size 18.50 inch / 470.1mmV System LCD Type Color TFT LCD Number of Pixels 1366(H) x 768(V) View Range Left/Right 85/85 degree Up/Down 80/80 degree < Bright Dot Zero Bright Dot Ratio Color System NTSC Speaker 2 Speaker...
  • Page 6 GENERAL SPECIFICATIONS Total Keys 28 Keys Keys Power Recall (Quick View) Sleep Mute CH+ / Up CH- / Down VOL+ / Right VOL- / Left Menu Reset Exit Enter Input Select CCD (Closed Caption) Display Zoom (Picture Size) FAV + FAV - Audio G 10 Features...
  • Page 7 GENERAL SPECIFICATIONS Closed Caption CC Advanced V-Chip Clear Picture Size HD Zoom Film Mode Aspect PFC(Power Factor circuit) Freeze frame PIP/POP Direct Input Selection Digital Out Dolby Digital MPEG PC Monitor Input VGA (640x480) Yes (60,72,75Hz) VGA (720x400) Yes (70Hz) WVGA (848x480) SVGA (800x600) Yes (56,60,72,75Hz)
  • Page 8 GENERAL SPECIFICATIONS U/V Mixer DC Car Cord (Center+) Guarantee Card Warning Sheet Circuit Diagram Antenna Change Plug Service Facility List Important Safeguard Dew/AHC Caution Sheet Quick Set-up Sheet Battery UM size x pcs UM-4 x 2 pcs OEM Brand AC Adapter AC Cord (for AC Adapter) AC Cord AV Cord (2Pin-1Pin)
  • Page 9 Container Stuffing (40' container) 1852 Sets/40' container w/Pallet w/Wrapping G-16 Material Cabinet Front PS 94V0 NON-DECABROM Rear PS 94V0 NON-DECABROM Jack Panel Non-Halogen Demand Eyelet Demand G-17 Environment Environmental standard requirement Green procurement of SANYO Pb-free Phase3(Phase3A) Measures for Whisker A3-5...

  • Page 10: Disassembly Instructions

    DISASSEMBLY INSTRUCTIONS 1. REMOVAL OF MECHANICAL PARTS 1-3: FRONT CABINET ASS'Y and LCD PANEL AND P.C. BOARDS (Refer to Fig. 1-3) 1. Turn up set and put the Front Cabinet Ass'y of LCD on the top. CAUTION 2. Remove the Front Cabinet Ass'y in the direction of Be careful not to remove the LVDS cable forcibly, because the LVDS cable may be damaged.
  • Page 11 DISASSEMBLY INSTRUCTIONS 1-4: DIGITAL PCB (Refer to Fig. 1-5) 1-5: POWER PCB, REMOCON PCB and OPERATION PCB (Refer to Fig. 1-5) 1. Remove the 2 screws (1). 2. Remove the Holder LCD in the direction of arrow (A). 1. Disconnect the following connector: (CP7601). 3.

  • Page 12: Removal And Installation Of Flat Package Ic

    DISASSEMBLY INSTRUCTIONS 2. REMOVAL AND INSTALLATION OF 3. When IC starts moving back and forth easily after FLAT PACKAGE IC desoldering completely, pickup the corner of the IC usin tweezers and remove the IC by moving with the IC REMOVAL desoldering machine.
  • Page 13 DISASSEMBLY INSTRUCTIONS INSTALLATION 4. When bridge-soldering between terminals and/or the soldering amount are not enough, resolder using a 1. Take care of the polarity of new IC and then install the Thintip Soldering Iron. (Refer to Fig. 2-8.) new IC fitting on the printed circuit pattern. Then solder each lead on the diagonal positions of IC temporarily.

  • Page 14: Service Mode List

    SERVICE MODE LIST This unit is provided with the following SERVICE MODES so you can repair, examine and adjust easily. To enter to the SERVICE MODE function, press and hold both buttons simultaneously on the main unit and on the remote control for more than a the standard time in the appropriate condition.

  • Page 15: When Replacing Eeprom (Memory) Ic

    WHEN REPLACING EEPROM (MEMORY) IC CONFIRMATION OF CHECK SUM, POWER ON TOTAL HOURS AND MICON VERSION Initial total of MEMORY IC, POWER ON total hours and MICON VERSION can be checked on the screen. Total hours are displayed in 16 system of notation. NOTE: If you set a factory initialization, the total hours is reset to "0".

  • Page 16: Electrical Adjustments

    ELECTRICAL ADJUSTMENTS 1. ADJUSTMENT PROCEDURE NO. FUNCTION NO. FUNCTION Read and perform these adjustments when repairing the 03 R DRIVE(N) 35 TINT circuits or replacing electrical parts or PCB assemblies. 04 R CUTOFF(N) 36 SHARP H1 MAX 05 G DRIVE(N) 37 SHARP H1 MIN CAUTION 06 G CUTOFF(N)
  • Page 17 ELECTRICAL ADJUSTMENTS 2-2: BRIGHTNESS CENT 2-3: CONTRAST MAX 1. Place the set in Aging Test for more than 30 minutes. 1. Place the set in Aging Test for more than 30 minutes. 2. Receive the color bar pattern. (RF Input) 2.
  • Page 18 ELECTRICAL ADJUSTMENTS 2-4: CONTRAST 40 2-5: CONTRAST CENTER 1. Place the set in Aging Test for more than 30 minutes. 1. Place the set in Aging Test for more than 30 minutes. 2. Receive the color bar pattern. (RF Input) 2.
  • Page 19 ELECTRICAL ADJUSTMENTS 2-6: Confirmation of Fixed Value (Step No.) Please check if the fixed values of each of the adjustment item is set correctly referring below. (TV/AV/COMPONENT/HDMI//PC/DTV) COMPONENT HDMI PC/HDMI-DVI FUNCTION CVBS 480i 480p 720p 1080i 1080P 480i 480p 720p 1080i 1080p 640x480...
  • Page 20 ELECTRICAL ADJUSTMENTS 3. ELECTRICAL ADJUSTMENT PARTS LOCATION GUIDE (WIRING CONNECTION) LCD PANEL POWER PCB CP7001 CD2801 CP7002 CP2804 CP8101 TU5801 J501 CP2802 CD6202 J4302 CP3601 CP2801 CP4203 CP2803 SPEAKER AC IN DIGITAL PCB CD501 OS7601 CP2201 REMOCON PCB OPERATION PCB...
  • Page 21 POWER BLOCK DIAGRAM DC/DC IC503 P.CON+32V LA5797M-TE-L-E POWER FAIL D517 D516 Q505 D507 L502 CD501 D508 TRANSFORMER D510 AC IN T501 AT+12V D518 D514 F501 J501 SOUND+B SOUND GND D523 POWER CTL AT+5.8V C502 IC501 FA5571N-D1-TE1 D515 INV+B Q501 INV_GND REGULATOR IC502 FEED BACK...
  • Page 22 SIGNAL (DIGITAL PCB) BLOCK DIAGRAM HEADPHONE JACK J301 CKX-035-349ABZ1 COAXIAL OUT J4206 AV-4B-75H SPEAKER L/R SP301, SP302 S0308F05 SPDIF AV1_Y S-VIDEO-IN J8101 AV1_C S4-29SBZ AMP L/R AV3/AV4_Y AUDIO L/R SOUND AMP IC IC301 COMPONENT_VIDEO_ IN AV3/AV4_PB LA42052-E J8102 AV3-6B-15H AV3/AV4_PR HDMI LCD_TXOUT0-/+~3 CP3601...

  • Page 23: Power

    POWER (DIGITAL PCB) BLOCK DIAGRAM CP3001 S_DET FILTER_MUTE DIGITAL TUNER TUNER+32V TU5801 115UC033AR--F D5.0V AT+5.8V P.CON+5V IC3004 RP131H501D-T1-F AUDIO SW IC6501 TC74VHC4052AFTELKM HP_DET POWER_ON-H LIGHT_CTL INVERTER_H POWER_FAIL RESET EEP ROM 256K FLASH IC6201 IC2803,IC2806 IC2804 SCALER R3111N291C-TR-F AT24C512BN-SH-T AT25DF321-SU IC2801 R8J04012BG 3.3V 1.25V...

  • Page 24: Printed Circuit Boards Digital

    PRINTED CIRCUIT BOARDS DIGITAL (TOP SIDE) C3033 W810 Q3001 Q3002 CP2804 C3012 C3017 C2854 B2805 Q3008 IC3008 X2801 W843 IC3004 W842 C3051 Q3004 Q3005 C3039 R2868 C3045 C3032 C3004 C3053 C3059 R3006 NR2803 R3008 R2841 R2915 NR2801 R2832 R2916 NR2802 D3004 R2839 R2838...
  • Page 25 PRINTED CIRCUIT BOARDS DIGITAL (BOTTOM SIDE) R2852 R2853 R2854 CEJ500A C3049 W805 Q3003 C2976 R2803 R3027 R3021 R2805 R2822 Q2805 C2895 R2844 R2825 D6206 C2812 C2888 NR2814 W819 IC6201 NR2815 R2823 Q2806 R2802 C2835 R2894 C2825 C2830 C2818 C2827 C2823 R2843 C2863 R2842...

  • Page 26: Power/Operation/Remocon

    PRINTED CIRCUIT BOARDS POWER/OPERATION/REMOCON (INSERTED PARTS) SOLDER SIDE CP7001 - REPLACE RISK OF FIRE AS MARKED D505 R504 R501 D7601 CEJ499A D518 R7019 W006 C7030 F501 D507 W848 R509 C502_4 D508 T7001 R510 J501 D510 R7039 R7038 W847 C7018 R512 D515 R503 C519...
  • Page 27 PRINTED CIRCUIT BOARDS POWER/OPERATION/REMOCON (CHIP MOUNTED PARTS) SOLDER SIDE IC503 Q503 Q504 R305 R306 CEJ497A R304 R307 Q505 R513 R523 R515 R516 R525 IC501 Q7001 IC7001 R506 Q7004 CEJ499A...

  • Page 28: Flash

    FLASH SCHEMATIC DIAGRAM (DIGITAL PCB) SCALER IC A3.3V IC2801 R8J04012BG 1005 C2805_1 MICON_UPDATE/PC_TOOL 0.01 CP2802 A2001WV-11A RESET_N AB10 RESET_N TCK/MST TRST_N TRST_N TDO/MSQ FROM FIRM UPDATE ASEMD0 ASEBRKAK_N (1005) ASEMD0 ASEBRKAK_N R2920 USB_UPDATE CP2803 TMS/MSN UA11-04010B140-R 10K 1/16W ASEBRKAK_N TDI/MSD D5.0V ASEBRKAK_N RESET_N...

  • Page 29: Ddr

    DDR SCHEMATIC DIAGRAM (DIGITAL PCB) DDR2_SDRAM IC IC2802 SCALER IC H5PS5162FFR-S5C IC2801 R8J04012BG SDDQ0 SDDQ0 SDDQ1 SDDQ1 SDDQ2 SDDQ2 SDDQ3 SDDQ3 SDDQ4 SDDQ4 SDDQ5 SDDQ5 VDDQ SDDQ6 VDDQ SDDQ6 VDDQ SDDQ7 SDDQ7 VDDQ SDDQ8 SDDQ8 VDDQ SDDQ9 VDDQ SDDQ9 SDDQ10 VDDQ DQ10 SDDQ10...

  • Page 30: Hdmi

    HDMI SCHEMATIC DIAGRAM (DIGITAL PCB) EEP_ROM IC IC3601 AT24C02BN-SH-T BUFFER JG3601 Q3607 JG3602 2SK3541_T2L JG3603 SCALER IC IC2801 CH1_SCL R8J04012BG R3643 3.3K 1/16W CH1_SDA CH1_D0+ BUFFER RX01P RX03P C3603 R3644 Q3608 CH1_D0- RX01M RX03M 2SK3541_T2L 0.1 B 3.3K 1/16W CH1_D1+ C3601 RX11P RX13P...

  • Page 31: Lvds

    LVDS SCHEMATIC DIAGRAM (DIGITAL PCB) FROM/TO PANEL FOR 19WLCD CP2804 A2006WV30 LCD_TXOUT0- RX0- SCALER IC LCD_TXOUT1+ RX1+ IC2801 LCD_TXOUT2- RX2- R8J04012BG LCD_TXCLKOUT+ RXCLK+ LCD_TXOUT3- RX3- VCC+5V NR2804 FROM REGULATOR VCC33LVDS VCC+5V LV0OUT0M 4D02WGJ0220TCE LCD_TXOUT0- LV0OUT0P B2802 LCD_TXOUT0+ D3.3V VCC33LVDS LCD_TXOUT1- HCB1608KF-221T20 LCD_TXOUT0+ LCD_TXOUT1+...

  • Page 32: Scaler

    SCALER SCHEMATIC DIAGRAM (DIGITAL PCB) SCALER IC 1005 IC2801 R8J04012BG R2873 4.7K 1/16W R2839 SYS_POWER-H GPIO2(SYS_POWER_H) AA10 GPY19(DVD_CS) 4.7K 1/16W MADIN2(DVD_STATUS1) R2838 GPY17(DVD-H) 4.7K 1/16W DEB_RX AB21 UARTRXD0 DEB_TX AA20 UARTTXD0 S1_DET SMRST(S1_DET) AB11 GPY08(1.8V_POWER_H) 1005 R2868 HP_DET GPY15(HP-DET) 10K 1/16W SCLK0(S2_DET) R2863 R2879...

  • Page 33: Scaler Power

    SCALER POWER SCHEMATIC DIAGRAM (DIGITAL PCB) SCALER IC IC2801 R8J04012BG B2813 VDD18HDMI W840 BLM18PG121SN1D 1.25 VDD18HDMI 1.25 1.25 VDD18HDMI 1.25 1.25 VSSHDMI 1.25 VSSHDMI 1.25 VSSHDMI 1.25 VSSHDMI 1.25 VSSHDMI 1.25 TO HDMI VSSHDMI 1.25 VSSHDMI 1.25 1.25 HDMI_A3.3V 1.25 B2814 1.25 VDD33HDMI...

  • Page 34: Tuner

    TUNER SCHEMATIC DIAGRAM (DIGITAL PCB) TU5801 115UC033AR--F TO SCALER VIDEO/AUDIO W846 TU_CVBS 1608 C5809 1005 R5817 100 1/16W SCALER IC IC2801 R8J04012BG 1005 1005 R5808 C5828 VSBINM 100 1/16W 0.01 1005 1005 R5809 C5827 VSBINP VSB / SIF ADC 100 1/16W 0.01 C5803 0.02...

  • Page 35: Scaler Video/Audio

    SCALER VIDEO/AUDIO SCHEMATIC DIAGRAM (DIGITAL PCB) SCALER IC IC2801 R8J04012BG FROM/TO JACK C2952 TU_CVBS PC_V VIN6A 0.1 B C2944 PC_H AV1_CVBS VIN5A 0.1 B AV3/AV4_Y AV1_CVBS C2943 AV1_Y VGA-G VIN4A 0.1 B VGA-B VGA-R C2938 AV1_C VIN4B AV3/AV4_PR 0.1 B SPDIF SSIN2 AV3/AV4_PB...

  • Page 36: Jack

    JACK SCHEMATIC DIAGRAM (DIGITAL PCB) HDMI AUDIO IN J4302 R4316 CKX-035-349ABZ1 W825 DVI_A_IN_L 1K 1/16W R4317 W802 DVI_A_IN_R 1K 1/16W FROM REGULATOR A3.3V W830 SPDIF D5.0V SPDIF_OUT FROM/TO SCALER D5.0V A3.3V STANDBY-LED_CTL REMOCON_IN_P PC IN 1005 STANDBY-LED_SW CP4203 WD-00021-R R4238 Q4307 VGA-R VGA-R...

  • Page 37: Av Switch

    AV SWITCH SCHEMATIC DIAGRAM (DIGITAL PCB) NR6501 NR6502 NR6503 FROM REGULATOR NR6504 4D02WGJ0223TCE 4D02WGJ0223TCE 4D02WGJ0223TCE 4D02WGJ0223TCE AUDIO SW IC B6503 D5.0V IC6501 FCM1608KF-221T05 1005 TC74VHC4052AFTELKM R6503 1608 C6510 AV1_A_IN_L NO0B 1005 15K 1/16W 1608 1005 R6504 1608 C6501 C6503 R6509 DVI_A_IN_L DVI_A_IN_R NO2B...

  • Page 38: Regulator

    REGULATOR SCHEMATIC DIAGRAM (DIGITAL PCB) VCC1.25V DC/DC for CORE L3002 10uH C3048 D1.25V 0.1 B LQH88PN R3012 VDD_PANEL 6.8K 1/16W FROM/TO FLASH COMP FROM/TO POWER POWER_FAIL LCD+B_SW PANEL_POWER-H LCD+B_SW PANEL_POWER-H CP3001 (CP501) Q3003 D5.0V Q3008 AT+6V TWG-P23P-A1 KRC102SRTK BLON TPC6108 LIGHT_CTL HP_AUDIO_L A3.3V...

  • Page 39: Power

    POWER SCHEMATIC DIAGRAM (POWER PCB) C538 D520 TO BACKLIGHT INVERTER 0.15 1SS133 INV+B DC-DC CONVERTER IC J501 IC503 32V_SW D519 LIGHT_CTL CCT2302-0921FC LA5797M-TE-L-E Q503 INVERTER_H W826 W847 1SS133 KRA103SRTK 12.0 AT+12V P.CON+12V V_IN VRET 12.0 C539 D522 12.0 D508 D510 0.15 1SS133 CPOUT...

  • Page 40: Backlight Inverter

    BACKLIGHT INVERTER SCHEMATIC DIAGRAM (POWER PCB) 4A 125V FROM POWER HIGH VOLTAGE 4A 125V F7001 INV+B 20N_4000FS CP7001 C3502WR0-2P-HK T7001 INV DRIVE 3.8A/60V/56mohm 8137001R Q7004 TPC8218-H R7039 C7018 12.4 12.0 INVERTER GND INVERTER S GND 33 1/4W 500V 0.0022 INVERTER GND 12.4 12.0 VS_DET...
  • Page 41 SOUND AMP SCHEMATIC DIAGRAM (POWER PCB) SOUND AMP IC IC301 LA42052-E Ripple OUT2 OUT1 Filter 10.3 14.0 HEADPHONE JACK R304 R306 J301 R308 CKX-035-349ABZ1 2.2K 2.2K 1K 1/4W R305 R307 R309 B308 2.2K 2.2K 1K 1/4W HCB3216KF-391T20 FROM JACK OUT B307 R310 C303...

  • Page 42: Jack Out

    JACK OUT SCHEMATIC DIAGRAM (POWER PCB) FROM/TO JACK COMPONENT_VIDEO_IN J8102 CP8101 (CP4301) R8118_1 AV3_Y AV3-6B-15H 127301123K2 LOUT_SOUND LOUT SOUND_S_GND AV3_PB R8119_1 ROUT_SOUND ROUT JACK_GND AV3_PR R8120_1 AV1_C AV1_C AV1_Y AV1_Y (OPERATION PCB) AL2/YUV_A_IN_L YUV L IN FROM/TO SCALER AR2/YUV_A_IN_R YUV R IN CP2201 (CD6202) A2001WR-3A...

  • Page 43: Interconnection Diagram

    INTERCONNECTION DIAGRAM CP8101 CP4301 PORT1 LOUT LOUT S-VIDEO-IN HDMI CONNECTOR J8101 COAXIAL OUT CP3601 COMPONENT_AUDIO_IN J4206 ROUT ROUT J8103 COMPONENT_VIDEO_IN J8102 AV1_C AV1_C HOT PLUG HDMI AUDIO IN AV1_Y AV1_Y J4302 +5V_POWER CVBS_AV_IN J8104 DDC_GND YUV L IN YUV L IN DDC_SDA DDC_SCL YUV R IN...

  • Page 44: Waveforms

    WAVEFORMS FLASH 20ns 10µs 200mV 200mV 100mV TUNER 10µs 10µs 0.2µs 0.5V 100mV 200mV SOUND AMP 10µs 100mV 100mV 200mV SCALER VIDEO/AUDIO 10µs 0.5V 100mV 200mV 20µs 500mV 100mV JACK 20µs 500mV 100mV NOTE : The following waveforms were measured at the point of the corresponding balloon number in the schematic diagram.
  • Page 45 MECHANICAL EXPLODED VIEW PCB270 102E 102C (OPERATION PCB ASS'Y) 104B 102D 104A 102E 102D 102D 102D 102D 102B 102A PCBDH0 102D 102B (DIGITAL PCB ASS'Y) PCBDA0 (REMOCON PCB ASS'Y) 102B PCB240 103B (POWER PCB ASS'Y) 103B 103B 101C 103A 101B 101A 101C 101C...

  • Page 46: Mechanical Exploded Views

    MECHANICAL EXPLODED VIEW (PACKING DIAGRAM) INSTRUCTION BOOK(E/S) INFORMATION SHEET(RETURN) INFORMATION SHEET(PICTURE QUALITY) POLYBAG INSTRUCTION SCREW TM101 CD501 PACKAGE TOP FLIM BAG (791WHA0173) FLIM BAG (791WHA0189) PACKAGE BOTTOM CARTON LABEL GIFT BOX...

  • Page 47: Mechanical Replacement Parts List

    MECHANICAL REPLACEMENT PARTS LIST REF. NO. PART NO. DESCRIPTION 7A701B351A FRONT CABI ASS'Y 101A 701WPBA114 CABINET FRONT 101B 713WPA0434 GLASS LED 101C 800WQ00181 FELT SHEET 7A702A992A BACK CABI ASS'Y 7A702B007A BACK CABI ASS'Y 7A702B040A BACK CABI ASS'Y 7A702B041A BACK CABI ASS'Y 102A 702WPAB538 CABINET BACK...

  • Page 48: Electrical Replacement Parts List

    ELECTRICAL REPLACEMENT PARTS LIST REF. NO. PART NO. DESCRIPTION REF. NO. PART NO. DESCRIPTION RESISTORS RESISTORS R302 R002T4102J OHM 1/4W R2847 R808R9562F 5.6K OHM 1/16W R304 R803R9222J 2.2K OHM 1/16W R2848 R808R9220J OHM 1/16W R305 R803R9222J 2.2K OHM 1/16W R2850 R808R9220J OHM 1/16W R306...
  • Page 49 ELECTRICAL REPLACEMENT PARTS LIST REF. NO. PART NO. DESCRIPTION REF. NO. PART NO. DESCRIPTION RESISTORS RESISTORS R3657 R808R9103J 10K OHM 1/16W R8103 R803R9750J OHM 1/16W R4235 R808R9222J 2.2K OHM 1/16W R8104 R803R9750J OHM 1/16W R4238 R808R9101J 100 OHM 1/16W R8105 R803R9750J OHM 1/16W R4245...
  • Page 50 ELECTRICAL REPLACEMENT PARTS LIST REF. NO. PART NO. DESCRIPTION REF. NO. PART NO. DESCRIPTION CAPACITORS CAPACITORS C2825 CS0UB0N15K 0.1 UF 10V B C2925 CS0RB0N17K UF 10V B C2826 CS0UB0N15K 0.1 UF 10V B C2926 CS0RB0N17K UF 10V B C2827 CS0UB0N15K 0.1 UF 10V B C2927 CS0RB0N17K...
  • Page 51 ELECTRICAL REPLACEMENT PARTS LIST REF. NO. PART NO. DESCRIPTION REF. NO. PART NO. DESCRIPTION CAPACITORS DIODES C5814 CS0UCH4Q1J PF 50V CH D3001 D2ARMAB340 DIODE SCHOTTKY SMAB34 C5815 CS0UB0N15K 0.1 UF 10V B D3002 D2ARMAB340 DIODE SCHOTTKY SMAB34 C5818 CS0UB0N15K 0.1 UF 10V B D3003 D2ARMAB340 DIODE SCHOTTKY...
  • Page 52 ELECTRICAL REPLACEMENT PARTS LIST REF. NO. PART NO. DESCRIPTION REF. NO. PART NO. DESCRIPTION COILS &TRANSFORMERS MISCELLANEOUS L5804 0216SD220J COIL ! F501 0805T04001 FUSE SCT 4A ! T501 0481291544 TRANSFORMER,SWITCHING 81291544 ! F7001 0835C04003 MICRO FUSE 20N_4000FS ! T7001 048137001R TRANSFORMER,SWITCHING 8137001R NR2801...
  • Page 53 SPEC.NO. M39A-12J O/R NO. K9Y3062...
