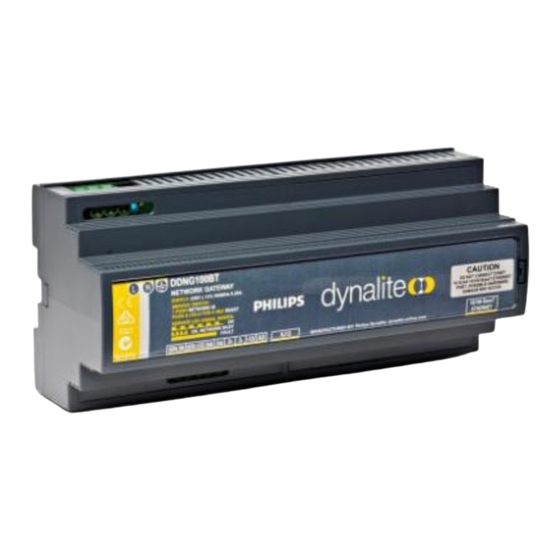

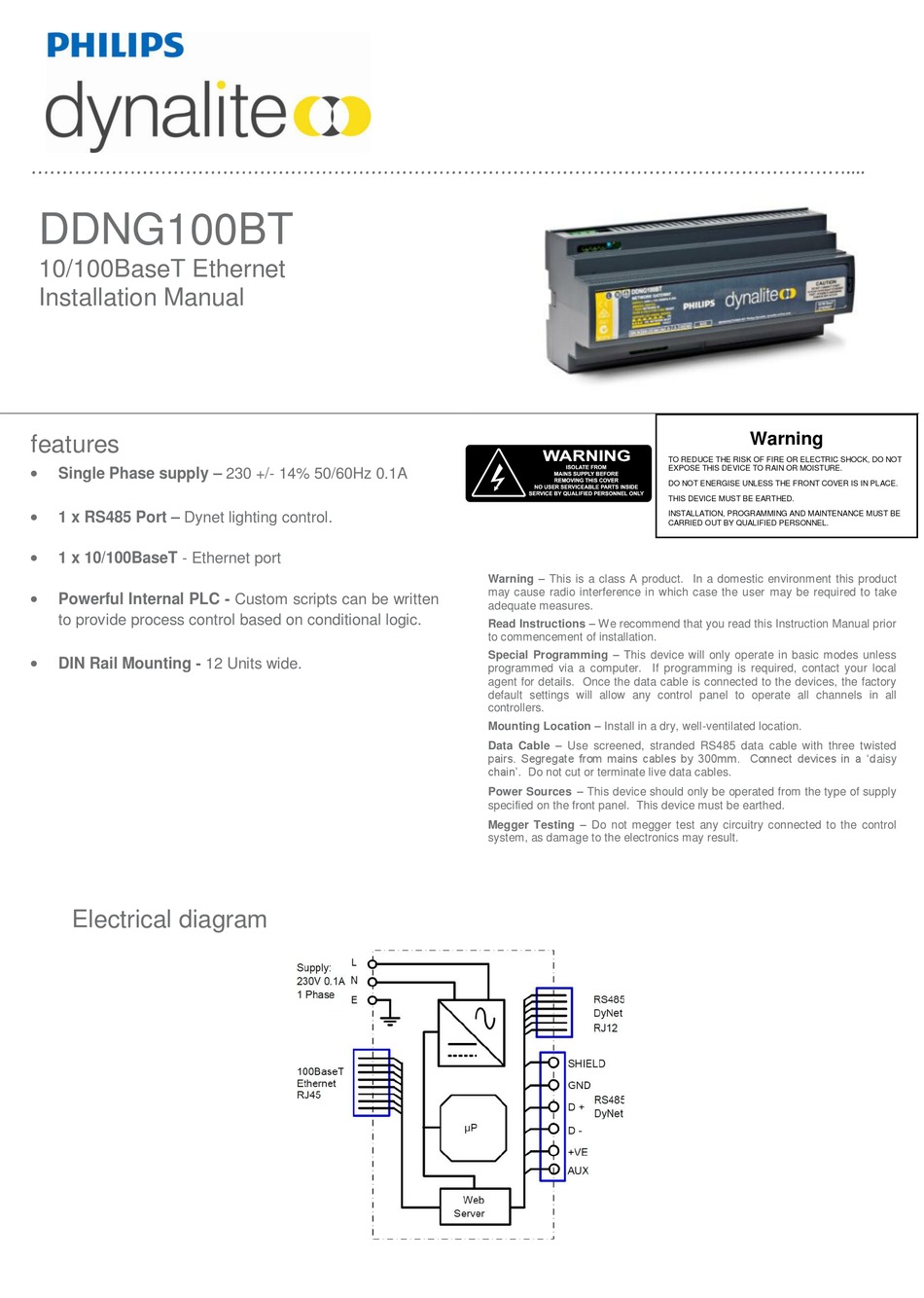

Philips Dynalite DDNG100BT Installation Manual

DDNG100BT
10/100BaseT Ethernet
Installation Manual
features

Single Phase supply – 230 +/- 14% 50/60Hz 0.1A

1 x RS485 Port – Dynet lighting control.

1 x 10/100BaseT - Ethernet port

Powerful Internal PLC - Custom scripts can be written
to provide process control based on conditional logic.

DIN Rail Mounting - 12 Units wide.
Electrical diagram
Warning – This is a class A product. In a domestic environment this product
may cause radio interference in which case the user may be required to take
adequate measures.
Read Instructions – We recommend that you read this Instruction Manual prior
to commencement of installation.
Special Programming – This device will only operate in basic modes unless
programmed via a computer. If programming is required, contact your local
agent for details. Once the data cable is connected to the devices, the factory
default settings will allow any control panel to operate all channels in all
controllers.
Mounting Location – Install in a dry, well-ventilated location.
Data Cable – Use screened, stranded RS485 data cable with three twisted
pairs. Segregate from mains cables by 300mm. Connect devices in a 'daisy
chain'. Do not cut or terminate live data cables.
Power Sources – This device should only be operated from the type of supply
specified on the front panel. This device must be earthed.
Megger Testing – Do not megger test any circuitry connected to the control
system, as damage to the electronics may result.
Warning
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS DEVICE TO RAIN OR MOISTURE.
DO NOT ENERGISE UNLESS THE FRONT COVER IS IN PLACE.
THIS DEVICE MUST BE EARTHED.
INSTALLATION, PROGRAMMING AND MAINTENANCE MUST BE
CARRIED OUT BY QUALIFIED PERSONNEL.
