Casio 4362 Operating Instructions

MO0601-EA
Getting Acquainted
Congratulations upon your selection of this CASIO watch. To get the most out of your
purchase, be sure to read this manual carefully.
Keep the watch exposed to bright light
Bright Light
Solar cell
• The watch continues to operate, even when it is not exposed to light. Leaving the
watch in the dark can cause the battery to run down, which will result in some watch
functions to be disabled. If the battery goes dead, you will have to re-configure watch
settings after recharging. To ensure normal watch operation, be sure to keep it
exposed to light as much as possible.
Battery charges in the light.
Bright Light
Solar cell
(Converts light to
electrical power.)
LEVEL 1
LEVEL 2
LEVEL 3
Charge
LEVEL 4
Rechargeable battery
General Guide
• Press C to change from mode to mode.
• In any mode (except when a setting screen is on the display), press B to illuminate
the face of the watch.
Timekeeping Mode
Timekeeping
Use the Timekeeping Mode to set and view the current time and date.
• When setting the time, you can also configure settings for the 12/24-hour format.
• All of the operations in this section are performed in the Timekeeping Mode, which
you can enter by pressing C.
Month – Day Second
Setting the Digital Time and Date
This watch is preset with a number of city codes, each of which represents the time
zone where that city is located. When setting the digital time, it is important that you
select the correct city code for your Home City (the city where you normally use the
watch). If your location is not included in the preset city codes, select the preset city
code that is in the same time zone as your location.
• Note that all of the times for the World Time Mode city codes are displayed in
accordance with the digital time and date settings you configure in the Timekeeping
Mode.
To set the digital time and date
City code
City Code
Power Saving
Operation Guide 4362
The electricity generated by the solar cell of the watch is
stored by a built-in battery. Leaving or using the watch
where it is not exposed to light causes the battery to run
down. Make sure the watch is exposed to light as much as
possible.
• When you are not wearing the watch on your wrist,
position the face so it is pointed at a source of bright
light.
• You should try to keep the watch outside of your sleeve
as much as possible. Charging is reduced significantly if
the face is only partially covered.
Battery discharges in the dark.
Electrical
energy
All
LEVEL 1
functions
LEVEL 2
enabled
LEVEL 3
Dis-
charge
LEVEL 4
World Time Mode
Press C.
Press A.
A
Hour : Minutes
1. In the Timekeeping Mode, hold down A until the city
code starts to flash, which indicates the setting screen.
2. Press B or D to select the city code you want.
• Make sure you select your Home City code before
changing any other setting.
• See "City Code Table" for a complete list of available
city codes.
3. Press C to move the flashing in the sequence shown
below to select other settings.
12/24-Hour
DST Seconds
Format
Day Month Year
• The actual level at which some functions are disabled depends on the watch model.
• Frequent display illumination can run down the battery quickly and require charging.
The following guidelines give an idea of the charging time required to recover from a
single illumination operation.
Approximately 5 minutes exposure to bright sunlight coming in through a window
Approximately 50 minutes exposure to indoor fluorescent lighting
• Be sure to read "Power Supply" for important information you need to know
when exposing the watch to bright light.
If the display of the watch is blank...
If the display of the watch is blank, it means that the watch's Power Saving function
has turned off the display to conserve power.
• See "Power Saving Function" for more information.
About This Manual
Some or all
functions
disabled
Countdown Timer Mode
Hand Setting Mode
4. When the setting you want to change is flashing, use B and/or D to change it as
described below.
Screen:
Day of week
A
M
PM indicator
• For information about settings other than the time and date, see the following.
Power Saving: Power Saving Function
5. Press A to exit the setting screen.
• When you exit the setting screen, the analog hands are adjusted automatically to
match the digital time. See "Analog Timekeeping" for more information.
• See "Daylight Saving Time (DST)" below for details about the DST setting.
Daylight Saving Time (DST)
Daylight Saving Time (summer time) advances the time setting by one hour from
Standard Time. Remember that not all countries or even local areas use Daylight
Saving Time.
To toggle the Timekeeping Mode digital time between DST and Standard Time
Hour
Minutes
• Depending on the model of your watch, display text
appears either as dark figures on a light background, or
light figures on a dark background. All sample displays
in this manual are shown using dark figures on a light
background.

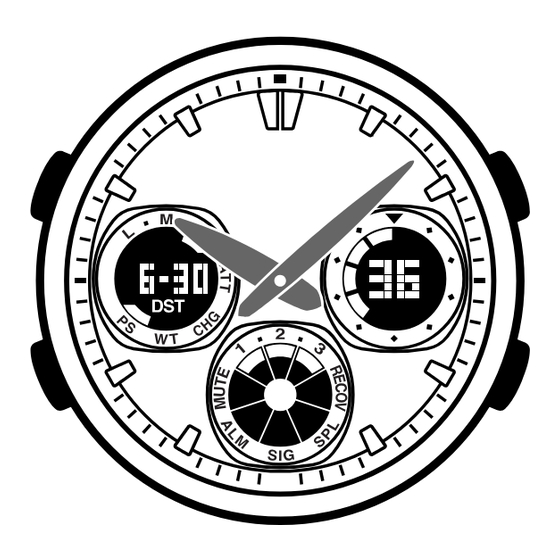

• Button operations are indicated using the letters shown
in the illustration.
• Most of the display examples in this manual show only
the digital display, without the analog hands.
• Each section of this manual provides you with the
information you need to perform operations in each
mode. Further details and technical information can be
found in the "Reference" section.
Stopwatch Mode
Alarm Mode
To do this: Do this:
Use D (east) and B (west).
Change the city code
Press D.
Cycle between Daylight Saving Time
( ), and Standard Time ( )
Press D.
Toggle between 12-hour ( 12H ) and
24-hour ( 24H ) timekeeping
Press D.
Reset the seconds to
Use D (+) and B (–).
Change the hour or minutes
Change the year
Change the month or day
Press D.
Toggle Power Saving on ( ) and
off ( )
1. In the Timekeeping Mode, hold down A until the city
code starts to flash, which indicates the setting screen.
2. Press C once and the DST setting screen appears.
3. Press D to toggle between Daylight Saving Time (
displayed) and Standard Time (
4. Press A to exit the setting screen.
• The DST indicator appears on the display to indicate
that Daylight Saving Time is turned on.
displayed).
1
