Casio 3312 Operating Instructions

MO0401-EA
Getting Acquainted
Congratulations upon your selection of this CASIO watch. To get the most out of your
purchase, be sure to carefully read this manual and keep it on hand for later reference
when necessary.
Expose the watch to bright light to charge its battery before using it.
You can use this watch even as its battery is being charged by exposure to bright
light.
• Be sure to read "Battery" of this manual for important information you need to
know when exposing the watch to bright light.
If the digital display of the watch is blank...
General Guide
• Press C to change from mode to mode.
• In any mode, press B to illuminate the display.

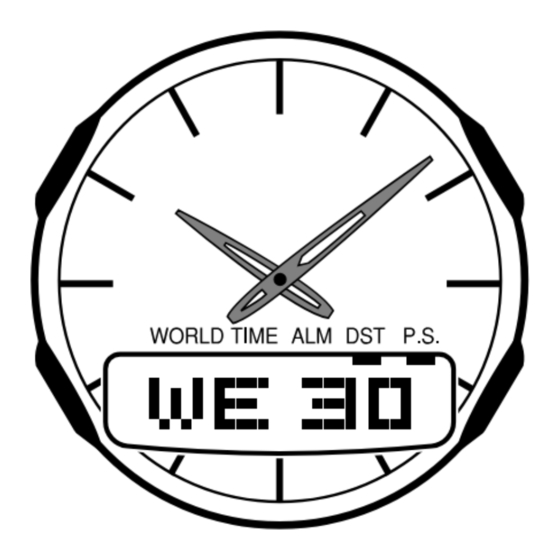

Timekeeping Mode
Radio-controlled Timekeeping
Hour hand
Minute hand
Day
Day of week
Current Time Setting
This watch automatically adjusts its time setting in accordance with a time calibration
signal. You can also perform a manual procedure to set the time and date, when
necessary.
• The first thing you should do after purchasing this watch is to set your Home City,
which is the city where you will normally use the watch. For more information, see
"To set your Home City" below.
• When using the watch in an area that is outside of the range of the transmitter in
Mainflingen, you need to manually adjust the time as required. See "Timekeeping"
for information about manual settings.
• The analog time of this watch is synchronized with the digital time. Because of this,
the analog time setting is automatically adjusted whenever you change the digital
setting. See "Analog Timekeeping" for more information.
To set your Home City
City code
• The first press of A displays the 12/24-hour setting screen. Pressing A again exits
the setting screen.
• Normally, your watch should show the correct time as soon as you select your Home
City code. If it does not, it should adjust automatically after the next auto receive (in
the middle of the night). You can also perform manual receive or you can set the time
manually.
• If you are in an area that does not use Daylight Saving Time (summer time), turn off
the DST setting.
To display the digital time and last signal screen
• In the Timekeeping Mode, press A to cycle through the digital time screens as
shown below.
• In the Timekeeping Mode, press D to display the last signal screen. The last signal
screen shows the date and time of the last successful time calibration signal
reception.
Operation Guide 3312
If the Power Saving indicator ( P.S. ) is flashing on the
display, it means that the display is blank because the
watch's Power Saving function has turned it off to
conserve power. Power Saving automatically turns off the
display and enters a sleep state whenever your watch is
left for a certain period in an area where it is dark. If the
watch is kept in the dark for a longer period, the analog
hands will also stop moving after a few days.
• The initial factory default setting is Power Saving on.
• The watch will recover from the sleep state if you move it
to a well-lit area or if you press any button.
• See "Power Saving Function" for more information.
Press C.
Hand Setting Mode
This watch receives a time calibration signal and updates
its time setting accordingly. The time calibration signal
includes both Standard Time and Daylight Saving Time
(summer time) data.
• This watch is designed to pick up the time calibration
signal transmitted from Mainflingen, Germany.
1. In the Timekeeping Mode, hold down A until the city
code starts to flash, which indicates the setting screen.
2. Use D (east) and B (west) to select the city code you
want to use as your Home City.
• The following are the city codes for major cities in the
Western Europe time zones.
LON : London
PAR and BER : Paris, Berlin, Milan, Rome,
Amsterdam, Hamburg, Frankfurt,
Vienna
3. Press A twice to exit the setting screen.
About This Manual
• Button operations are indicated using the letters shown
in the illustration.
• Each section of this manual provides you with the
information you need to perform operations in each
mode. Further details and technical information can be
found in the "Reference" section.
Battery Level Indicator
or
Stopwatch Mode
Date Screen
Day
Press A.
L
Day of week
A
Press D.
Reception date
2 seconds
Last Signal Screen
2 seconds
Time Calibration Signal Reception
There are two different methods you can use to receive the time calibration signal:
auto receive and manual receive.
• Auto Receive
With auto receive, the watch automatically picks up the time calibration signal five
times a day at 0:00 a.m., 1:00 a.m., 2:00 a.m., 3:00 a.m., and 4:00 a.m. For more
information, see "About Auto Receive".
• Manual Receive
Manual receive lets you start time calibration signal reception with the press of a
button. For more information, see "To perform manual receive".
Important!
• When getting ready to receive the time calibration signal, position the watch as
shown in the nearby illustration, with its 12 o'clock side facing towards a window.
Make sure there are no metal objects nearby.
Metal Band
Resin Band
• The watch should not be on its side or facing the wrong way.
• Proper signal reception can be difficult or even impossible under the conditions listed
below.
Inside or Inside a Near
household
vehicle
among
appliances,
buildings
office
equipment,
or a mobile
phone
World Time Mode
Alarm Mode
Receiving Indicator
and Seconds Count
Receiving indicator
Seconds
A
Current Time Screen
Hour : Minutes
PM indicator
Reception time
2 seconds
Near a Near high- Among or
construction tension behind
site, airport, or power lines mountains
other sources
of electrical
noise
