XtendLan TC-V200 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
TC-V200
User's Manual

Advertisement

Table of Contents
loading

Summary of Contents for XtendLan TC-V200

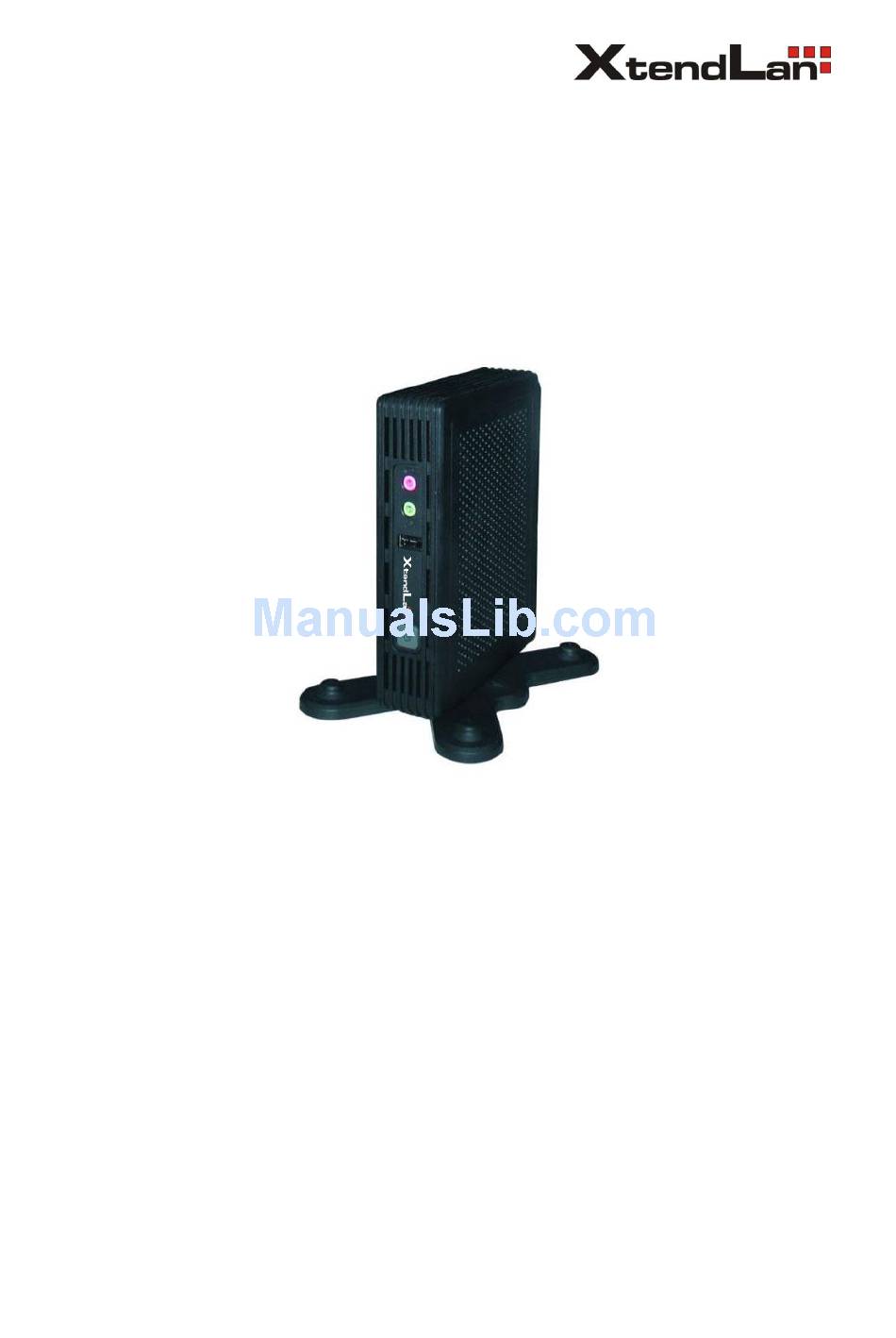

  • Page 1 TC-V200 User's Manual...

  • Page 2: Table Of Contents

    Index Terminal Overview......................2 Terminal User Manual.......................4 Applications........................4 2.1.1 Control Center....................4 2.1.2 Network......................5 2.1.3 Display......................10 2.1.4 Sound.......................14 2.1.5 Mouse......................16 2.1.6 Keyboard......................17 2.1.7 User Password....................18 2.1.8 Screen Lock..................... 19 2.1.9 Network Diagnosis..................
  • Page 3 Main features： 1. Supports RDP, ICA and X11 protocols 2. Supports auto-connecting to server when starting up, auto logging in and auto executing the applications 3. Realizes centralized management, centralized maintenance and centralized monitoring 4. Easy system updating and function extension 5.

  • Page 4: Terminal User Manual

    2 Terminal User Manual 2.1 Applications 2.1.1 Control Center Use “Control Center” The “Control Center” program provides the interface of using the configuration programs in the system Run the “Control Center” Running method: (1) Left click the “Control Center” icon in the quick start bar on the left bottom of the desktop;...

  • Page 5: Network

    Control Center Run the programs in the control center Select the program, double click it or press enter to run it 2.1.2 Network Trough network management, you can modify the terminal name; activate, inactivate, configure the network card; add, edit and delete the router item, set the default router and set DNS, etc. Run the network management Method Click the “Control Center”...
  • Page 6 Network (1) General This page lists the information of all the network cards. You can modify the terminal name, activate or deactivate the network card and edit the configuration information of the network card in this page. (a) Modify the terminal name As the picture shows below:...
  • Page 7 Modify the terminal name (b) Activate the network card When the network card is deactivated, click “activate” button and it would activate the selected network card. (c) Deactivate the network card Click the “Deactivate” button and it would deactivate the selected network card. (d) Network card property Select one network card and click “Property”...
  • Page 8 Configure the network card (2) Router This page lists the router information of all the network cards. You can add, edit and delete the router in this page as well as setting the default router. As the picture shows below:...
  • Page 9 Router Setting (3) DNS The setting of DNS is processed in this page. As the picture shows below:...

  • Page 10: Display

    DNS Setting 2.1.3 Display Use “Display” In “Display” property, you can customize the screen saver and screen resolution. The display properties include: screen saver, screen resolution, refresh rate and color depth, etc. Run the “Display” property Operation method: (1) Right click on the desktop and select “display”; (2) Click the “control center”...
  • Page 11 Display Settings Set the display properties (1) Display settings You can choose whether to use the function that automatically detecting the optimum resolution, display mode, color depth and primary display, etc. The “display mode” includes single display, clone, duplicate and extend; The “color depth”...
  • Page 12 Set the resolution of DVI port (4) VGA If the users want to set the resolution by themselves, please do not check “Optimum settings” in “Settings” tab, thus the output resolution of VGA can be set. As the picture shows below: “Resolution”...
  • Page 13 After finishing the parameter modification, click “Apply” or “OK” button, then a dialog box would pop up and prompt that the system will apply new display settings. As the picture shows below: Hints of saving display settings When the new display setting is applied, a dialog box would pop up and prompt whether to save the new setting.

  • Page 14: Sound

    If you select “None” in “screen saver” page, then all the other items in this page would become gray; if you select one of the screen saver programs, then you can preview this screen saver program and also set the waiting time of the screen saver; if you need the screen saver to lock the screen, select “Lock Screen”.
  • Page 15 When the scroll bar of the volume is focused, you can adjust the volume by right/left click of the mouse(according to the setting of the mouse), mouse wheel, the up and down keys, Page UP, Page Down, Home and End keys; When “Mute” is checked, the volume cannot be adjusted and the system is mute.

  • Page 16: Mouse

    Mute of Microphone 2.1.5 Mouse Use “Mouse” The “Mouse” property program is used for switching the left and right button of the mouse and mouse speed Run “Mouse” program Open control center and select “Mouse”. The operating interface is as the picture shows below:...

  • Page 17: Keyboard

    Mouse Property Set the left and right button of the mouse In “Button Configuration”, check “Swap left and right button”, and you can switch the function of left and right button of the mouse. The setting has immediate effect. If the checkbox is checked, then the right button of the mouse becomes the primary button.

  • Page 18: User Password

    The keyboard property program is used for setting the keyboard language and keyboard model of the terminal as well as whether to enable NumLock key when the system boots up. Run “Keyboard” property Open control center and select “Keyboard” The operating interface is as the picture shows below: Keyboard Property NumLock key If “Enable as Startup”...

  • Page 19: Screen Lock

    Open control center and select “Password” The operating interface is as the picture shows below: Set user password 2.1.8 Screen Lock Use “Screen Lock” The “screen lock” program is used for locking the screen when the terminal is not used and ensures that the terminal would not be used by others.

  • Page 20: Network Diagnosis

    Unlock the screen If the password input is wrong, a prompt dialog box would pop up and the screen would keep locked. 2.1.9 Network Diagnosis Use “Network Diagnosis” The “network diagnosis” program is used for checking the network status. Run the “network diagnosis” program (1) Click “Diagnosis”...
  • Page 21 Network Diagnosis The destination of network diagnosis When you ping a certain address, input this address in the text box of “Destination” and set ping times （5 times by default and 0 represents unlimited times ）. For example, pin the address 192.168.1.1, press enter and the operating interface is as the picture shows below: Ping the address 192.168.1.1...

  • Page 22: Vpn/Adsl

    The destination box cannot be blank, or the prompt dialog box would pop up. Limit of ping times When you ping some address, the time box must be filled in with a number and cannot be blank, or the prompt dialog box would pop up. 2.1.10 VPN/ADSL Use “VPN/ADSL”...
  • Page 23 connect to it. (c) After connecting successfully, an tray icon would show in the tray area on the right bottom of the screen, as the picture shows below: Tray icon when connected (d) If there is error during the connecting process which leads to connection failure, then system would show prompt and detailed information for users to query, as the picture shows below: Fail to connect...
  • Page 24 Set a new ADSL connection (Step 1) (c) Select “Next” and fill in the connection name, username and password, and then click “Next”. As the picture shows below: Set a new ADSL connection (Step 2)
  • Page 25 (d) Confirm the information input and if it is correct, click “Apply” to finish the adding. Now the new connection clause has been added in ADSL connection. As the picture shows below: Set a new ADSL connection (Step 3) Edit the connection clause-ADSL If you need to modify the information of a connection clause, like the connection name, username, password or other connection properties, then please open the network connection interface, select ADSL connection clause, click “edit”...
  • Page 26 General configuration of ADSL connection In other tab, you can set the other properties of the connection clause, including the binding network card, disconnect/reconnect properties and whether to automatically connect upon starting up. As the picture shows below: Other configurations of ADSL connection...
  • Page 27 Create a new connection-VPN Create a new VPN connection clause through below steps: (a) Open the network connection program (b) Click “New” button and select to create a new VPN connection, as the picture shows below: Set a new VPN connection(Step 1) (c) Select “Next”, fill in the connection name, server address, username and password and click “Next”.
  • Page 28 Set a new VPN connection (Step 2) (d) Confirm the information input and if it is correct, click “Apply” to finish the adding. Now the new connection has been added. As the picture shows below:...
  • Page 29 Set a new VPN connection (Step 3) Edit the connection clause-VPN If you need to modify the information of one connection clause, like the connection name, username, password or other connection properties, then please open the network connection interface, select one connection clause, click “edit” and you can modify the connection name, username or password.
  • Page 30 General configuration of VPN connection In security tab, you can set the encryption mode and authentication mode, as the picture shows below: Security configuration of VPN connection In other tabs, you can set the other properties of the connection clause, including...

  • Page 31: Date/Time

    disconnect/reconnect property and whether to automatically connect upon starting up. As the picture shows below: Other configuration of VPN connection 2.1.11 Date/Time Use “Date/Time” The “Date/Time” program is used for configuring the current date and time of the system. Run Date/Time program (1) Double click the time in the status bar on the right bottom of the desktop;...

  • Page 32: Save Settings

    Date/Time Configure the current date/time of the system You can adjust the time area, year, month and date in date adjusting bar and adjust hour, minute and second in time adjusting bar. After clicking “ok”, the time parameters are saved; if you click “cancel”, then the parameters would not be saved.

  • Page 33: Cdms Agent

    Saving Data 2.1.13 CDMS Agent Use “CDMS Agent” CDMS Agent program can set that whether the terminal can be managed by the server or specify the server which is allowed to manage. Run CDMS Agent (1) Double click “CDMS Agent” icon in the status bar on the right bottom of the desktop (2) Open control center and select “CDMS Agent”...

  • Page 34: Browser

    Password Confirmation You can only modify the server address and port after entering the correct password. For default password connect XtendLan reseller. An error prompt window would pop up if the password input is wrong. This password can only be modified through CDMS server.

  • Page 35: Service

    firefox 2.1.15 Service 1. Use “Service” The “Service” program is used for configuring the service which needs to start or stop when the terminal starts up or on its current status. 2. Run “Service” program Open control center and select “Service” The operating interface is as the picture shows below:...
  • Page 36 Service 3. Start or stop the service when the terminal starts up If you select “Automatic” in the dropping down box of a certain service, then this service would start automatically when the terminal starts up; or if you select “manual” in the dropping down box of the service, then this service would not start when the terminal starts up and after entering the terminal system, users can configure whether to start it by themselves.

  • Page 37: Start Up

    2.1.16 Start up 1. Use “Startup” The “startup” program is used for setting the programs which need to be started when the system starts up 2. Run “Startup” program Open control center and select “Startup” The operating interface is as the picture shows below: Start Up Check the programs which need to be started when the system starts up and click “Apply”...
  • Page 38 Open control center and select “Remote Desktop” The operating interface is as the picture shows below: Configuration Interface of Remote Desktop 3. Remote Desktop client For the terminal is used as the server side of the remote desktop, the users only need to install the client program of the remote desktop on some client machine to use this client program to connect to the terminal desktop through specifying terminal IP address.
  • Page 39 Do not allow the remote control 5. Security If you select to allow remote monitoring, then you can set the configuration items in the security bar and can select to ask the terminal for confirmation or to require the user to enter a password when the remote host connects to the terminal desktop.

  • Page 40: Device Manager

    Click “Apply” to save the settings. Click “Close” to exit the program. 2.1.18 Device Manager Use “Device Manager” The device management program is used to allow or forbid the use of devices. Run “Device Manager” program Open Control Center->Device Manager The operating interface is as the picture shows below:...

  • Page 41: Storage Device Manager

    Device Manager Allow to use When “Insmod” is checked, the corresponding device is allowed to use. Forbid to use When “Insmod” is not checked, the corresponding device is not allowed to use 2.1.19 Storage Device Manager Use “Storage Device Manager” The “Storage Device Manager”...
  • Page 42 Storage Device Manager 3. Mount USB disk or DVD When USB disk or DVD is inserted, the system would mount them automatically. You can also open “Storage Device Manager”, select the device and click “mount” to mount the device manually. 4.
  • Page 43 Umount the USB disk To eject DVD, select the device needed to be ejected and click “eject”. As the picture shows below: Eject DVD...

  • Page 44: Printer Management

    5. Use of the tray icon When inserting USB disk or DVD, a tray icon would appear in system notice area. Use this tray icon to open “Storage Device Manager”: (1) Use the left button of mouse and double click to open it (2) Right click this icon, the tag “Open Storage Device Manager”...
  • Page 45 Printer Management 3. Add the printer Click “Add” button and the interface of setting new printers would pop up. As the picture shows below: Add a printer The “printer port” includes serial port and USB port. Please select the right printer port.
  • Page 46 Property setting of serial port printer “Server driver” means the printer driver name used by ICA server to recognize the printer after connecting to the server via ICA. 4. Edit the printer Select the printer which you want to modify and click “edit”, the printer editing interface would pop up.
  • Page 47 picture shows below: Delete the printer 6. Check the print task: Select the printer to check its print tasks and click “print tasks”, the interface of checking the print tasks would pop up. As the picture shows below: Check the Print Tasks...

  • Page 48: Smart Card

    2.1.21 Smart Card 1. Use “Smart Card” The “smart card” program is used for adding, editing and deleting the smart card in the system. 2. Run “Smart Card” program Open control center-> Smart Card The operating interface is as the picture shows below: Smart Card Program 3.
  • Page 49 picture shows below: Smart Card Name 4. Edit smart card Select the smart card which you want to modify and click “edit” button, the interface of editing the smart card would pop up. As the picture shows below: Edit Smart Card 5.

  • Page 50: Ica Client

    connection of the connection manager. 2.1.22 ICA Client 1. Use “ICA Client” Used for connecting to Citrix virtual desktop 2. Run ICA Client Open control center->ICA Client 2.1.23 ICA Global Setting 1. Use“ICA Global Setting” ICA global setting is used for setting the device mapping and hotkeys of ICA connection 2.

  • Page 51: Vmware View

    port. The setting would take effect when connecting at next time. 4. Set the hotkeys: In hotkey mapping interface, you can modify the hotkeys. The setting would take effect when connecting at next time. As the picture shows below: Hotkeys Setting 2.1.24 VMware View 1.
  • Page 52 When running the security settings, the password verification dialog box would pop up first. As the picture shows below: Password Verification If the verification of the password (the initial password is blank) is successful, you would enter the security setting interface, as the picture shows below: Security Program Modify the program list of the control center If the item in the program list is checked, then it would appear in the control center and can...
  • Page 53 Click “Apply” button to save the modifications and the program interface would not close. Click “ok” to save the modifications and the program interface would close. Click “Cancel” button and the modifications would not be saved. Click “Select All” button and all the programs would be checked; click “Clear All” button and all the programs would not be checked.
  • Page 54 Modify the authority of configuring the connection manager (1) Allow to modify If you select “Allow” for the “connection manager”, the users can add, delete, edit and select whether to directly connect the connection clauses in the connection manager (2) Forbid to modify If you select “Forbid”...

  • Page 55: Connection Manager

    2.2 Connection Manager Use “Connection Manager” Through connection manager, you can add, edit and delete the connection clauses. There are these type clauses: RDP, ICA, XDCMP, etc. Run “Connection Manager” (1) Click the “connection manager” icon in the quick start bar on the bottom of the desktop;...
  • Page 56 The name of the connection clause added by users (2) Connection type The type of the connection clause added by users, includes RDP, etc. (3) Connection Status There are two statuses: “Direct” and “connected” When not connected and not set as direct connection upon starting up, the status is blank; When not connected and set as direct connection upon starting up, it shows “Direct”...
  • Page 57 Add a new session (5) Delete Click “Delete” button or press Alt + D, a dialog box for deleting would pop up, click “ok” and it would delete the selected item; click “cancel” or press ESC, it would cancel the deleting.

  • Page 58: Rdp Connection Guide

    When one connection item is set as direct connection upon the system starting up, click “direct” button or press Alt + T, a confirmation dialog box of canceling the direct connection would pop up, click “yes” and the system would cancel the direct connection setting of the selected item in current list box and the connection item would not connect directly when the terminal starting up.
  • Page 59 As the picture shows below: General Properties of New RDP Session 【 Note: The connection name should not include some special characters. Some Windows 2000 Server versions do not support automatic login to the server for security.】 Program If you check “Run the following program automatically when connected”, then it would log in to the server in application program mode.
  • Page 60 Program Properties of New RDP Session Device Mapping （1） Set serial port mapping. The number of the serial ports is recognized by the system automatically. Check a certain item and the corresponding serial port can be mapped as the serial port of the server. （2）...
  • Page 61 Device Mapping of New RDP Session Printer In this property page, you can use RDP connection to add, edit and delete the local printer. As the picture shows below: Printer Setting of New RDP Session...
  • Page 62 You can select whether to allow using the printer. If it is allowed, then you can input the printer name, select local port, the manufacturer and the printer driver. If the local port is selected as serial port, then you can configure the serial port property through the serial port property button.
  • Page 63 As the picture shows below: Display Properties of New RDP Session Advance In this property page, you can set the advance settings and keyboard layout of RDP connection. If “Desktop background” is checked, then it would display the desktop background set on the server by the user after RDP successfully connects to the server.
  • Page 64 If “Bitmap Caching” opens, the client would open bitmap caching area on local hard disk when connecting to the server through RDP. To enable this option would raise the performance (especially when the network bandwidth is narrow) and reduce the occupation of the bandwidth. In “keyboard layout”...

  • Page 65: Xdmcp Connection Guide

    terminal system can be copied and pasted into the word processor of RDP server. The “auto reconnect” function can prompt the users whether to reconnect to the server when the network is abnormal. It is recommended that the users enable compression which can obviously improve users’ visual experience when the network bandwidth is low.
  • Page 66 In this property page, you must input the name of the new connection in “Session Name” and server IP address or server name in “Server Address”; the session name cannot be the same with other XDMCP connections. You can choose Xnest and Xserver for the connection program. Xserver has better compatibility.

  • Page 67: Ica Connection Guide

    2.2.3 ICA Connection Guide Click “Add” in connection manager and select ICA connection type, click “Next” to enter ICA connection guide. 1. General In “General” property page, you must input the name of the new connection in “Session Name” and server IP address or server name in “server address”. The connection name cannot be the same with other ICA connections.
  • Page 68 Login Scripts of New ICA Session 3. Window In “Window” property page, users can set the system color number and window size after logging on ICA server. As the picture shows below: Window Properties of New ICA Session 4. Security In “security”...
  • Page 69 connection and set the firewall. As the picture shows below: Security Properties of New ICA Session 5. Options In “Options” property page, users can select ICA connection to do data compression and can choose whether to open the sound. As the picture shows below: Options of New ICA Session...

  • Page 70: Instruction Of System Hotkeys

    2.3 Instruction of System Hotkeys The system provides hotkeys for some applications and functions. Hotkey Function Ctrl+Alt+S Restore the default configuration of the display parameters Ctrl+Alt+Del Lock the screen Shift+F2 Save system settings Ctrl+Tab (or Alt+Tab) Switch the windows on the desktop(When switching windows in RDP full screen window, it only supports the hotkey Ctrl+Tab) Ctrl+Alt+C...
