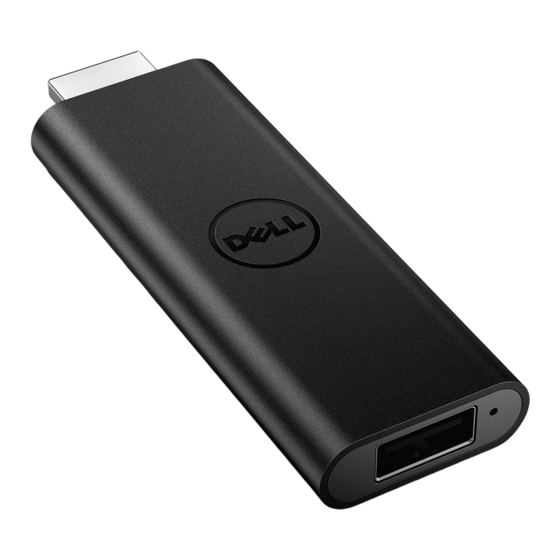

Dell Cast
User's Manual
Regulatory model: BEL01

Advertisement

Table of Contents
loading

Related Manuals for Dell Cast

Summary of Contents for Dell Cast

  • Page 1 Dell Cast User’s Manual Regulatory model: BEL01...
  • Page 2 WARNING: A WARNING indicates a potential for property damage, personal injury, or death. Copyright © 2014 Dell Inc. All rights reserved. This product is protected by U.S. and international copyright and intellectual property laws. Dell and the Dell logo are trademarks of ™...

  • Page 3: Table Of Contents

    Connecting Wired Keyboard and Mouse..11 Resetting Dell Cast ......12 Specifications .
  • Page 4 WARNING: Do not expose Dell Cast to water or extreme heat, cold, dust, or other extreme conditions, as Dell Cast may malfunction or cease to work. Do not attempt to disassemble or repair Dell Cast as it results in voiding your Dell Cast’s limited warranty and could harm you, your display device, and your Dell Cast.

  • Page 5: What's In The Box

    What’s in the box Dell Cast USB cable Quick Start Guide What’s in the box │...

  • Page 6: Features

    • Connect a USB-hub to simultaneously connect wired keyboard and mouse. Reset pinhole Press the reset button in the reset pinhole for 2 seconds using a paper clip to reset Dell Cast. For more information, see “Resetting Dell Cast” on page 12. │...

  • Page 7: Requirements

    NOTE: Dell Cast app is supported only on selected tablets. Android Dell Cast is integrated with the operating system of your tablet. Make sure that the operating system of your tablet is updated. To check for updates, → About Tablet → System Update.

  • Page 8: Connecting Dell Cast

    Connecting Dell Cast 1. Connect the receiver for wireless keyboard and mouse to Dell Cast, and turn on the keyboard and mouse. NOTE: If you are connecting a wired keyboard and mouse, see “Connecting Wired Keyboard and Mouse” on page 11.
  • Page 9 5. Switch the display device input to the HDMI port where Dell Cast is connected. NOTE: For information on switching input on your display device, see the documentation of your display device. HDMI The welcome screen appears and displays connected devices in green.

  • Page 10: Productivity Mode

    6. Launch Dell Cast app on your tablet and follow the instructions on the screen to set up Dell Cast. Productivity mode Productivity mode provides a desktop experience. By default, Dell Cast launches in productivity mode. Mirror mode Mirror mode replicates the user interface of the tablet.

  • Page 11: Connecting Wired Keyboard And Mouse

    Connecting Wired Keyboard and Mouse NOTE: You must connect a keyboard to complete Dell Cast setup. If you are connecting only a keyboard, connect the keyboard to the USB port on Dell Cast. Keyboard with a built-in USB hub 1. Connect the keyboard to the USB port on Dell Cast.

  • Page 12: Resetting Dell Cast

    To reset Dell Cast: 1. Makes sure Dell Cast is connected to your display device and Dell Cast is powered on. 2. Press the reset button in the reset pinhole on Dell Cast for 2 seconds using a paper clip. │...

  • Page 13: Specifications

    Specifications Device Information Marketing model Dell Cast Regulatory model BEL01 Supported operating system • Android 4.4 or later • Windows 8.1 or later Dimensions and Weight Length 73 mm (2.87 in) Width 28 mm (1.10 in) Depth 10 mm (0.39 in) Weight 30 g (0.07 lb)

  • Page 14: Certification Information For Fcc Statement

    Certification Information for FCC Statement NOTE: Dell is not responsible for any radio or display interference caused by unauthorized modifications to this device. Any modifications to this device could lead the device inoperative. This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

  • Page 15: Certification Information For Ic Statement

    Certification Information for IC Statement This device complies with Industry Canada license-exempt RSS-210 standard(s). Operation is subject to the following two conditions: 1. This device may not cause interference. 2. This device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d’Industrie Canada RSS-210 applicables aux appareils radio exempts de licence.

  • Page 16: Certification Information For Ce Statement

    Complies with the Canadian ICES-003 Class B specifications. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Certification Information for CE Statement These devices complied with the essential requirements of Article 3 of the R&TTE 1999/5/EC Directive and Directive 2004/108/EC.
