Philips Bodine WHRCT User Manual

RCT Remote Control Transmitter
When used in conjunction with a Bodine emergency ballast
equipped with the RCT remote control testing feature, this remote
control transmitter allows end users to test emergency ballast
operation from a remote location.

Specifications

Operating System
Pre-programmed infrared remote control
Compatibility
Used with Bodine emergency ballast equipped with the RCT
feature
Power requirement
2 AAA alkaline batteries
Effective IR range
2-30 feet, see Illustrations 1 & 2
Dimensions
12.6 cm x 4.2 cm x 1.7 cm
Weight (excluding batteries)
60 g (Approx.)
Warranty
5 years
Model WHRCT

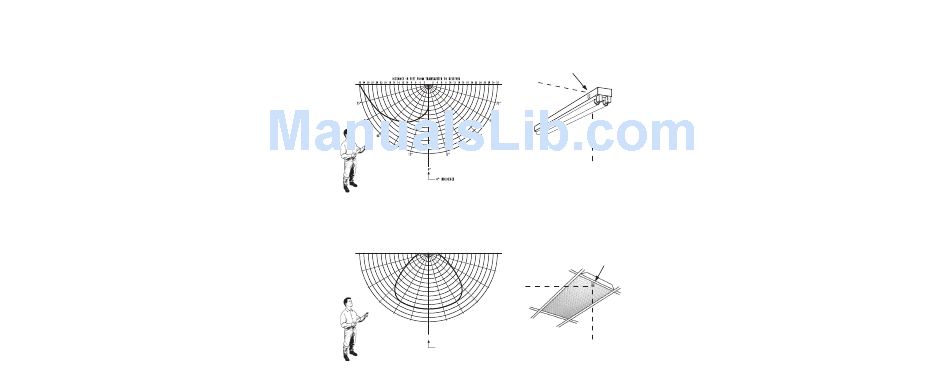

ILLUSTRATION 1
Range and Direction pattern for infrared receiver as mounted in a typical strip
fixture with two 8' lamps.
INFRARED RECEIVER MOUNTED ON SIDE
ILLUSTRATION 2
Range and Direction pattern for infrared receiver as mounted in a typical
troffer style fixture with four 4' lamps.
DISTANCE IN FEET FROM TRANSMITTER TO RECEIVER
INFRARED RECEIVER MOUNTED FLUSH
16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
BEHIND FIXTURE LENS DIRECTED DOWN
75° 75°
90°
60° 60°
45° 45°
30° 30°
15° 15°
0°
0° INCIDENCE
Operation
1. Aim the remote control transmitter at the infrared
receiver mounted in or on the lighting fixture.
2. Press the 30 SEC key to initiate a 30-second timed
test or the 90 MIN key to initiate a 90-minute timed test.
3. Observe emergency ballast operation and record
90°
test results.
4. Use the RESET key to cancel an unintentional test
at any time.
5. When testing is complete, the emergency ballast returns to
the charging mode.
0°
Maintenance
1. Do not expose the unit to high temperature, strong
sunlight, high humidity, mechanical shock or dust
2. Do not use old and new batteries together.
3. Keep the unit clean with soft, dry cloth.
4. Do not disassemble unit.

Troubleshooting

1. Check for noticeable damage.
2. Check if the batteries are low or inserted improperly.
0°
3. If transmission appears weak, replace batteries.
