Summary of Contents for KitchenAid Sculptura KUDH24SE

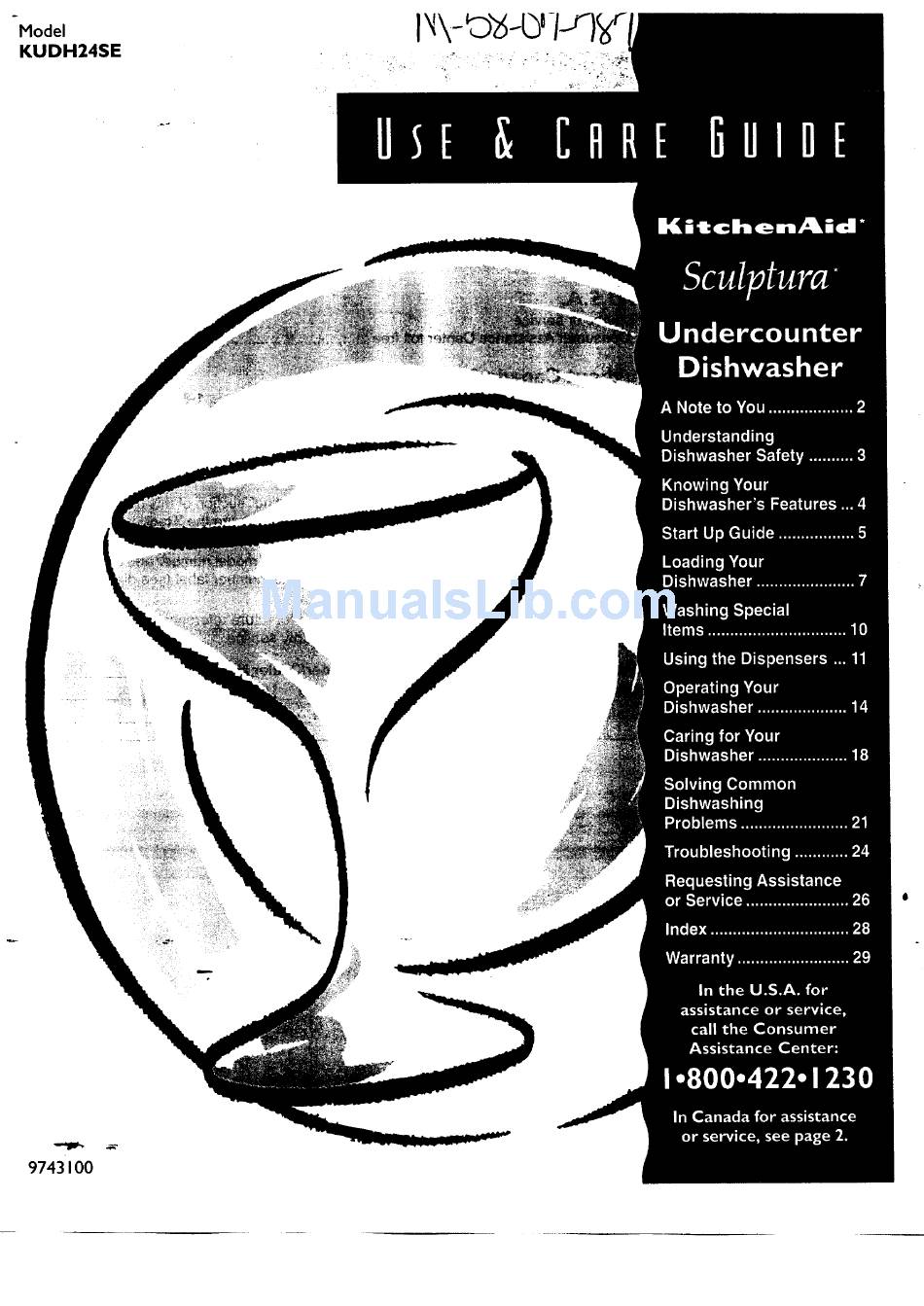

- Page 1 Model KUDH24SE 97431 O0...
- Page 2 Thank you for buying a KITCHENAID* KITCHENAID designs the best tools for the most important room in your house. To ensure that you enjoy many years of trouble-free operation, we developed this Use and Care Guide. It contains valuable information concerning how to operate and maintain your new appliance properly and safely.
-
Page 3: Safety Instructions
- When using the dishwasher, follow basic precautions, including the following: • Read all instructions before using the dishwasher. • Use the dishwasher only for its intended function. • Use only detergents or rinse agents recommended for use in the dishwasher, and keep them out of the reach of children. - Page 4 Lower rack (p. 8) Heating element Detergent dispenser (p. 11) Vent Control Panels KUDH24SE CLZAN WASH SELECTIONS Cycle pads with the parts and features called out. parts or features quickly, page references WATEB HEAll_G OPTIONS Option pads Upper Upper rack (p.
-
Page 5: Before Using Your Dishwasher
Such ruptures are not covered by the warranty. See winter storage information on page 19. ,, Install and level dishwasher on a floor that will hold the weight, and in an area suitable for its size and use. -
Page 6: How To Use Your Dishwasher
Using your new KITCHENAID* started. For more information see the page(s) next to the step you would like to know more about. NOTE: Before using your dishwasher, packaging materials. Please also read the entire Use and Care Guide as it con-... -
Page 7: Loading The Upper Rack
(down or inward). It is important for the water spray to reach all soiled surfaces. • Take care when loading heavy pots or pans into the dishwasher. They can dent the stainless steel interior of the door if they are dropped or bumped. -
Page 8: Loading The Lower Rack
Do not nest bowls because the spray won't reach their surfaces. • Do not load items between the bottom rack and the side of the dishwasher tub. This can block the water inlet opening. Utensil load Mixed load... -
Page 9: Loading The Silverware
Loading the silverware • Load the silverware basket while it is in the lower rack or take the basket out for loading on a counter or table. • Mix items in each section of the basket - some pointing up and some down. IMPORTANT: Always load sharp items (knives, skewers, forks, etc.) pointing down. - Page 10 These might shift during washing and transfer black marks to dishes and other items. Wash bottles and cans by hand. Labels attached with glue can loosen in your dishwasher, clog spray arms or the pump, and will reduce washing performance.
- Page 11 The detergent dispenser The detergent dispenser has 2 sections. The smaller Prewash section empties detergent into the dishwasher when you close the door. The larger Main Wash section empties detergent into the dishwasher during the wash cycle. 1. If the dispenser cover is closed, open the cover by rotating the blue button down.
-
Page 12: Using The Detergent
Using the detergent What type of detergent • Use automatic dishwasher detergent only. NOTE: Never use soap, hand-dishwashing detergent, or laundry detergent. These products will produce excessive suds which could cause flooding and reduce washing performance. • Follow manufacturer's instructions when using powdered, liquid, or gel dishwasher detergents. -
Page 13: Using The Rinse Agent Dispenser
Your dishwasher is designed to use a liquid rinse agent. Do not use a solid or bar-type rinse agent. -
Page 14: Cycle Selection Chart
Cycle selection chart The dishwasher will wash and dry dishes according to the selections you make on the control 3anel. The dishwasher remembers the last cycle and option(s) you selected. You only have to 3ress the Start pad if you want to use the same cycle and options. -
Page 15: Canceling A Cycle
The Clean light will turn off when you open the door. 2. Let the dishwasher drain completely. Energy Saver Dry Use this option to air dry dishes without heat. agent dispenser filled. Under certain conditions (hard water, empty rinse... -
Page 16: Changing A Setting
1. Press the Cancel pad to drain any water and to reset the control. Adding dishes during a cycle You can add an item to the dishwasher during the first 10 minutes of the cycle. 1. Unlatch the door to stop the cycle. Wait a moment for the spray action to stop before opening the door. -
Page 17: Operating Sounds
• Detergent cup opening. • Pump motor starting. • Run the dishwasher only with a full load. • Use only the cycle and optionsthat you need. • Run the dishwasher during off-peak hours if your utility company offers reduced rates on electricity during specific times of day. -
Page 18: Wash System
However, there are a few things you are expected dishwasher properly. This section tells you how to clean and care for your dishwasher. HYDROSWEEP* The HYDROSWEEP Wash System in your dishwasher provides excellent cleaning results. -
Page 19: Cleaning Your Dishwasher
"Removing spots and film" on page 23. • Do not clean the dishwasher interior until it has cooled. • Do not use any type of cleanser that may cause foaming or sudsing. Use cleansers made for stainless steel products. - Page 20 The drain air gap is usually located on top of the sink or countertop near the dishwasher. To order drain air gap (part number 300096), contact your local KitchenAid dealer. You can also call 1-800-422-1230 in the U.S.A., or 1-800-807-6777 in Canada.
- Page 21 Follow the loading instructions on pages 7-9. Your home water pressure should be 20 to 120 psi (138-828 kPa) for a proper dishwasher fill. You may need a booster pump on the water supply if the pressure is too low.
- Page 22 Throw away any lumpy detergent. Your home water pressure should be 20 to 120 psi (138-828 kPa) for a proper dishwasher fill. You may need a booster pump on the water supply if the pressure is too low.
- Page 23 To remove spots and film on dishes and glasses, or hard water film/lime buildup on the interior of the dishwasher, you may use white vinegar with the following procedure: 1. Load clean dishes and glasses in the dishwasher in regular manner.
- Page 24 High Temp. Wash option has . .too long been selected. Set your water heater to ensure that the water entering the dishwasher is at least 120°F (49°C). Water remains Wait for the cycle to finish. A small amount of water remaining is normal.
- Page 25 If it does not stop after the next cycle, call for ser- or buzzing vice. See page 17 for "Normal operating sounds." sounds Vapor appears PROBLEM CHECK THE FOLLOWING Vapor from door This is normal when dishwasher is in the drying portion of a cycle. See "Drying system" on page 16.
- Page 26 For further assistance ... If you need further assistance, you can write to KitchenAid with any questions or concems at: KitchenAid Brand Home Appliances Consumer Assistance Center c/o Correspondence Dept.
- Page 27 These parts will fit right and work right, because they are made with For further assistance ... If you need further assistance, you can write to KitchenAid Canada with any questions or concems at: Consumer Relations Department KitchenAid Canada 1901 Minnesota Court...
- Page 28 Solving ... CONTROL PANEL LIGHTS ... CYCLE Canceling ... Selection chart ... DETERGENT How much ... What type ... DISHWASHER OPERATION Adding dishes during cycle ... Canceling cycle ... Changing setting ... Starting ... DISPENSER Detergent ... Rinse agent ...
- Page 29 =Requesting Assistance or Service" section. In the U.S,A., call-our Consumer Assistance Center at 1-800-422-1230. Canada, call KitchenAid Canada at one ofth e telephone numbers listed on page 2. Benton Harbor, MI, U.S.A. 49022-2692 97431 O0 ©...
- Page 30 LIBRARY: Received Copied Entered ,NRPDS Received Scanned q_'n_<;/_ Batch #...
