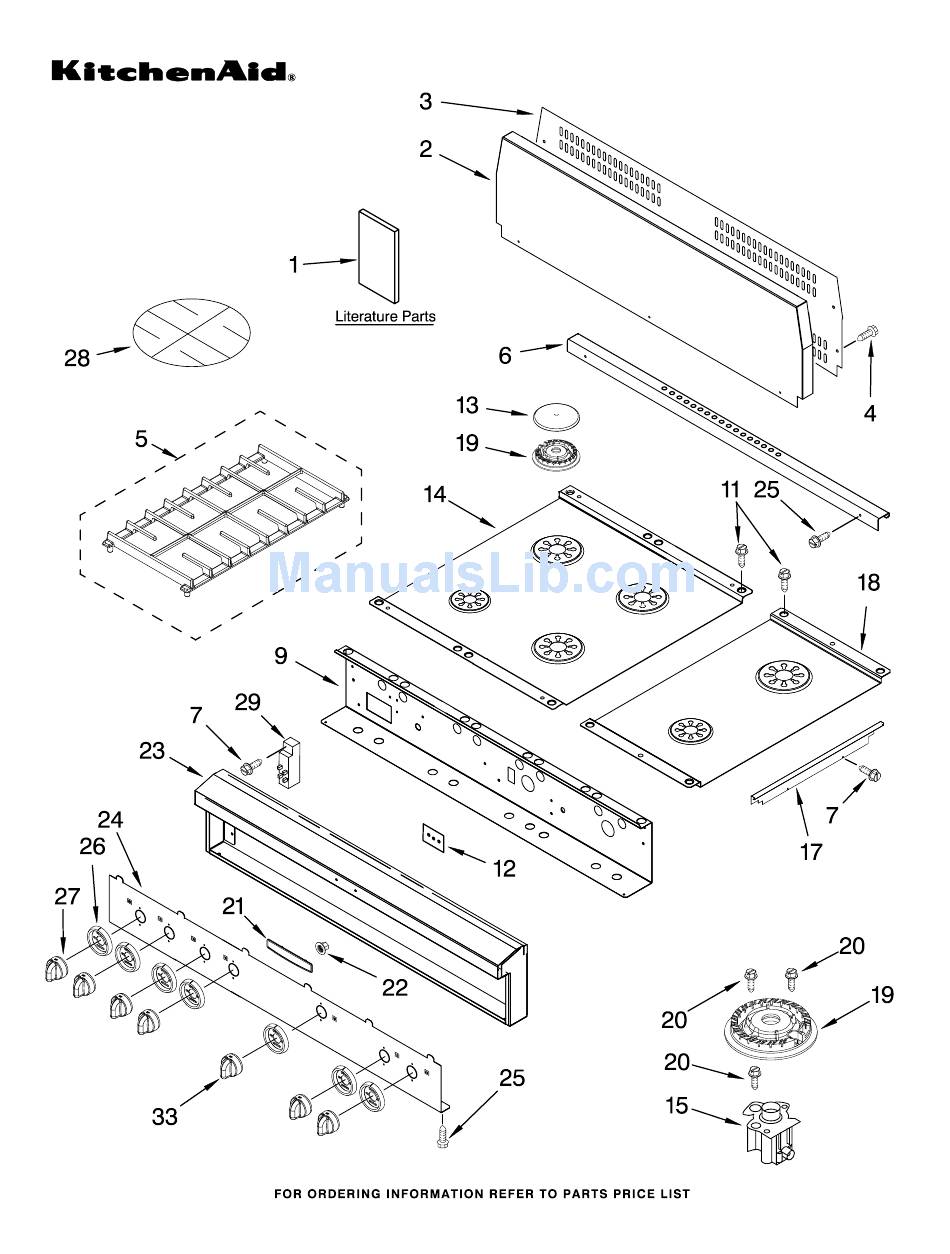

- Page 1 COOKTOP, BURNER AND GRATE PARTS For Model: KGCP483KSS03 (Stainless Steel) 48" Stainless Steel Professional Cooktop (with griddle) 4−05 Litho in U.S.A. (cre) Part No.8186336 Rev.A...
- Page 2 COOKTOP, BURNER AND GRATE PARTS For Model: KGCP483KSS03 Illus. Part 8285498 Wiring Diagram 8285588 Use & Care Guide 8285479 Installation 9759442 Instructions, 8284730 Backsplash 8284760 Support,Backsplash 3196537 Screw, 8−18 x 3/8 4457331 Grate, Burner 8284852 Trim, Island 3400843 Screw, 8−18 x 1/4...
- Page 3 BURNER BOX, GAS VALVES, AND SWITCHES For Model: KGCP483KSS03 (Stainless Steel) 8186336...
- Page 4 8284737 Manifold (Includes Items #9 & #30) 4456818 Valve, Burner (Turbo)(4) 8523704 Bolt, Valve 4456907 Burner Switch & Harness Assembly 3191387 Seal, Switch For Model: KGCP483KSS03 (Stainless Steel) Illus. Part DESCRIPTION 9759091 Regulator,Pressure 4457095 Burner Box 8284805 Bracket, Griddle Valve...
- Page 5 OPTIONAL PARTS (NOT INCLUDED) For Model: KGCP483KSS03 (Stainless Steel) Illus. Part DESCRIPTION WIRING HARNESS PARTS 8285527 Power Cord 4456628 Harness, Ign 42" 4456627 Harness, Ign 28" 1129449 Bushing, Electric 4167077 Nut, Tinnerman Miscellaneous 8284782 L.P. Orifice Spud Pack 8186336...
