Punch Series Light

User Manual (IP20 Protection)

Table of Contents

Summary of Contents for AAdynTech Punch Series Light

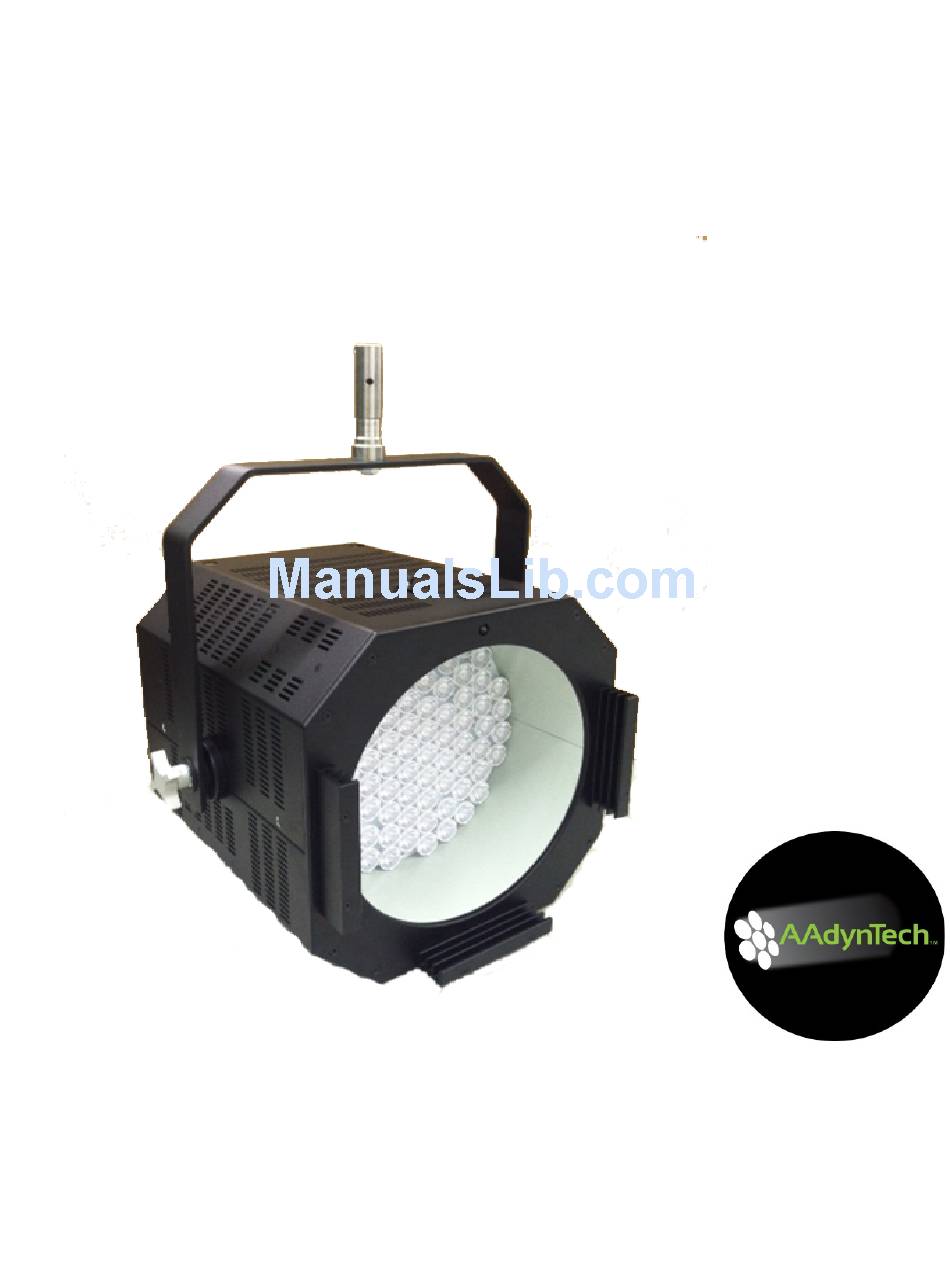

Page 1 Punch Series Light User Manual (IP20 Protection) ...
Page 2: Table Of Contents
Table o f C ontents Before y ou B egin_________________________________________________ 3 What i s I ncluded_________________________________________________ 3 Unpacking I nstructions_____________________________________________3 Symbol D efinitions________________________________________________ 3 Safety ...
Page 3: Before Y Ou B Egin
Safety N otes The Punch Series light fixtures are for professional use only. Please Read Entire User Manual Before Using Equipment. This light is intended for indoor use only. The light is ETL & CE listed with IP20 protection.
Page 4: Introduction
Introduction Product D escription The Punch series light is a professional grade, LED based, fixture which provides exceptional light output and control. The light is capable of standalone, tethered remote, wired DMX, or wireless DMX control and offers a full array of brightness settings as well as Strobe and Lightning functions.
Page 5: Quick S Tart
Setup Quick S tart Remove the AAdyn light from its protective shipping packaging and place it in a safe and secure location for setup or use. Prior to proceeding further, make sure that light is resting on a stable surface or is properly attached to a mounting location using the supplied yoke and yoke pin mounting system.
Page 6: Rear B Ulkhead I Mage
The 6’0” AC power cable for the Punch series light is located in a plastic bag under the diffuser kit. Uncoil the black AC power cord from the holder and plug the blue female end into the AC Input •...
Page 7: Ac P Ower
Warning! Lights operate on grounded 110Vac, 50/60Hz or 240Vac, 50/60Hz AC Input. AC Supply Source must be sized properly and have approved protection circuitry for safe operation. Take care to observe all proper precautions when connecting power. Warning! Lights are intended for indoor operation and use only. Use in safe and dry location only •...
Page 8: Control S Election
Warning! Standard power cord supplied with Punch light is intended to connect with standard, single-phase 110-120 Vac, 60 Hz USA circuit. Other power cords for connection to other countries’ single phase circuits are available as options. No other special adjustments or changes are required for operation at international voltages.
Page 9: 1. Functional Requirements
1. Functional Requirements The AAdyn Punch light is controlled by software (embedded firmware). In general the software shall control the light and accept user inputs from multiple device types. Via the user inputs the light may be controlled and various parameters may be saved in non-volatile memory. The software shall monitor input from the following: CIM –...
Page 10 The software shall present individually sixteen startup profiles to the user: PRESET1, • PRESET2, PRESET3, CUSTOM1 through CUSTOM12, and OFF changing the choice each time the right or left arrow button is pressed. When a profile is selected by the user, the software shall save this choice to non-volatile •...
Page 11 RECALL SETTING • The software shall present individually fifteen choices to the user: PRESET1, PRESET2, • PRESET3, and CUSTOM1 through CUSTOM12 changing the choice each time a right or left arrow button is pressed. The CUSTOM settings are described below. The PRESET settings shall be hard coded into the software and not changeable by the •...
Page 12 0 shall indicate that the UIM BRIGHTNESS parameter change is to occur immediately • and 100 percent shall introduce a three second delay in changing the current parameter value to the requested value. At power on, the value of UIM FADE shall default to 0 percent if there is no power on •...
Page 13 The factory default for the UIM EFFECT FREQUENCY parameter shall be 75%. • The preset values shall be set as follows: • PRESET 1 • LIGHT CONTROL UIM BRIGHTNESS 100% UIM FADE UIM EFFECT SELECTION NONE UIM EFFECT FREQUENCY DMX BASE ADDRESS DMX CHANNEL MODE PRESET 2 •...
Page 14 The software shall retain the menu state after the UIM is unplugged and remain on the same screen if the UIM is reattached. 1.2. Douse Switch/Douse Button The software shall separately detect and process a press and release of the red Cancel (X) button •...
Page 15: Technical S Pecifications
GENERAL SPECIFICATIONS:...
Page 16 PUNCH PLUS...
Page 17 PUNCH TUNGSTEN...
Page 18: Limited Warranty
This warranty is effective for purchases of AAdynTech’s product on or after the effective date set forth below. AAdynTech reserves the right to modify this warranty from time to time. Any modification of this warranty shall be effective for all orders placed with AAdynTech on or after the effective date of such revised warranty.
Page 19: General C Are, M Aintenance & C Ontact U S
Any cleaning of the light, especially the LED optics should be with a damp, not wet, soft cloth that is non-abrasive. Contact U s AAdyn Technology, LLC 80 Route 4 East, Suite 120 Paramus, NJ 07652 201-368-2800 www.aadyntech.com...
