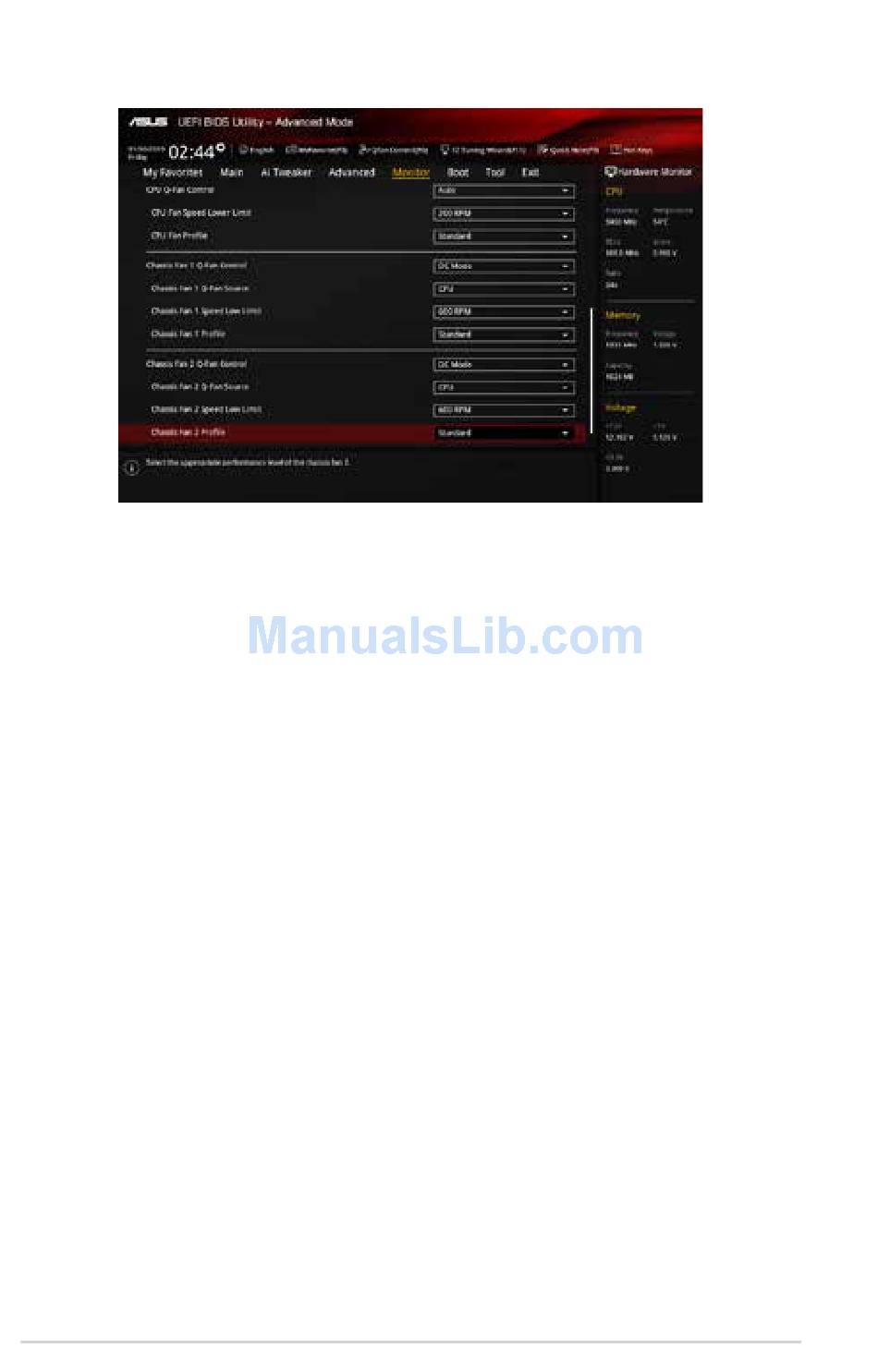

Scroll down to display the following items:
2.7.1 Qfan Tuning
Click this item to automatically detect the lowest speed and configure the minimum duty cycle
for each fan.
2.7.2 CPU Temperature / MB Temperature [xxx°C/xxx°F]
The onboard hardware monitor automatically detects and displays the CPU / mobtherboard
temperature. Select Ignore if you do not wish to display the detected temperature.
2.7.3 CPU Fan Speed, Chassis Fan 1 / Chassis Fan 2 Speed
[xxxx RPM] or [Ignore] / [Monitor]
The onboard hardware monitor automatically detects and displays the CPU Fan Speed /
Chassis fan 1/2 speeds in rotations per minute (RPM). If the fan is not connected to the
motherboard, the field shows N/A. Select Ignore if you do not wish to display the detected
speed.
2.7.4 CPU Input Voltage(VCCIN) / CPU Core Voltage / 3.3V
Voltage / 5V Voltage / 12V Voltage
The onboard hardware monitor automatically detects the voltage output through the onboard
voltage regulators. Select Ignore if you do not want to detect this item.
2.7.5 CPU Q-Fan Control [DC Mode]
[Auto]
[Disabled]
[DC Mode]
[PWM Mode]
2-36
Detects the type of CPU fan installed and automatically switches the mode
control.
Disables the Q-Fan control.
Enables the CPU Q-Fan control feature in DC mode for 3-pin CPU fan.
Enables the CPU Q-Fan control feature in PWM mode for 4-pin CPU fan.
