Congratulations!
The Kenwood Fineline™ RFU-6100 RF Wireless System eliminates the long wires that run from
your A/V receiver to your surround speakers. Our RF wireless technology works with any
conventional surround speaker, so you are free to choose any brand and model of surround
speaker, or you can use it with surround speakers that you already own. This sheet explains
how to connect and set up the system's RF transmitter and RF receiver units.
Setting Up the Wireless System
1. Connect
the
RF
transmitter's speaker

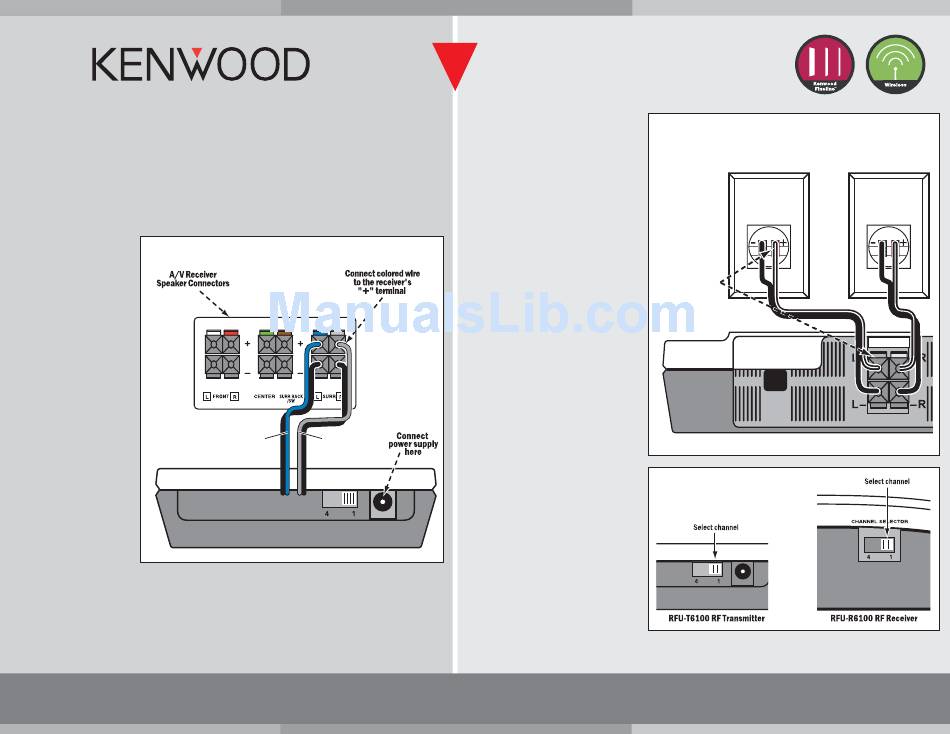

RF Transmitter Connections
wires as shown in the
diagram to the right.
• Connect the wire
with the blue lead to
the A/V receiver's
Left Surround speak-
er output's "+" termi-
nal; connect the wire
with the gray lead to
the A/V receiver's
Right
Surround
speaker output's "+"
terminal.
NOTE: The transmitter
can be used with A/V
RFU-6100T RF Transmitter
receivers with a sur-
round channel power
rating of up to 120
watts per channel.
Use with surround
channel
power
of
more than 120 watts
per
channel
may
cause audible distortion.
2. Connect the supplied power supply adapter as shown in the diagram above.
Important: D D o n n ot p p lug t t he p p ower a a dapter i i nto t t he w w all o o utlet u u ntil y y ou h h ave m m ade
all o o f t t he R R F t t ransmitter a a nd R R F r r eceiver c c onnections ( ( Step 7 7 ).
3. Place the RF transmitter at least one foot off the ground. Avoid placing it close to large metal
objects like radiators or heating/air conditioning ducts. These objects can absorb RF signals
If you have any questions about your new system, please contact our Customer Service Department at
(800) KENWOOD or visit our web site at www.kenwoodusa.com
Blue
Gray
Wire
Wire
RFU-6100
and degrade the system's perform-
ance.
• To minimize interference, place
the RF transmitter away from
your A/V receiver and TV.
4. Connect the left & right surround
speakers to the RF receiver as
shown in the diagram to the left.
• Connect the terminal with the
blue lever to the left surround
speaker; connect the terminal
with the gray lever to the right
surround speaker.
• Make sure to connect the "+" ter-
minals on the RF receiver to the
"+" terminals on the speakers.
5. Place the RF receiver at least one
foot off the ground. Avoid placing it
close to large metal objects like
radiators or heating/air condition-
ing ducts. These objects can
absorb RF signals and degrade the
system's performance.
• To minimize interference, place
the RF receiver away from your
A/V receiver and TV.
6. Make sure that the RF channel
switches on the transmitter and
receiver are both set to the same
channel (see the diagram to the right).
7. Plug the RF receiver's AC cord and
the RF transmitter's power adapter
into a wall outlet..
8. Extend the antennas on both units
as needed to improve reception.
9. If reception is poor or there is inter-
ference, change the RF channel on
the transmitter and receiver as shown in the diagram to the right.
• Make sure both units are set to the same RF channel.
Kenwood F F ineline
Copyright ©2004 Kenwood USA Corporation. All rights reserved.
RF Receiver Connections
Left Surround
Speaker
Connect
+
the speaker's "
"
(red) terminal
to the receiver's
colored connector
RFU-6100 RF Receiver
RF Channel Selection
Quick S S tart G G uide
™
Right Surround
Speaker
032-0604 6100 QSG
