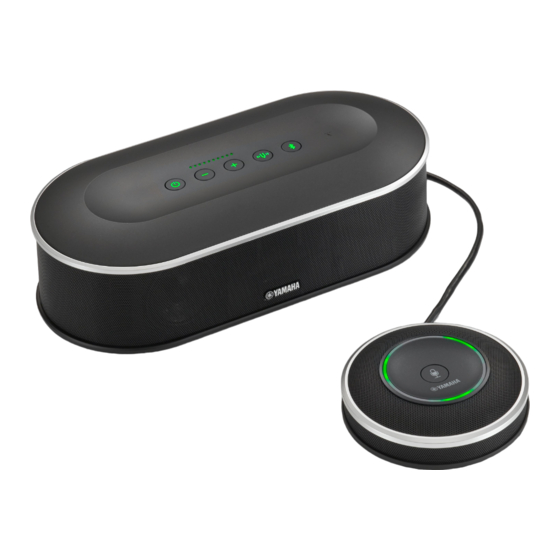

Yamaha YVC-1000 User Manual

Unified communications microphone & speaker system
Hide thumbs Also See for YVC-1000:
Table of Contents

Advertisement

Quick Links

See also: User Manual
YVC-1000
Unified Communications
Microphone & Speaker System
User's Manual

Advertisement

Table of Contents
loading

Related Manuals for Yamaha YVC-1000

Summary of Contents for Yamaha YVC-1000

  • Page 1 YVC-1000 Unified Communications Microphone & Speaker System User's Manual...

  • Page 2: Table Of Contents

    Control Unit (YVC-CTU1000) ......4 the audio quality ..........31 Microphone (YVC-MIC1000) ......8 Q3 Others ............32 Warning guidance list ........33 How to use YVC-1000 Specifications ............. 34 Using open source software ......35 Setting up for use ..........9 Installation ............9 Connecting the microphone and power cables ............10...

  • Page 3: Introduction

    • Specifications of the product and contents of this manual are subject to change without notice. • Yamaha is not liable for any loss or damage to data resulting from use of the product. Please note that the warranty covers repair of the product only.

  • Page 4: About This Manual

    Google Inc. ® • Bluetooth is a registered trademark of the Bluetooth SIG and is used by Yamaha in accordance with a license agreement. • NFC logo (N-Mark) is a trademark or registered trademark of NFC Forum, Inc.

  • Page 5: Controls And Functions

    Controls and functions Control Unit (YVC-CTU1000) ■ Power button/indicator ( Tuning fork button/indicator ( Press to turn the product on. Press and hold the power It lights up or flashes orange if there is a problem. If a button for two or more seconds to enter standby mode. problem is indicated, press the tuning fork button ( to activate the voice guidance about the detected problem.
  • Page 6 ■ Indicator status for each button The status of the product is indicated by the indicator color and the light up/flash mode for each button. Button type Button status Status of the product Power button ( Lit (Red) Standby Lit (Green) Power-on Lit (Orange) Firmware error...
  • Page 7 ■ Level indicator The level indicator shows the input level of an incoming voice, speaker volume, or speaker output settings. Level indicator The table below shows indicator patterns viewed from this side. Status Description Indication example ( : ON, : OFF) Normal Indicates the input level of an No audio signal is input.
  • Page 8 ■ Rear 1 2 3 4 5 6 Power terminal External speaker terminals Used to connect the supplied power cable. Used to connect the speakers to the built-in amplifier. USB port Audio output terminals (AUDIO OUT) Used to connect the product to a PC or a Mac using the Used to connect to the audio input terminals of a video supplied USB cable.

  • Page 9: Microphone (Yvc-Mic1000)

    Microphone (YVC-MIC1000) ■ Microphone mute button ( Press to temporarily turn off (mute) the microphone. To cancel the mute function, press it again. Microphone status indicator Lights up green when the microphone is active. Lights up red when the microphone is muted. When the microphone is active, this indicator lights up brightly if sounds are input.

  • Page 10: Setting Up For Use

    Setting up for use Installation Place the product in a location you will actually use it in, for example, a conference room. ■ Notes on installation • Place the microphone at least 1 m (3.3 ft) away from the Control Unit. If the Control Unit is too close to the microphone, it may cause an echo phenomenon on the other side.

  • Page 11: Connecting The Microphone And Power Cables

    Connecting the microphone and power cables Connect the microphone and power cables supplied with the product. Power button Match the Plug into an color labels. outlet Notes Connect the microphone to the • When connecting the microphone cable, be sure to Control Unit using the microphone match the color labels of the microphone cable and of cable supplied with the product.

  • Page 12: Setup

    Setup Set the product up to make best use of it. ■ Turning the power on Press the power button ( ) of the product to turn the power on. When the power is turned on, all the buttons light up green. ■...

  • Page 13: Connecting To Communication Equipment

    Connecting to communication equipment This section describes how to connect each communication device. After connecting them, check whether or not sounds are output normally. Connecting to a PC using the USB cable ■ Before connecting, check the following. Prepare the USB cable supplied with the product. The following system environment is required in the PC to be connected to the product.
  • Page 14 When the power is turned on, all the buttons light up green. If it is not set to the default device, click "Yamaha YVC-1000", and click "Set Default". Display the control panel. • In Windows 7, click "Start" - "Control Panel".
  • Page 15 Check that "Yamaha YVC-1000" in the Microphone field is set to the default device. If it is not set to the default device, click "Yamaha YVC-1000", and click "Set Default". Check Normally, when a connection is made, "Yamaha YVC- 1000" is automatically set to the default device.
  • Page 16 ■ Adjusting the microphone sensitivity Sound may crack or become faint on the other side depending on your environment. In this case, adjust the microphone sensitivity. Note The items and other options shown in the setting window vary depending on your PC environment. Display the control panel.

  • Page 17: Connecting To A Mac Using The Usb Cable

    Connecting to a Mac using the USB cable ■ Before connecting, check the following. Prepare the USB cable supplied with the product. The following system environment is required in the Mac to be connected to the product. • OS: Mac OS X 10.9, Mac OS X 10.8 •...
  • Page 18 "Select a device for sound output:" field. When the power is turned on, all the buttons light up green. If "Yamaha YVC-1000" is not selected, click on it. Click on the upper left of the Mac screen, and click "System Preferences".
  • Page 19 ■ Adjusting the microphone sensitivity Sound may crack or become faint on the other side depending on your environment. In this case, adjust the microphone sensitivity. Note The items and other options shown in the setting window vary depending on your Mac environment. From on the upper left of the Mac screen, select "System Preferences"...

  • Page 20: Connecting To A Smartphone Or Tablet Via Bluetooth

    • Yamaha does not ensure all Bluetooth connections between the product and smartphones. • The product is displayed as "YVC-1000 Yamaha" on the display of the smartphone. • Only one smartphone can be connected to the product using Bluetooth.
  • Page 21 ■ Making a Bluetooth connection with the paired smartphone A Bluetooth connection is made simultaneously with pairing depending on smartphones. In such a case, this procedure is not required. Press the power button ( ) to turn Bluetooth button the product on. Power button When the power is turned on, all the buttons light up green.
  • Page 22 ■ Pairing and Bluetooth connection using the NFC function (for NFC-compatible model) If the smartphone satisfies the following conditions (hereinafter, referred to as an "NFC-compatible model"), pairing and Bluetooth connection operations can be performed easily. • NFC-compatible Android devices, versions 4.1, 4.2, 4.3 and 4.4 Before starting this procedure, turn the NFC function on in the smartphone.

  • Page 23: Connecting To A Video Conference System Using Audio Cables

    Connecting to a video conference system using audio cables ■ Before connecting, check the following. Prepare two audio cables (stereo RCA pin plug) for input and output. The video conference system may provide different shapes of audio input and output terminals depending on the model. Use audio cables with the plug shapes that match the shapes of the audio input and output terminals for you video conference system.

  • Page 24: Using Convenient Functions

    Using Convenient Functions This section describes convenient functions provided by the product. Using multiple microphones Up to five microphones, including the supplied microphone and optional microphone (YVC-MIC1000EX), can be connected to the product. When using the product in a layout or a multi-participant conference that cannot be covered by only one microphone, use multiple microphones to extend the area where sounds can be picked up.

  • Page 25: Using External Speakers

    Using external speakers Up to two speakers with built-in amplifiers can be connected to the product as external speakers. When using the product in a layout or a multi-participant conference that cannot be covered by only the built-in speaker, use external speakers to extend the area where playback sounds can be heard.

  • Page 26: Using The Automatic Audio Tuning Function

    Using the automatic audio tuning function The automatic audio tuning function automatically measures acoustic features of the location the product is installed in as well as acoustic conditions such as positions to place the microphone and speaker, and tunes the acoustic settings to the optimal level to suit the environment the product is used in.
  • Page 27 ■ When automatic audio tuning has ended abnormally (problem detection) When automatic audio tuning has ended abnormally (problem detection), the tuning fork button ( ) flashes orange at high speed. Check the detected problems using the voice guidance, and take the appropriate action, referring to "Warning guidance list"...

  • Page 28: Changing Voice Guidance Settings

    Changing voice guidance settings Notify results of operations such as a Bluetooth connection, problems in acoustic conditions, or the automatic audio tuning procedure using the voice guidance. The voice guidance can be enabled or disabled, and its language can be switched as necessary. The voice guidance language is set to English in the factory settings.

  • Page 29: Selecting A Speaker

    Selecting a speaker Select whether to output incoming sound through only the built-in speaker, only external speakers, or both the built-in speaker and external speakers. Volume + and - buttons Level indicator The table below shows indicator patterns viewed from this side. Hold down the volume + and - buttons ( ) for 2 seconds or more at the same time.

  • Page 30: Adjusting The Speaker Volume

    Adjusting the speaker volume Muting the microphone When external speakers are not connected or only the Temporarily stop the microphone so that the other party built-in speaker is enabled, press the volume + and - does not hear a voice in this side. buttons ( ) to adjust the volume.

  • Page 31: Enabling Or Disabling The Bluetooth Function

    Enabling or disabling the Bluetooth Returning to the factory settings function Return the settings of the product to the factory settings. If this operation is performed, Bluetooth pairing When not using a Bluetooth connection, you can disable information is also erased. the Bluetooth function.

  • Page 32: Troubleshooting

    Troubleshooting Before inquiry Referring to this manual, check whether the detected problem can be resolved. If the problem recurs, please contact the retailer or dealer who you purchased the product from. Q1 A button or indicator is turned off or flashing Symptom Cause Action...

  • Page 33: Q3 Others

    Symptom Cause Action An echo or feedback is heard A microphone other than the product is Select the product in the communication on the other side. connected to a communication device. device settings. (→ page 13, 17) The Control Unit is close to or far away Place all microphones 1 m to 20 m (3.3 ft from the microphone.

  • Page 34: Warning Guidance List

    Warning guidance list When the product detects a problem related to acoustic conditions, you can confirm its details using the voice guidance. (For details, refer to "When automatic audio tuning has ended abnormally (problem detection)" (page 26) and "Detecting acoustic conditions in general use" (page 26)". Take the appropriate actions - outlined below - to resolve the detected problem.

  • Page 35: Specifications

    Specifications ■ General Interface: Control Unit: USB 2.0 High Speed, Bluetooth, NFC (Near Field Communication) Audio Input terminal (stereo RCA pin), Audio Output terminal (stereo RCA pin), External speaker terminal (RCA pin) x 2, Power terminal, Microphone terminal Microphone: Input and output terminals Power consumption 20 W (one microphone connected), 35 W (five microphones connected) (max):...

  • Page 36: Using Open Source Software

    Using open source software This product uses open source software based on the BSD license. The BSD license is a software license system that grants program distribution subject to the no-warranty stipulation and the presentation of a copyright notice and license clause list.
  • Page 37 © 2014 Yamaha Corporation All rights reserved. As of April 2014, 1st edition...
